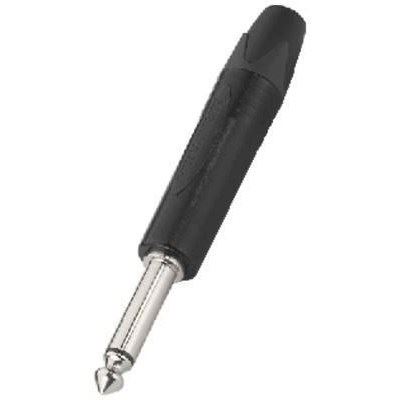

Neutrik jackstik mono - NP-2XBAG

NEUTRIK 6.3mm plugs, Nickel-plated, with black housing

NEUTRIK 6.3 mm mono plug

Note:
The supplied strain relief clamp cannot be used with a cable diameter > 5.5 mm.

Type	plug
Type	NEUTRIK plug 6.3 mm
Quantity	1
Features	slimline
Colour/colour coding	black
Power rating	< 50 V
Insulating resistance	> 2 GΩ
Dielectric strength	DC current 1 kV
Certification	IEC 60603-11 / EIA RS-453 IEC 68-2-20
Pole number	2
Cable inlet	Ø 4-7 mm
Suitable cable cross section	1 mm²
Connection	soldering contacts
Strain relief	self-adjusting clamps
Cable bending protection	yes
Stereo	-
Mono	yes
Switches	-
Material	diecast zinc
Central fixing	-
Contact type	-
No. of contacts	-
Contact width	-
Contact distance	-
Admiss. ambient temp.	-20 to +65 °C
Dimensions	-
Diameter	-
Length	-
Weight	24 g
Other features	-

Varenr.: 346990
