FEATURES

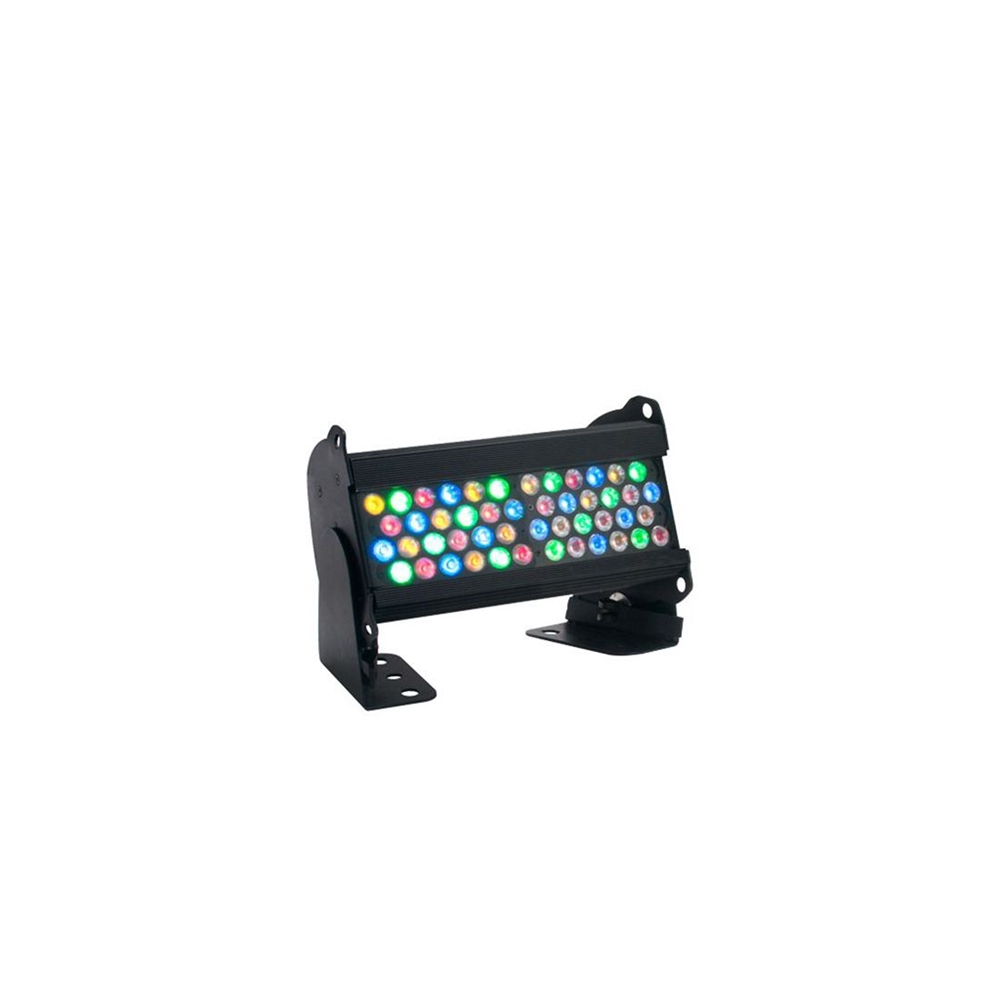

Versatile High Power RGBA Batten
Individual Hue, Saturation, and Intensity Control
LED Group Control
Dynamic Amber (RGB/HSI control with automatically adjusting Amber)
Multiple Unit Power Linking
Variable Dimming Curves
Flicker Free Operation for TV and Film
KlingNET™ and Art-NET (DMX over Ethernet)
RDM – Remote Device Management
SOURCE
Individual 3W (Red, Green, Blue & Amber) LEDs
(48) Total LEDs (12 per each color)
100,000 Hour Average LED Life*
PHOTOMETRIC DATA
2.265 LUX 210 FC @ 9.8’ (3m)
EFFECTS
Individual Hue, Saturation, Intensity Control
LED Group Control
Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Curves
COLOR
RGBA
CONTROL / CONNECTIONS
Multiple DMX Channel Modes
19 Modes (3 – 13 Channels)
RDM (Remote Device Management)
4 Button Control Panel
LCD Menu Display

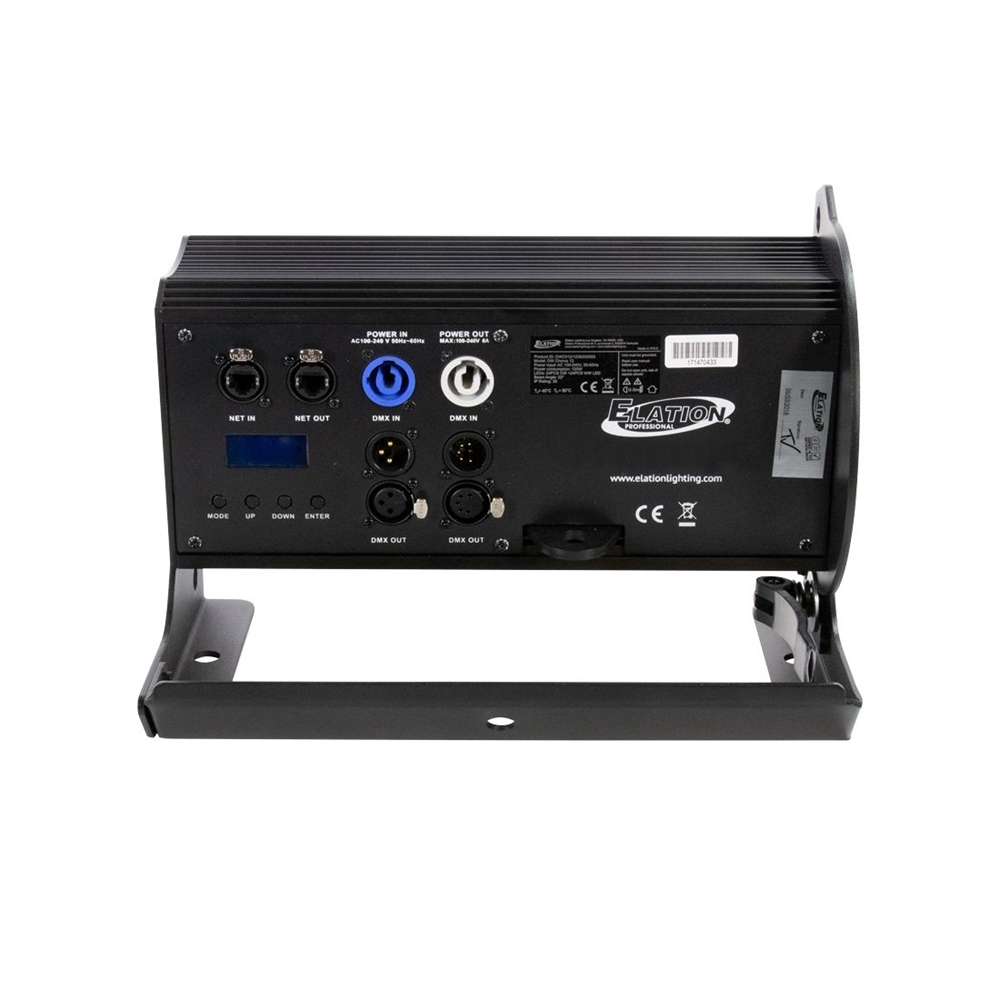

Locking 3/5pin DMX In/Out
Locking RJ45 ethernet In/Out (KlingNET™ / Art-NET)
Locking power connector In/Out
SIZE / WEIGHT
Length: 12.4" (316mm)
Width: 7.0” (177.1mm)
Vertical Height: 8.9” (227.1mm)
Weight: 12.0 lbs. (5.4kg)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
105W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
OPTIONAL ACCESSORIES
1322000060 C-Loader II
