Light source / Optics

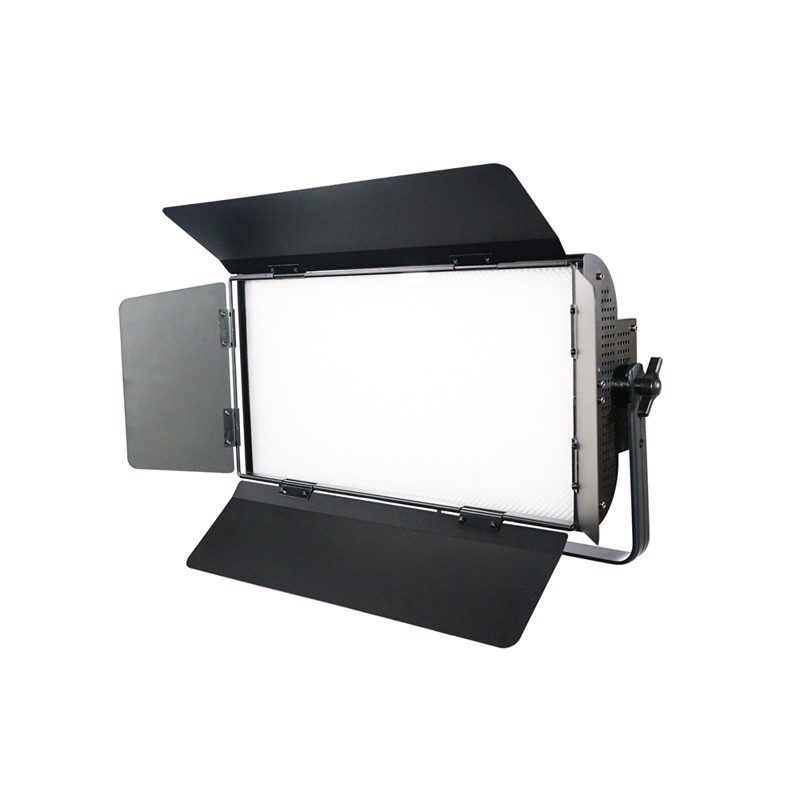

LED panel with adjustable colour temperature from 3200 to 5600 Kelvin.
Color: Warm to Cold white.
1200 pieces of 0,5 Watt each, SMD LEDs.
Lifespan: 50.000 hours
High colour rendering index: ≥92Ra CRI
Beam angle: 120 degrees.

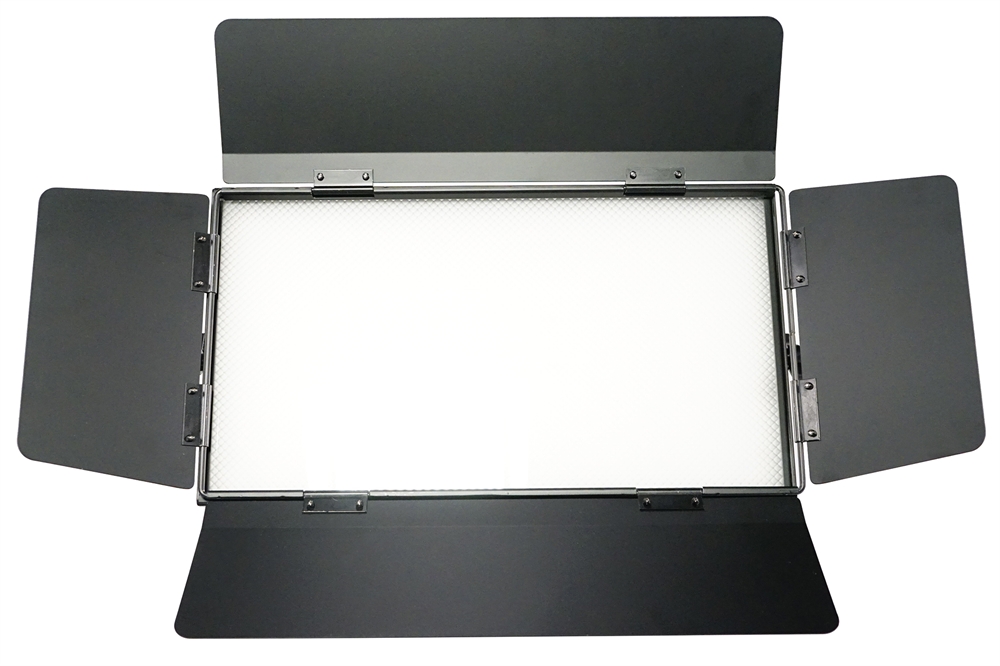

Barndoors included.
Control
DMX channel: 4CH/5CH
Control mode: DMX-512, Demo mode, Manual

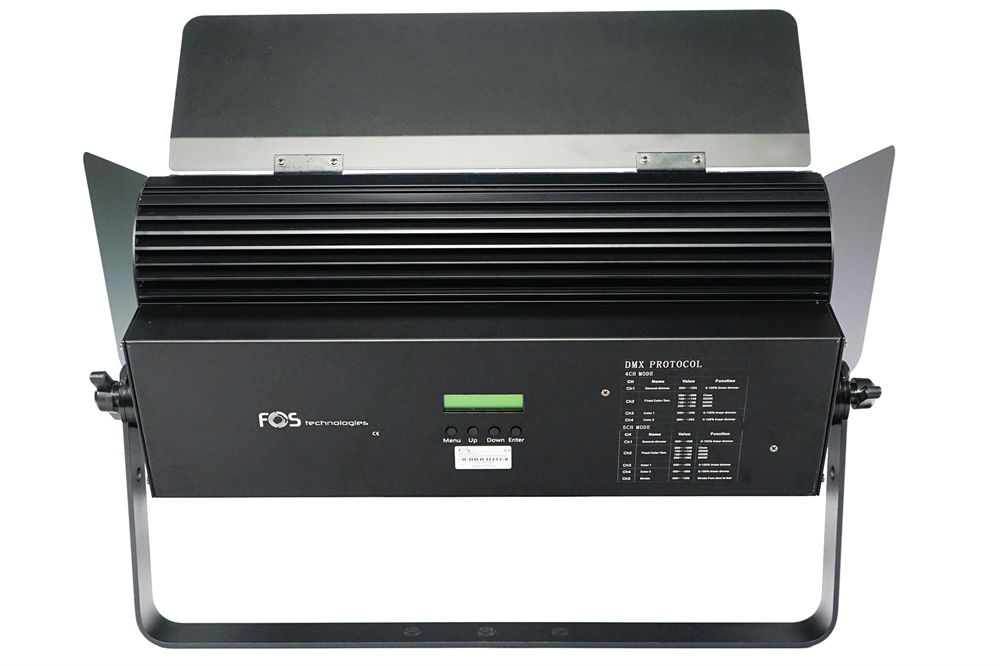

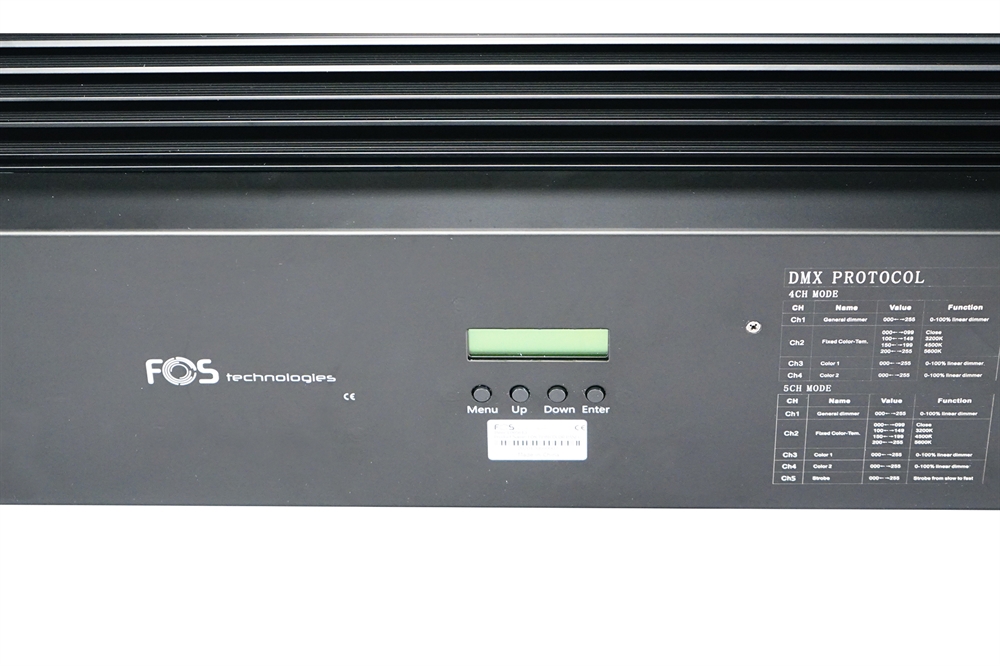

Control panel: LCD display + 4 buttons
0-100% accurate linear dimmer
Strobe Function
Dimensions / Installation details
Power supply: AC100/240 Volt AC, 50/60 Hz.

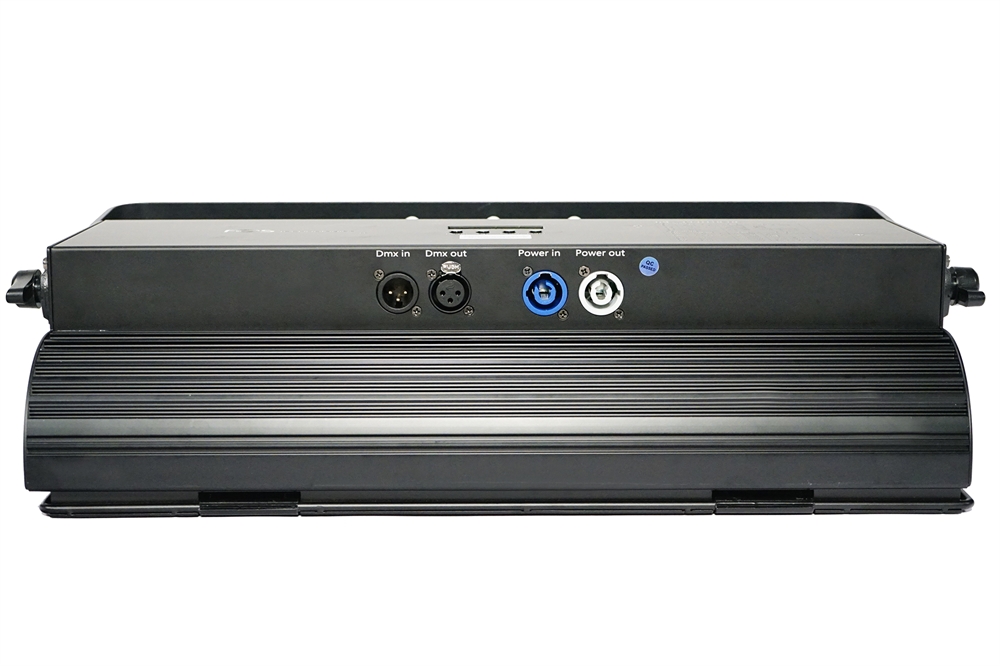

Powercon in/out
IP Rating: IP20
Noice Level (dB): 0
Aluminum alloy housing construction.
Operating temperatures: -25 to +45 degrees.
Dimensions: 480 mm x 270 mm x 280 mm with the yoke vertical, 130 mm -fixtures only- height
Weight: 9 Kg.
Photometric Data
Measuring Distance : 1 meter
Warm white WW
Color Temperature (K): 2968
Illuminance (lx): 4081
CRI (Ra): 91.1
TLCI (Qa): 94
Flicker Frequency (Hz): 142
Flicker(%): 0
Cool White CW
Color Temperature (K): 5393
Illuminance (lx): 3884
CRI (Ra): 98.7
TLCI (Qa): 97
Flicker Frequency (Hz): 50
Flicker(%): 0
WW + CW
Color Temperature (K) : 3890
Illuminance (lx): 5554
CRI (Ra): 96.3
TLCI (Qa): 96
Flicker Frequency (Hz): 75
Flicker (%): 2
