1" dome tweeter - DT-140 - MONACOR

• På lager
• På lager, 2-4 dage
• Bedømmelse for 1" dome tweeter - DT-140 - MONACOR

  Produktet er endnu ikke bedømt

•
  300,00DKK ved 1 stk.

Vis uden moms

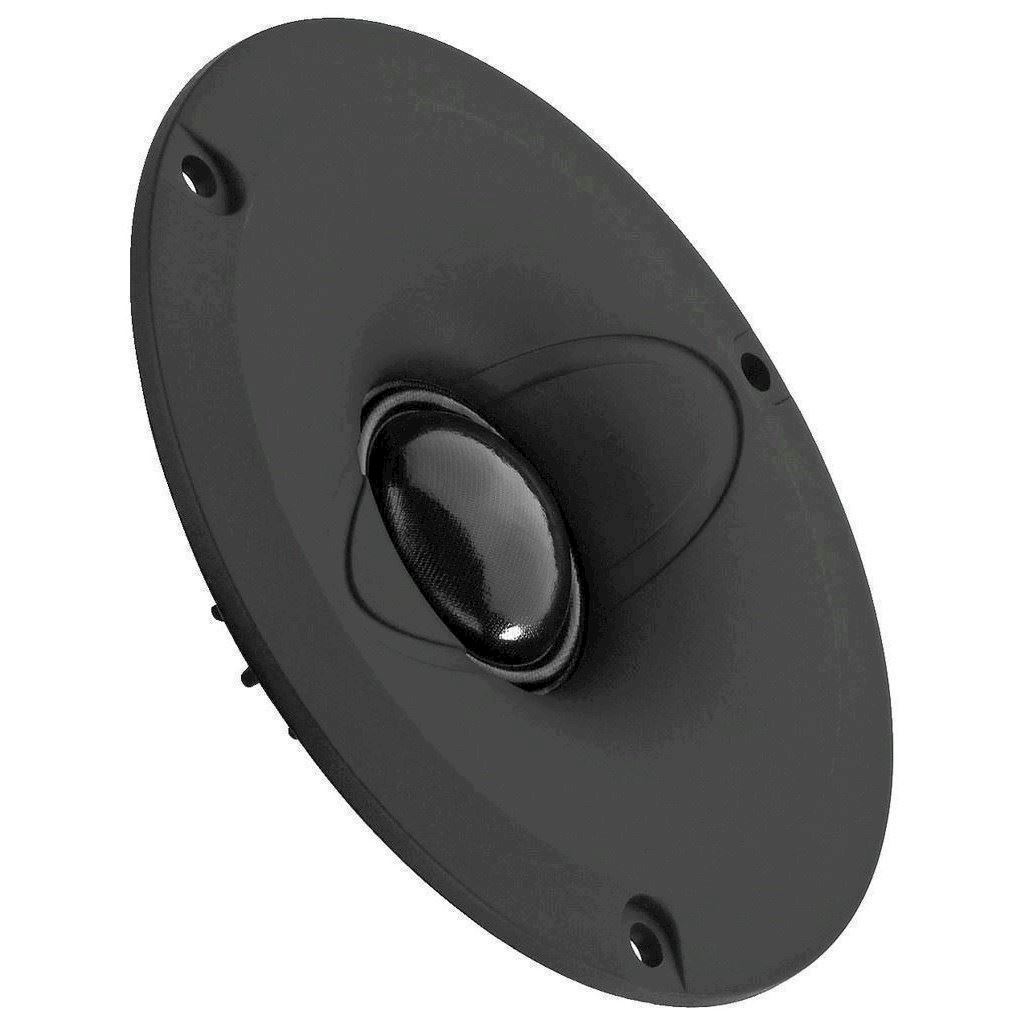

Hi-fi dome tweeter, 40 W, 4 Ω

• 25 mm (1") tweeter with silk dome
• Consistent radiation pattern due to waveguide in combination witth 5" to 6.5" bass-midrange speakers
• Neodymium magnet system with heat sink
• Very low stray magnetic field

HOBBY HIFI 01/2014
"The product range of MONACOR now includes the DT-140 which is an excellent dome tweeter with perfect measurement values available at an attractive price."



Impedance (Z)	4 Ω
Transmission method	-

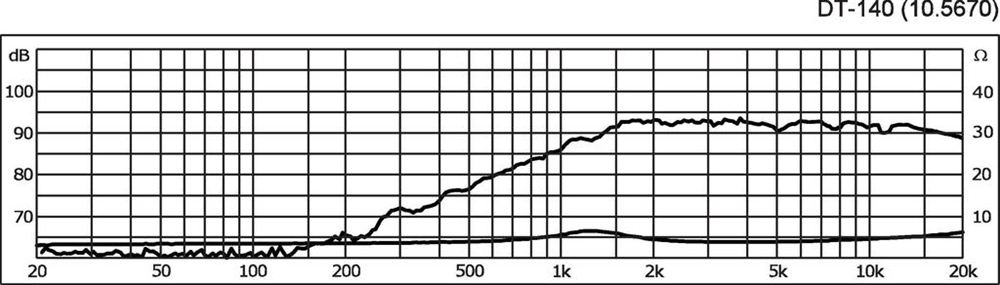

Frequency range	fx-20,000 Hz
Resonant frequency (fs)	1,200 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	2,500 Hz
Power rating	40 W
Peak music power output	80 W
Sensitivity	90 dB/W/m
Max. rated SPL	-
Max. voltage	-
Radiation angle, horizontal	-
Radiation angle, vertical	-
Suspension compl. (Cms)	-
Moving mass (Mms)	-
Mech. Q factor (Qms)	-
Electr. Q factor (Qes)	-
Total Q factor (Qts)	-
Equivalent volume (Vas)	-
DC resistance (Re)	-
Force factor (BxL)	-
Voice coil induct. (Le)	-
Voice coil diameter	Ø 25 mm
Voice coil former	-
Linear excursion (XMAX)	-
Eff. cone area (Sd)	-
Magnet weight	-

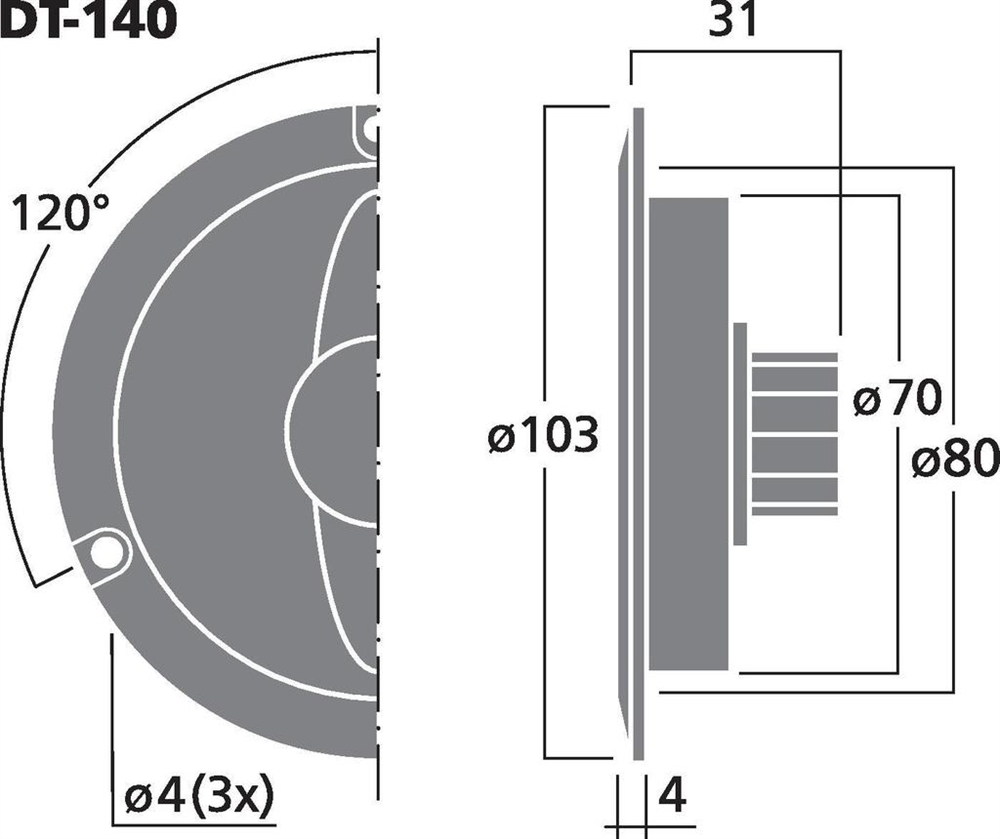

Magnet diameter	Ø 70 mm
Mounting cutout	Ø 80 mm
Mounting depth	31 mm
Mounting hole diameter	-
Hole spacing X-axis	-
Hole spacing Y-axis	-
Dimensions	Ø 103 x 31 mm
Outside diameter	Ø 103 mm
Width	Ø 103 mm
Height	-
Depth	31 mm
Protective class	-
Admiss. ambient temp.	0-40 °C
Weight	93 g
Packing unit	1
Type of speaker	-

Varenr.: 105670
