Peak output power | 70 W |
Power rating | 35 W |
Power rating at 2 Ω | - |
Power rating at 4 Ω | - |
Power rating at 8 Ω | - |
Power rating at 16 Ω | - |
Power rating at 100 V | - |
Power rating with 4 Ω bridged operation | - |
Power rating with 8 Ω bridged operation | - |
Output impedance | - |
Channels | 4 |
Zones | - |
Inputs | 5 mV (mic), 210 mV (aux), 5 mV (phono) |
Attenuation factor | - |
Frequency range | 100-18,000 Hz |
Crossover network | - |
Crossover frequency | - |
Integrated limiter | - |
Equalizer bass | ±10 dB/150 Hz |
Equalizer midrange | - |
Equalizer treble | ±10 dB/6 kHz |
S/N ratio | > 55 dB |
Crosstalk attenuation | - |
THD | < 1% |
Phantom power | - |
Mains voltage | ∼ 230 V |
Mains frequency | 50 Hz |
Power consumption, operation | 100 VA |
Power consumption, standby | - |
Standby current | - |
Operating voltage (possible alternative) | DC 12-24 V |
Power supply (possible alternative) | DC 2.5 A |
Admiss. ambient temp. | 0-40 °C |
Width | 320 mm |
Height | 85 mm |
Depth | 230 mm |
Rack spaces, RS | - |
Weight | 4.97 kg |

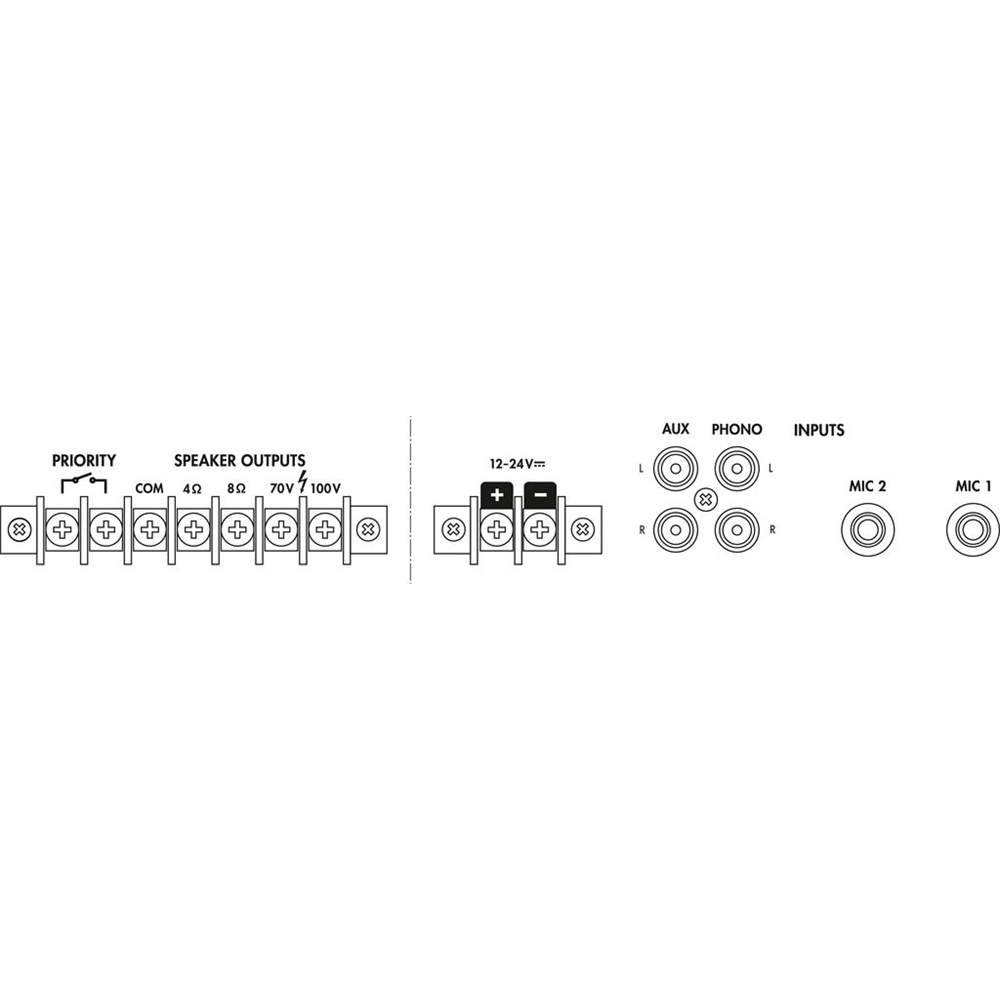

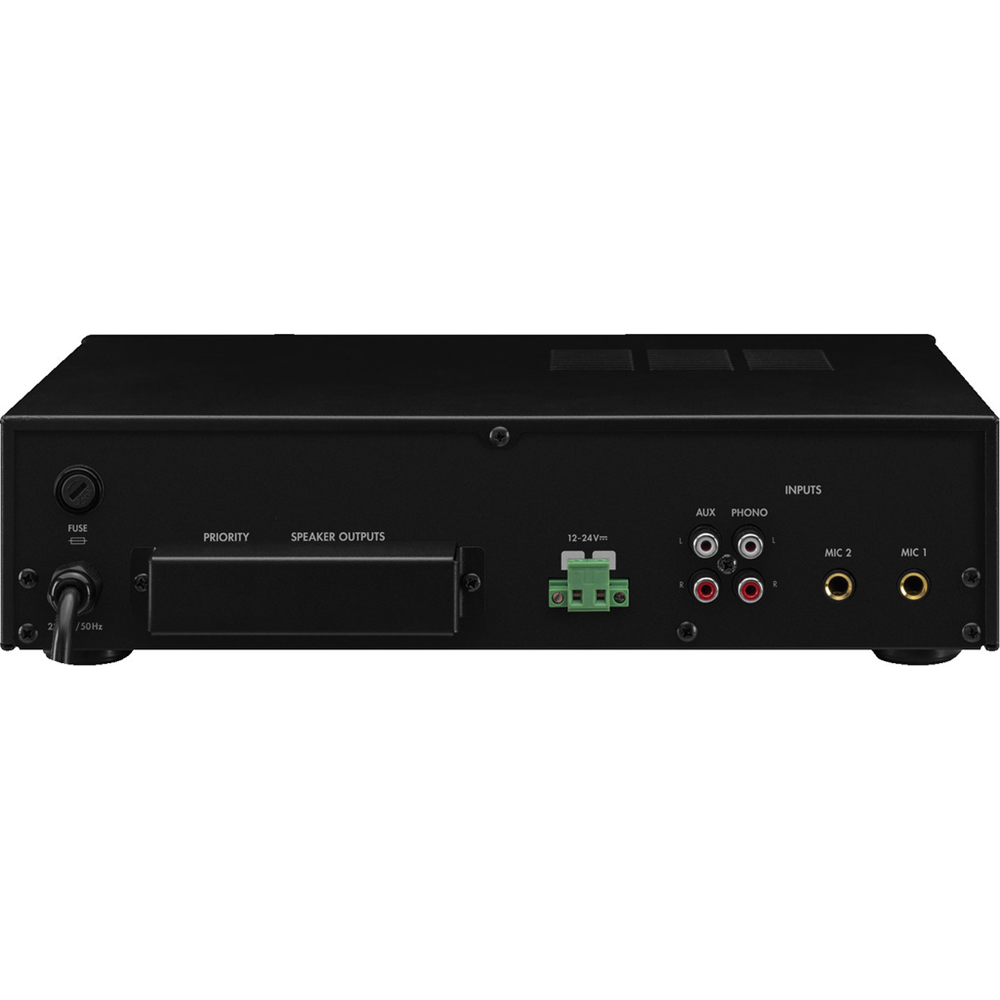

Connections | 2 x 6.3 mm jack (mic), 1 x RCA L/R (aux), 1 x RCA L/R (phono), connecting terminals (speakers) |
