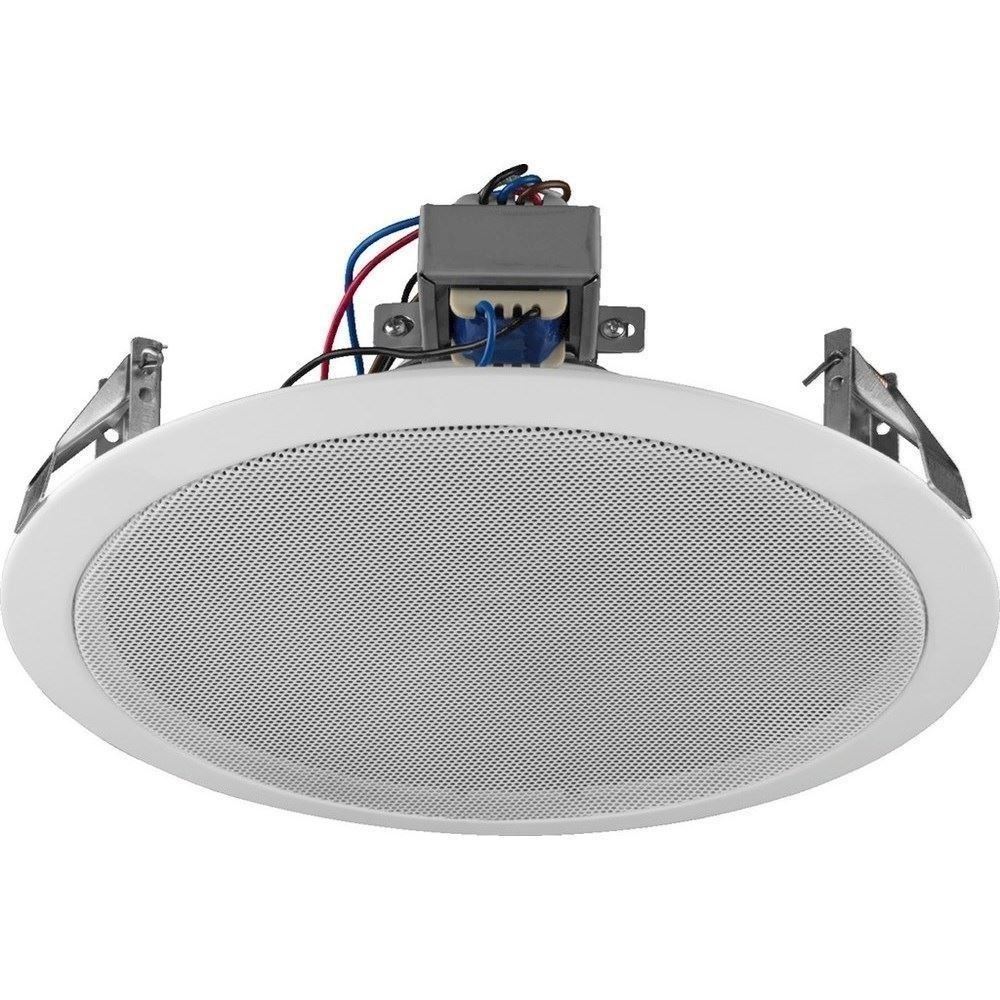

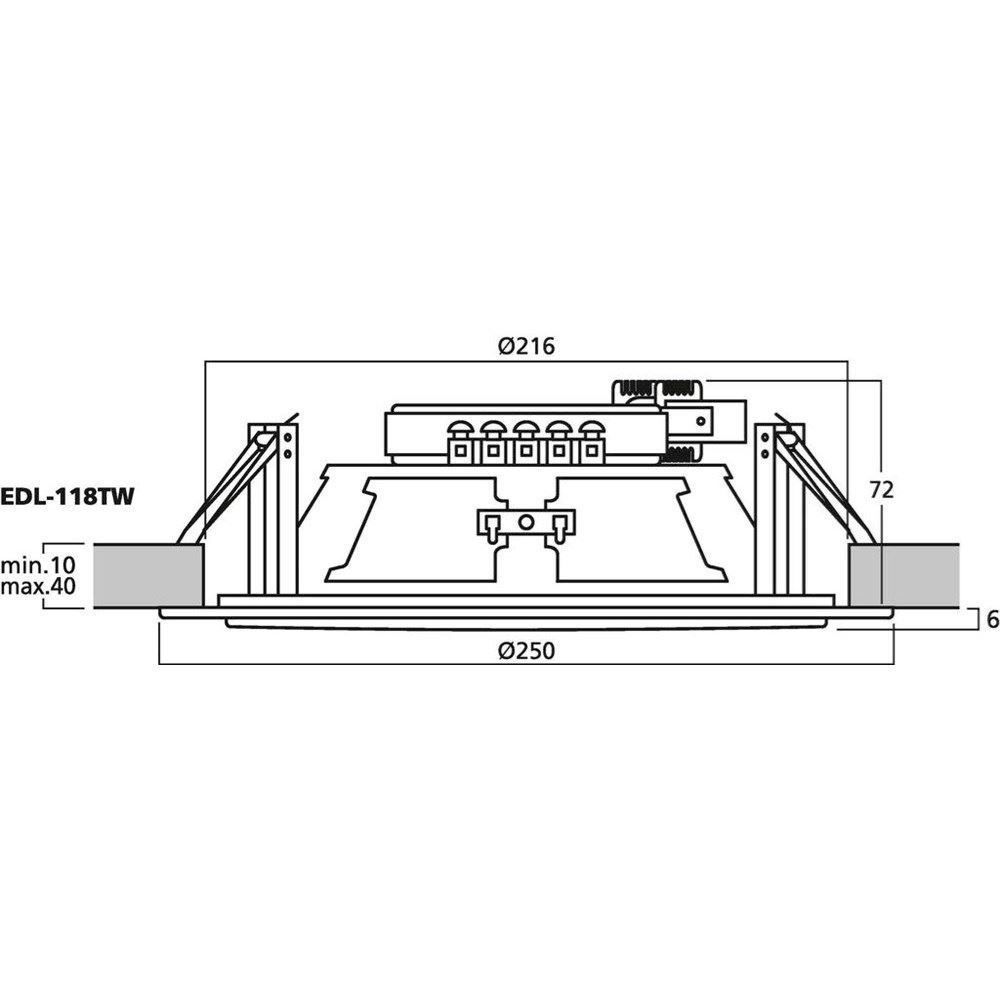

100V højttaler - EDL-118TW På lager På lager, 2-4 dage Bedømmelse for 100V højttaler - EDL-118TWProduktet er endnu ikke bedømt 559,00DKK ved 1 stk. Vis uden moms Betal med XpresPay Trustpilot Spørg til denne vare PA ceiling speaker, with integrated tweeter. 100 V line technique 20 cm (8") 2-way coaxial speaker Metal housing with protective speaker grille Power taps: 15/10/6/3 W Quick-mounting facility with spring clips Connection via spring-loaded terminal For a ceiling thickness from 10 to 40 mm Impedance (Z)-Transmission method100 VFrequency range90-2,0000 HzResonant frequency (fs)-Rec. crossov. frequ. (fmax.) (12 dB/oct.)-Power rating (RMS)15/10/6/3 WPeak music power output (MAX)-Sensitivity94 dB/W/mMax. rated SPL106 dBMax. voltage-Radiation angle, horizontal-Radiation angle, vertical-Suspension compl. (Cms)-Moving mass (Mms)-Mech. Q factor (Qms)-Electr. Q factor (Qes)-Total Q factor (Qts)-Equivalent volume (Vas)-DC resistance (Re)-Force factor (BxL)-Voice coil induct. (Le)-Voice coil diameter-Voice coil former-Linear excursion (XMAX)-Eff. cone area (Sd)-Magnet weight-Magnet diameter-Mounting cutoutؠ216 mmMounting depth85 mmMounting hole diameter-Hole spacing X-axis-Hole spacing Y-axis-DimensionsØ 252 mm x 85 mmOutside diameterؠ252 mmWidthؠ252 mmHeight-Depth85 mmProtective class-Admiss. ambient temp.0-40 °CWeight1.13 kgPacking unit1Type of speaker200er Varenr.: 163850
