100V højttaler EN54 - RL-1ENABDS

• På lager
• På lager, 2-4 dage
• Bedømmelse for 100V højttaler EN54 - RL-1ENABDS

  Produktet er endnu ikke bedømt

•
  1.119,00DKK ved 1 stk.

Vis uden moms

Trustpilot

Spørg til denne vare

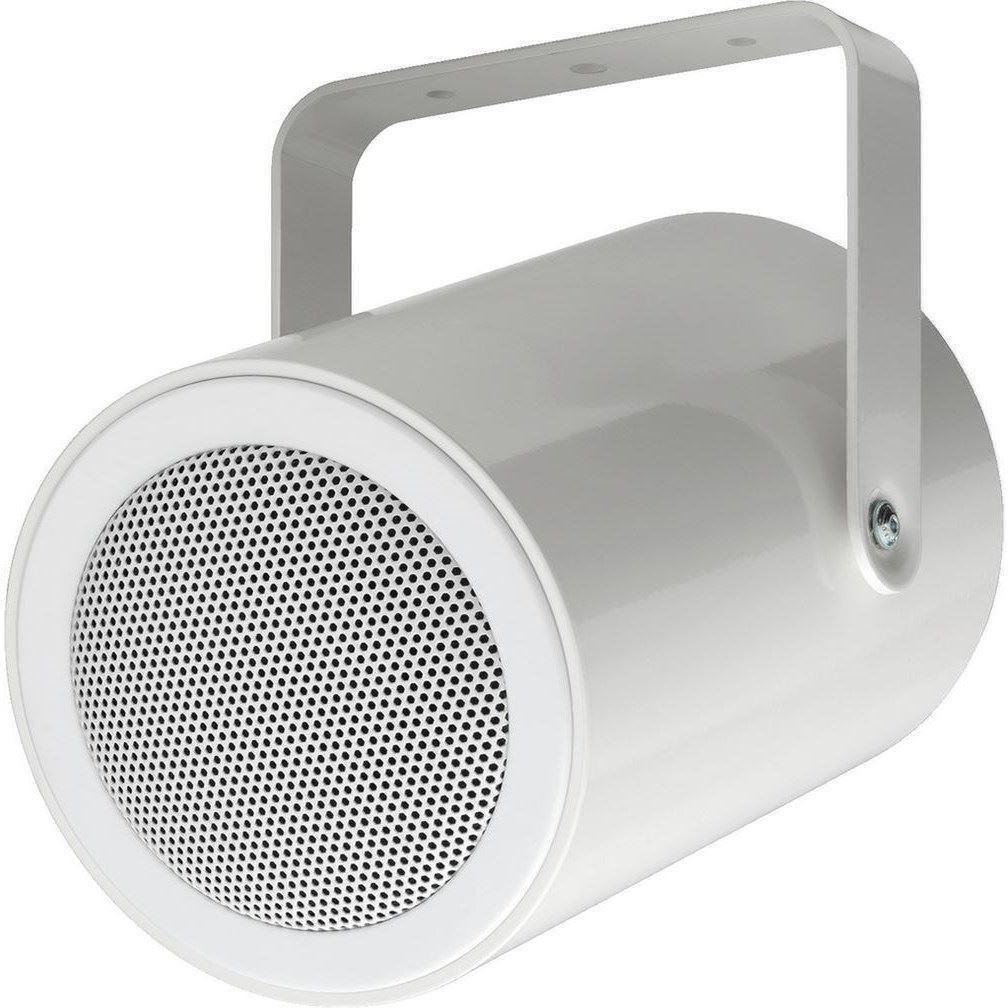

PA A/B sound projector for wall mounting, with EN 54-24 certification for evacuation systems with A/B speaker distribution according to EN 60849.

• 100 V line technique
• 13 cm full range speaker with dual voice coil
• 2 x 100 V transformator with power taps on the cable 6/3/1.5 W
• Connection via 2 x 4-core cable (length: 1.5 m)
• Metal housing with front protective grille
• Supplied with pan/tilt bracket and mounting accessories

Active/passive	passive
Transmission method	100 V
Impedance	-
Frequency range	80-20,000 Hz
Rated power	-
Max. power	-
THD	-
S/N ratio	-
Input signal	-
System	-
Full range speaker	13 cm, dual voice coil
Bass speaker	-
Midrange speaker	-
Tweeter	-
Number of speakers	-
Speaker size	13 cm
Power rating	2 x 6/3/1.5 W
Peak music power output	-
Sensitivity	93 dB/W/m
Max. rated SPL	101 dB
Radiation angle, horizontal	130°
Radiation angle, vertical	130°
Features	-
Housing material	aluminium
Colour	white
Mounting device	bracket
Protected against ball rebound	-
Protective class	-
Admiss. ambient temp.	0-40 °C
Power supply	-
Width	Ø 144 mm
Height	-
Depth	210 mm
Weight	2.3 kg
Inputs	-
Outputs	-
Replacement voice coil
Other features	-
Accessories

Varenr.: 163690
