| Impedance (Z) | 4 Ω |
| Transmission method | - |

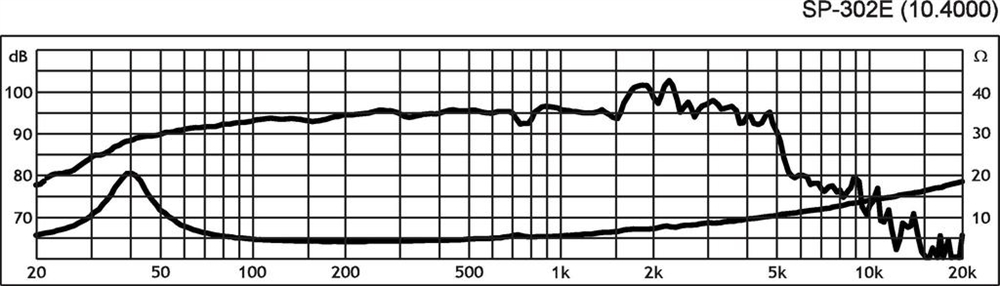

| Frequency range | f3-5,500 Hz |
| Resonant frequency (fs) | 39 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | - |
| Power rating | 100 W |
| Peak music power output | 200 W |
| Sensitivity | 95 dB |
| Max. rated SPL | - |
| Max. voltage | - |
| Radiation angle, horizontal | - |
| Radiation angle, vertical | - |
| Suspension compl. (Cms) | 0.39 mm/N |
| Moving mass (Mms) | 40 g |
| Mech. Q factor (Qms) | 4.24 |
| Electr. Q factor (Qes) | 0.87 |
| Total Q factor (Qts) | 0.72 |
| Equivalent volume (Vas) | 141 l |
| DC resistance (Re) | 3.6 Ω |
| Force factor (BxL) | 6.63 Tm |
| Voice coil induct. (Le) | 1.1 mH |
| Voice coil diameter | Ø 50 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 4 mm |
| Eff. cone area (Sd) | 518 cm2 |
| Magnet weight | 960 g |
| Magnet diameter | Ø 125 mm |
| Mounting cutout | Ø 281mm |
| Mounting depth | 114 mm |
| Mounting hole diameter | Ø 292 mm |
| Hole spacing X-axis | - |
| Hole spacing Y-axis | - |

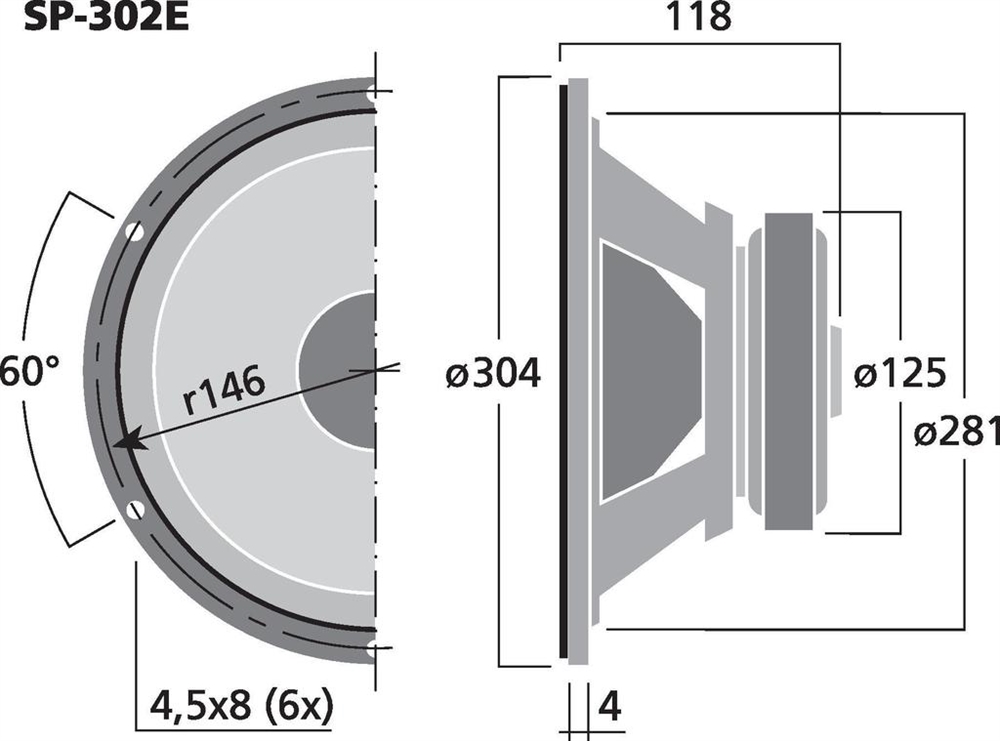

| Dimensions | Ø 304 mm x 118 mm |
| Outside diameter | Ø 304 mm |
| Width | Ø 304 mm |
| Height | - |
| Depth | 118 mm |
| Protective class | - |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 2.6 kg |
| Packing unit | 1 |

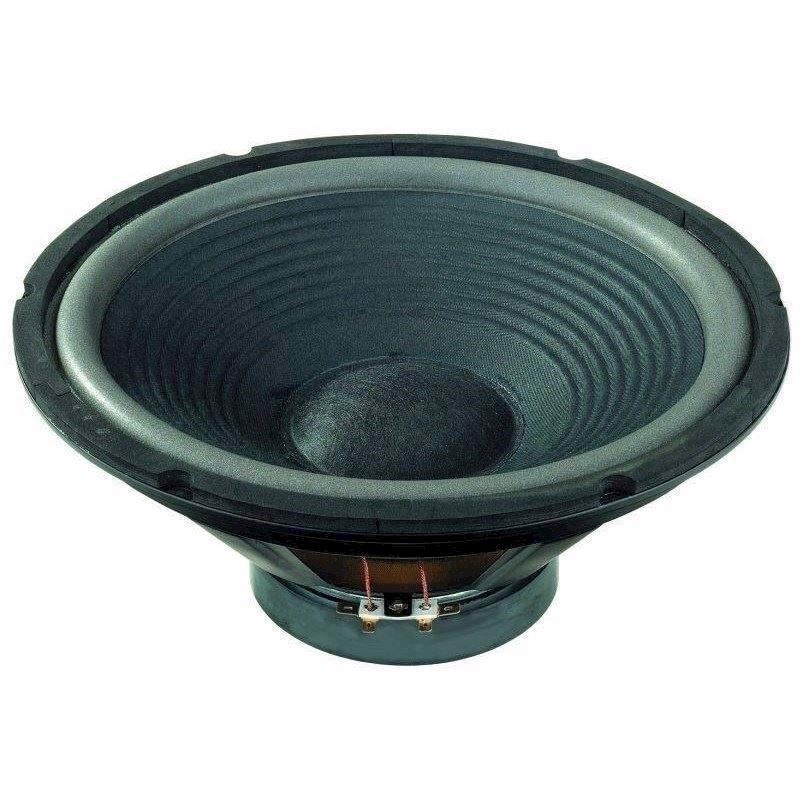

| Type of speaker | 12" |
