16 x 12 W RGBAW + UV-LED Bar - Cameo

16 x 12 W RGBAW + UV-LED Bar - Cameo
  • Ikke på lager
  • Forventet levering om 4 uger
  • Bedømmelse for 16 x 12 W RGBAW + UV-LED Bar - Cameo
    Produktet er endnu ikke bedømt
  •
    3.569,00DKK ved 1
Vis uden moms
Billigst på PriceRunner

Spørg til denne vare

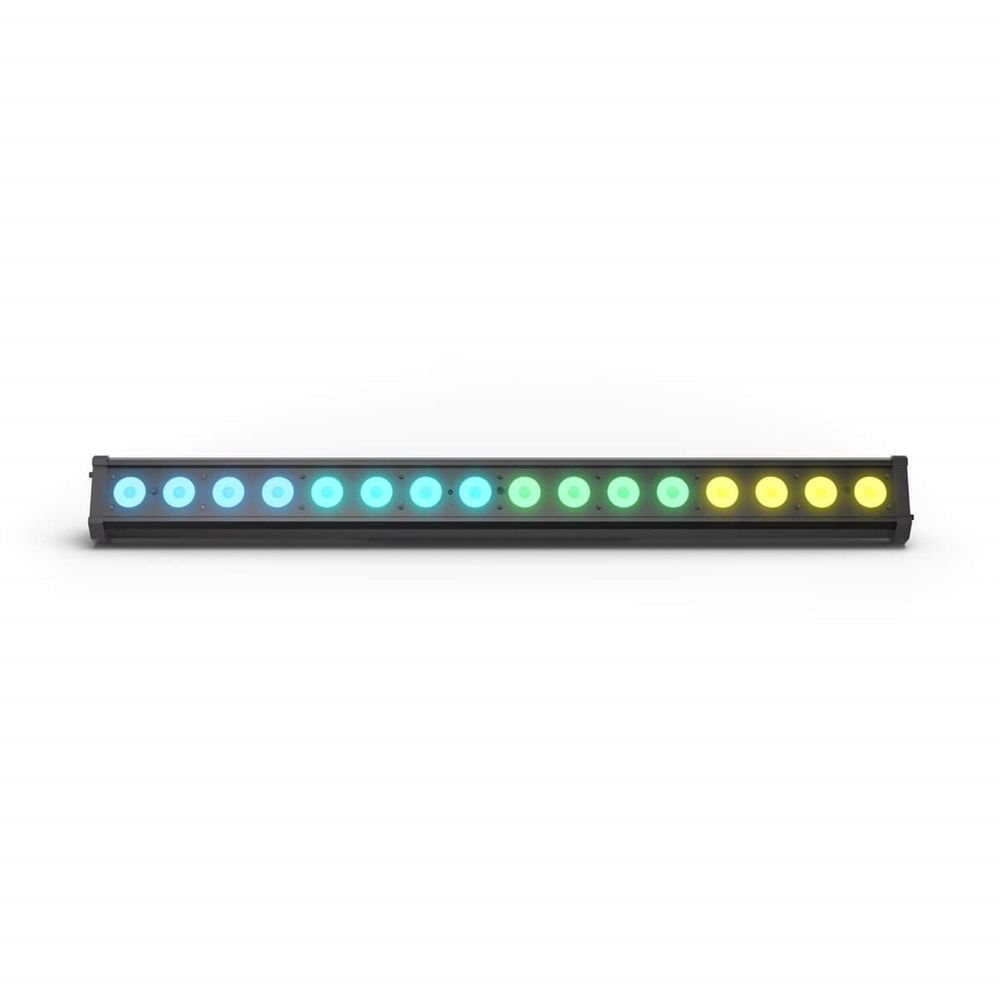

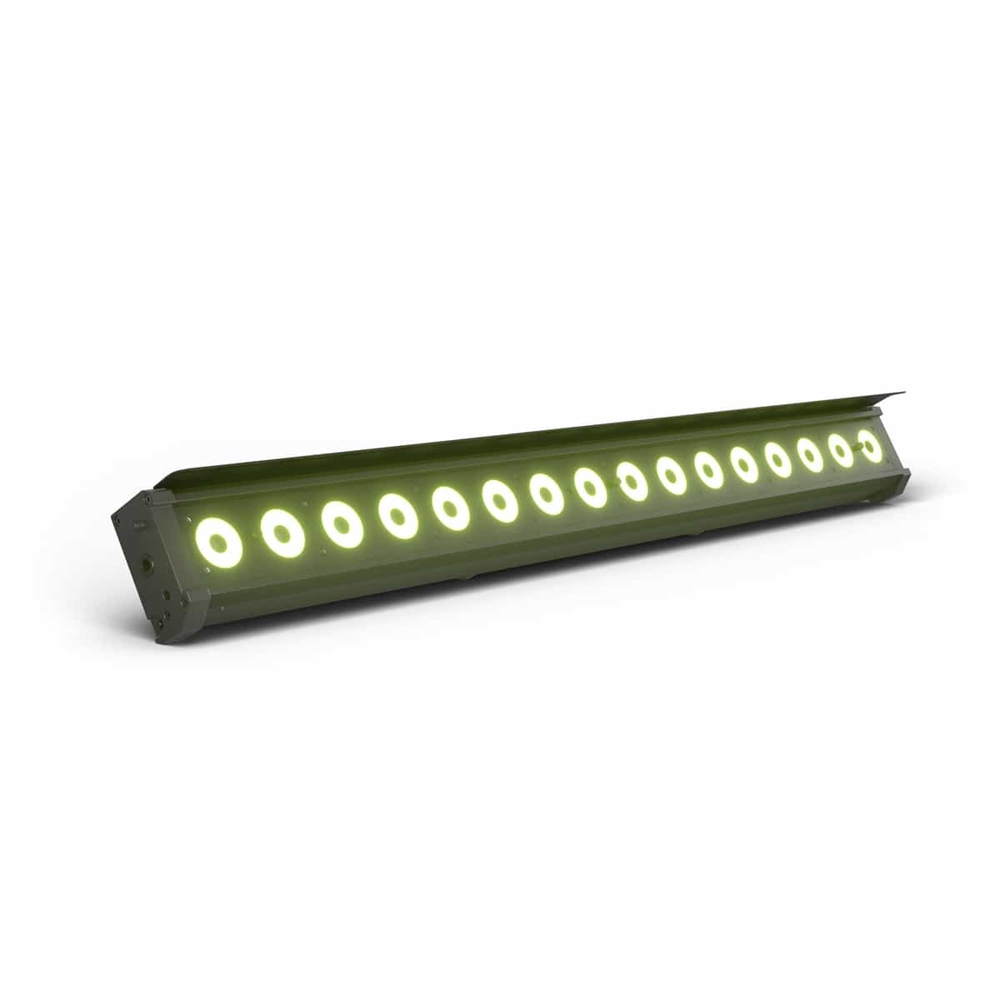

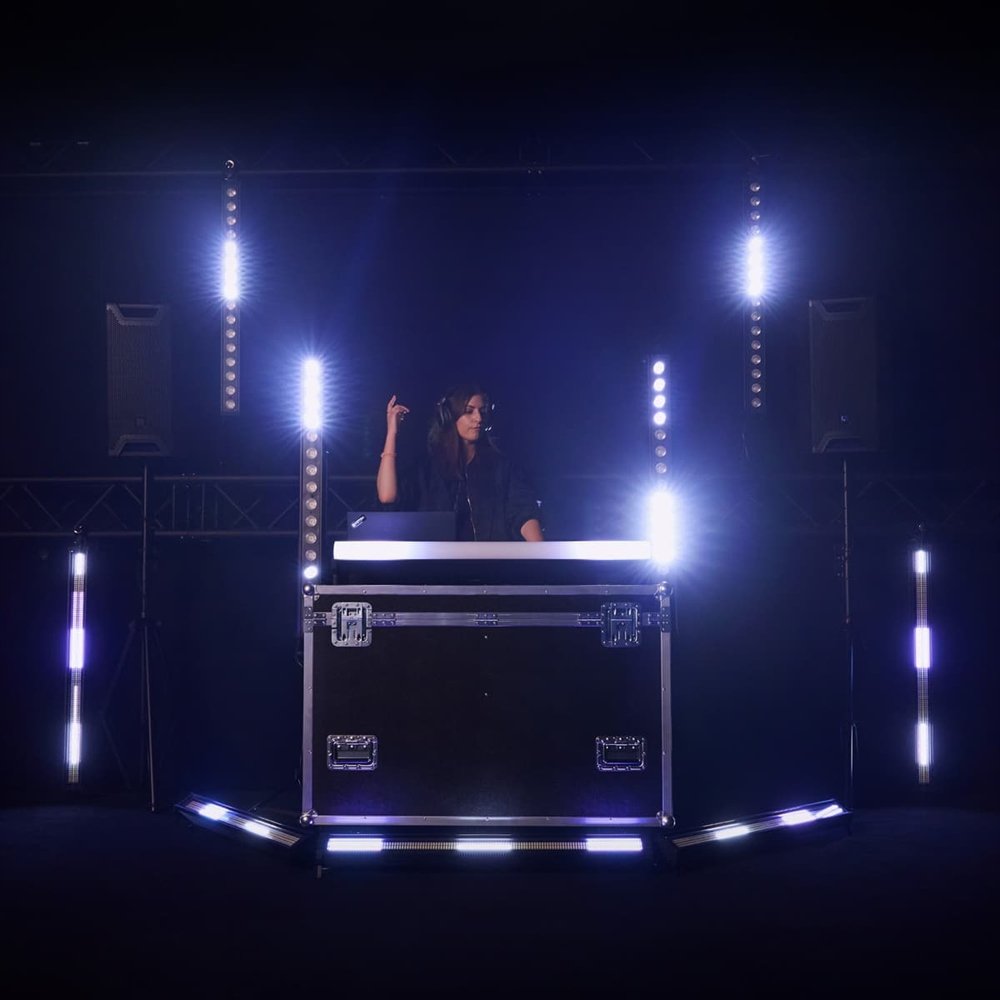

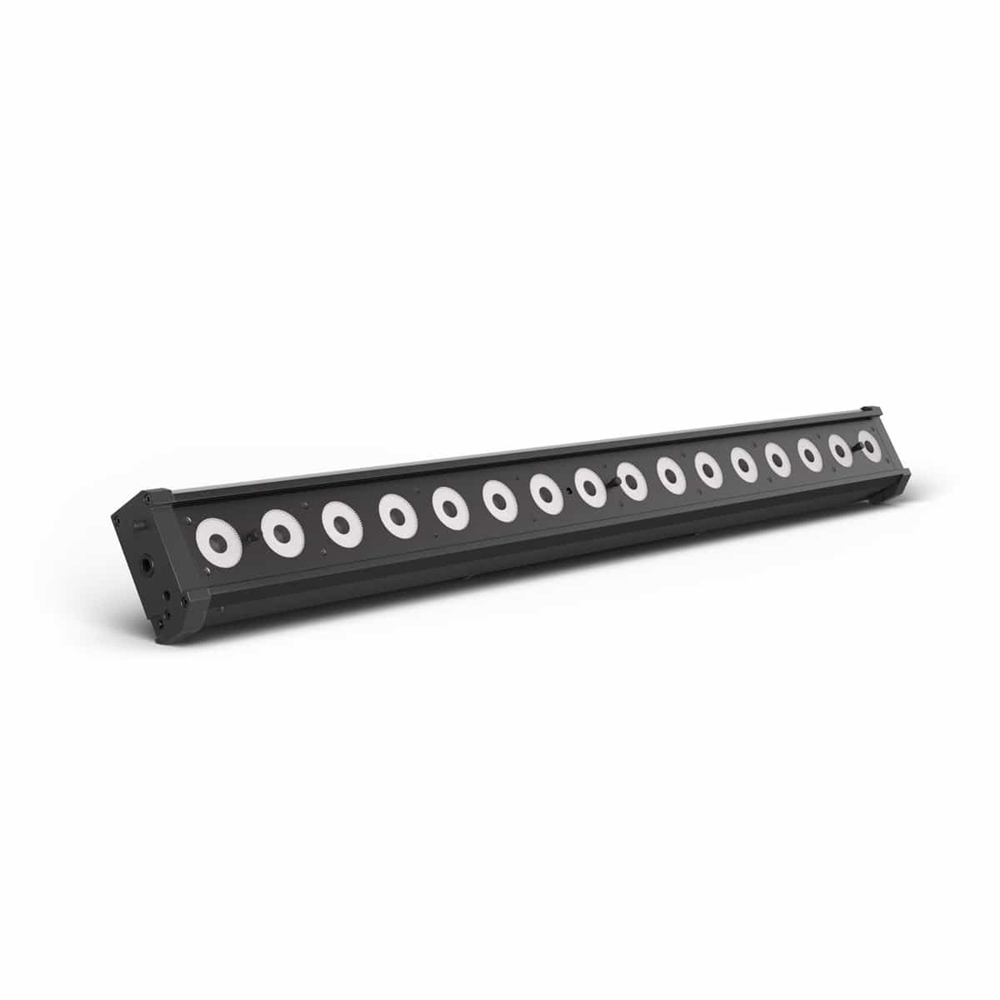

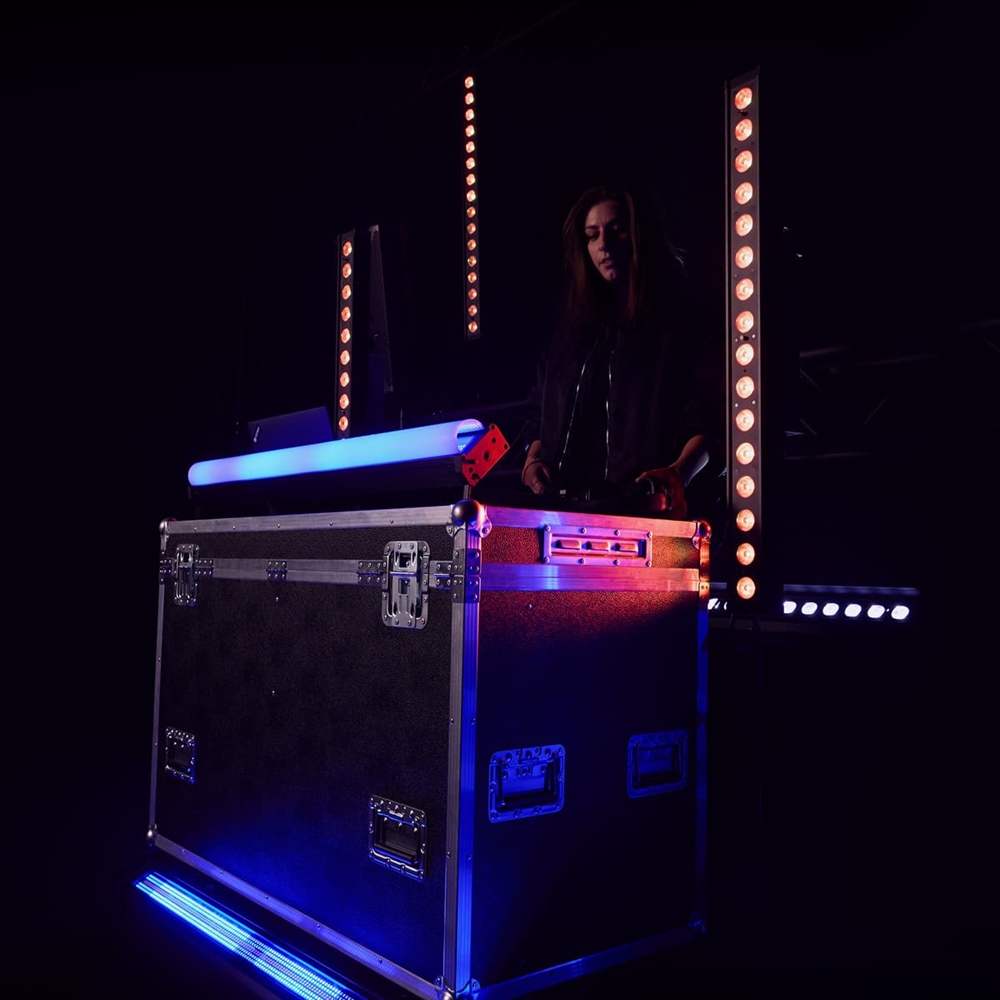

The Cameo ROOT® BAR is a linear LED bar available in three versions. Its compact design and impressive versatility make it ideal for creative lighting in trendy clubs, small bars, or exclusive events, providing stunning lighting effects in any setting.

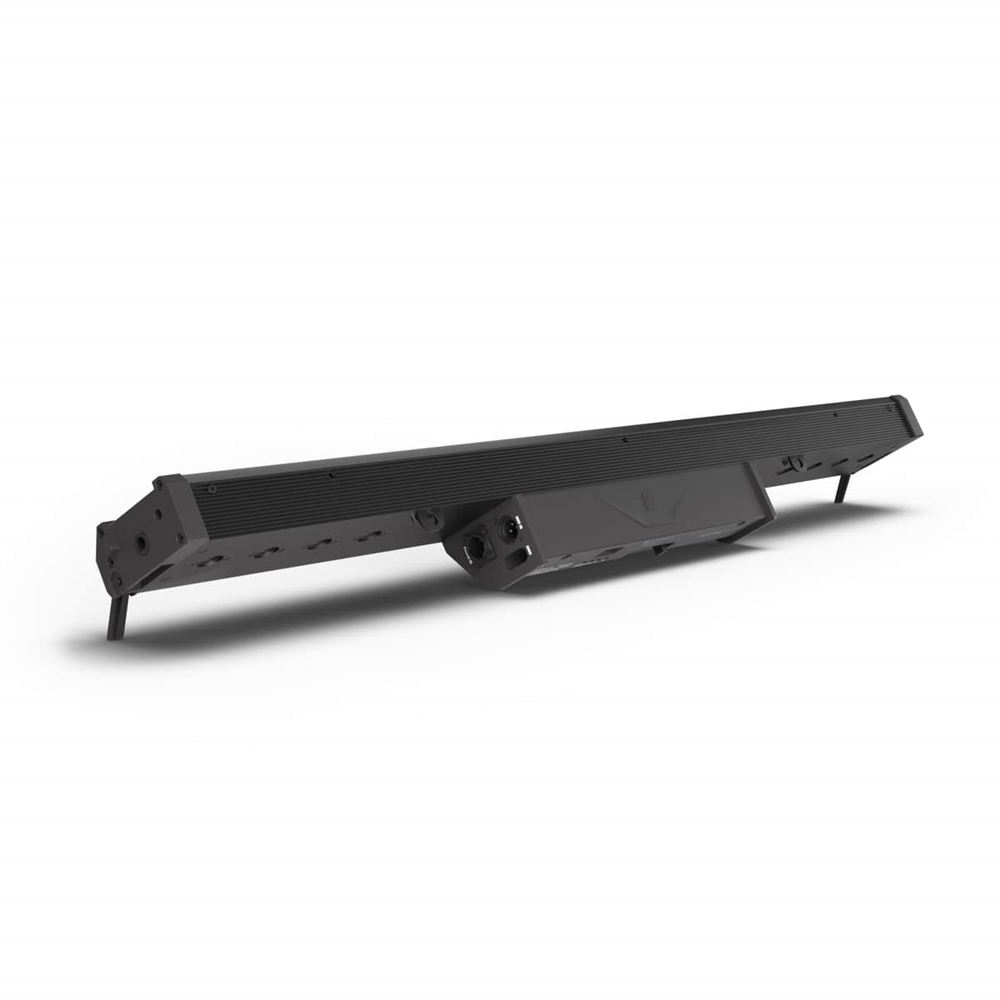

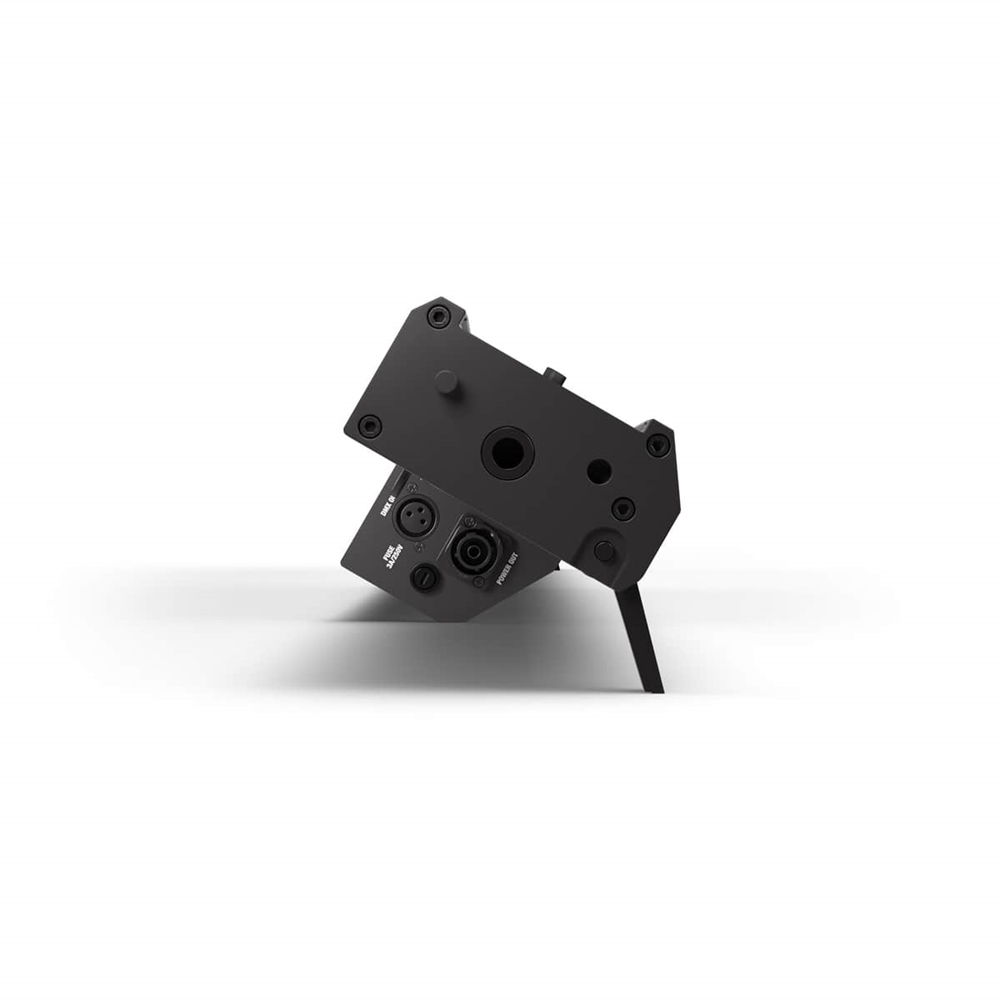

The intelligent design allows for flexible positioning at various angles without the included feet. The practical threaded mount supports both hanging and standing use, making it adaptable to different environments.

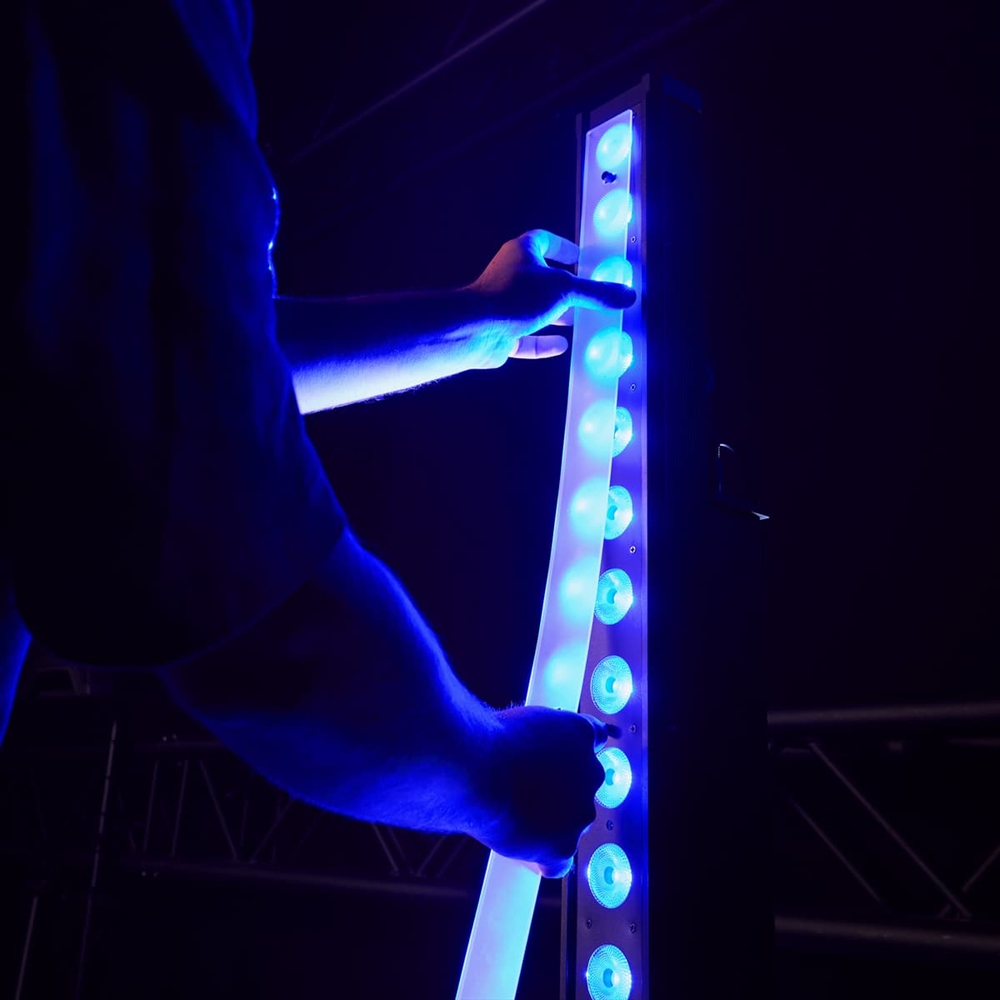

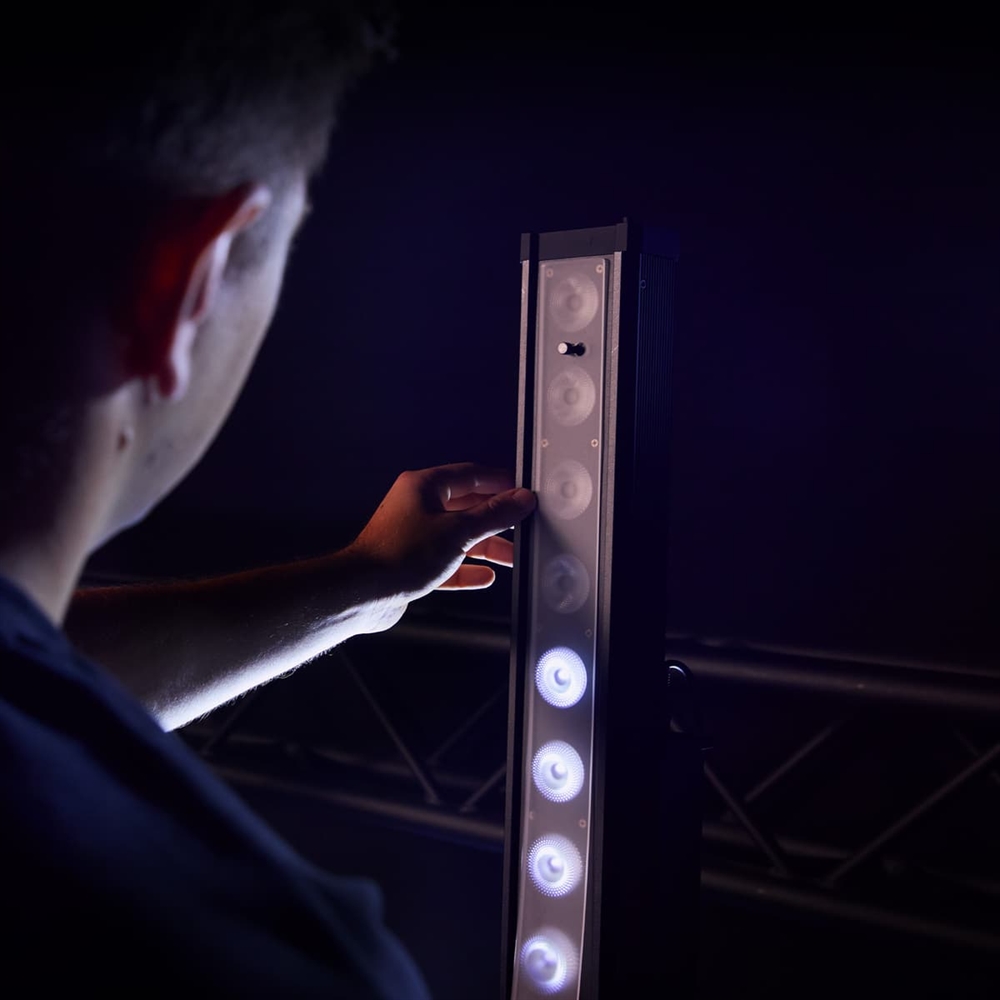

The magnetic Quick Alignment System, combined with various Quick Lock options, enables quick and precise alignment of multiple LED bars, creating seamless transitions and spectacular lighting installations. The included frost filters, neon tube filter, and glare shield provide numerous creative possibilities, adding impressive visual accents.

In addition to DMX protocol control, the ROOT® BAR can be remotely controlled via the optional IR remote. For wireless DMX connection via W-DMX™, the ROOT® BAR features a USB port for connecting the Cameo iDMX® Stick. Additionally, the unique patented EZchase® DMX delay function allows for the creation of captivating chase patterns and colour transitions with minimal programming effort.

The Cameo ROOT® BAR stands for high quality, reliability, and modern design. It sets new standards in event lighting and transforms any venue into an unforgettable experience.
  • Compact LED bar available in three versions
  • Flexible positioning at various angles, with or without feet
  • Magnetic Quick Alignment System for precise alignment of multiple units

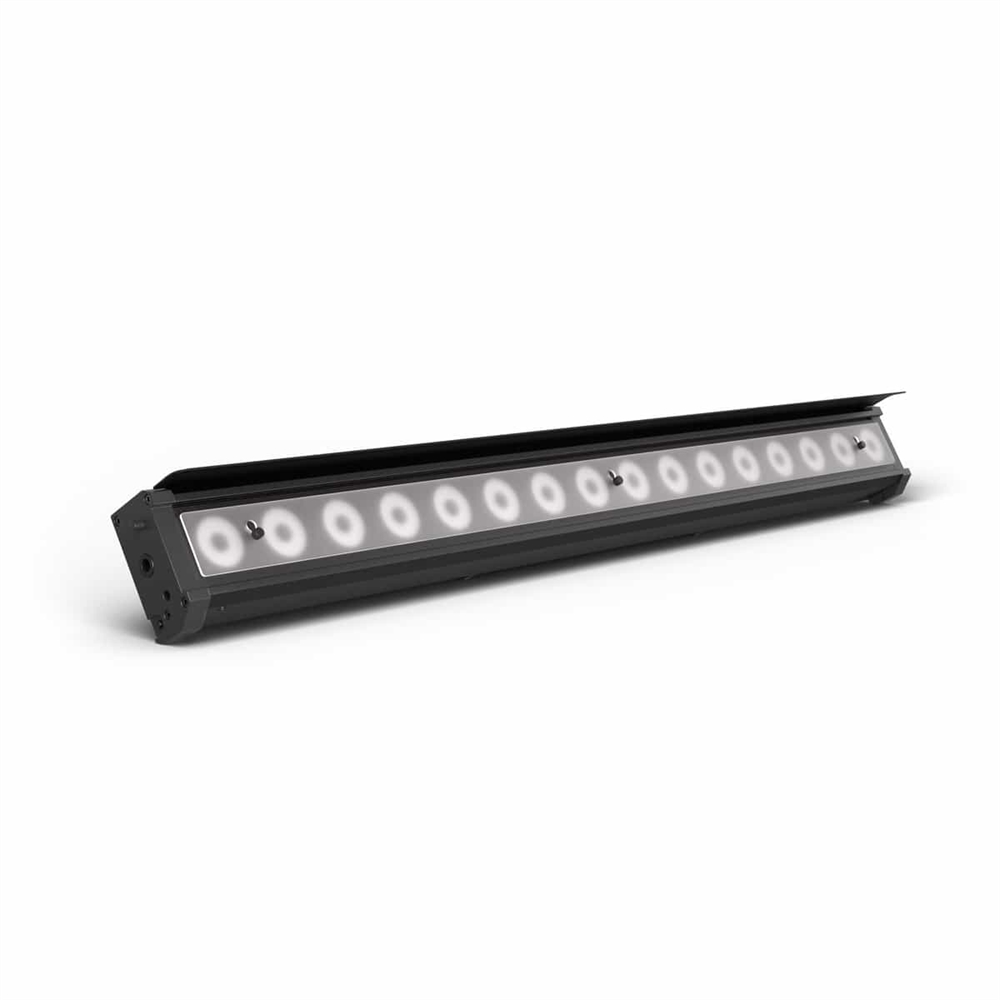

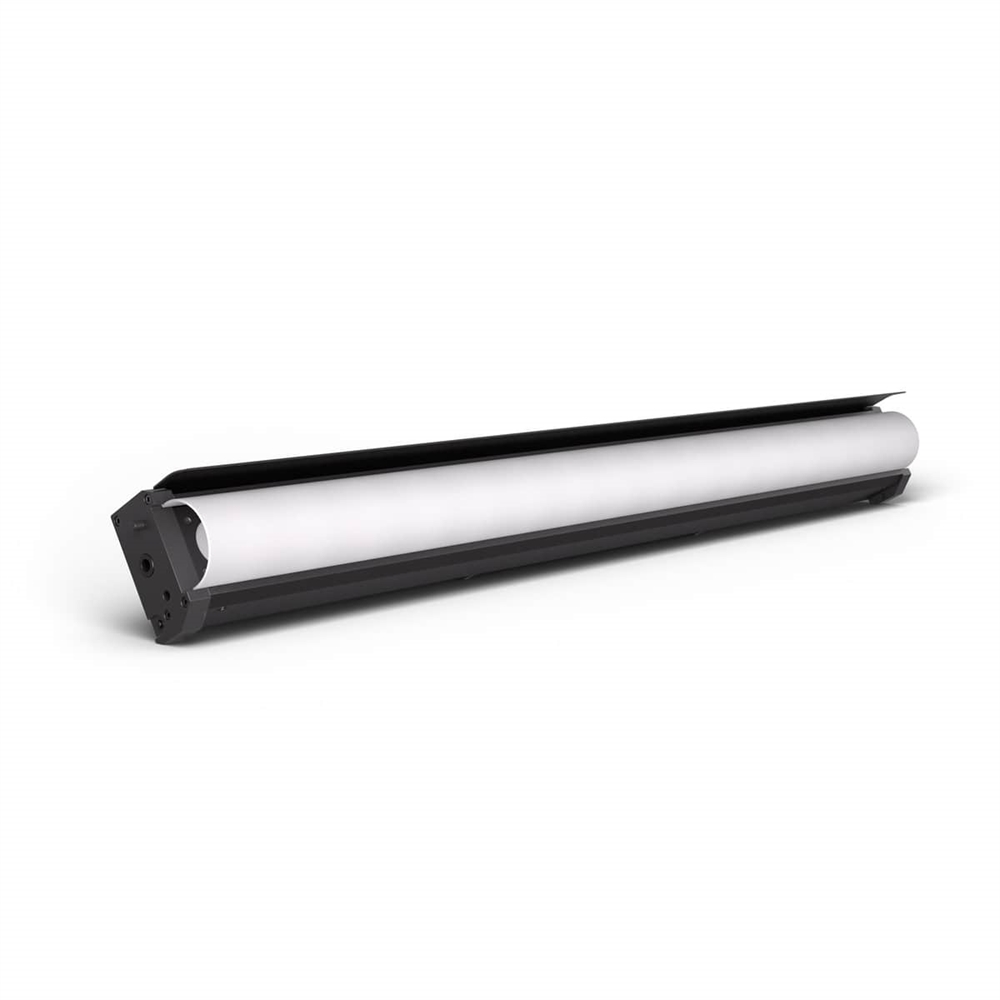

  • Includes frost filter, neon tube filter, and glare shield for versatile lighting effects
  • Control via DMX, or W-DMX (with optional Cameo iDMX Stick)
  • Patented EZchase® DMX delay function for chase effects
  • 16-bit resolution for smooth dimming and high-performance RGBWA-UV LEDs

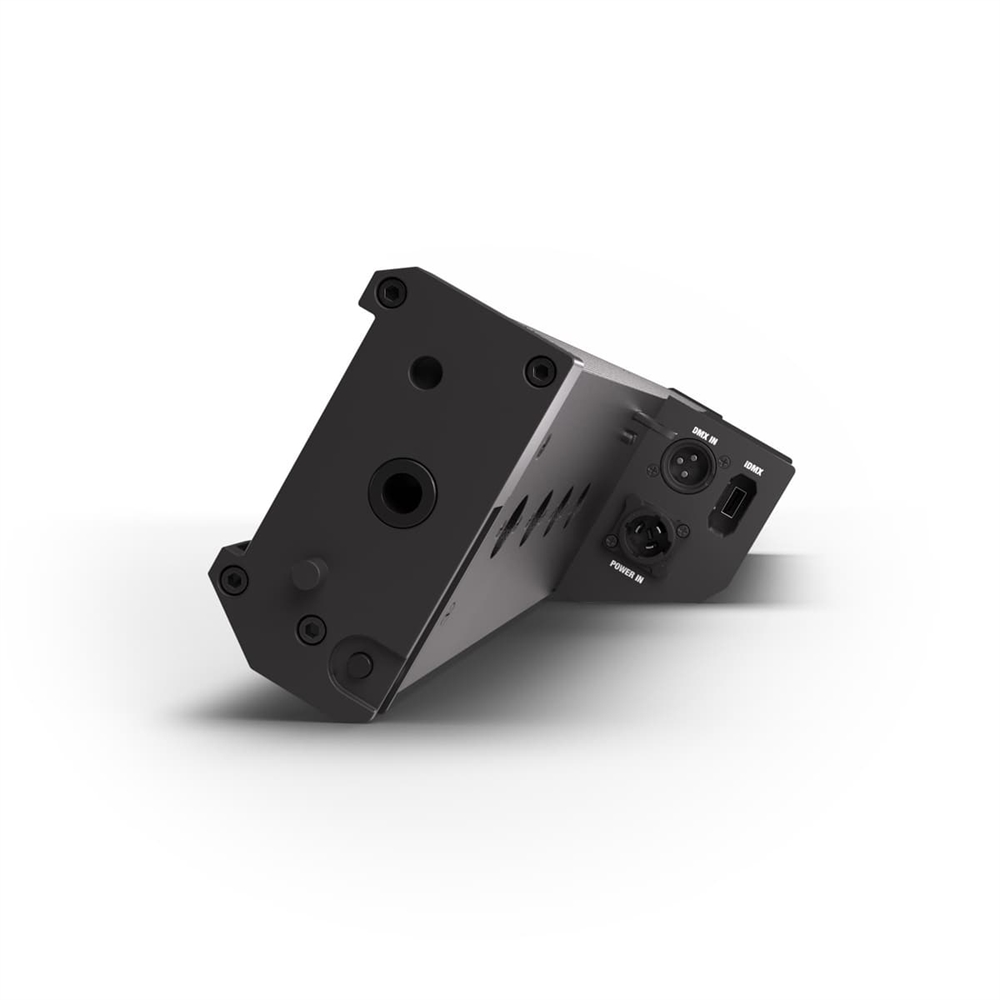

  • Power input via Seetronic and DMX connectors for daisy-chaining multiple units
  • Silent, fanless cooling design ideal for noise-sensitive environments

Photometric values

Illuminant typeLED RGBWA+UV
LED data16 x 12 W LED RGBWA+UV (4 x 4)
Luminous flux6,000 lm
Beam/Field angle19° / 36°
LED PWM frequency650 Hz, 1,530 Hz, 2,000 Hz, 4,000 Hz
Dimmer resolution16 Bit

Colours

Colour mix functionsRGB
LED coloursRed, Green, Blue, White, Amber, Ultra violet

Effects

Strobe0 - 20 Hz
Framing bladesNo

Control

Controller protocolsDMX512
Additional DMX featuresDMX delay, LED segment dimmer, System settings
Stand alone operating modesSound controlled, Autorun, Master/slave, Static, Endless loop
Data in connectorXLR 3-pole male
Data out connectorXLR 3-pole female

Mains operation

Operation voltage100 V AC - 240 V AC / 50 - 60 Hz
Rated power133 W
Mains connectorMains socket male power in
Power outMains plug female power out
Mains fuseF3AL/250 V

Housing

Chassis materialAluminium, Plastic
ColourBlack

Cooling

Cooling systemConvection cooling

Environmental

Protection classIP20
Noise level in operation0 dB
Ambient temperature0 - 40 °C

Dimensions & weight

Width1,026 mm
Height157 mm
Depth105 mm
Weight5 kg
Varenr.: A-CLROOTBAR6
