19" DI Box 4-channel passive - Palmer Pro

19" DI Box 4-channel passive - Palmer Pro
  • På lager
  • På lager, 3-8 Hverdage
  • Bedømmelse for 19" DI Box 4-channel passive - Palmer Pro
    Produktet er endnu ikke bedømt
  •
    2.079,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner

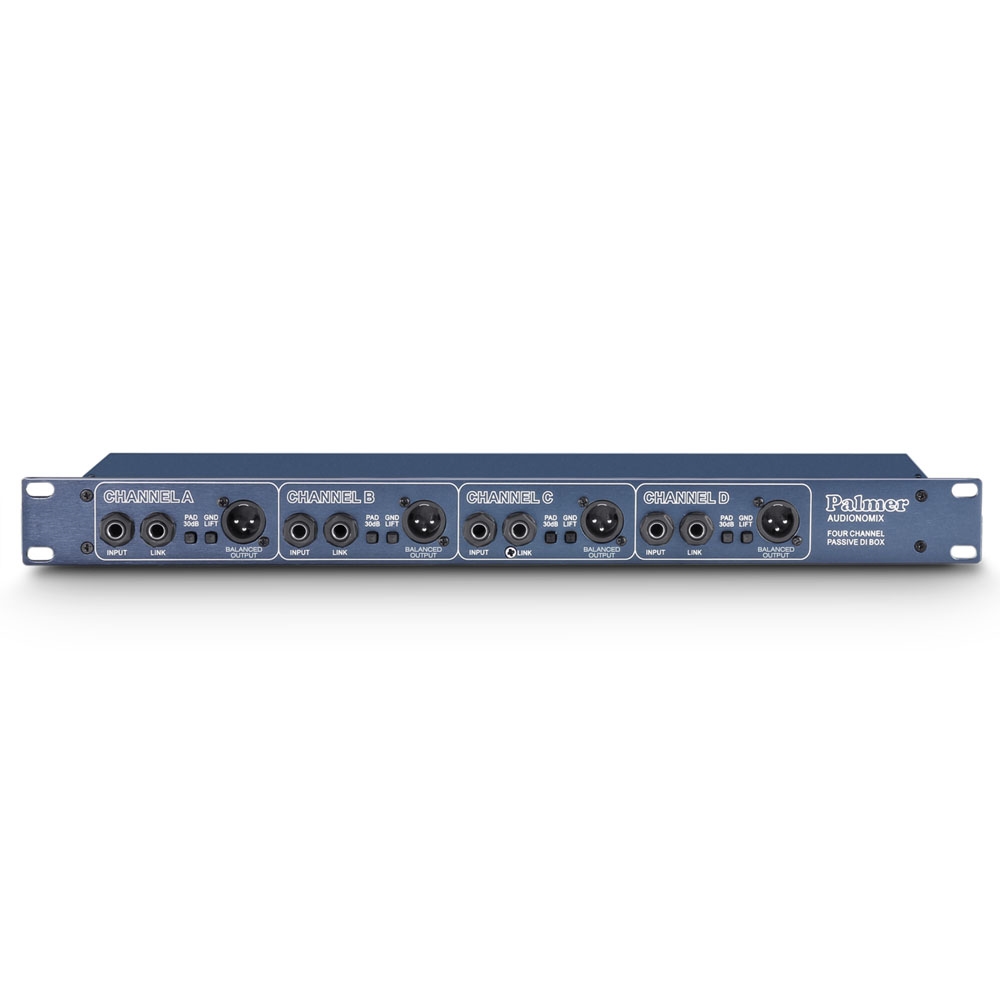

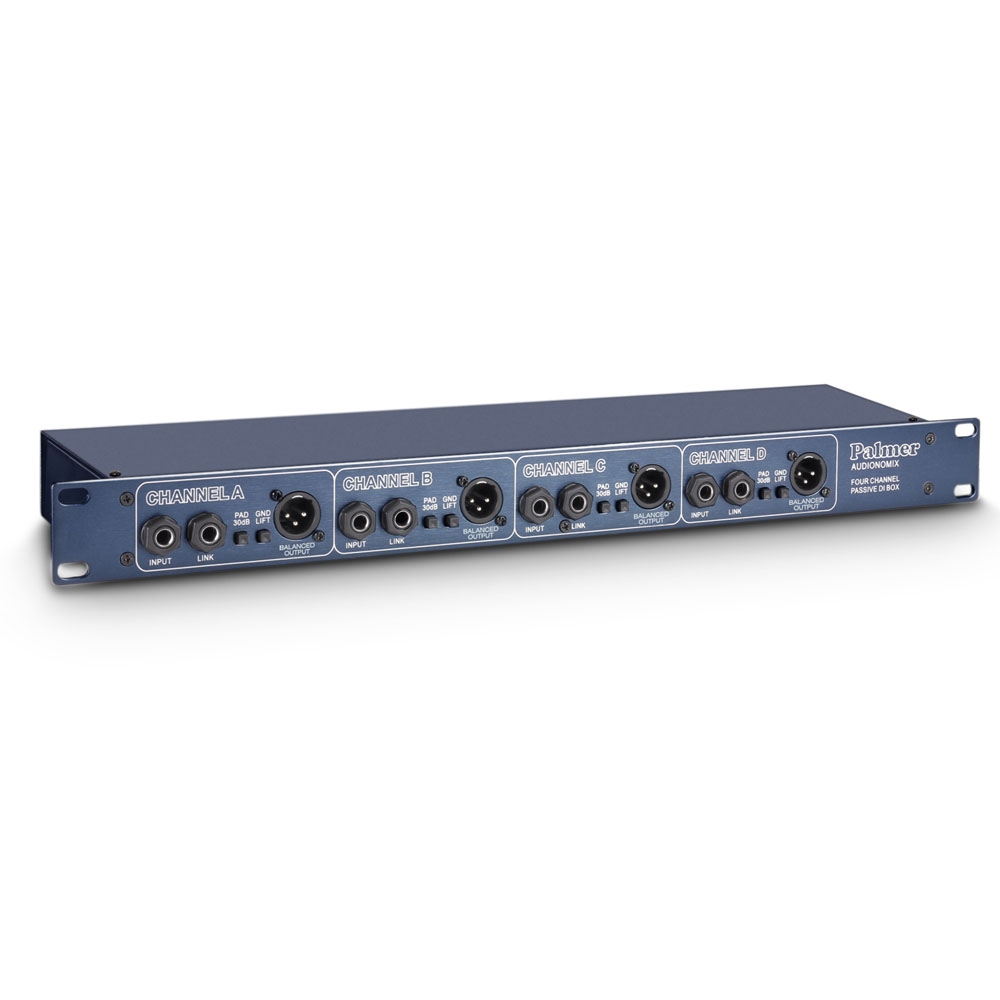

Passive 4-channel DI BOX in a 19" housing. Each channel has a jack input with a parallel output for looping the signal through. An attenuation switch (-30 dB) permits connection of a line or speaker signal at the user's choice. The specifications are identical with those of the PAN 01. All connections and switches are on the 1 U front panel; the XLR output is additionally present as a parallel socket on the rear panel.







Product typeDI Boxes
Typepassive
Channels4
Inputs4
Input connectors6.3 mm jack
Max. input level+ 54 dBu
Input pad0 / -30 dB
Outputs4 (+ 4 parallel outs)
THRU outputs/channel1
Output connectors6.3 mm jack, XLR
Max. output level+4 dBu
Output impedance600 Ohm(s)
Frequency response10 - 40000 Hz
Transformer balancedyes
Ratio10 : 1
Controlsattenuation, ground lift
Cabinet materialsheet steel
Cabinet surfacepowder coated
Width480 mm, 19 "
Depth90 mm
Height45 mm, 1 U
Weight1,43 kg


Varenr.: A-PAN03PASS
