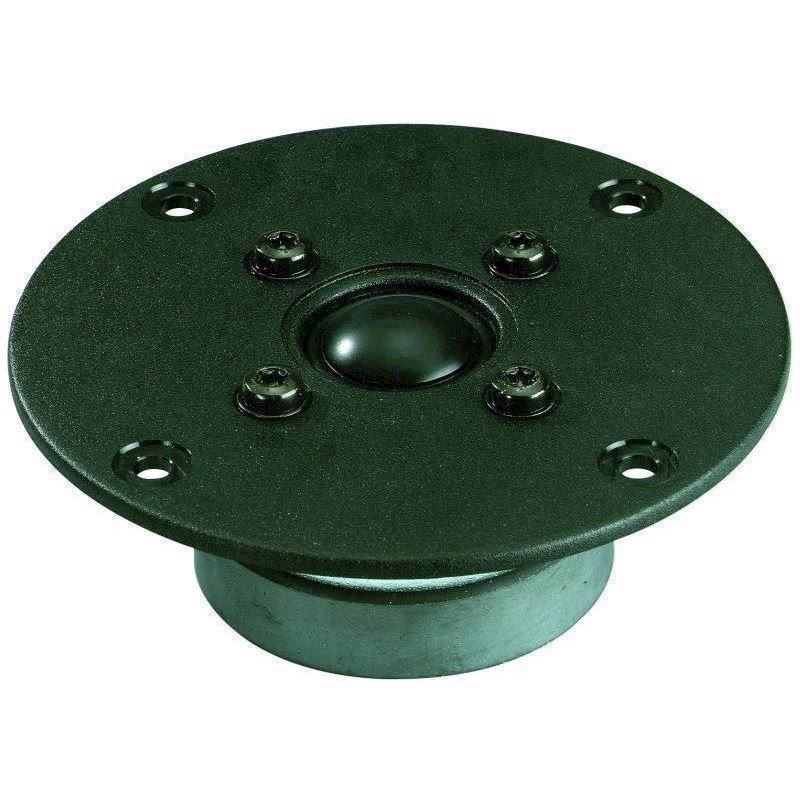

3/4'' dome tweeter - DT-19SU - NUMBER ONE

• På lager
• På lager, 2-4 dage
• Bedømmelse for 3/4'' dome tweeter - DT-19SU - NUMBER ONE

  Produktet er endnu ikke bedømt

•
  379,00DKK ved 1 stk.

Vis uden moms

Trustpilot

Spørg til denne vare

Hi-fi dome tweeter, 50 W, 8 Ω

• 19 mm soft dome, laminate technology
• Double magnet
• Robust plastic front
• Low cone weight
• Optimum brilliance
• For hi-fi applications of high requirements, especially in 3-way systems

Impedance (Z)	8 Ω
Transmission method	-

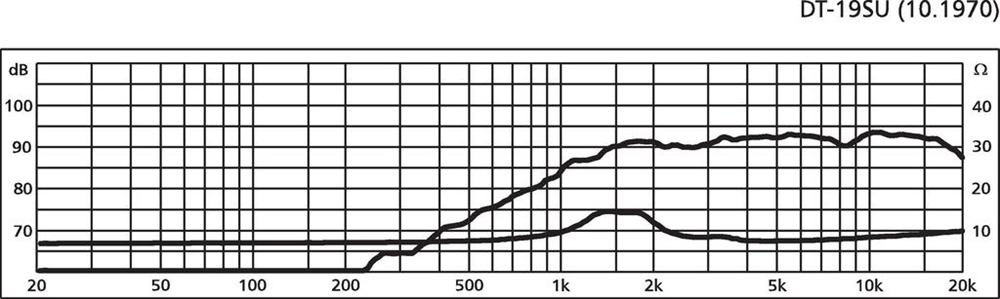

Frequency range	fx-20,000 Hz
Resonant frequency (fs)	1,500 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	3,000 Hz
Power rating	50 W
Peak music power output	80 W
Sensitivity	91 dB/W/m
Max. rated SPL	-
Max. voltage	-
Radiation angle, horizontal	-
Radiation angle, vertical	-
Suspension compl. (Cms)	-
Moving mass (Mms)	-
Mech. Q factor (Qms)	-
Electr. Q factor (Qes)	-
Total Q factor (Qts)	-
Equivalent volume (Vas)	-
DC resistance (Re)	-
Force factor (BxL)	-
Voice coil induct. (Le)	-
Voice coil diameter	Ø 19 mm
Voice coil former	-
Linear excursion (XMAX)	-
Eff. cone area (Sd)	-
Magnet weight	-
Magnet diameter	Ø 55 mm
Mounting cutout	Ø 66 mm
Mounting depth	33 mm
Mounting hole diameter	-
Hole spacing X-axis	-
Hole spacing Y-axis	-

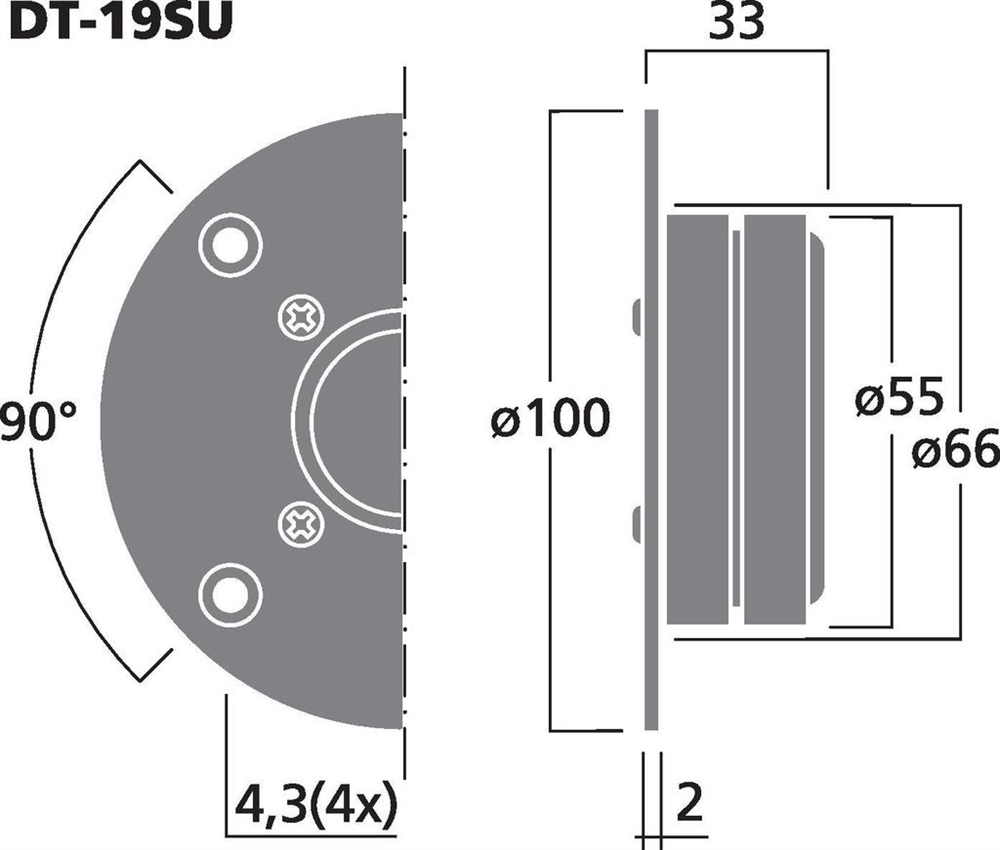

Dimensions	Ø 100 x 33 mm
Outside diameter	Ø 100 mm
Width	Ø 100 mm
Height	-
Depth	33 mm
Protective class	-
Admiss. ambient temp.	0-40 °C
Weight	0.397 kg
Packing unit	1
Type of speaker	-

Varenr.: 101970
