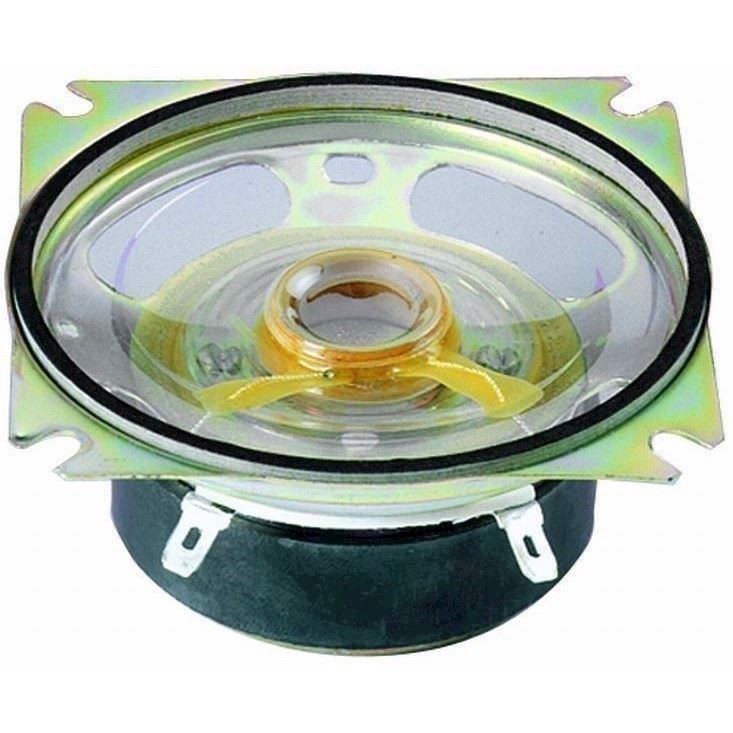

3'' højttaler - SP-15 - MONACOR

• På lager
• På lager, 2-4 dage
• Bedømmelse for 3'' højttaler - SP-15 - MONACOR

  Produktet er endnu ikke bedømt

•
  236,00DKK ved 1 stk.

Vis uden moms

Trustpilot

Spørg til denne vare

Special speaker, 10 W, 8 Ω

• All-plastic cone with hard suspension
• Moisture-proof
• Special version for signal sounds of alarm systems
• Operating temperature range: -25 °C to +70 °C

Impedance (Z)	8 Ω
Transmission method	-
Frequency range	f3-8,000 Hz
Resonant frequency (fs)	430 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	-
Power rating	10 W
Peak music power output	15 W
Sensitivity	96 dB/W/m
Max. rated SPL	-
Max. voltage	-
Radiation angle, horizontal	-
Radiation angle, vertical	-
Suspension compl. (Cms)	-
Moving mass (Mms)	-
Mech. Q factor (Qms)	-
Electr. Q factor (Qes)	-
Total Q factor (Qts)	-
Equivalent volume (Vas)	-
DC resistance (Re)	-
Force factor (BxL)	-
Voice coil induct. (Le)	-
Voice coil diameter	-
Voice coil former	-
Linear excursion (XMAX)	-
Eff. cone area (Sd)	-
Magnet weight	150 g
Magnet diameter	Ø 60 mm
Mounting cutout	Ø 79 mm
Mounting depth	39 mm
Mounting hole diameter	-
Hole spacing X-axis	-
Hole spacing Y-axis	-

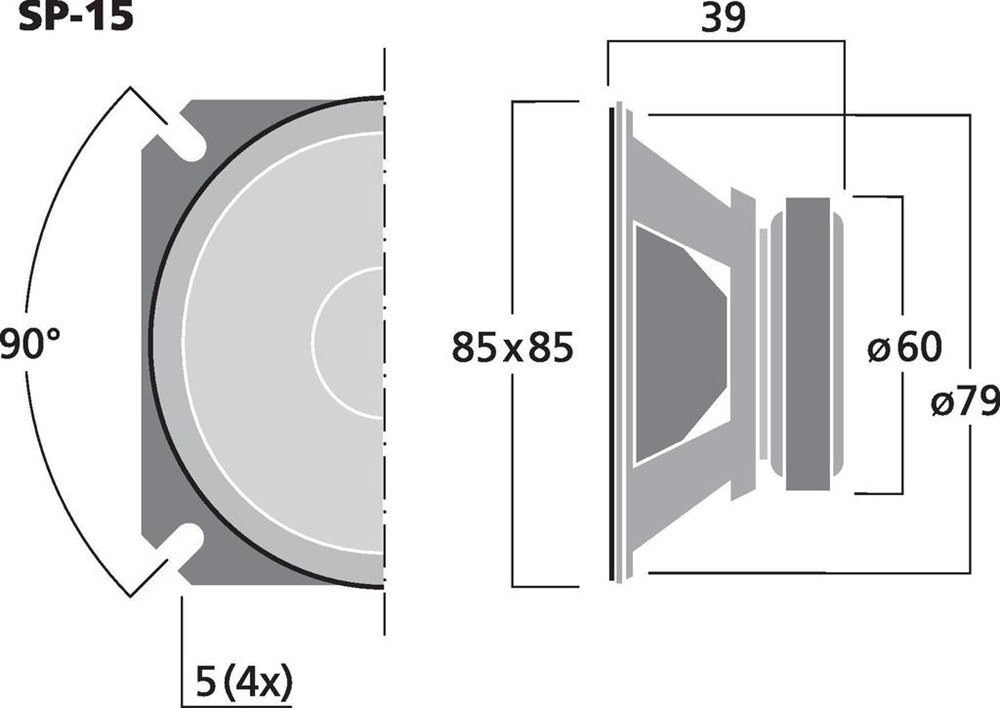

Dimensions	85 x 85 x 39 mm
Outside diameter	-
Width	85 mm
Height	85 mm
Depth	39 mm
Protective class	-
Admiss. ambient temp.	-25 to +70 °C
Weight	0.355 kg
Packing unit	1
Type of speaker	-

Varenr.: 100310
