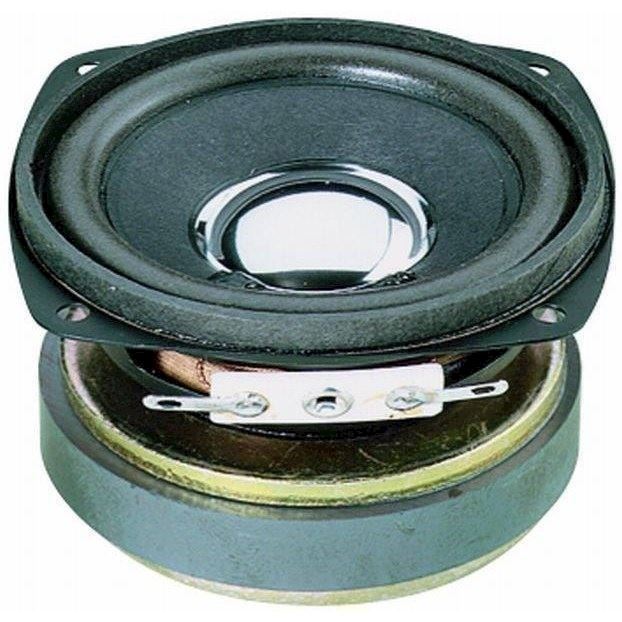

3'' højttaler - SP-45/4 - MONACOR

• På lager
• På lager, 2-4 dage
• Bedømmelse for 3'' højttaler - SP-45/4 - MONACOR

  Produktet er endnu ikke bedømt

•
  189,00DKK ved 1 stk.

Vis uden moms

Trustpilot

Spørg til denne vare

Bass-midrange speakers, 20 W, 8 Ω (/8) and 4 Ω (/4) Especially suitable for miniature speaker systems and column speakers.

Impedance (Z)	4 Ω
Transmission method	-

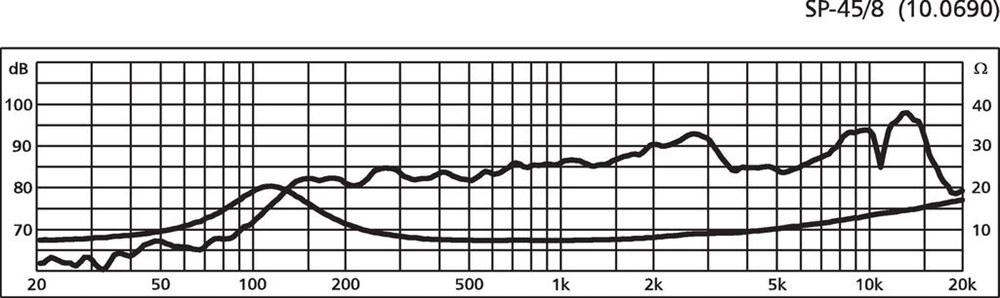

Frequency range	f3-16,000 Hz
Resonant frequency (fs)	120 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	-
Power rating	20 W
Peak music power output	40 W
Sensitivity	88 dB/W/m
Max. rated SPL	-
Max. voltage	-
Radiation angle, horizontal	-
Radiation angle, vertical	-
Suspension compl. (Cms)	1.1 mm/N
Moving mass (Mms)	1.6 g
Mech. Q factor (Qms)	2.82
Electr. Q factor (Qes)	0.68
Total Q factor (Qts)	0.55
Equivalent volume (Vas)	1.5 l
DC resistance (Re)	3.3 Ω
Force factor (BxL)	2.4 Tm
Voice coil induct. (Le)	0.1 mH
Voice coil diameter	19 mm
Voice coil former	aluminium
Linear excursion (XMAX)	± 0.75 mm
Eff. cone area (Sd)	31 cm2
Magnet weight	150 g
Magnet diameter	Ø 70 mm
Mounting cutout	Ø 72 mm
Mounting depth	43 mm
Mounting hole diameter	Ø 84 mm
Hole spacing X-axis	59.5 mm
Hole spacing Y-axis	59.5 mm

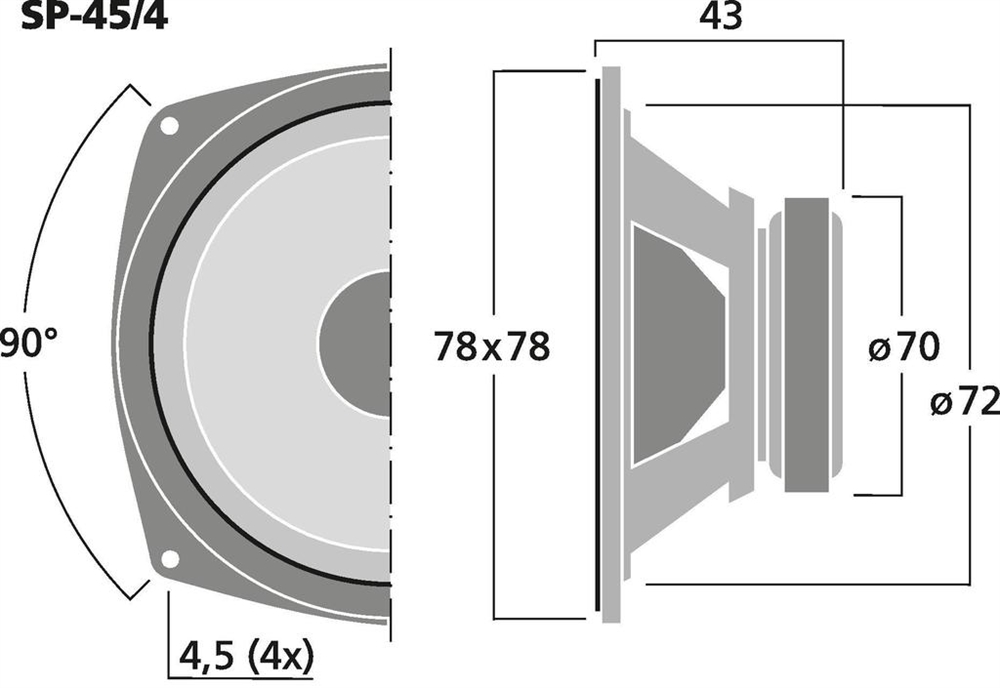

Dimensions	78 x 78 x 43 mm
Outside diameter	Ø 93 mm
Width	78 mm
Height	78 mm
Depth	43 mm
Protective class	-
Admiss. ambient temp.	0-40 °C
Weight	0.412 kg
Packing unit	1
Type of speaker	3"

Varenr.: 100680
