Impedance (Z) | 8 Ω |
Transmission method | - |

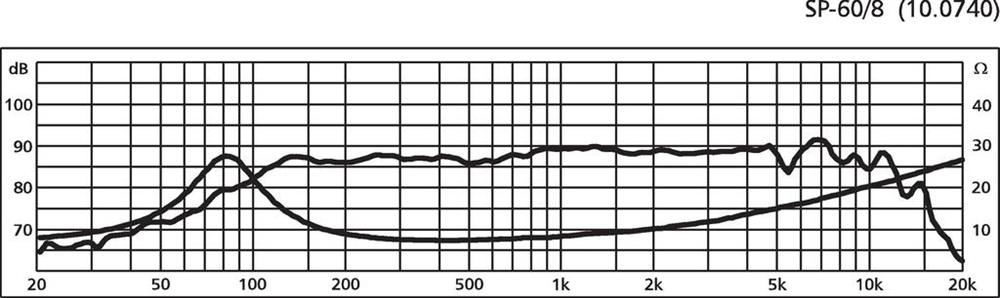

Frequency range | f3-8,000 Hz |
Resonant frequency (fs) | 65 Hz |
Rec. crossov. frequ. (fmax.) (12 dB/oct.) | - |
Power rating | 30 W |
Peak music power output | 60 W |
Sensitivity | 90 dB/W/m |
Max. rated SPL | - |
Max. voltage | - |
Radiation angle, horizontal | - |
Radiation angle, vertical | - |
Suspension compl. (Cms) | 0.8 mm/N |
Moving mass (Mms) | 4 g |
Mech. Q factor (Qms) | 2.10 |
Electr. Q factor (Qes) | 0.64 |
Total Q factor (Qts) | 0.49 |
Equivalent volume (Vas) | 6 l |
DC resistance (Re) | 6.5 Ω |
Force factor (BxL) | 4.1 Tm |
Voice coil induct. (Le) | 0.3 mH |
Voice coil diameter | Ø 25,5 mm |
Voice coil former | aluminium |
Linear excursion (XMAX) | ± 2 mm |
Eff. cone area (Sd) | 55 cm2 |
Magnet weight | 280 g |
Magnet diameter | Ø 80 mm |
Mounting cutout | Ø 96 mm |
Mounting depth | 60 mm |
Mounting hole diameter | - |
Hole spacing X-axis | - |
Hole spacing Y-axis | - |

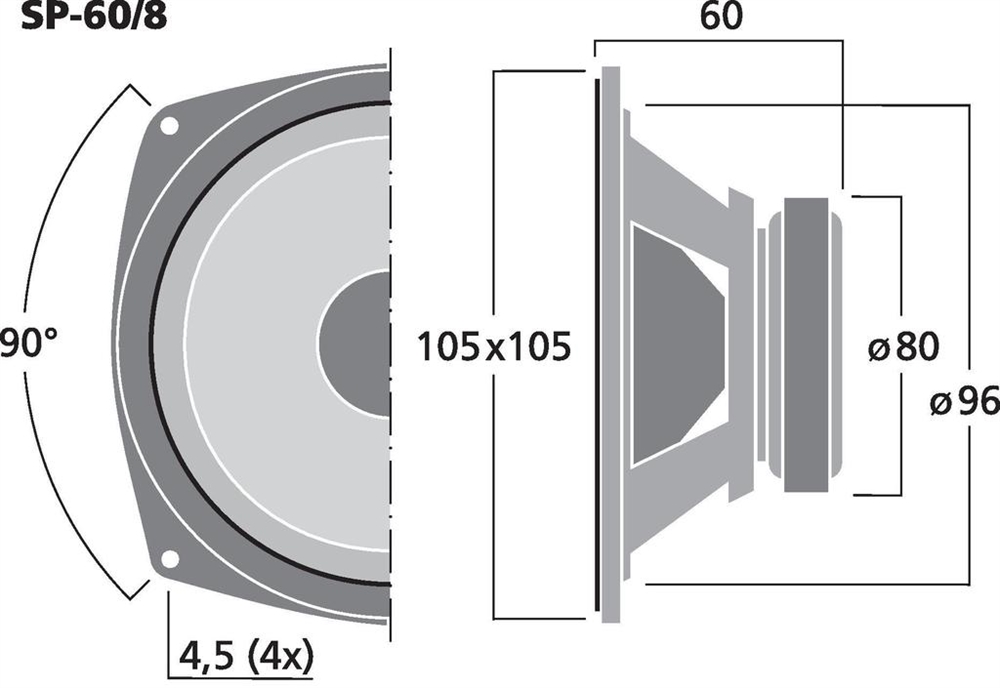

Dimensions | 105 x 105 x 60 mm |
Outside diameter | - |
Width | 105 mm |
Height | 105 mm |
Depth | 60 mm |
Protective class | - |
Admiss. ambient temp. | 0-40 °C |
Weight | 0.654 kg |
Packing unit | 1 |
Type of speaker | 4" |
