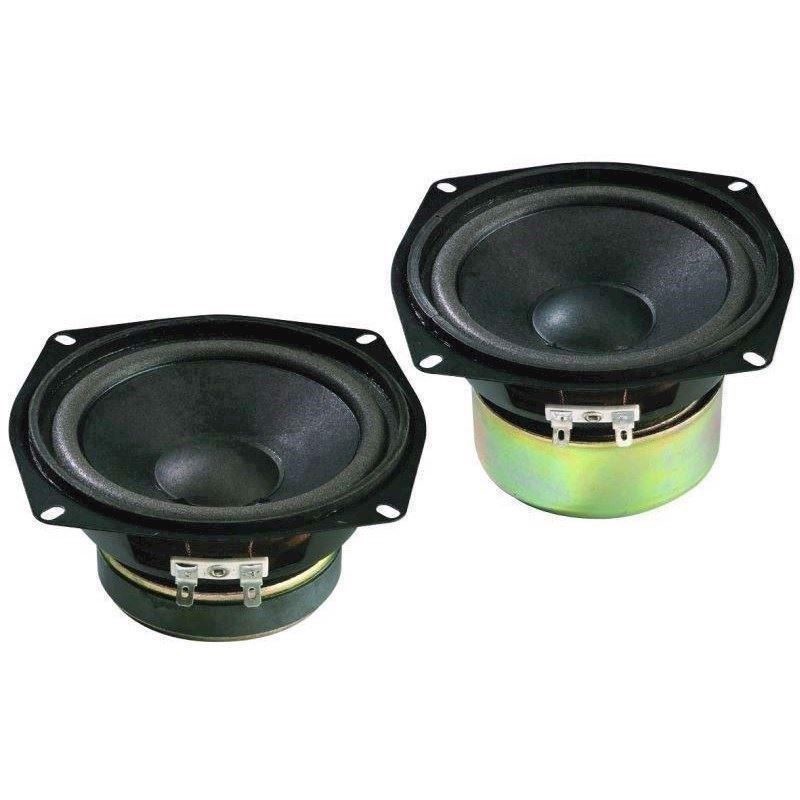

5'' højttaler - SP-13/4 - MONACOR

• På lager
• På lager, 2-4 dage
• Bedømmelse for 5'' højttaler - SP-13/4 - MONACOR

  Produktet er endnu ikke bedømt

•
  259,00DKK ved 1 stk.

Vis uden moms

Universal speaker, 20 W, 4 Ω

• For general applications up to the PA range
• Wide bandwidth radiation

Klang+Ton 02/2018
"Quite respectable. [...] considering the modest use of material, a remarkable performance. (SP-13/4 and HT-22/8 in the Cheap Trick 296 of Klang+Ton)



Impedance (Z)	4 Ω
Transmission method	-
Frequency range	f3-8,000 Hz
Resonant frequency (fs)	-
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	-
Power rating	20 W
Peak music power output	40 W
Sensitivity	-
Max. rated SPL	-
Max. voltage	-
Radiation angle, horizontal	-
Radiation angle, vertical	-
Suspension compl. (Cms)	-
Moving mass (Mms)	-
Mech. Q factor (Qms)	-
Electr. Q factor (Qes)	-
Total Q factor (Qts)	-
Equivalent volume (Vas)	-
DC resistance (Re)	-
Force factor (BxL)	-
Voice coil induct. (Le)	-
Voice coil diameter	-
Voice coil former	-
Linear excursion (XMAX)	-
Eff. cone area (Sd)	-
Magnet weight	-

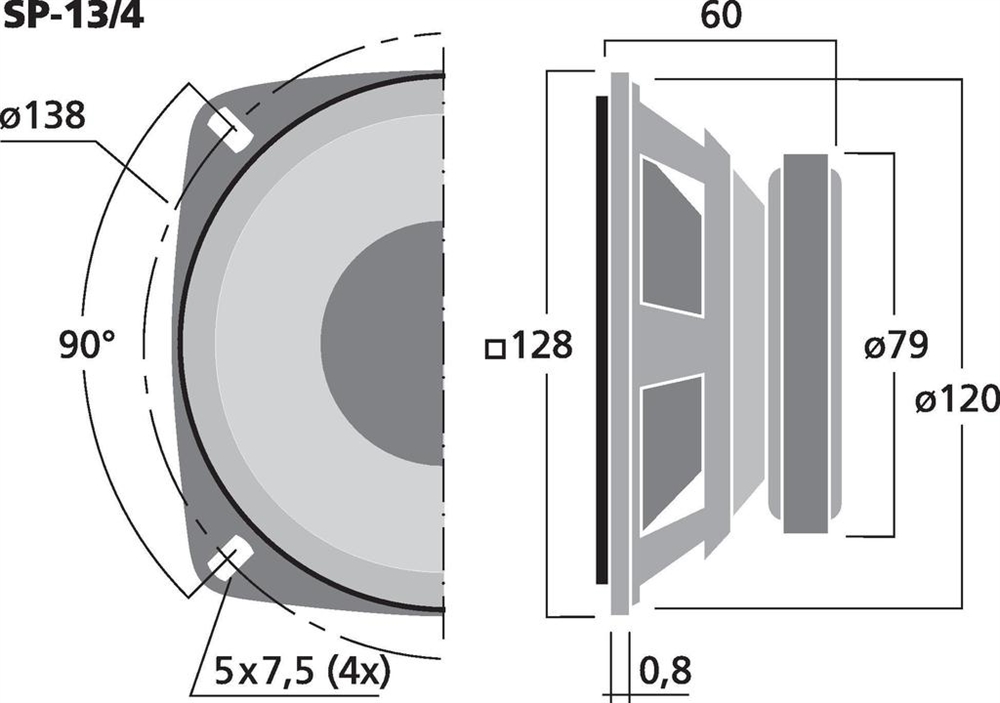

Magnet diameter	Ø 79 mm
Mounting cutout	Ø 120 mm
Mounting depth	59.2 mm
Mounting hole diameter	Ø 138 mm
Hole spacing X-axis	-
Hole spacing Y-axis	-
Dimensions	128x128 mm
Outside diameter	-
Width	128 mm
Height	128 mm
Depth	60 mm
Protective class	-
Admiss. ambient temp.	0-40 °C
Weight	605 g
Packing unit	1
Type of speaker	5"

Varenr.: 103660
