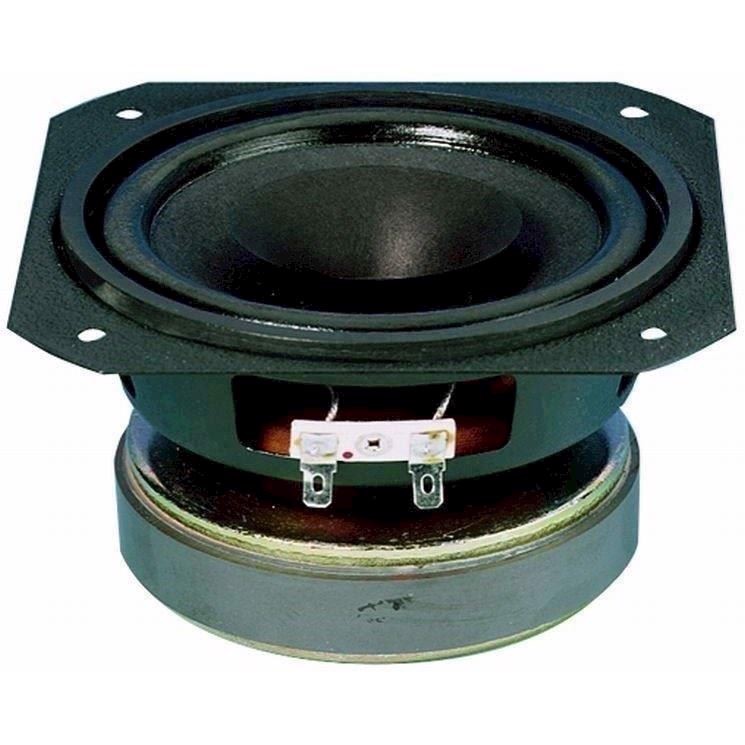

5'' højttaler - SPH-60X - MONACOR

• Ikke på lager
• Kontakt os.
• Bedømmelse for 5'' højttaler - SPH-60X - MONACOR

  Produktet er endnu ikke bedømt

•
  359,00DKK ved 1 stk.

Vis uden moms

Trustpilot

Spørg til denne vare

Full range speaker, 30 W, 8 Ω

• Drilled pole core
• Very good frequency response linearity also in the high frequency range
• For general applications
• Speaker from the successful building concepts CT193 and CT194 of the magazine Klang+Ton

Impedance (Z)	8 Ω
Transmission method	-

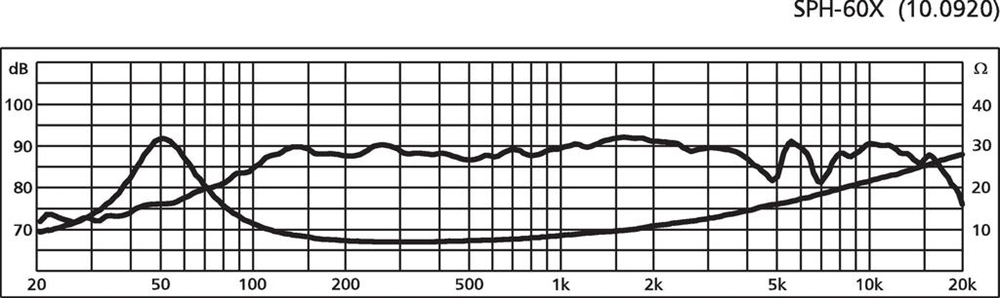

Frequency range	f3-20,000 Hz
Resonant frequency (fs)	60 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	-
Power rating	30 W
Peak music power output	60 W
Sensitivity	89 dB/W/m
Max. rated SPL	-
Max. voltage	-
Radiation angle, horizontal
Radiation angle, vertical
Suspension compl. (Cms)	1.19 mm/N
Moving mass (Mms)	5.9 g
Mech. Q factor (Qms)	2.17
Electr. Q factor (Qes)	0.53
Total Q factor (Qts)	0.42
Equivalent volume (Vas)	9 l
DC resistance (Re)	6.2 Ω
Force factor (BxL)	5.1 Tm
Voice coil induct. (Le)	0.4 mH
Voice coil diameter	Ø 25.5 mm
Voice coil former	aluminium
Linear excursion (XMAX)	± 1.3 mm
Eff. cone area (Sd)	80 cm2
Magnet weight	370 g
Magnet diameter	Ø 100 mm
Mounting cutout	Ø 122 mm
Mounting depth	70 mm
Mounting hole diameter	-
Hole spacing X-axis	-
Hole spacing Y-axis	-

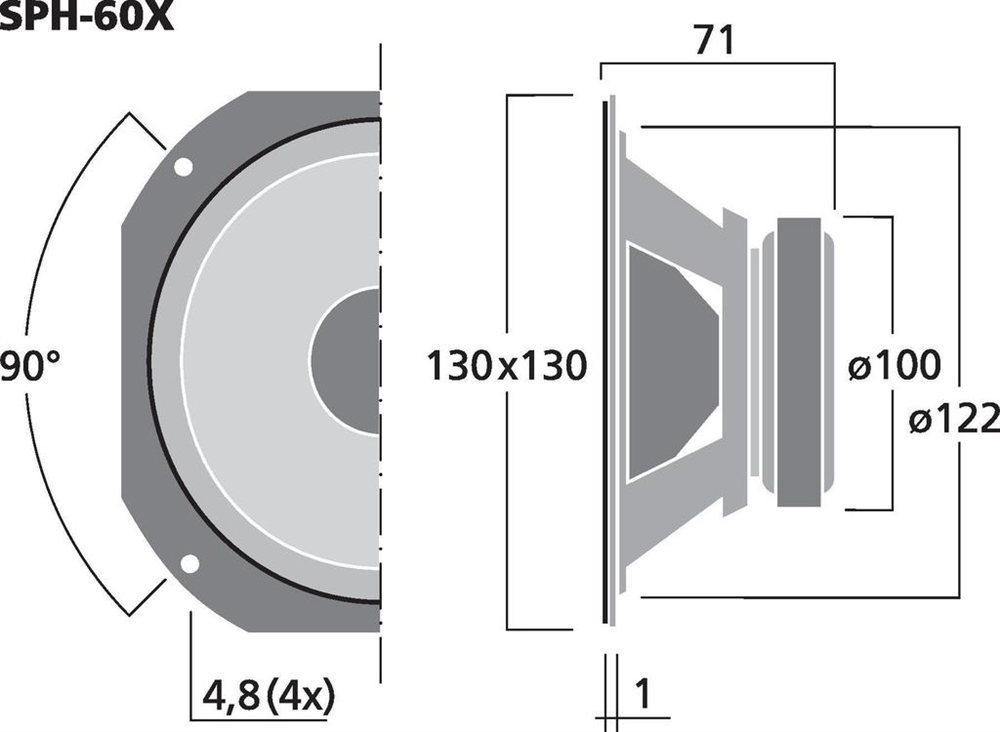

Dimensions	130 x 130 x 71 mm
Outside diameter	-
Width	130 mm
Height	130 mm
Depth	71 mm
Protective class	-
Admiss. ambient temp.	0-40 °C
Weight	1.1 kg
Packing unit	1
Type of speaker	5"

Varenr.: 100920
