6 1/2´´ højttaler - SPH-174KE

• På lager
• På lager, 2-4 dage
• Bedømmelse for 6 1/2´´ højttaler - SPH-174KE

  Produktet er endnu ikke bedømt

•
  329,00DKK ved 1 stk.

Vis uden moms

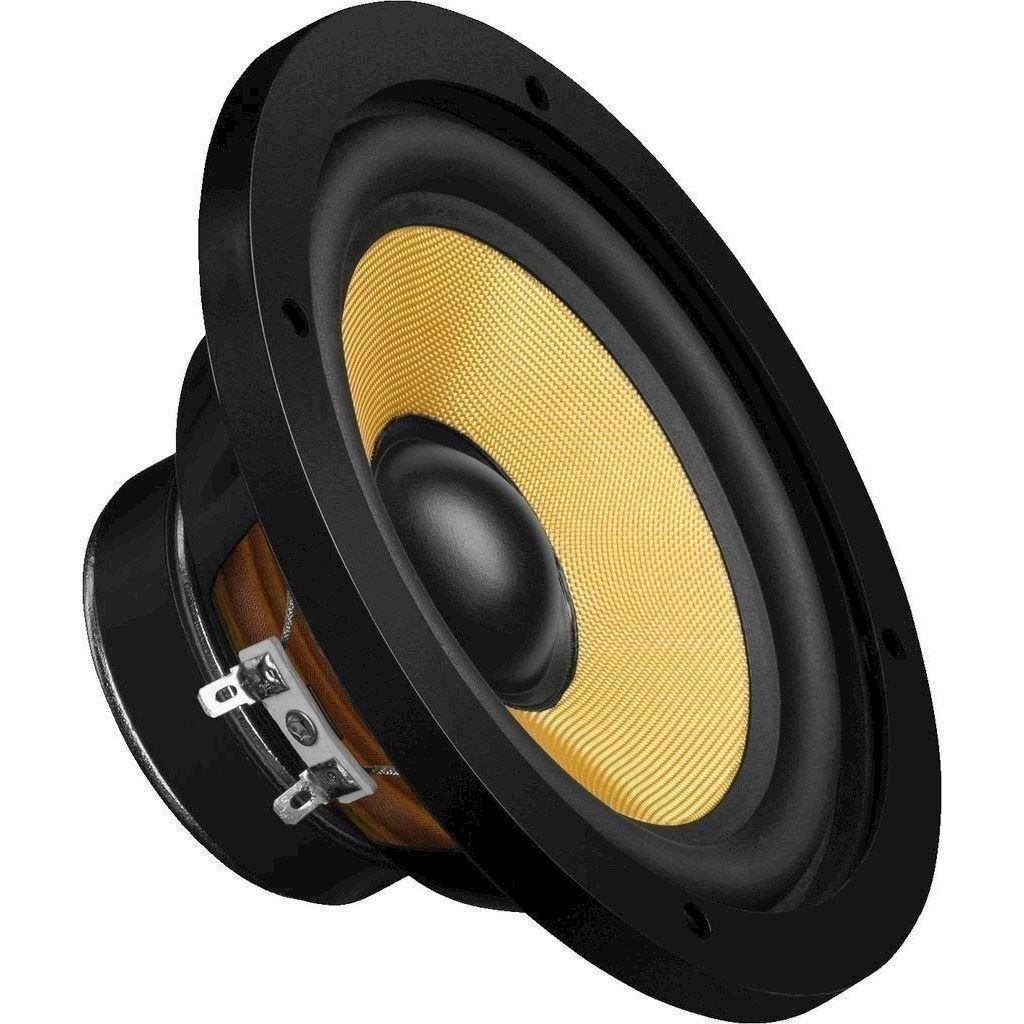

Hi-fi bass-midrange speaker, 50 W, 8 Ω

• Hi-fi bass-midrange speaker of classic design
• High-quality Kevlar cone
• Robust sheet steel basket with 4-hole screw connection

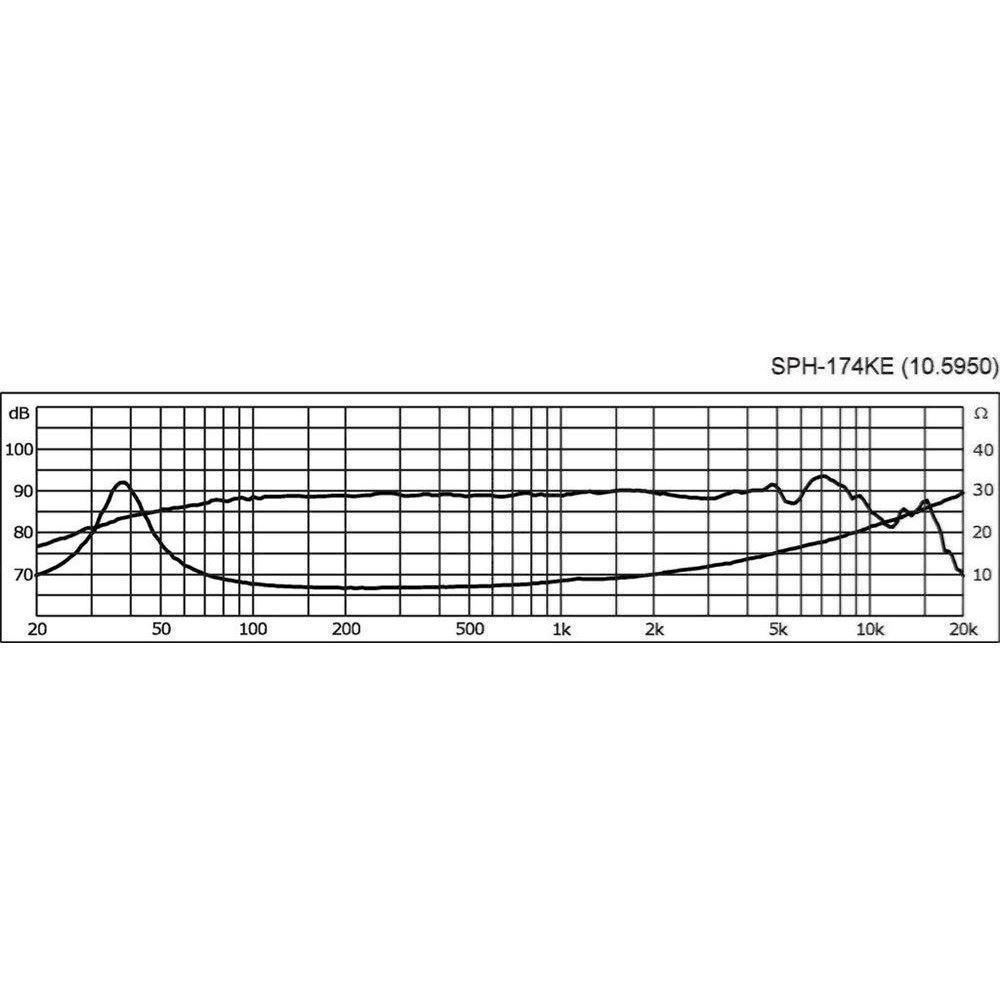

• Very linear frequency response
• For universal use in closed, bass-reflex and TML cabinets
• Including plastic trim ring for basket (Ø 175 mm x 11 mm)

Klang+Ton, 5/2018
"Bass-midrange speaker with excellent technical features available at an attractive price and particularly suitable for closed cabinets."

HOBBY HiFi 06/2018
“An excellent bass-midrange speaker for a cost-efficient 2-way project. Hobby HiFi concept MONA, edition 06/2018”



Impedance (Z)	8 Ω
Transmission method	-
Frequency range	f3-8,000 Hz
Resonant frequency (fs)	42 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	-
Power rating	50 W
Peak music power output	100 W
Sensitivity	88 dB/W/m
Max. rated SPL	-
Max. voltage	-
Radiation angle, horizontal	-
Radiation angle, vertical	-
Suspension compl. (Cms)	0.98 mm/N
Moving mass (Mms)	14.23 g
Mech. Q factor (Qms)	2.59
Electr. Q factor (Qes)	0.64
Total Q factor (Qts)	0.51
Equivalent volume (Vas)	26 l
DC resistance (Re)	6.39 Ω
Force factor (BxL)	6.1 Tm
Voice coil induct. (Le)	0.43 mH
Voice coil diameter	Ø 25 mm
Voice coil former	aluminium
Linear excursion (XMAX)	± 3 mm
Eff. cone area (Sd)	137 cm2
Magnet weight	320 g
Magnet diameter	Ø 80 mm

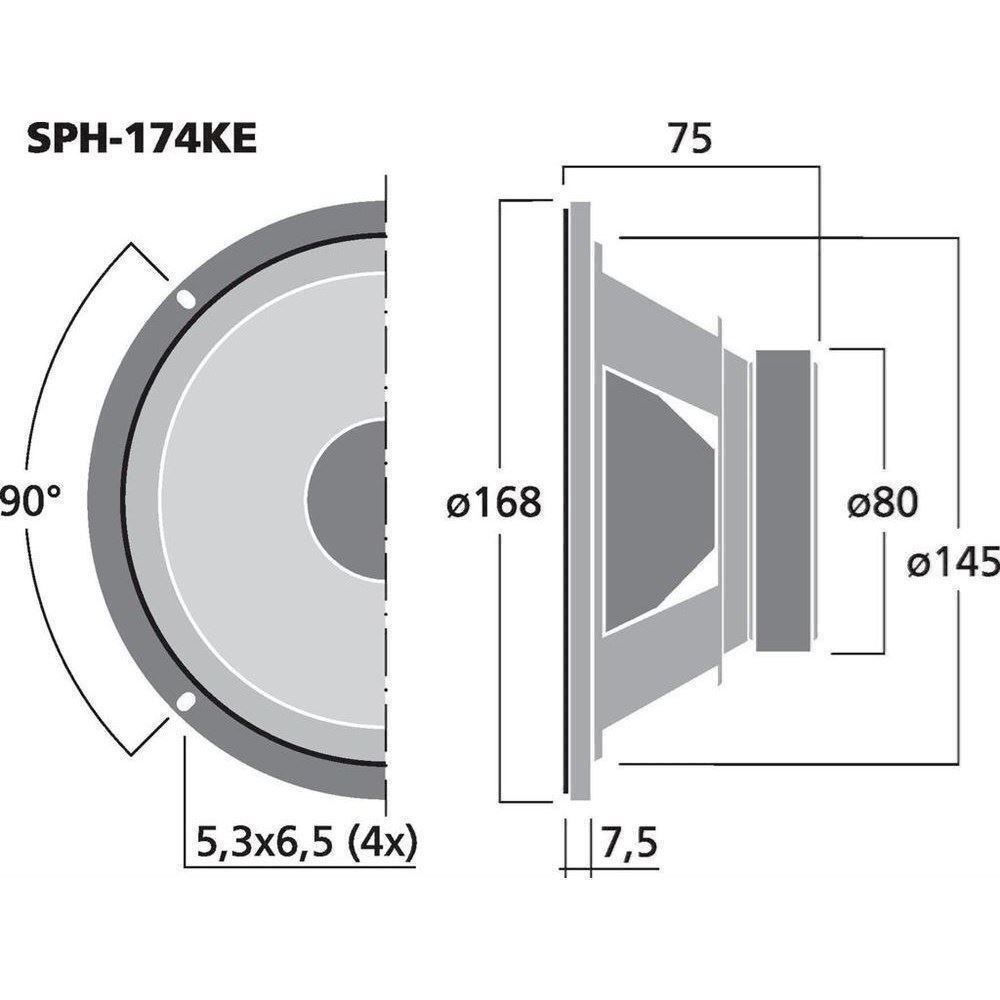

Mounting cutout	Ø 145 mm
Mounting depth	68 mm
Mounting hole diameter	Ø 158 mm
Hole spacing X-axis	111.7 mm
Hole spacing Y-axis	111.7 mm
Dimensions	Ø 168 mm x 75 mm
Outside diameter	Ø 168 mm
Width	Ø 168 mm
Height	-
Depth	75 mm
Protective class	-
Admiss. ambient temp.	0-40 °C
Weight	0.9 kg
Packing unit	1
Type of speaker	6.5"

Varenr.: 105950
