6½" loft højttaler 100V & 8 Ω - EDL-62HQ

Ikke på lager
Kontakt os.
Bedømmelse for 6½" loft højttaler 100V & 8 Ω - EDL-62HQ
Produktet er endnu ikke bedømt

839,00DKK ved 1 stk.

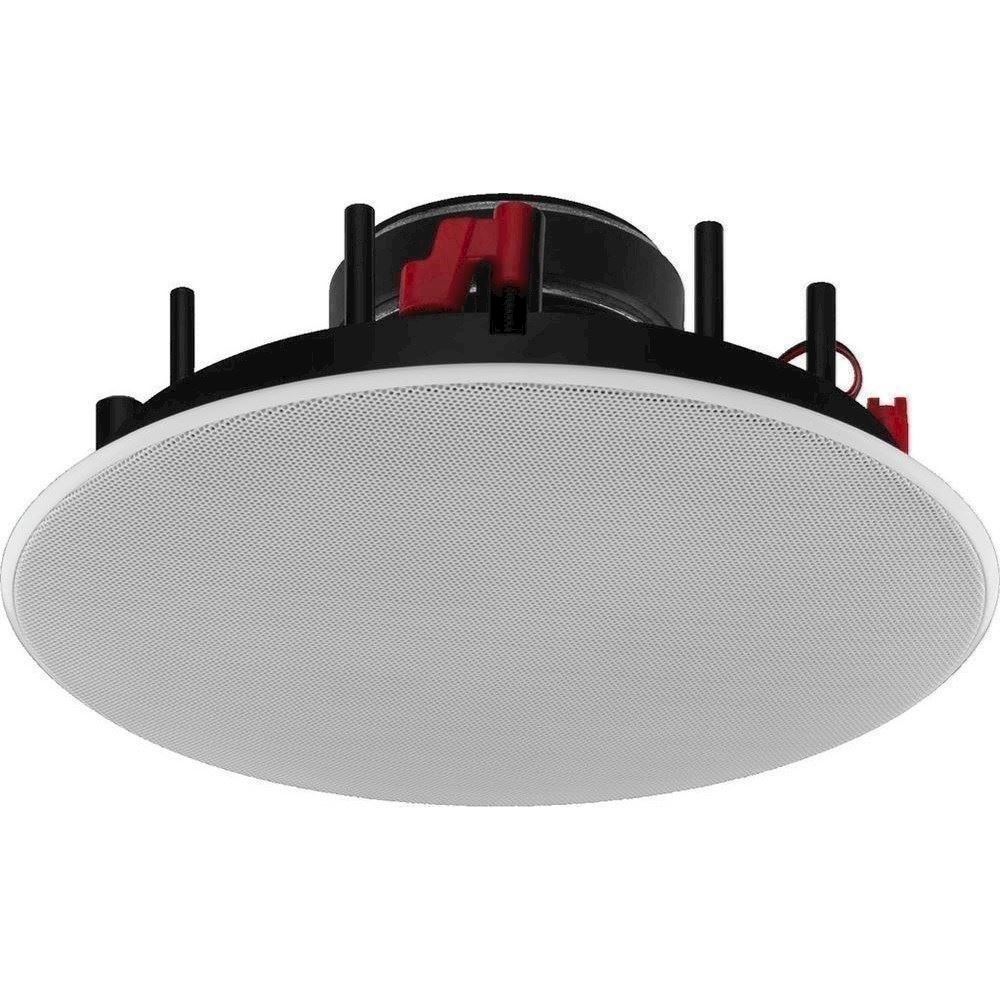

PA hi-fi wall and ceiling speaker, 30 W 100 V transmission technology or 8 Ω operation 2-way version with coaxial dome tweeter 16 cm (6½") bass speaker with waveguide and 25 mm (1") silk dome Pivoting tweeter via ball joint Excellent sound characteristics Stylish flush fit protective metal grille with slim plastic frame Protective grille magnetically attached to speaker front For a wall thickness/ceiling thickness from 6 to 35 mm

PA hi-fi wall and ceiling speaker, 30 W

100 V transmission technology or 8 Ω operation
2-way version with coaxial dome tweeter
16 cm (6½") bass speaker with waveguide and 25 mm (1") silk dome
Pivoting tweeter via ball joint
Excellent sound characteristics
Stylish flush fit protective metal grille with slim plastic frame
Protective grille magnetically attached to speaker front
For a wall thickness/ceiling thickness from 6 to 35 mm

Impedance (Z)	8 Ω
Transmission method	100 V

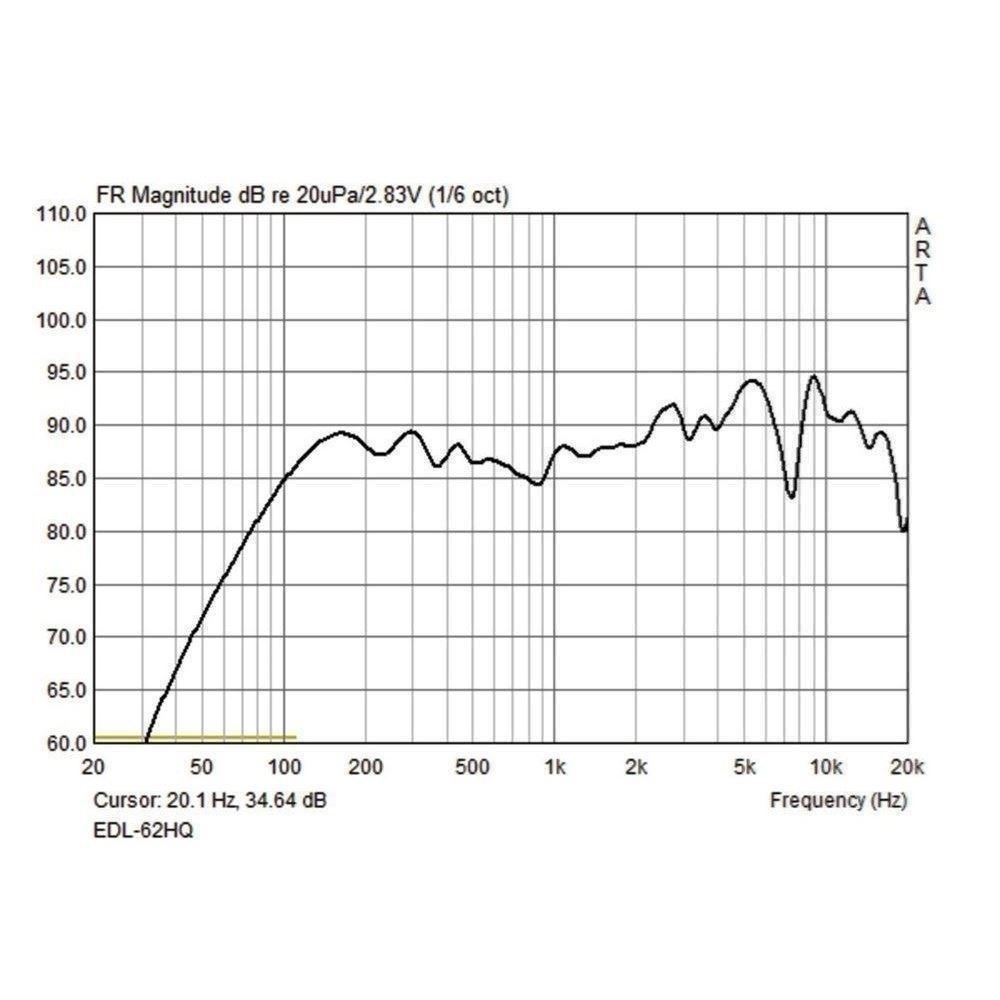

Frequency range	50-20,000 Hz
Resonant frequency (fs)	60 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	-
Power rating	30/16/8/4 W
Peak music power output	-
Sensitivity	89 dB/W/m
Max. rated SPL	-
Max. voltage	-
Radiation angle, horizontal	-
Radiation angle, vertical	-
Suspension compl. (Cms)	-
Moving mass (Mms)	-
Mech. Q factor (Qms)	-
Electr. Q factor (Qes)	-
Total Q factor (Qts)	-
Equivalent volume (Vas)	-
DC resistance (Re)	-
Force factor (BxL)	-
Voice coil induct. (Le)	-
Voice coil diameter	-
Voice coil former	-
Linear excursion (X_MAX)	-
Eff. cone area (Sd)	-
Magnet weight	-
Magnet diameter	-

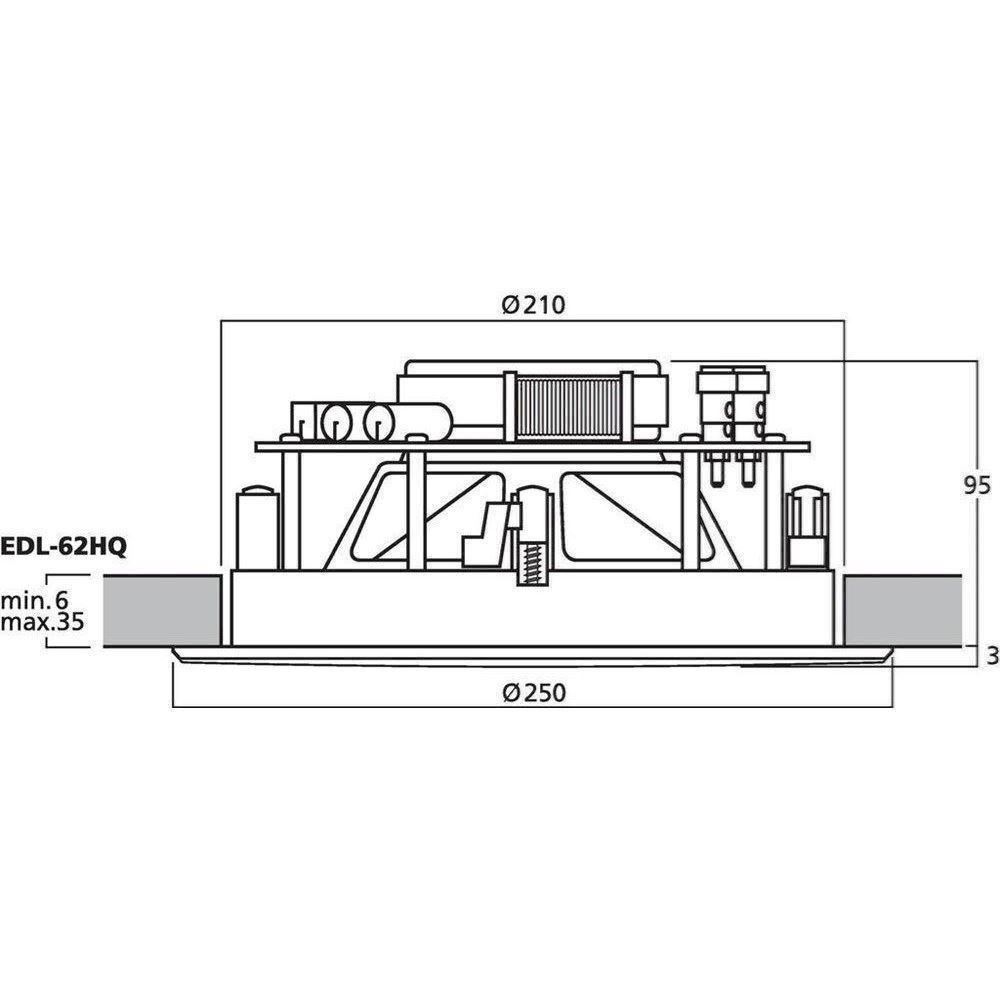

Mounting cutout	Ø 210 mm
Mounting depth	95 mm
Mounting hole diameter	-
Hole spacing X-axis	-
Hole spacing Y-axis	-
Dimensions	Ø 250 mm x 98 mm
Outside diameter	Ø 250 mm
Width	Ø 250 mm
Height	-
Depth	98 mm
Protective class	-
Admiss. ambient temp.	-
Weight	1.82 kg
Packing unit	1
Type of speaker	165

Varenr.: 163430
