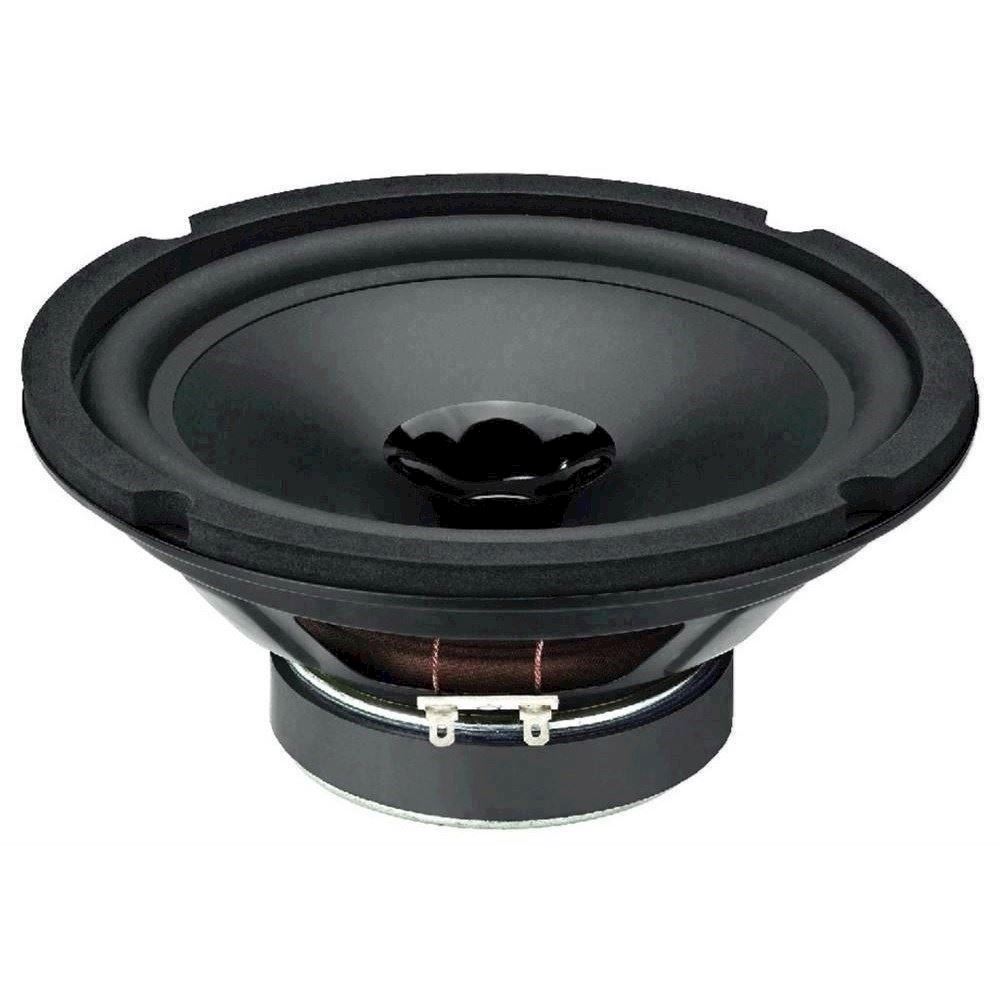

8'' fuldtonehøjttaler - SPX-200WP

8\'\' fuldtonehøjttaler - SPX-200WP
  • På lager
  • På lager, 2-4 dage
  • Bedømmelse for 8'' fuldtonehøjttaler - SPX-200WP
    Produktet er endnu ikke bedømt
  •
    429,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner


Hi-fi full range speaker, 100WMAX, 8 ohm

Hi-fi full range speaker, 50 W, 8 Ω
  • Excellent sound quality
  • Very wide frequency range, slightly rising towards the high frequencies
  • Low-resonance and weatherproof polypropylene cone with rubber surround
  • Very good bass reproduction
  • Ideally suited for application in closed cabinets
Klang+Ton 02/2013
"Classical results in a modern design - an exciting full range speaker. WP actually stands for waterproof. Thus, a speaker suitable for outdoor applications. In the measuring section, the SPX-200WP astonishingly provides a performance exactly like some of my favourite full range speakers."


Impedance (Z)8 Ω
Transmission method-

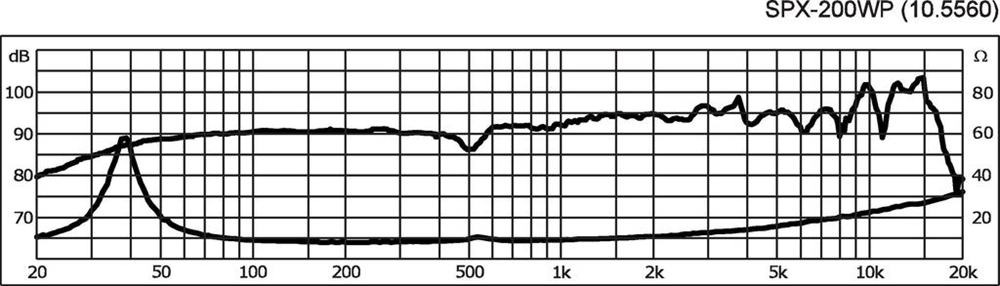

Frequency rangef3-18,000 Hz
Resonant frequency (fs)36 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)-
Power rating50 W
Peak music power output100 W
Sensitivity89 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)0.95 mm/N
Moving mass (Mms)19.7 g
Mech. Q factor (Qms)4.18
Electr. Q factor (Qes)0.69
Total Q factor (Qts)0.59
Equivalent volume (Vas)60.5 l
DC resistance (Re)7.6 Ω
Force factor (BxL)6.79 Tm
Voice coil induct. (Le)0.35 mH
Voice coil diameterØ 25 mm
Voice coil formerKapton
Linear excursion (XMAX)± 2 mm
Eff. cone area (Sd)213 cm2
Magnet weight564 g
Magnet diameterØ 96 mm
Mounting cutoutØ 180 mm
Mounting depth78.5 mm
Mounting hole diameter-
Hole spacing X-axis-
Hole spacing Y-axis-

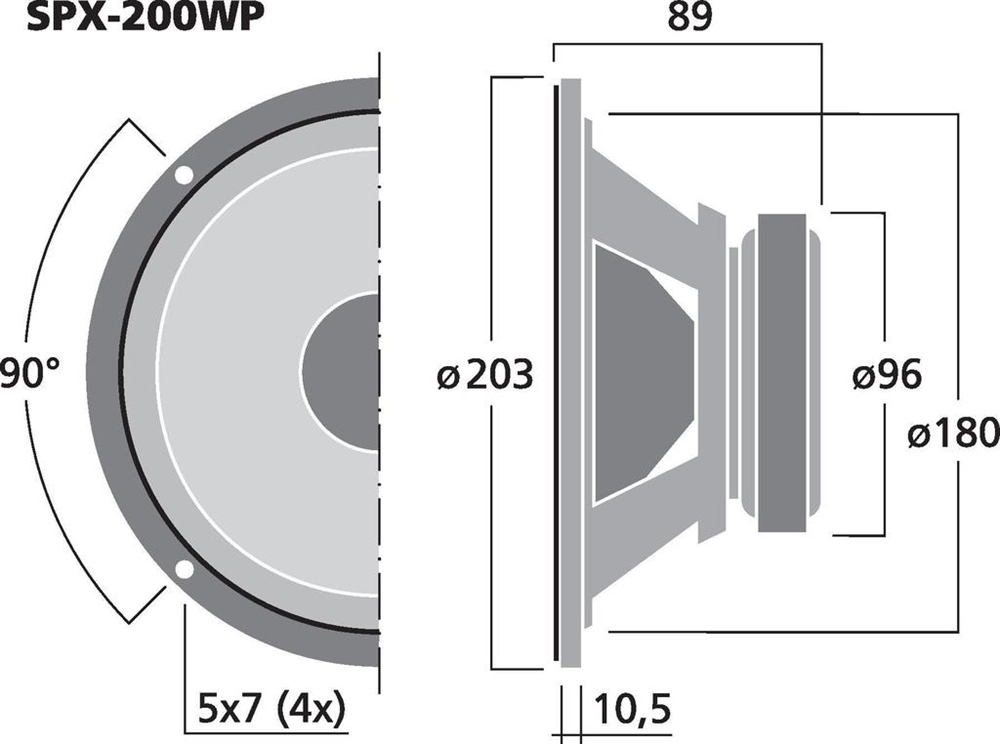

DimensionsØ 203 mm x 89 mm
Outside diameterØ 203 mm
WidthØ 203 mm
Height-
Depth99 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight1.32 kg
Packing unit1
Type of speaker8"

Varenr.: 105560
