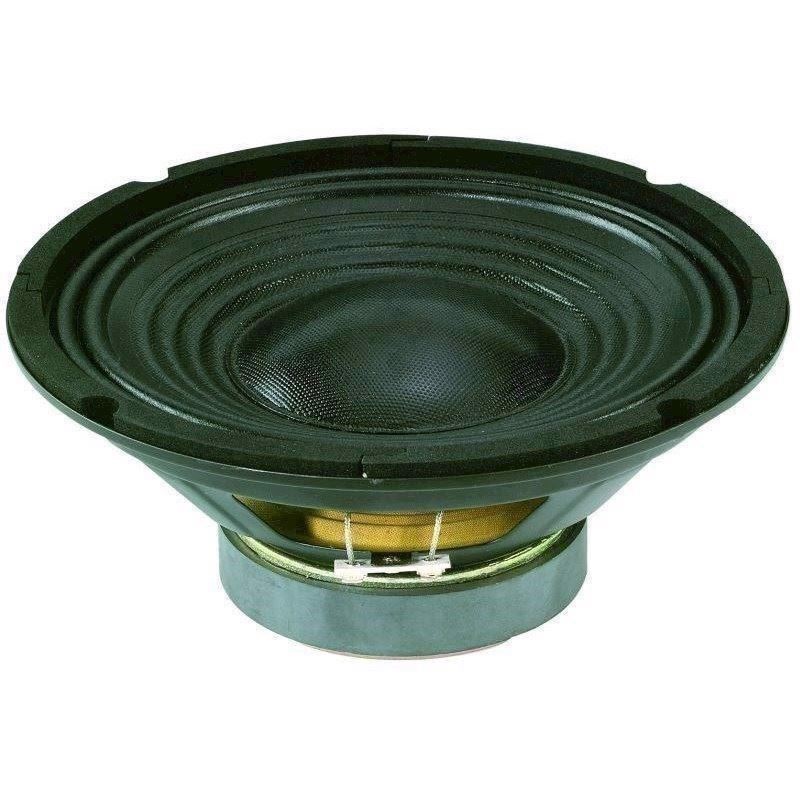

8'' højttaler - SP-202PA - MONACOR

• På lager
• På lager, 2-4 dage
• Bedømmelse for 8'' højttaler - SP-202PA - MONACOR

  Produktet er endnu ikke bedømt

•
  299,00DKK ved 1 stk.

Vis uden moms

Universal bass-midrange speaker, 50 W, 8 Ω
For bass-midrange applications, also in power speaker systems.



Impedance (Z)	8 Ω
Transmission method	-
Frequency range	f3-4,500 Hz
Resonant frequency (fs)	68 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	-
Power rating	50 W
Peak music power output	100 W
Sensitivity	91 dB/W/m
Max. rated SPL	-
Max. voltage	-
Radiation angle, horizontal	-
Radiation angle, vertical	-
Suspension compl. (Cms)	0.2 mm/N
Moving mass (Mms)	18 g
Mech. Q factor (Qms)	2.33
Electr. Q factor (Qes)	2.25
Total Q factor (Qts)	1.1
Equivalent volume (Vas)	12 l
DC resistance (Re)	7.4 Ω
Force factor (BxL)	5.6 Tm
Voice coil induct. (Le)	0.4 mH
Voice coil diameter	Ø 25 mm
Voice coil former	aluminium
Linear excursion (XMAX)	± 3 mm
Eff. cone area (Sd)	216 cm2
Magnet weight	570 g
Magnet diameter	Ø 100 mm
Mounting cutout	Ø 185 mm
Mounting depth	82 mm
Mounting hole diameter	-
Hole spacing X-axis	-
Hole spacing Y-axis	-

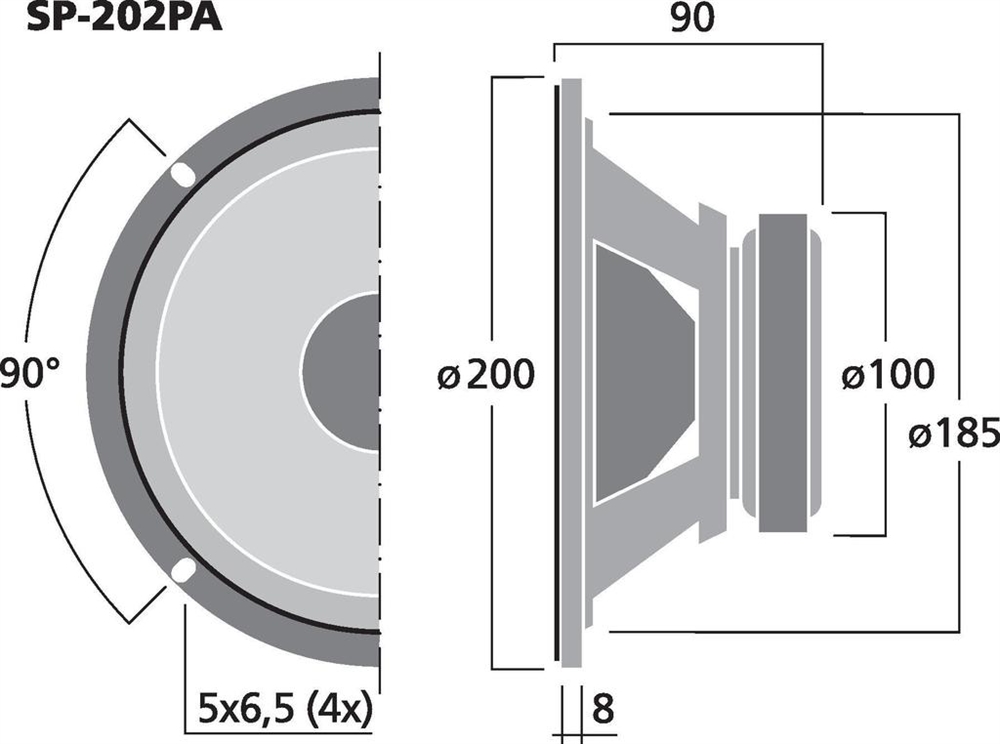

Dimensions	Ø 200 mm x 90 mm
Outside diameter	Ø 200 mm
Width	Ø 200 mm
Height	-
Depth	90 mm
Protective class	-
Admiss. ambient temp.	0-40 °C
Weight	1.115 kg
Packing unit	1
Type of speaker	8"

Varenr.: 103290
