8'' højttaler - SP-8/150PRO - IMG STAGE LINE

$8\'\' højttaler - SP-8/150PRO - IMG STAGE LINE$

På lager
På lager, 2-4 dage
Bedømmelse for 8'' højttaler - SP-8/150PRO - IMG STAGE LINE
Produktet er endnu ikke bedømt

559,00DKK ved 1 stk.

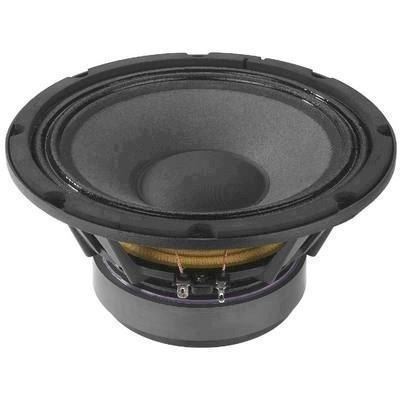

Professional PA bass speaker from IMG Stage Line.
This exceptional speaker from the L-RAY bass module combines a high power cability, a good efficiency and an amazing mechanical stability in a format which at 20cm is of extra com

Compact PA bass speaker, subwoofer, 150 W, 8 Ω

20 cm (8") bass speaker and subwoofer of high power capability
Heat-resistant voice coil and ventilated drive system
Extra long excursion for a deep bass reproduction of high volumes
Progressive cone suspension for a high operating reliability
Robust diecast aluminium basket
Ideally suited for 2-way systems and compact subwoofers

Impedance (Z)	8 Ω
Transmission method	-

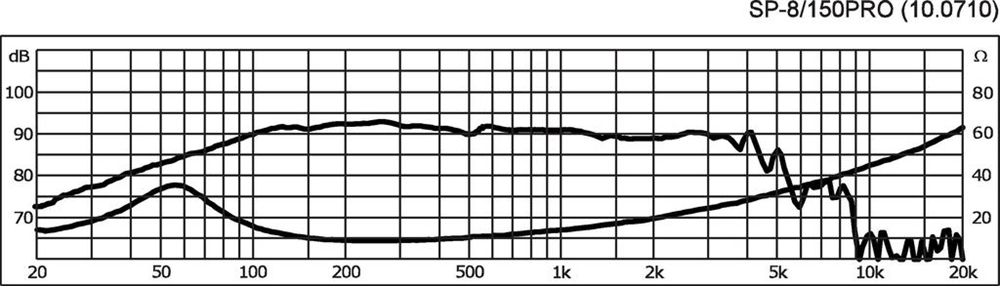

Frequency range	f3-3,000 Hz
Resonant frequency (fs)	56 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	-
Power rating	150 W
Peak music power output	300 W
Sensitivity	93 dB
Max. rated SPL	-
Max. voltage	-
Radiation angle, horizontal	-
Radiation angle, vertical	-
Suspension compl. (Cms)	0.35 mm/N
Moving mass (Mms)	22.8 g
Mech. Q factor (Qms)	1.52
Electr. Q factor (Qes)	0.41
Total Q factor (Qts)	0.32
Equivalent volume (Vas)	22 l
DC resistance (Re)	7.2 Ω
Force factor (BxL)	11.96 Tm
Voice coil induct. (Le)	2.0 mH
Voice coil diameter	Ø 50 mm
Voice coil former	aluminium
Linear excursion (X_MAX)	±6 mm
Eff. cone area (Sd)	213 cm²
Magnet weight	850 g
Magnet diameter	Ø 120 mm

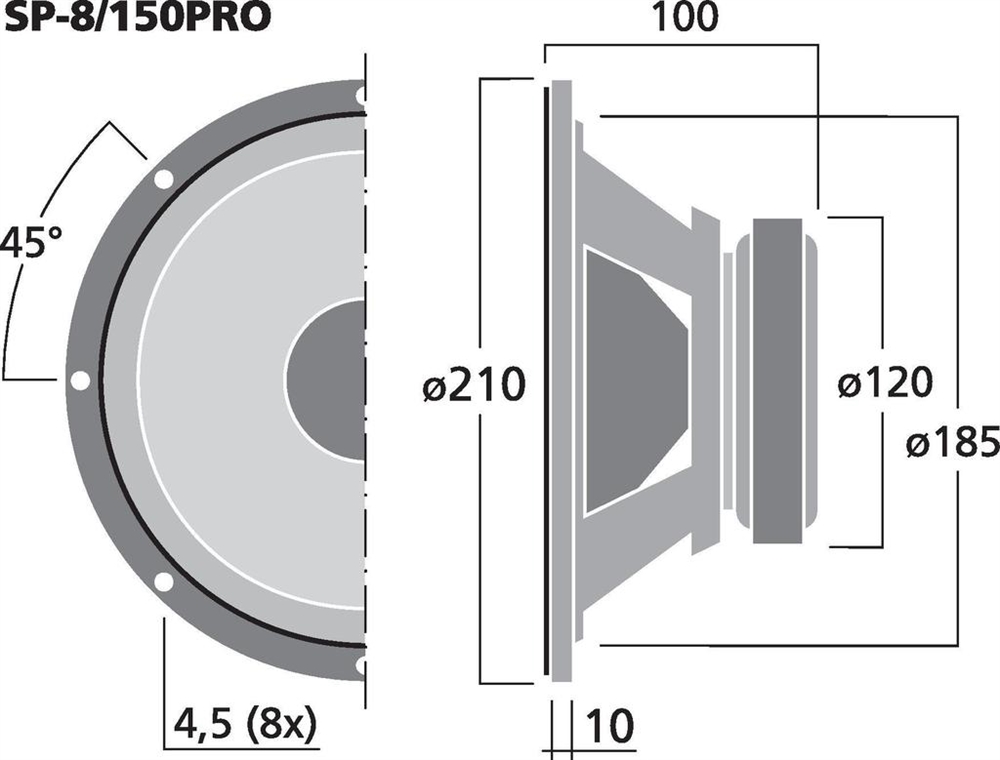

Mounting cutout	Ø 185 mm
Mounting depth	90 mm
Mounting hole diameter	-
Hole spacing X-axis	-
Hole spacing Y-axis	-
Dimensions	Ø 210 mm x 100 mm
Outside diameter	Ø 210 mm
Width	Ø 210 mm
Height	-
Depth	100 mm
Protective class	-
Admiss. ambient temp.	0-40 °C
Weight	2.52 kg
Packing unit	1
Type of speaker	8"
