Impedance (Z) | 8 Ω |
Transmission method | - |

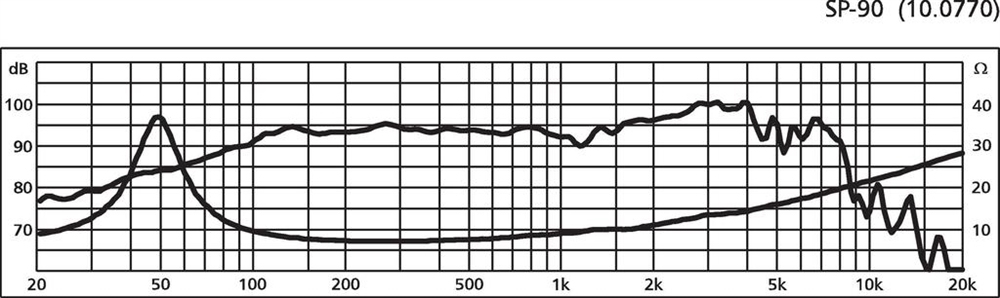

Frequency range | f3-8,000 Hz |
Resonant frequency (fs) | 45 Hz |
Rec. crossov. frequ. (fmax.) (12 dB/oct.) | - |
Power rating | 35 W |
Peak music power output | 70 W |
Sensitivity | 92 dB/W/m |
Max. rated SPL | - |
Max. voltage | - |
Radiation angle, horizontal | - |
Radiation angle, vertical | - |
Suspension compl. (Cms) | 0.8 mm/N |
Moving mass (Mms) | 17 g |
Mech. Q factor (Qms) | 3.36 |
Electr. Q factor (Qes) | 0.68 |
Total Q factor (Qts) | 0.57 |
Equivalent volume (Vas) | 42 l |
DC resistance (Re) | 6.5 Ω |
Force factor (BxL) | - |
Voice coil induct. (Le) | 0.5 mH |
Voice coil diameter | Ø 25 mm |
Voice coil former | aluminium |
Linear excursion (XMAX) | ± 2 mm |
Eff. cone area (Sd) | 210 cm2 |
Magnet weight | 380 g |
Magnet diameter | Ø 100 mm |

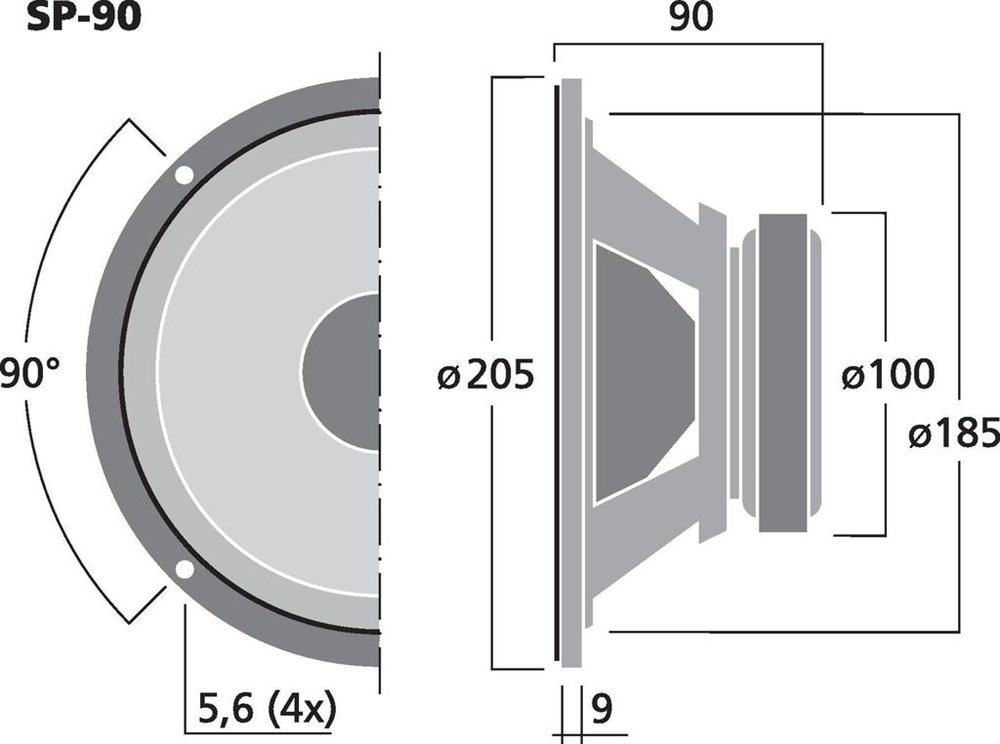

Mounting cutout | Ø 185 mm |
Mounting depth | 81 mm |
Mounting hole diameter | Ø 192 mm |
Hole spacing X-axis | 135 mm |
Hole spacing Y-axis | 135 mm |
Dimensions | Ø 205 mm x 90 mm |
Outside diameter | Ø 205 mm |
Width | Ø 205 mm |
Height | - |
Depth | 90 mm |
Protective class | - |
Admiss. ambient temp. | 0-40 °C |
Weight | 1.223 kg |
Packing unit | 1 |

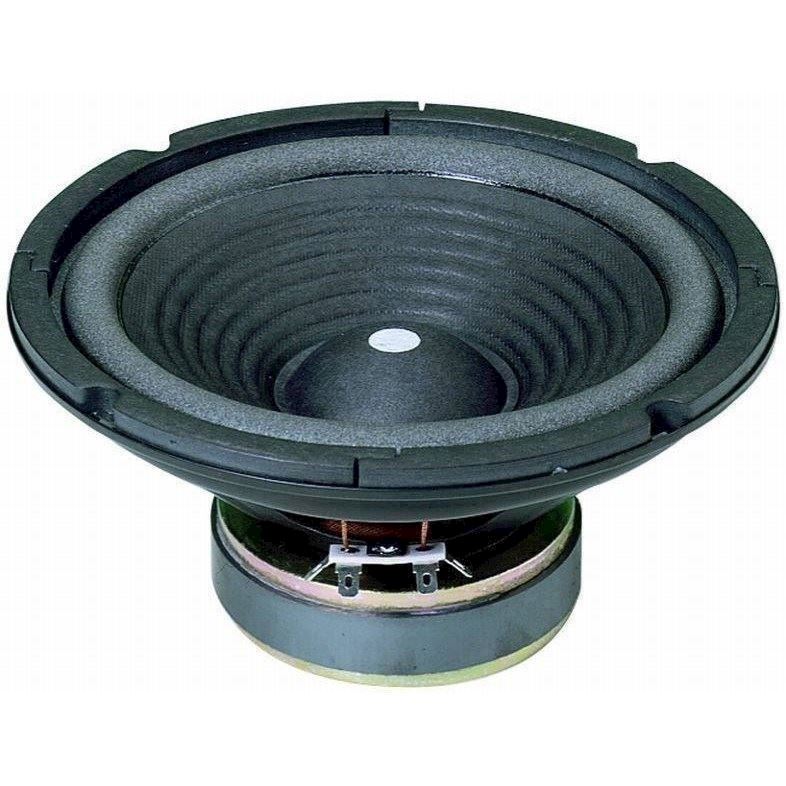

Type of speaker | 8" |
