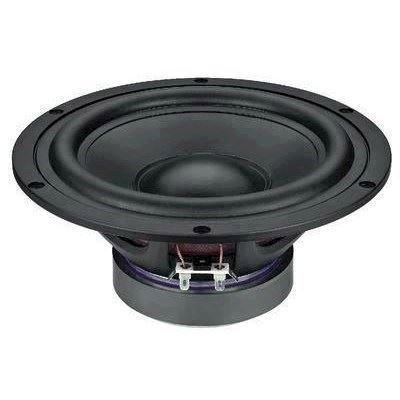

8'' højttaler - SPH-8M - MONACOR

• På lager
• På lager, 2-4 dage
• Bedømmelse for 8'' højttaler - SPH-8M - MONACOR

  Produktet er endnu ikke bedømt

•
  789,00DKK ved 1 stk.

Vis uden moms

Hi-fi bass speaker, 150W_Max, 8Ω

Hi-fi bass speaker, 100 W, 8 Ω

• Hi-fi bass speaker of excellent workmanship
• Dampened low-resonance polypropylene cone
• Robust diecast aluminium basket of an elegant design with 6-hole screw connection
• Magnet system with drilled pole core
• Very well-suited for bass-reflex and closed speaker systems

Hobby HiFi 06/2011
"Perfectly linear and well-balanced. Of neat workmanship, an excellent bass-midrange speaker for 2-way applications."



Impedance (Z)	8 Ω
Transmission method	-
Frequency range	f3-2,500 Hz
Resonant frequency (fs)	35 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	-
Power rating	100 W
Peak music power output	150 W
Sensitivity	89 dB/W/m
Max. rated SPL	-
Max. voltage	-
Radiation angle, horizontal	-
Radiation angle, vertical	-
Suspension compl. (Cms)	0.71 mm/N
Moving mass (Mms)	27 g
Mech. Q factor (Qms)	2.26
Electr. Q factor (Qes)	0.50
Total Q factor (Qts)	0.41
Equivalent volume (Vas)	44 l
DC resistance (Re)	6.5 Ω
Force factor (BxL)	9.01 Tm
Voice coil induct. (Le)	0.78 mH
Voice coil diameter	Ø 38 mm
Voice coil former	aluminium
Linear excursion (XMAX)	± 4.5 mm
Eff. cone area (Sd)	240 cm2
Magnet weight	790 g
Magnet diameter	Ø 110 mm
Mounting cutout	Ø 180 mm
Mounting depth	91 mm
Mounting hole diameter	-
Hole spacing X-axis	-
Hole spacing Y-axis	-

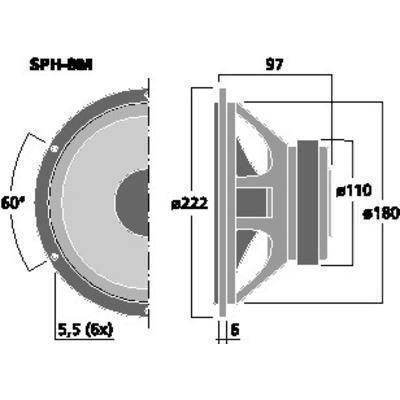

Dimensions	Ø 222 mm x 97 mm
Outside diameter	Ø 222 mm
Width	Ø 222 mm
Height	-
Depth	97 mm
Protective class	-
Admiss. ambient temp.	0-40 °C
Weight	2.2 kg
Packing unit	1
Type of speaker	22 cm

Varenr.: 101630
