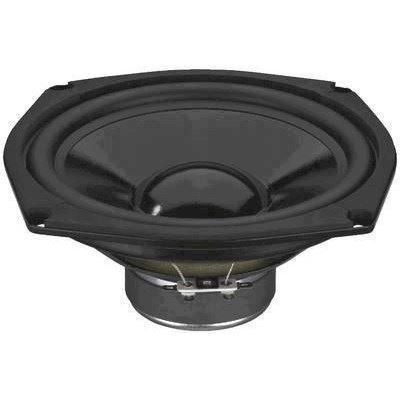

8'' højttaler - SPM-205/8 - MONACOR

$8\'\' højttaler - SPM-205/8 - MONACOR$

På lager
På lager, 2-4 dage
Bedømmelse for 8'' højttaler - SPM-205/8 - MONACOR
Produktet er endnu ikke bedømt

299,00DKK ved 1 stk.

Billigst på PriceRunner

Hi-fi bass-midrange speakers, 150W_MAX, 70W_RMS, 8Ù (/8) and 4Ù (/4)

Hi-fi bass-midrange speakers, 70 W, 8 Ω (/8) and 4 Ω (/4)

Excellent replacement speakers of the same quality as from the original equipment manufacturer
Coated low-resonance paper cone
Long-term stable rubber surround
To be used preferably in closed or transmission line cabinets

Impedance (Z)	8 Ω
Transmission method	-
Frequency range	f3-5,000 Hz
Resonant frequency (fs)	37 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	-
Power rating	70 W
Peak music power output	150 W
Sensitivity	89 dB/W/m
Max. rated SPL	-
Max. voltage	-
Radiation angle, horizontal	-
Radiation angle, vertical	-
Suspension compl. (Cms)	0.75 mm/H
Moving mass (Mms)	22 g
Mech. Q factor (Qms)	2.95
Electr. Q factor (Qes)	0.92
Total Q factor (Qts)	0.7
Equivalent volume (Vas)	54 l
DC resistance (Re)	7.2 Ω
Force factor (BxL)	6.5 Tm
Voice coil induct. (Le)	0.7 mH
Voice coil diameter	Ø 25.5 mm
Voice coil former	aluminium
Linear excursion (X_MAX)	± 3 mm
Eff. cone area (Sd)	210 cm²
Magnet weight	380 g
Magnet diameter	Ø 80 mm

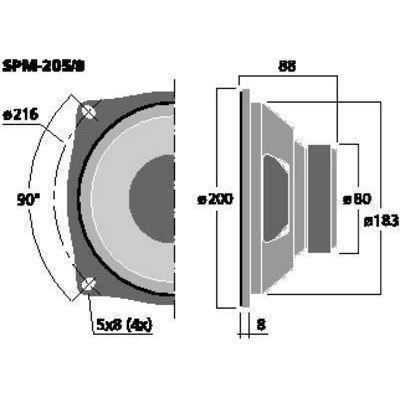

Mounting cutout	Ø 183 mm
Mounting depth	80 mm
Mounting hole diameter	Ø 216 mm
Hole spacing X-axis	-
Hole spacing Y-axis	-
Dimensions	Ø 200 mm x 88 mm
Outside diameter	Ø 200 mm
Width	Ø 200 mm
Height	-
Depth	88 mm
Protective class	-
Admiss. ambient temp.	0-40 °C
Weight	1.4 kg
Packing unit	1
Type of speaker	8"

Varenr.: 105390
