Active 2-channel DI box - Palmer

På lager
På lager, 3-8 Hverdage
Bedømmelse for Active 2-channel DI box - Palmer
Produktet er endnu ikke bedømt

1.849,00DKK ved 1 stk.

Vis uden moms

If you're looking to pick up a pure guitar, bass, or electric piano signal with all its brilliance and without any tonal shift - even stereo sources, or two instruments simultaneously - the Palmer inn active DI box provides the ideal solution. Its low-noise active circuitry allows a higher input impedance than a passive DI box. This means the sound of the instruments is captured without treble or bass losses. High-level input impedance is especially important in interaction with the magnetic pickups in electrical guitar, electric bass and electromechanical electric pianos (e.g. Rhodes), as well as with (passive) piezo pickups for acoustic instruments. The Palmer inn is also very well suited to synthesisers and other electronic keyboards as it also offers sufficient headroom to handle high-level sources without unwanted distortion. In addition, the inn is two-channel, meaning it can process stereo signals or two instruments simultaneously.

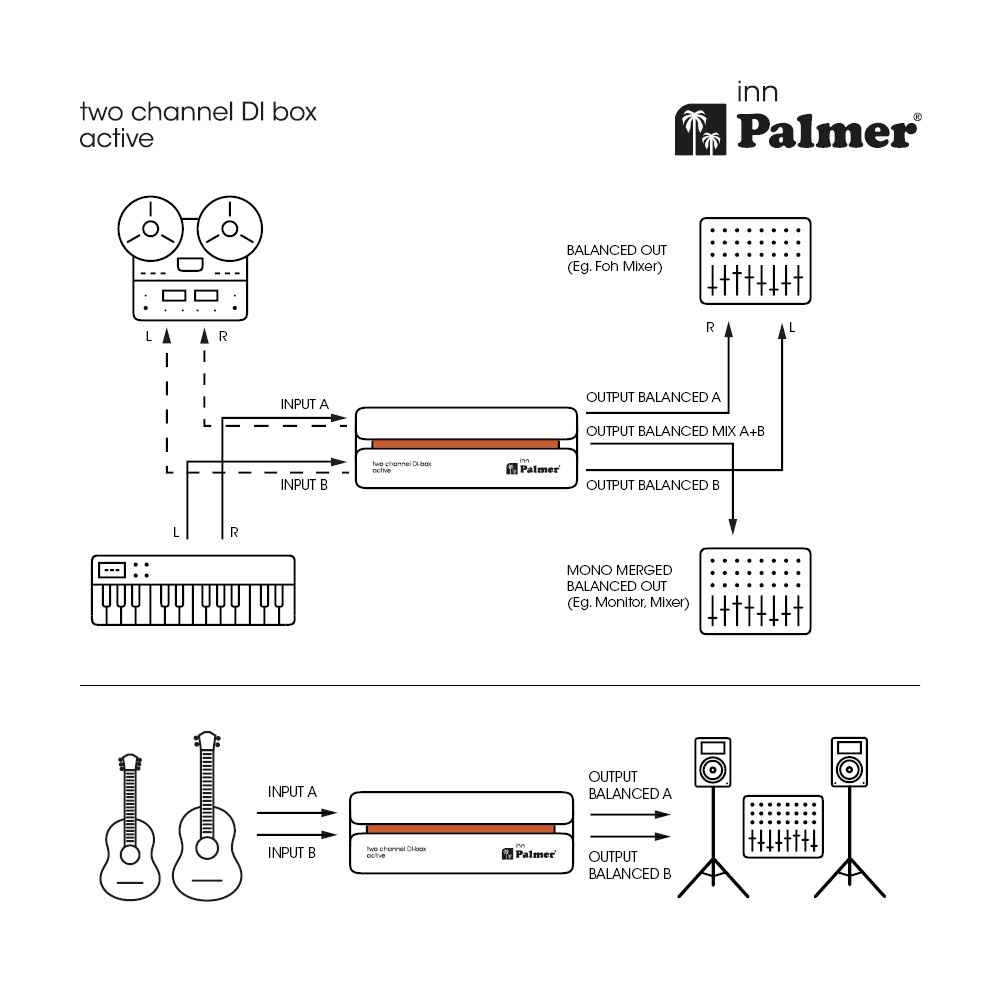

Naturally, the Palmer inn has a THRU output to transmit the input signal to the instrument amplifier. With 30 dB pre-attenuation activated, the Palmer inn is also optionally looped in between the amplifier output and loudspeaker unit if the sound shaping from the amplifier is to be recorded too, instead of the “raw” instrument signal. An especially practical feature is that - in addition to the individual outputs for both channels - it also offers a sum output with the signal of both channels. This saves on mixer channels.

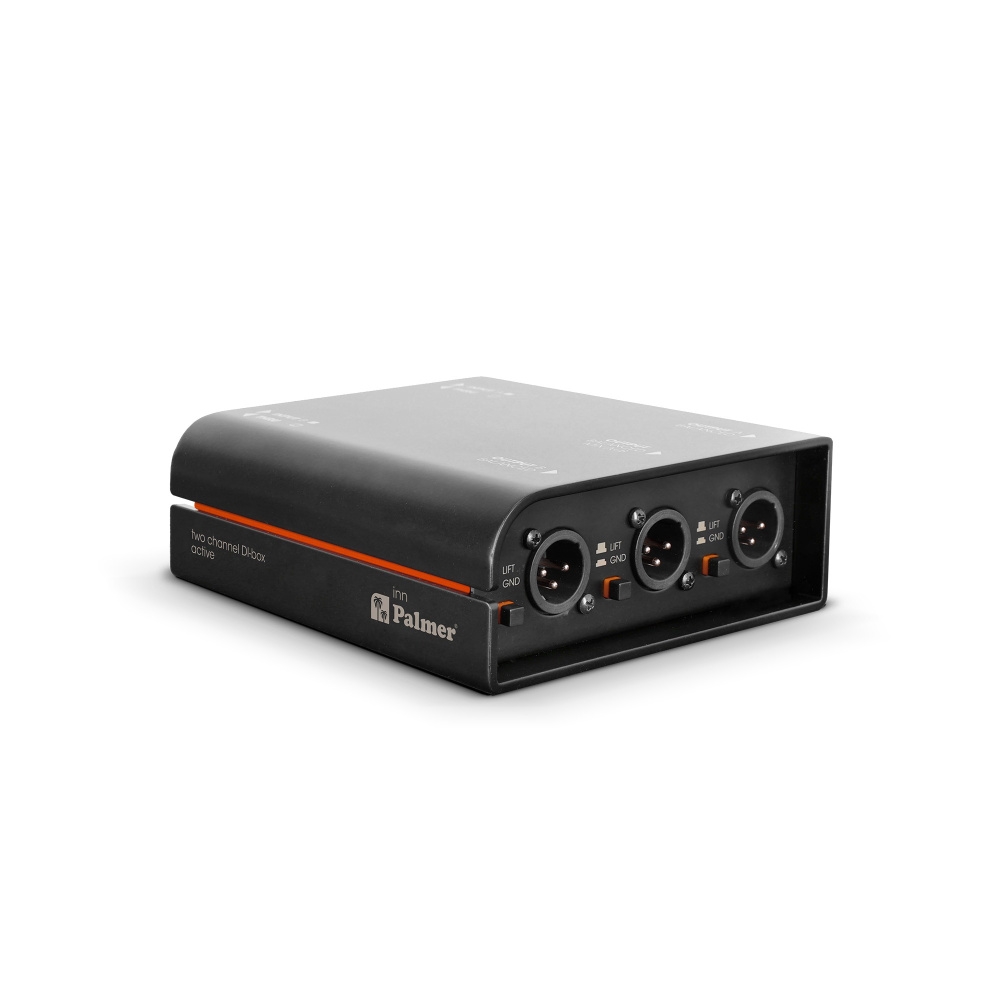

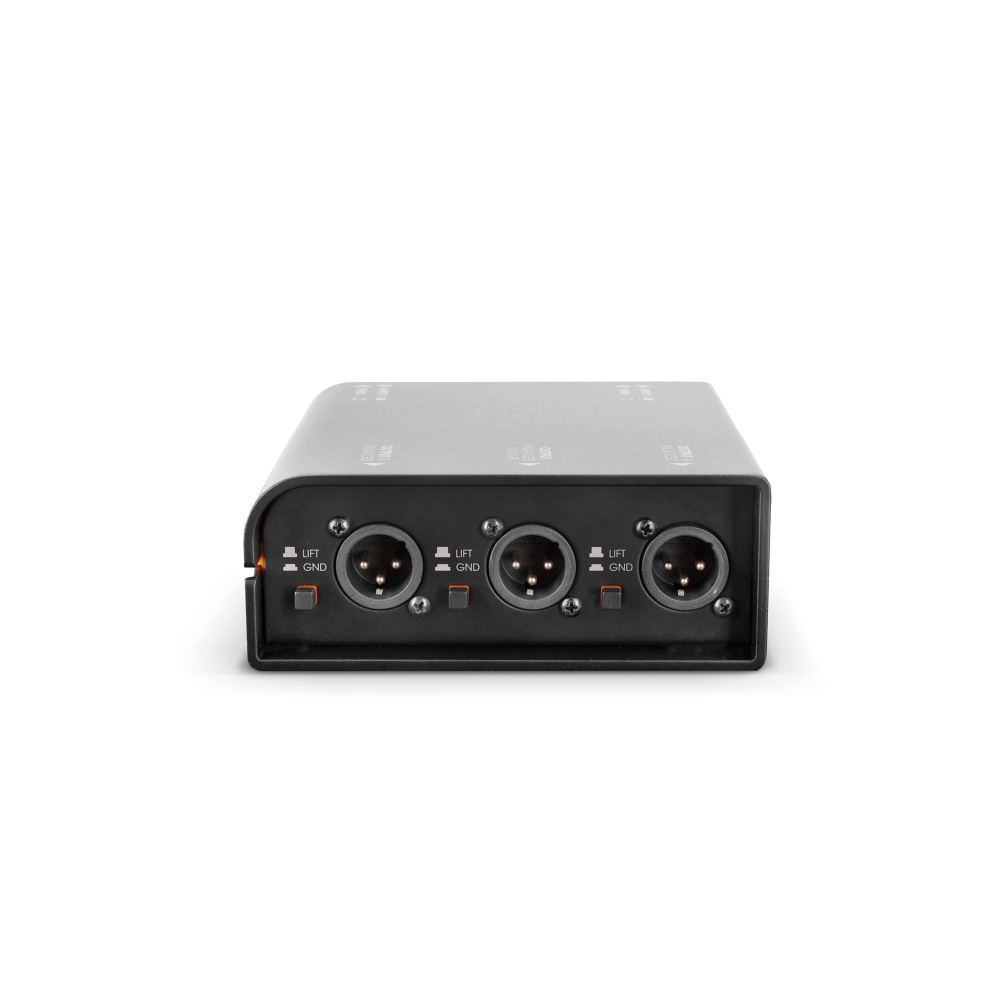

The balanced, low-impedance output signals from the Palmer inn are resistant to interference, which enables long cable runs without loss of sound quality. Thanks to the integrated transformer, the XLR outputs are galvanically isolated and have individual Ground Lift switches to eliminate ground loop hum without fuss. For a power supply, 48V phantom power or a standard PSU (9-24V) can be used.

You’ve probably spent a long time searching for YOUR sound and invested a lot of time and money to get your instrument to sound the way it should. The Palmer inn transmits that sound faithfully and free of interference - across two channels! This means your sound reaches the listener exactly as nature intended.

2-channel balancing and impedance matching for guitar/bass/keyboard/synthesisers
Eliminates ground loop hum thanks to galvanic transformer isolation
Neutral sound thanks to active input stages with high impedance
Low noise floor

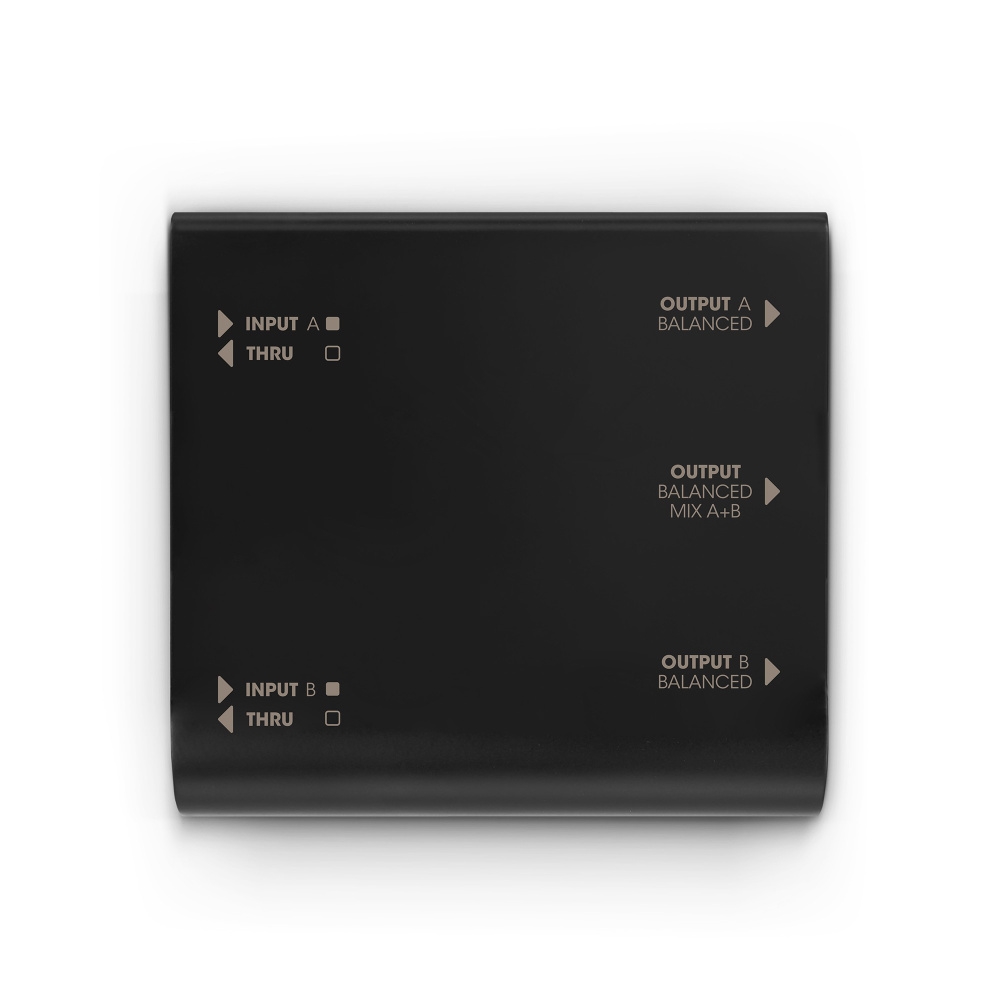

Individual outputs per channel plus mono sum output containing the signal of both channels

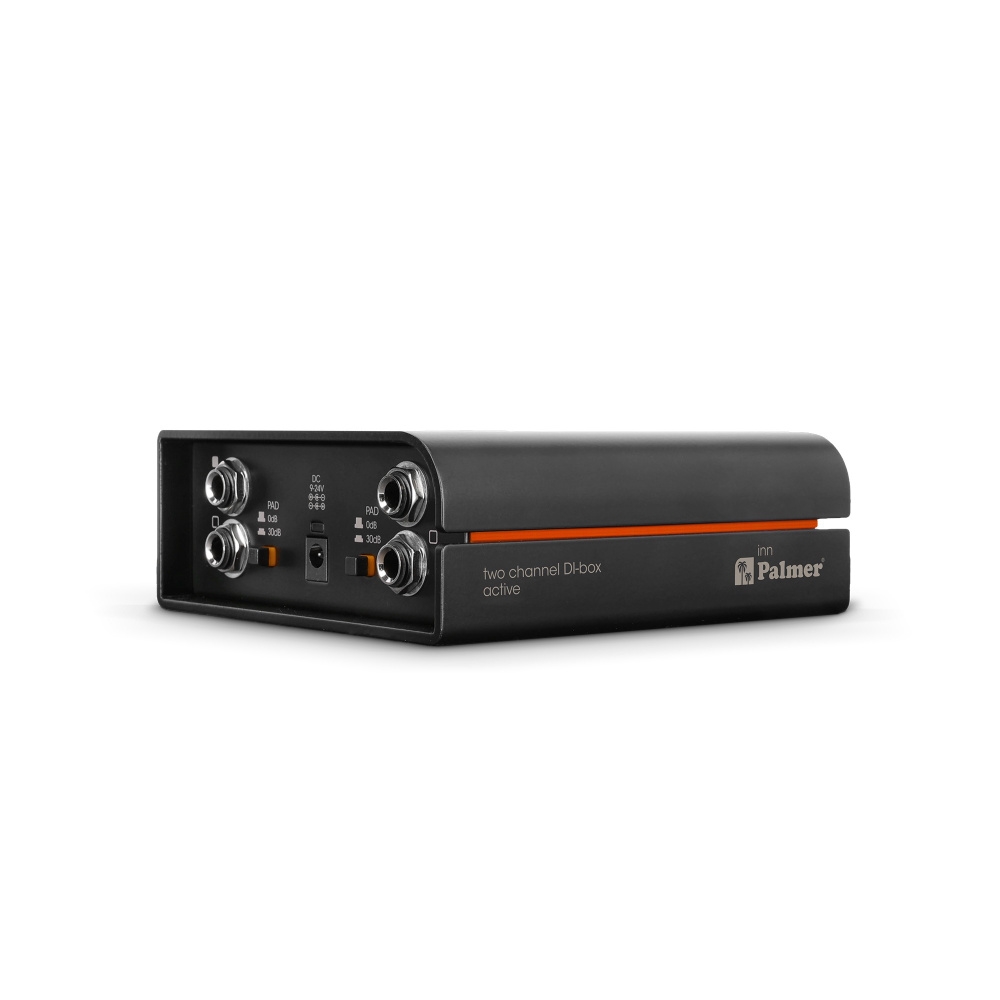

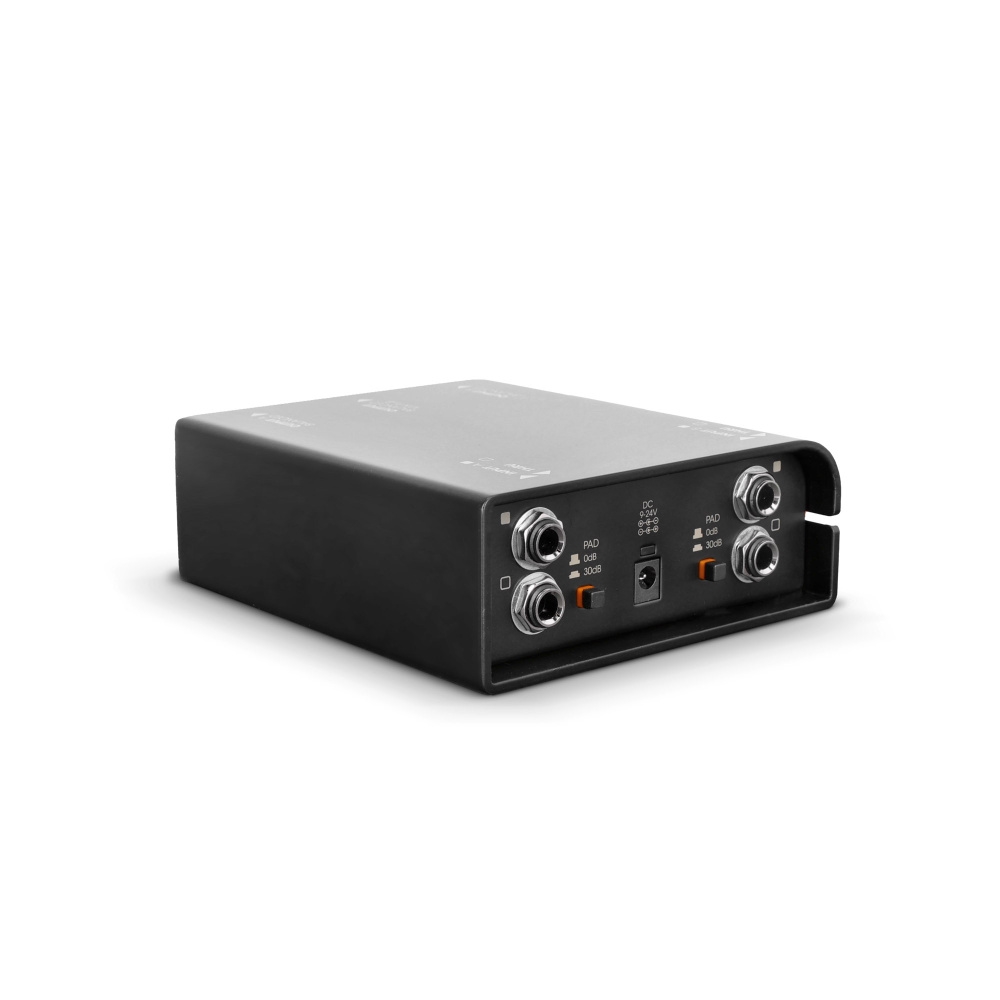

THRU connection for passing the input signal to the amplifier
Handles even high-level inputs without distortion
Switchable 30 dB pad for extremely high input levels (e.g. amplifier output)
Power supply via 9V battery or 48V phantom power unit

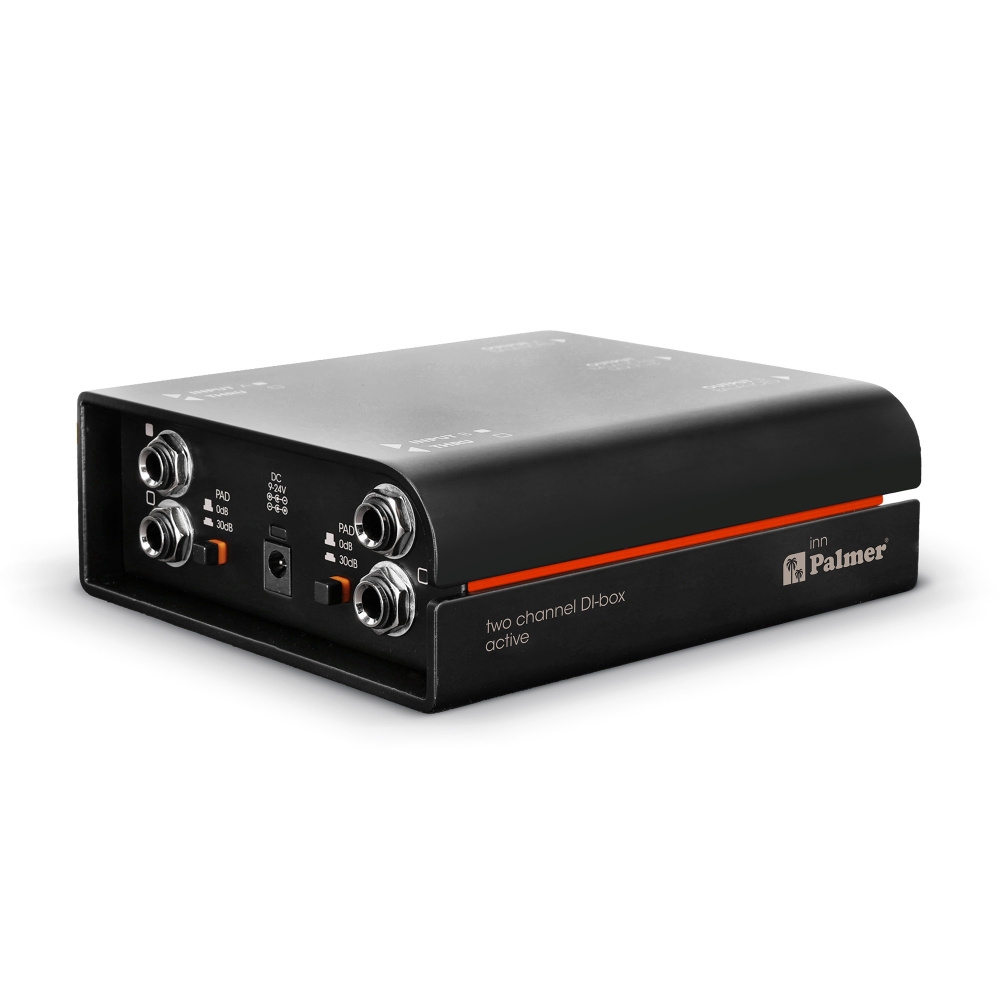

Road-ready aluminium and steel casing

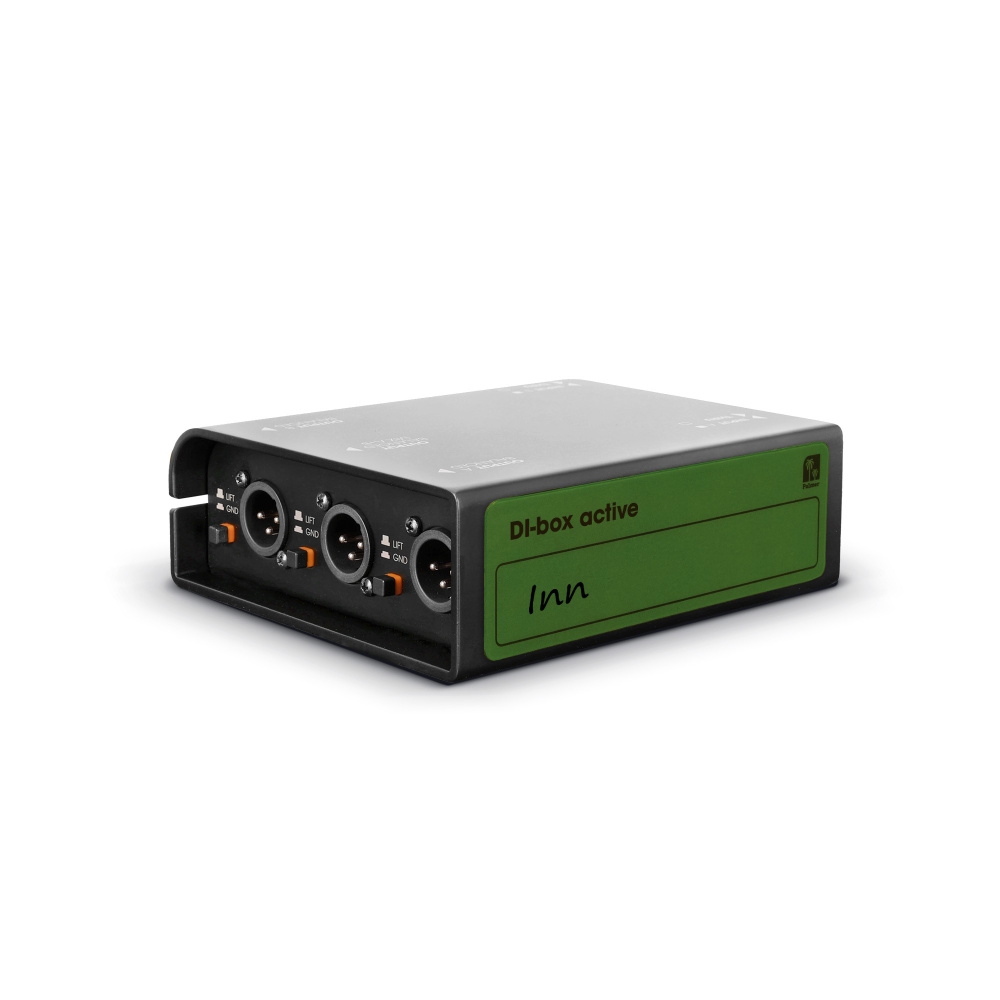

Incl. rewritable tour label for attachment on to the back of the inn
Engineered in Germany

General

Type	Active
Included Accessories	Rubber feet, Tour label
Isolated transformer	Yes
Transformer Ratio	1:3
Ground Lift	Yes
On/Off switch	No
Number of inputs	2
Number of outputs	2
Number of channels	2

Inputs

Input signal type	Unbalanced
Input connector types	6.3 mm Jack TS
Number of instrument inputs	2
Max. input level (< 1% THD, rel. 20 Hz)	-11 dBu
Max. input level (< 1% THD, rel. 1 kHz)	-11 dBu
Input impedance	500 kΩ
Input padding	0 dB, 30 dB

Outputs

Output signal type	Balanced
Output connector types	XLR 3-pole male
Output impedance	110 Ω
Linked outputs per channel	1
Max. output level*	5.5 dBu

Signal processing

Frequency response (±1 dB, rel. 1 kHz)	20 - 20,000 Hz
SNR (+4 dBu, 22 kHz BW, unity, unweighted)	108 dB
Max. THD+N (1 kHz, +4 dBu, unity, unweighted)	0.0013 %
Max. THD+N (30 Hz, +4 dBu, unity, unweighted)	0.0028 %
Max. IMD (SMPTE, 7 kHz, 4:1, +4 dBu)	0.0017 %
Max. IMD (SMPTE, 60 Hz, 4:1, +4 dBu)	0.0017 %

Mains operation

Operation voltage	9 V DC - 24 V DC (external power supply), 48 V phantom power
Rated power	0.5 W

Battery operation

Built in battery tester

Housing

Chassis material

Aluminum continuous casting

Environmental

Ambient temperature	-20 - 70 °C
Maximum air humidity (non-condensing)	80 %

Dimensions & weight

Width	50 mm
Height	140 mm
Depth	128 mm
Weight	0.72 kg

Varenr.: A-PINN
