AH Multicore with Stage Box 16/4 50 m - K 20 C 50

AH Multicore with Stage Box 16/4 50 m - K 20 C 50
  • Ikke på lager
  • Forventet levering om 1 uger
  • Bedømmelse for AH Multicore with Stage Box 16/4 50 m - K 20 C 50
    Produktet er endnu ikke bedømt
  •
    4.669,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner

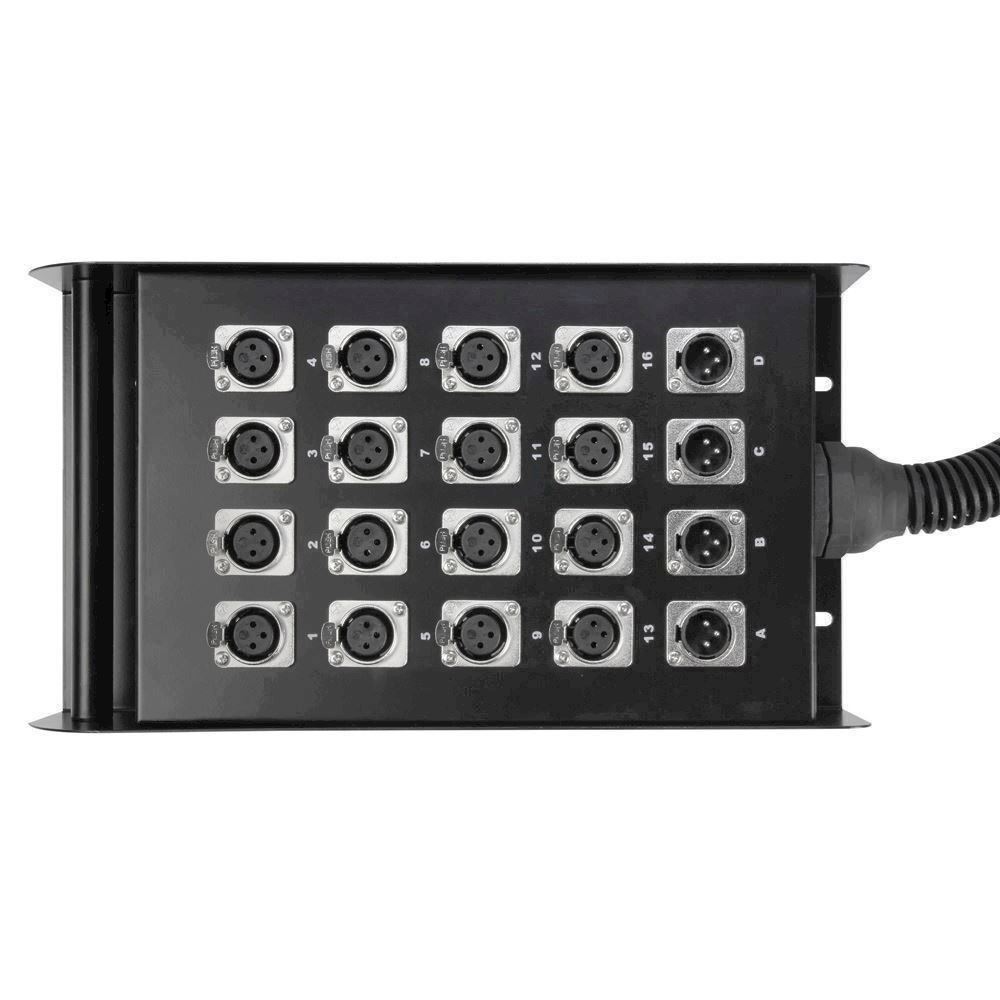

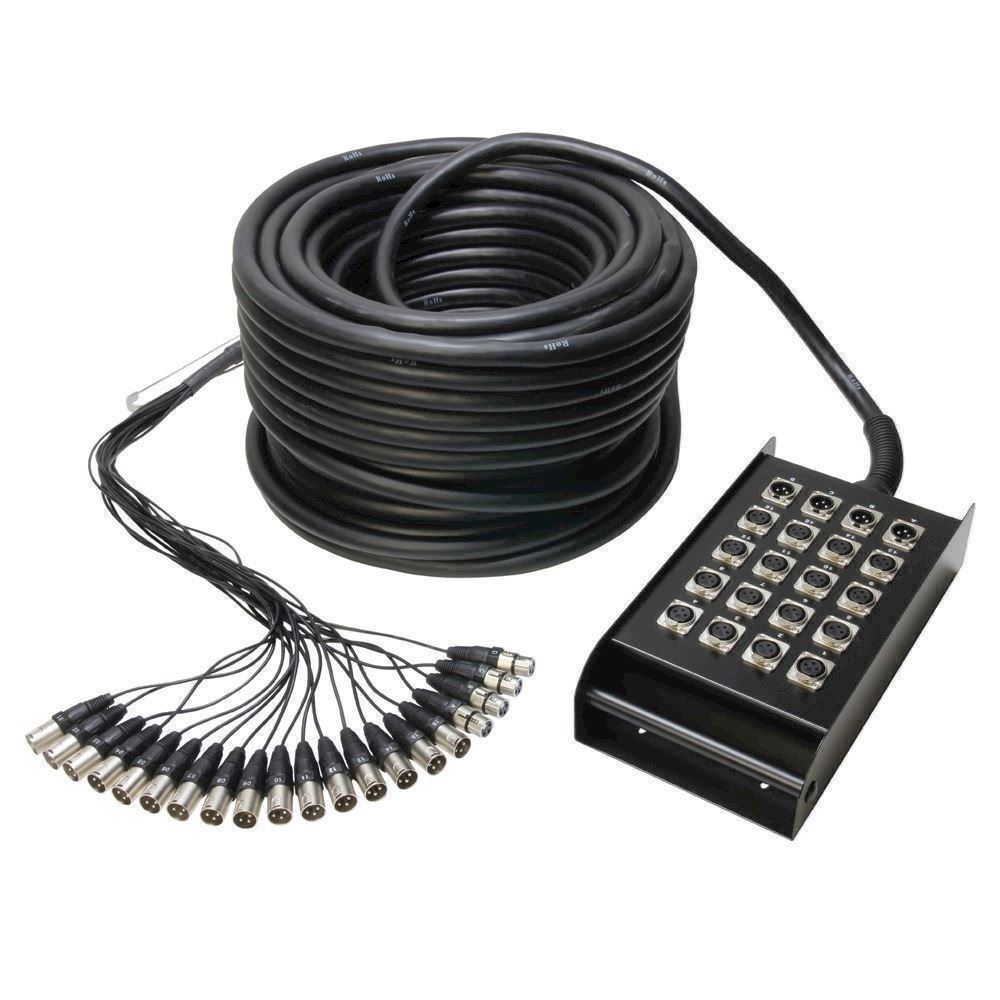

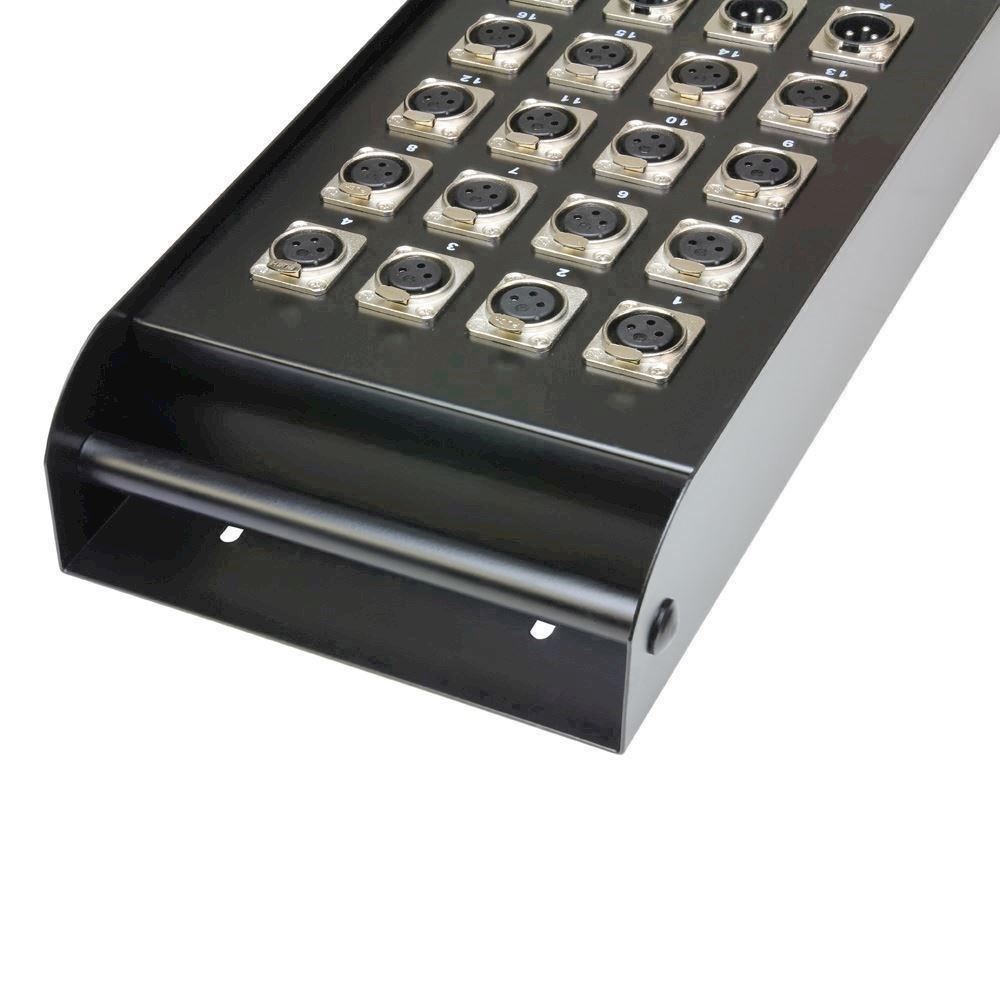

Made to our specifications, the strudy steel construction stagebox is black powder coated with an integrated carrying handle and fitted with high quality metal XLR connectors. Maximum audio integrity, highly flexible multicore with high quality metal XLR's which are number coded.

  • 20 Channels -16 In, 4 Returns
  • 50 m Multicore

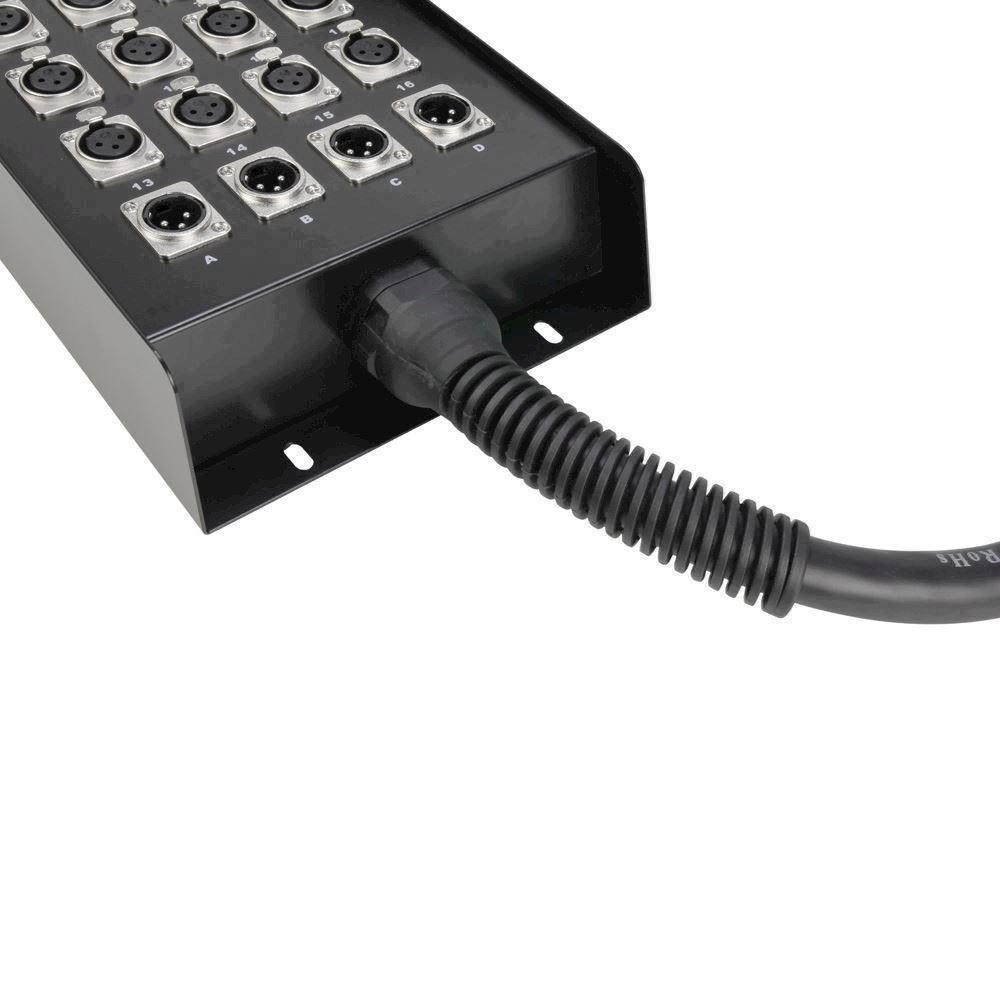

  • wire rope strain-relief






Product typePre-assembled Cables
TypeMulticore cable
Channels20
Pin-out16/4
Length50 m
ColourBlack
Cable diameter20.2 mm
Cross section0.314 mm²
Connector 1-A (built into drum / stage box)XLR
Number of connectors connector 1-A16
Gender of connector 1-Afemale
Poles of connector 1-A3
Contacts of connector 1-ANickel-silver
Manufacturer of connector 1-AAdam Hall
Model number connector 1-ACustom-made
Connector 1-B (built into drum / stage box)XLR
Number of connectors connector 1-B4
Gender of connector 1-Bmale
Poles of connector 1-B3
Contacts of connector 1-BNickel-silver
Manufacturer of connector 1-BAdam Hall
Model number connector 1-BCustom-made

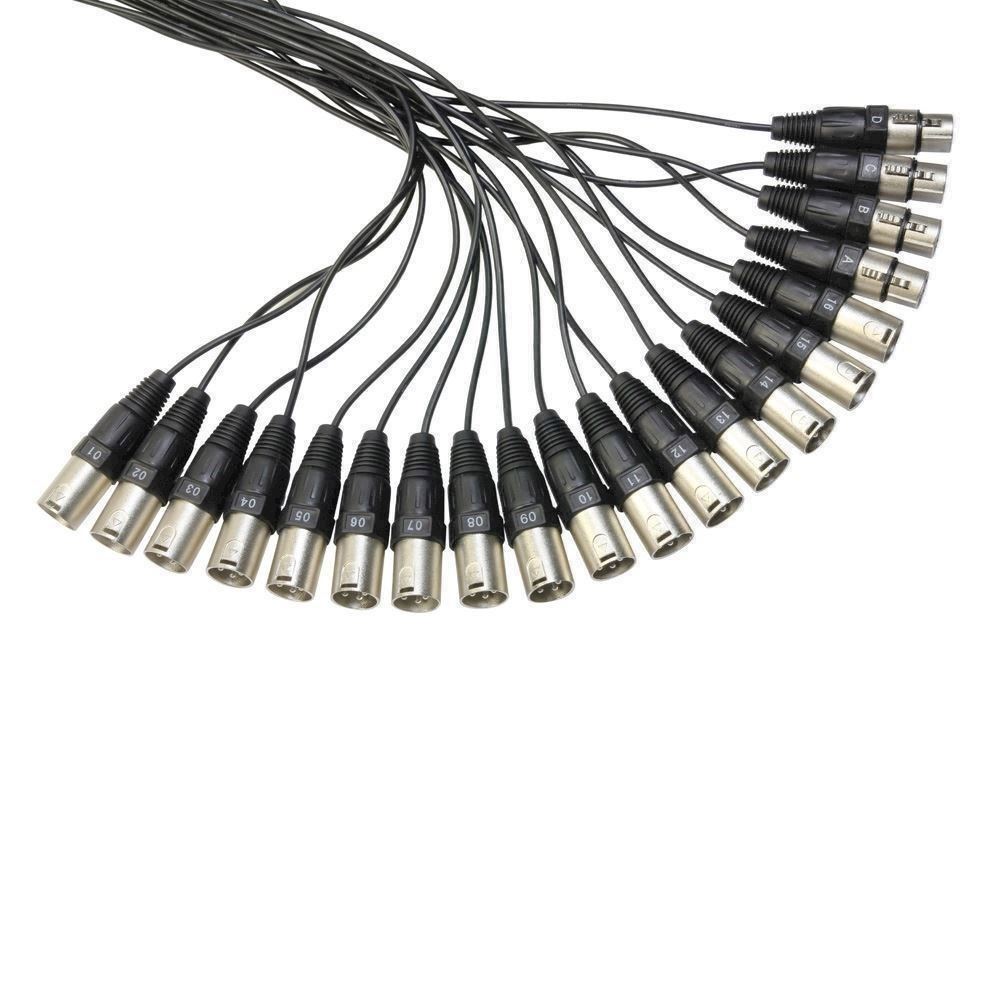

Connector 2-A (splice)XLR
Number of connectors connector 2-A16
Gender of connector 2-Amale
Poles of connector 2-A3
Contacts of connector 2-ANickel-silver
Manufacturer of connector 2-AAdam Hall
Model number connector 2-ACustom-made
Connector 2-B (splice)XLR
Number of connectors connector 2-B4
Gender of connector 2-Bfemale
Poles of connector 2-B3
Contacts of connector 2-BNickel-silver
Manufacturer of connector 2-BAdam Hall
Model number connector 2-BCustom-made
Split end length60 cm
Width180 mm
Height75 mm
Depth335 mm
Weight23,8 kg
