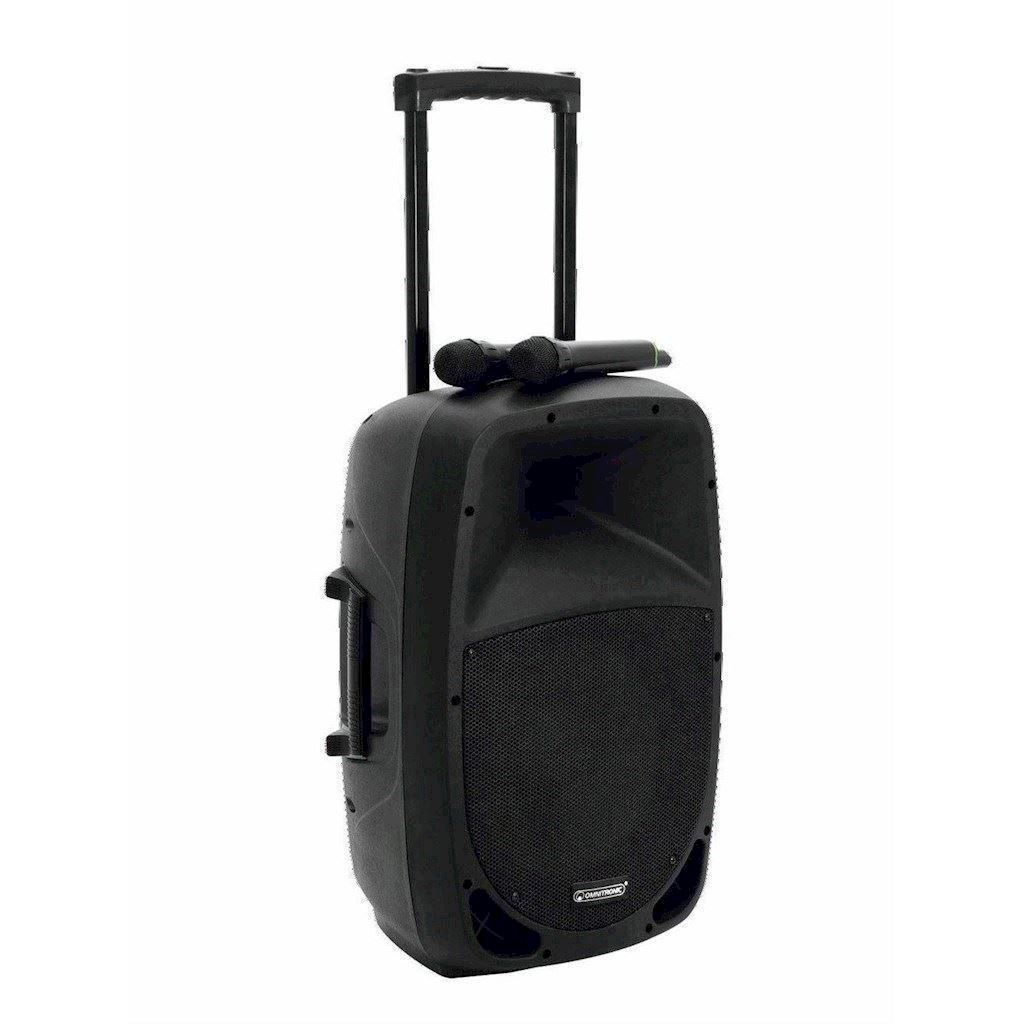

13106955 OMNITRONIC MES-12BT2 Wireless PA System
Portable PA system with 2 UHF receiver units, audio player and Bluetooth
- Portable PA system for mobile use
- Ideal for mains independent and wireless applications, e.g. at sales events, lectures and gyms
- 3-channel power mixer (45 W RMS) and 2-way speaker system with a 30 cm woofer (12")
- MP3 player with Bluetooth receiver, IR remote control and volume control
- SD card slot and USB input
- Enjoy music wirelessly from mobile Bluetooth devices such as smartphones, tablets and notebooks
- UHF receiver units and 2 matching wireless microphones
- Mains operation or battery operation for up to 4-5 hours of music playing
- Integrated automatic charging of the battery
- Lead acid battery optionally available (13106993)
- 2 mono microphone channels
- 1 stereo input channel for line signal sources e.g. CD players and notebooks
- Adjustable reverb effect for wireless microphones/microphone channels
- Graphic 5-band EQ, master volume control
- 2 master outputs (mono)
- Terminals for external 12V battery operation (e.g. car battery)
- Operation of the hand-held microphones via 2 x AA batteries (not included)
- Light-weight black plastic enclosure with metal grille, monitor shape and carrying handles
- Flange for speaker stand installation
- Two wheels and retractable pulling handle for trolley-like mobility
- License-free in large parts of the EU
- On/off/mute-switch: Yes

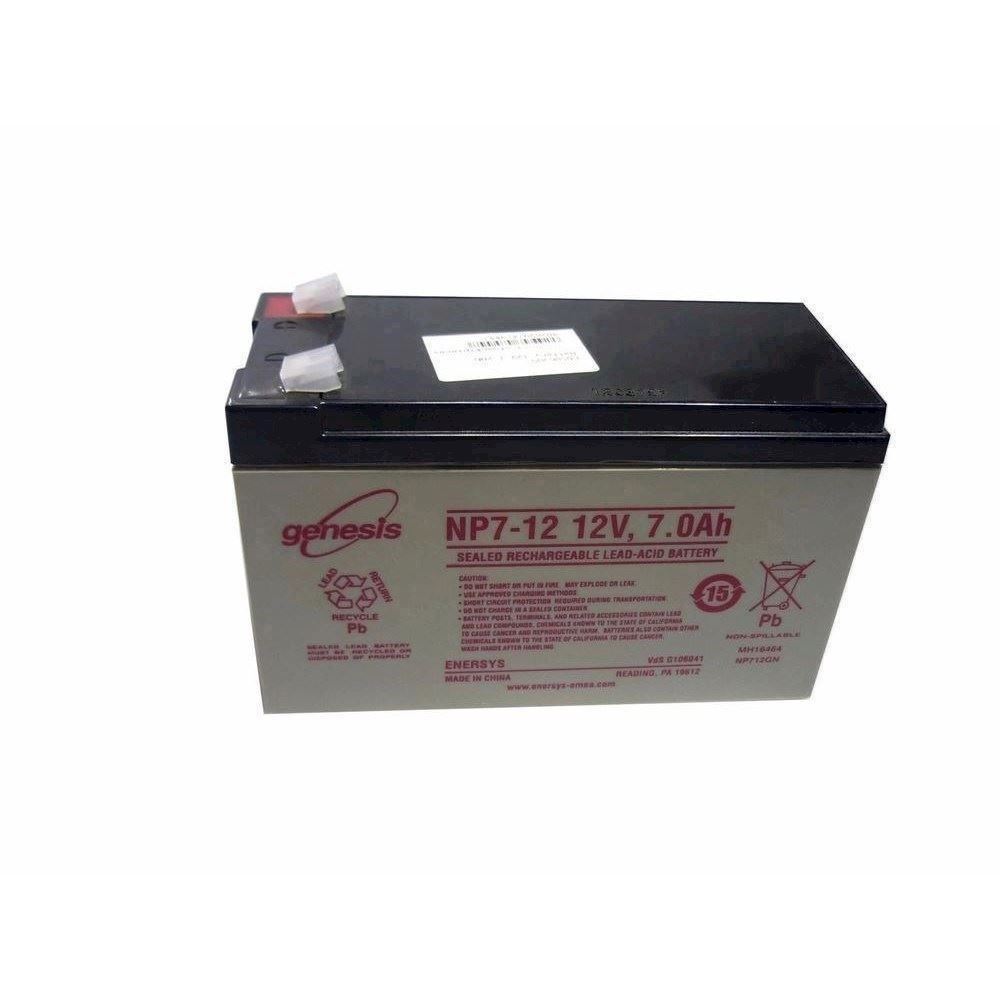

13106993 ACCESSORY Battery 12V/7000mAh
Maintenance-free lead acid battery 7 Ah
- Rechargeable
- High energy densitiy
- Long life
- Maintenance-free
- Sealed leak proof construction
- Suitable for 13106991 OMNITRONIC WAMS-08BT Wireless PA system, 13106955 OMNITRONIC MES-12BT2 Drahtlos-PA-System, 13106970 OMNITRONIC MOM-10BT4 Modular Wireless PA System etc.
- One battery needed
- Made in Europe
13106955 OMNITRONIC MES-12BT2 Wireless PA System
Power supply: 230 V AC, 50 Hz
or 12 V DC via rechargeable battery or external source
Rec. battery (accessory): 12 V DC, 7 Ah
Battery operation: 4-5 hours
Recharging time: 10-11 hours
Dimensions (L x W x H): 310 x 360 x 600 mm
Ampilfier:
Nominal power output: 45 W RMS
Maximum power output: 90 W
Inputs:
Mic, mono: 2 x 6.3 mm jack, bal.
Line, stereo: RCA L/R
Output:
Line, mono: 2 x RCA
Speaker system:
Components: 25 cm woofer (10"), 2.5 cm driver (1")
Maximum SPL: 106 dB
Sensitivity: 90 dB
Reception modules:
Carrier frequency: 830 MHz, 864 MHz
Range: approx. 30 m
Wireless microphones:
Frequency stability: ±0.005 %
RF power output: 10 mW
Polar pattern: omnidirectional
Range: approx. 30 m
Battery: 2 x 1.5 V AA
Battery life: 13 hours
Dimensions (D x L): 40 x 260 mm
Bluetooth:
Carrier frequency: 2.4 GHz
Range: approx. 10 m
Audio player:
Playback format: MP3, WMA
Storage media: USB devices and SD(HC) cards up to 32 GB
File system: FAT32
Weight: 11,25 kg
Power consumption: 35 W
Size of woofer: 30 cm (12")
Frequency range: 62 - 18000 Hz
Height: 60 cm
Depths: 31 cm
Width: 36 cm
13106993 ACCESSORY Battery 12V/7000mAh
Voltage: 12 V DC
Capacity: 7 Ah
Contact width: 5 mm
Dimensions (L x W x H): 161 x 65 x 100 mm
Weight: 2,5 kg
Height: 10 cm
Depths: 6,5 cm
Width: 16,1 cm
