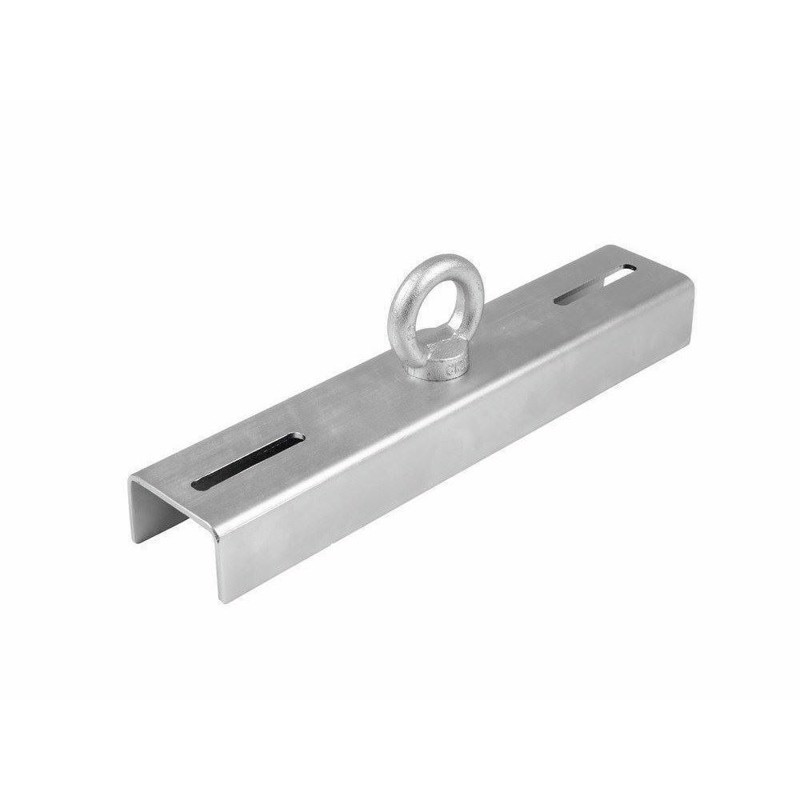

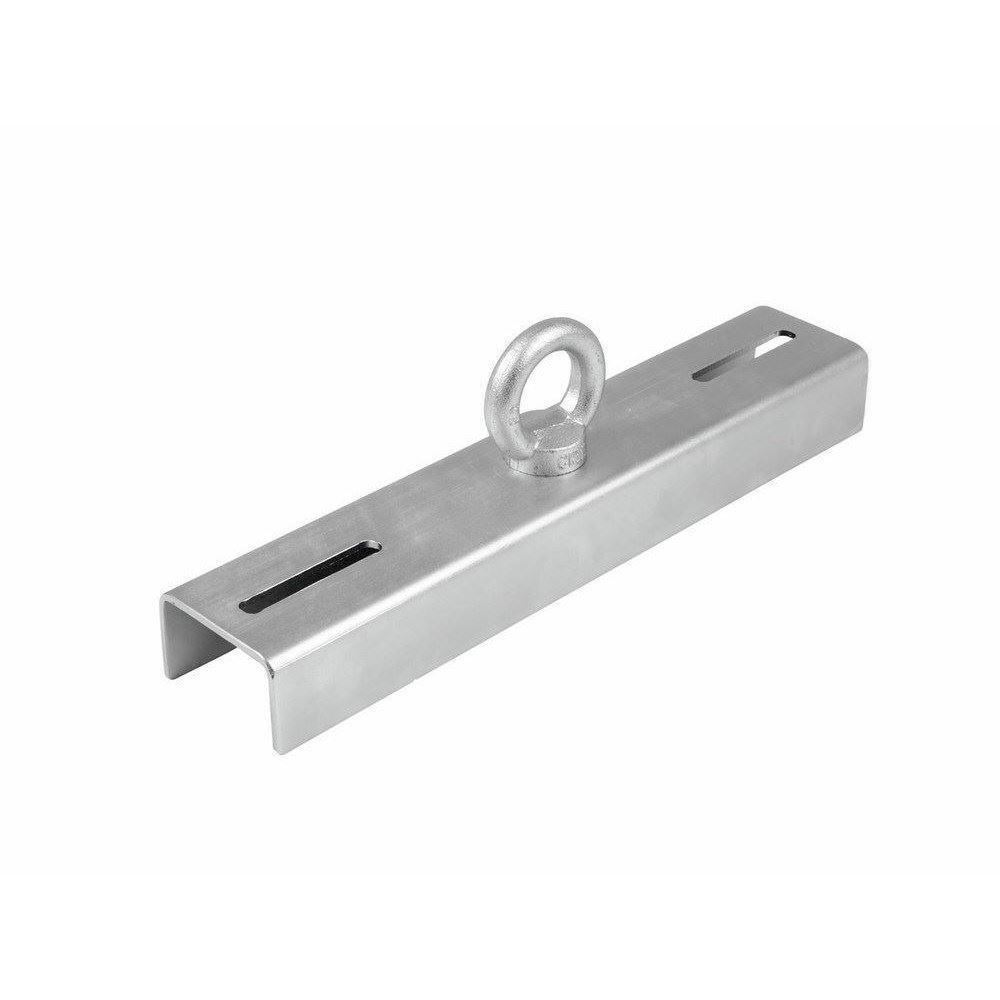

ALUTRUSS GI-1/Clamps Truss Adapter silver

ALUTRUSS GI-1/Clamps Truss Adapter silver
  • På lager
  • På lager, 3-5 hverdage
  • Bedømmelse for ALUTRUSS GI-1/Clamps Truss Adapter silver
    Produktet er endnu ikke bedømt
  •
    909,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner


Truss mount



Truss mounting

  • U-profile for hanging truss from the ceiling
  • Designed for trusses from 25 to 40 cm
  • Thanks to its adjustable system, just one adapter can be used for different trusses
  • M20 ring bolt with washer and self-locking nut

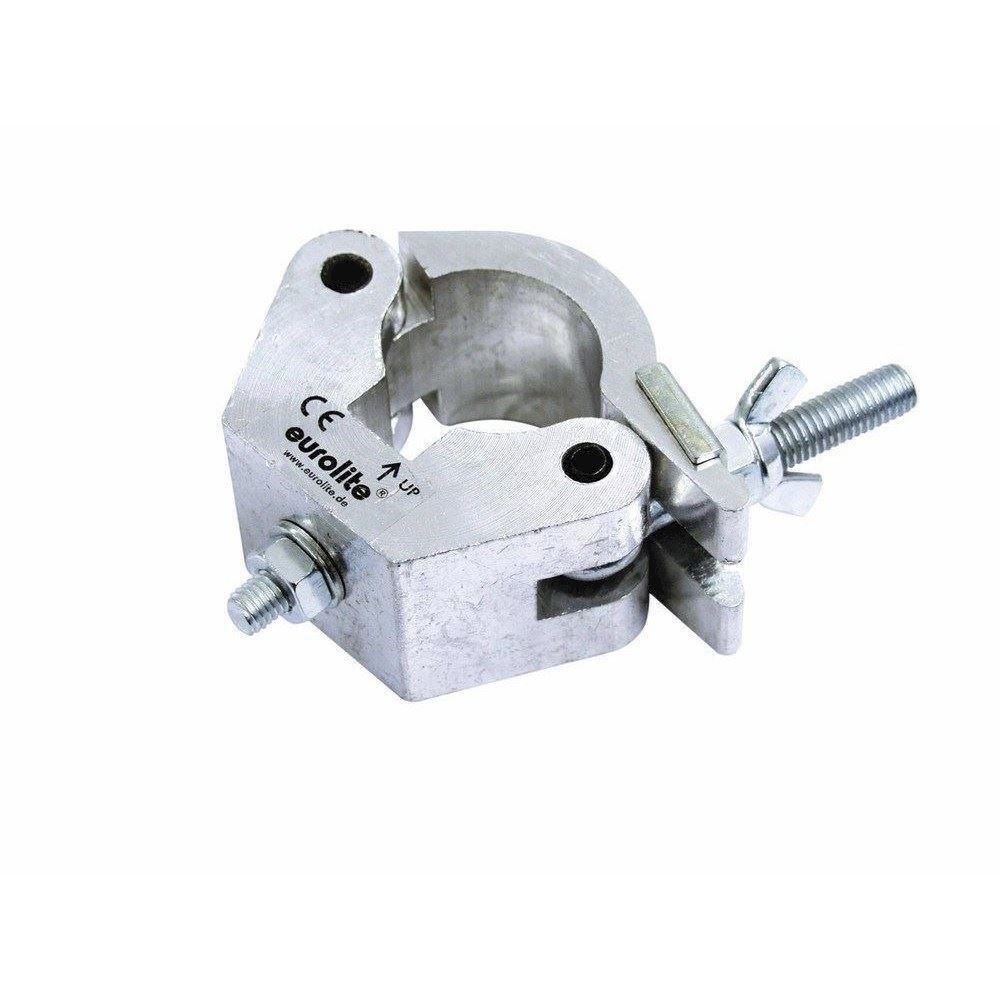

  • With two TPC-50 clamps
  • Trusspipe diameter: 50 mm




Maximum load WLL (4-fold):500 kg
Maximum load BGV C1 (8-fold):250 kg
Maximum load BGV C1 (10-fold):200 kg
Maximum load BGV C1 (12-fold):150 kg
Material strength:3.5 mm
Hole (LxW):80 x 11.5 mm
Dimensions (L x W x H):400 x 80 x 50 mm
Color:Alu colored
Varenr.: E-60320381
