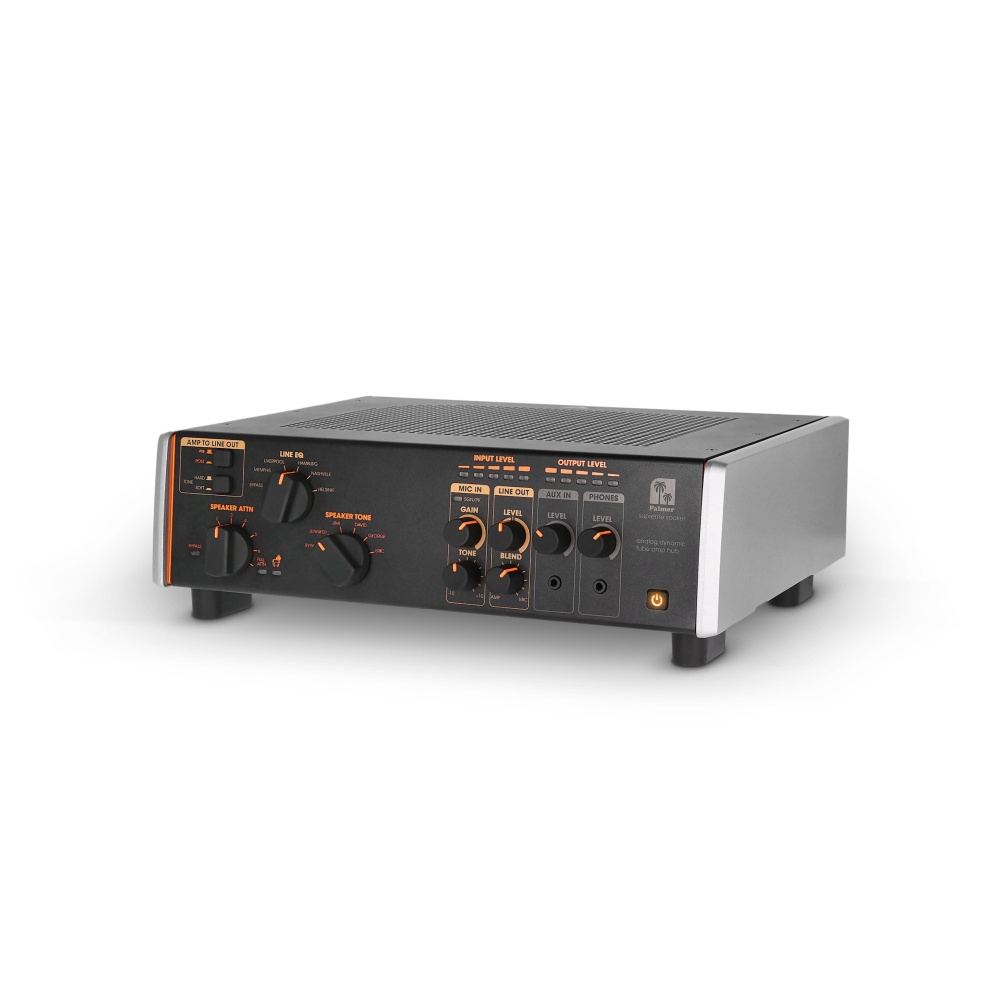

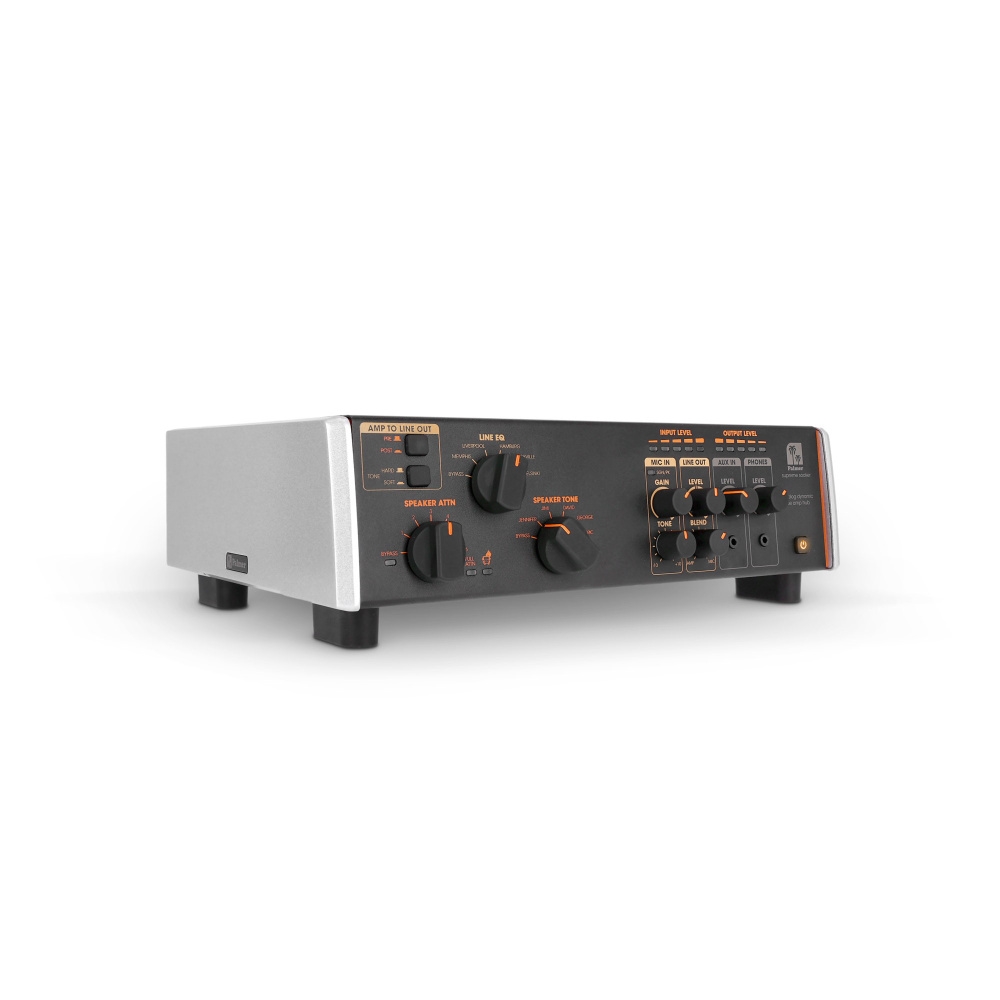

Analog Dynamic Tube Amp Hub - Palmer

Analog Dynamic Tube Amp Hub - Palmer
  • På lager
  • På lager, 3-8 Hverdage
  • Bedømmelse for Analog Dynamic Tube Amp Hub - Palmer
    Produktet er endnu ikke bedømt
  •
    8.859,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner




The Supreme Soaker allows guitar players to maximise the potential of their tube amps in a way that has never been possible - until now. As a reactive attenuator and load box with a finely tuned analogue speaker simulator built in, the Supreme Soaker allows guitarists to permanently dial in their amp's sweet spot - at any volume - and it will quickly become their go-to device in any musical situation, from playing and recording at home to rehearsing with a band, and even playing live… without sacrificing one iota of their precious guitar tone.

Whether it's for jamming at home, recording their own music or playing with others - or all of the above - the Supreme Soaker is the perfect way to do that, while keeping the guitar/amp signal pristine and analogue at all times.

Here are just some of the Supreme Soaker's key benefits:

- Reactive attenuator and load box: dial in a tube guitar amp's sweet spot at any volume, from zero (either by using headphones or recording silently) to room levels, to the boundaries of what's acceptable noise-wise… with no speaker cabinet required!

- Finely-tuned analogue speaker simulator: tweak the guitar rig's tone as necessary to reveal its ultimate tones - no need to mic up a cab ever again!

- Speaker output with unique tone control: shift the tonal palette of the speaker cabinet to conjure up new iconic worlds of sound.

- Microphone/line input (blendable with speaker simulator): blend a miked up cab with the Supreme Soaker's speaker simulator for a supreme analogue sound experience.

- Front panel headphone output: perfect for silent practice any time inspiration strikes.

- Stereo FX Loop: for guitar players who love their FX pedals, the Supreme Soaker features a stereo FX Loop for creating otherworldly soundscapes with delays, reverbs and so on.

- Front panel aux input: for jamming along to backing tracks, or even playing to a click! It couldn't be any easier with the Supreme Soaker.

- Balanced stereo XLR Line Outputs: when it comes to recording the sounds of a guitar amp, it doesn't get any easier.

- Compatible with 8 and 16-ohm setups:works flawlessly with 99% of tube amps.

- Rated for amps up to 150 Watts: perfect for taming even the stadium filling full-size tube amp heads of yore! With the Supreme Soaker, every guitar player has a reason to dust off that full stack again!

- Amp protecting circuit with permanent amp load: never worry about plugging in an amp without a speaker connected again!

- All-analogue experience, with no App required! Perhaps most importantly of all, the Supreme Soaker is simple, direct and pure: the guitarist's analogue tone is preserved at all times, and all the controls they need are on the unit itself, so they can focus on the most important thing: making music!

And that's just the start. The Supreme Soaker will quickly become an indispensable tool for guitar players everywhere when it comes to their music making and creative endeavours. Its unparalleled tonal response, user experience and connectivity options are sure to make it the cornerstone of many a rig from now on - and family members, neighbours and audiences will thank Supreme Soaker players too!

Finally, for us - the Palmer team - this is the culmination of a long-term goal, the realisation of a decades-long dream in sound. We've been the industry leader in analogue tonal solutions for musicians and sound engineers for over 40 years. Now, building on the legacy of the award-winning PDI-09 and PDI-03 speaker simulators and the PDI-06 Attenuator and Load Box, our designers and engineers have applied their decades of experience to the development of the Supreme Soaker.

  • Reactive attenuator and load box
  • Finely-tuned analogue speaker simulator
  • Speaker output with unique tone control
  • Microphone / line input (blendable with speaker simulator)
  • Front panel headphone output
  • Stereo FX loop
  • Front panel aux input
  • Balanced stereo XLR Line Outputs
  • Compatible with 8 and 16-ohm setups
  • Rated for tube amps up to 150 Watts
  • Amp protection circuit with permanent amp load
  • All analogue experience; no app required!


Product typeattenuator
Product typeDI box
Product typeHeadphone Amp:
Product typeload box
Product typeMicrophone preamplifier
Product typepower soak
Product typeRe-amping device analogue
Product typespeaker simulator
Signal processingAnalog

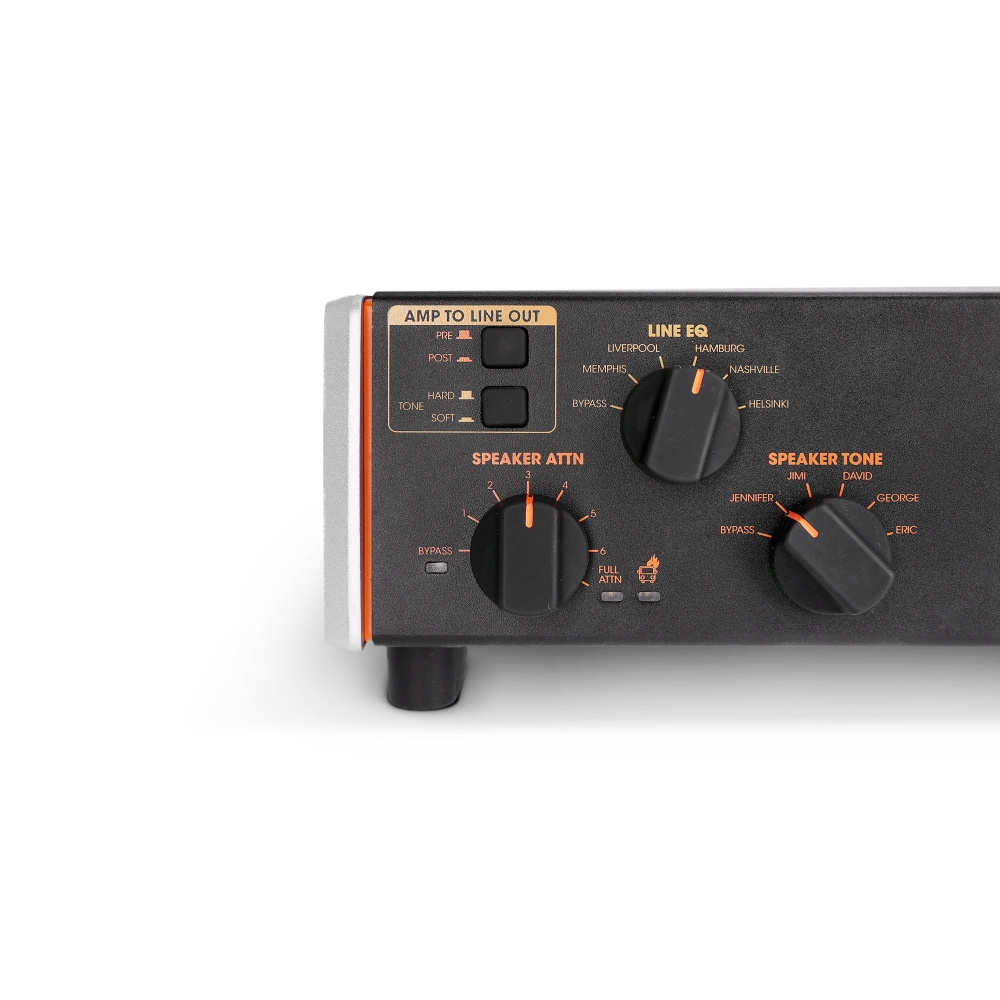

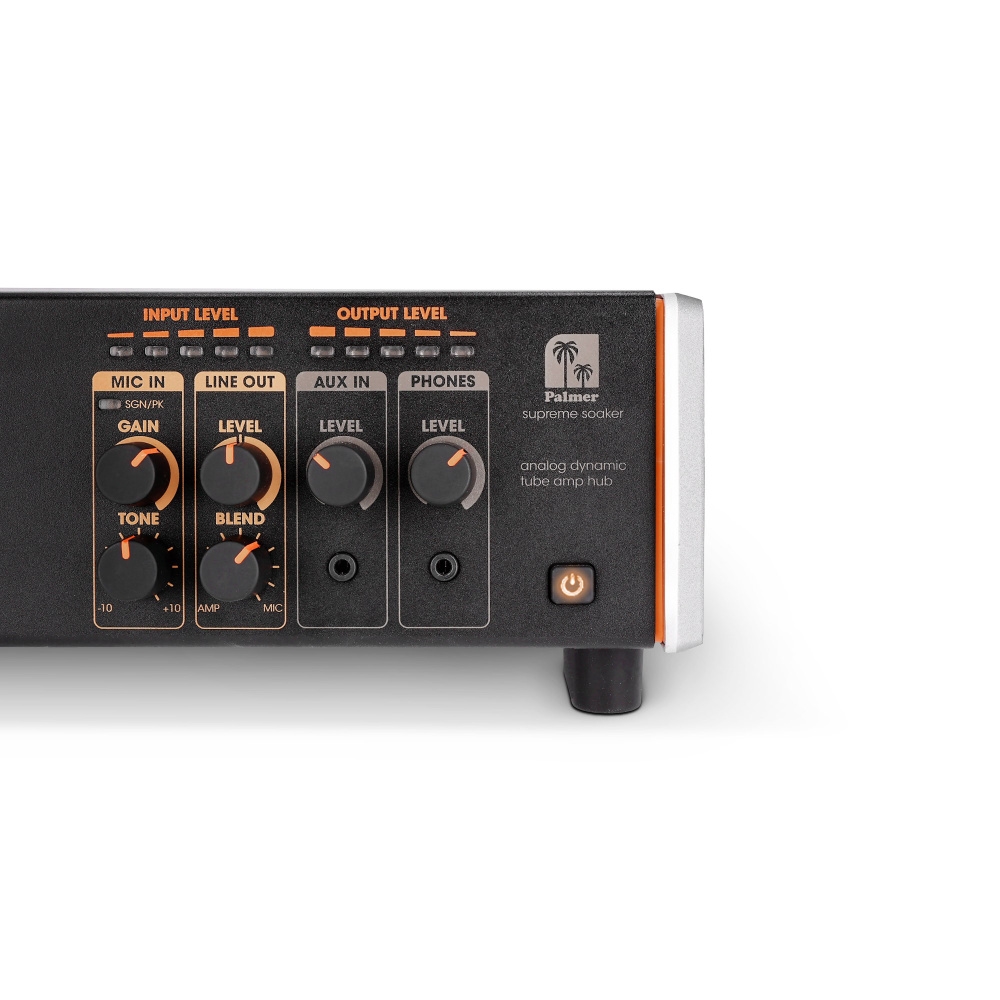

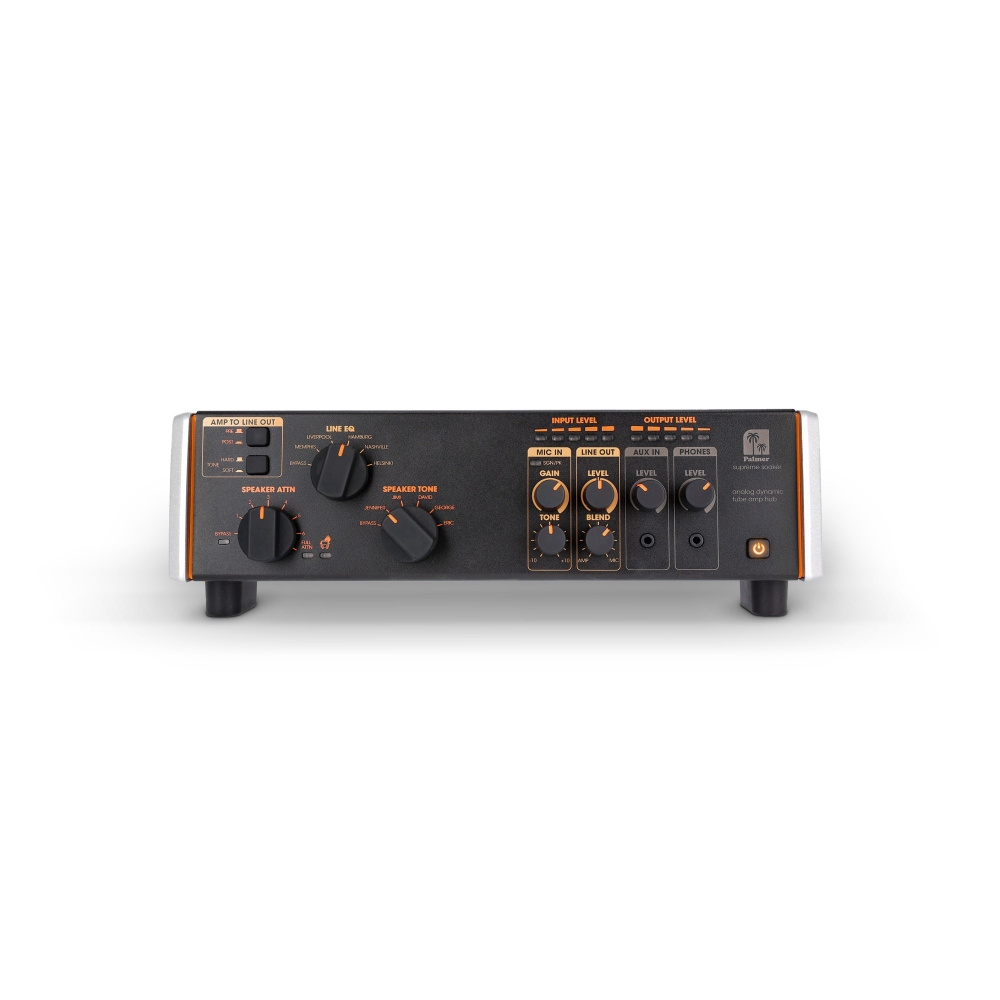

Front panel controls7-Step Speaker Attenuation
Front panel controlsAux In Level
Front panel controlsHard/Soft Tone Selector
Front panel controlsLine EQ (5 Voicings)
Front panel controlsLine Out Blend
Front panel controlsLine Out Level
Front panel controlsMic Gain
Front panel controlsMIC Tone
Front panel controlsPhone Level
Front panel controlsPre/Post Switch (Amp to Line Out)
Front panel controlsSpeaker Tone (5 Voicings)

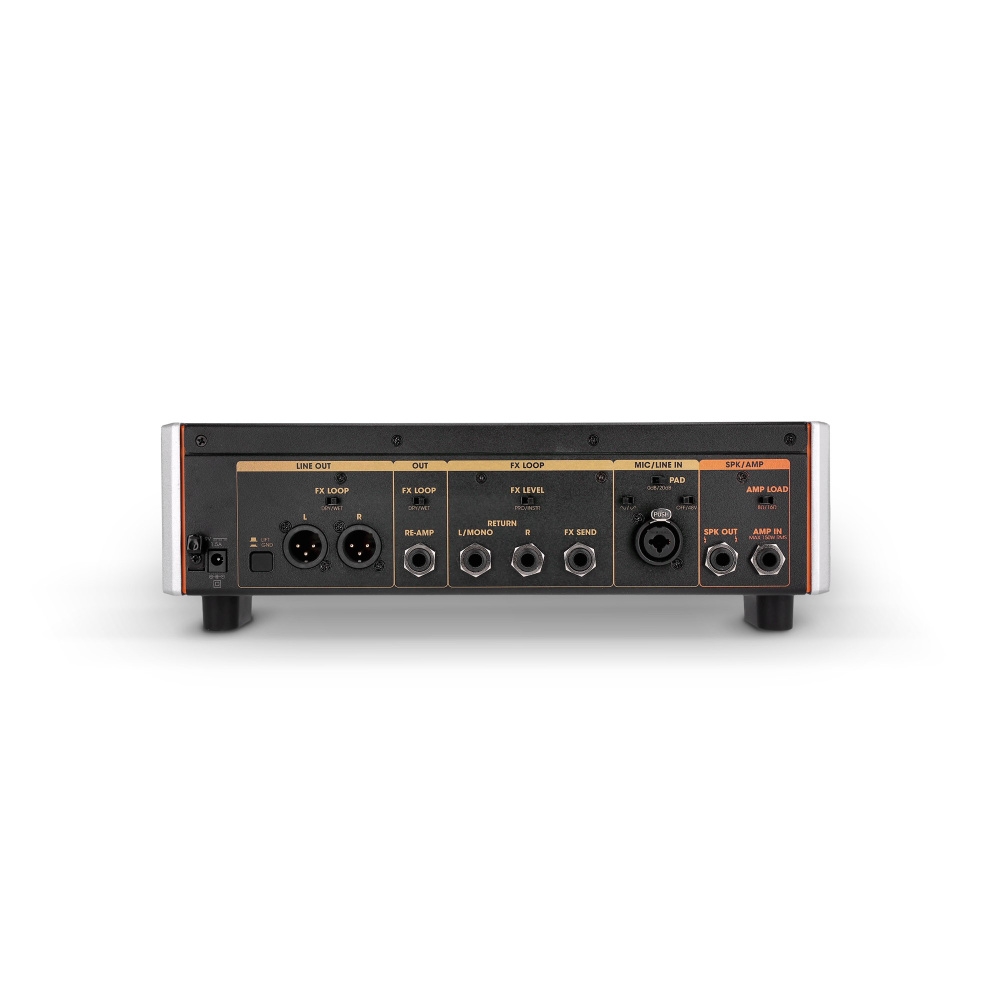

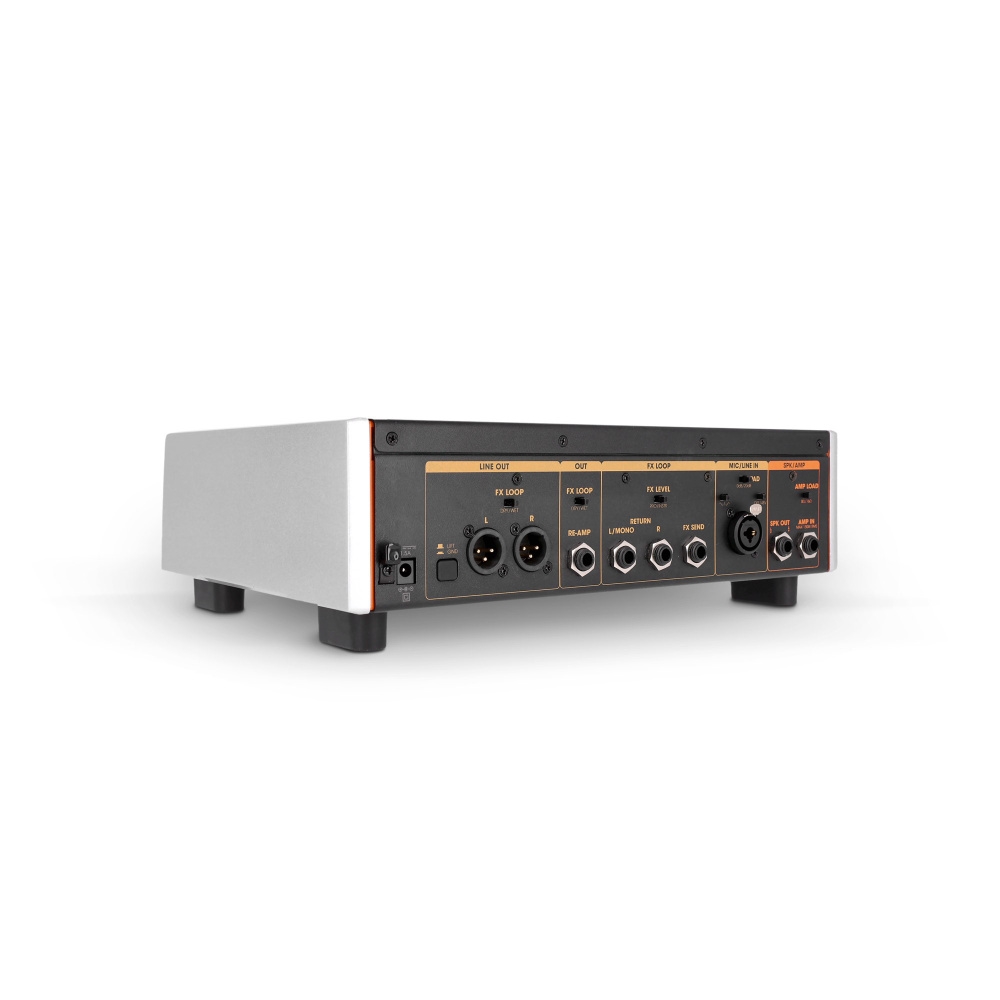

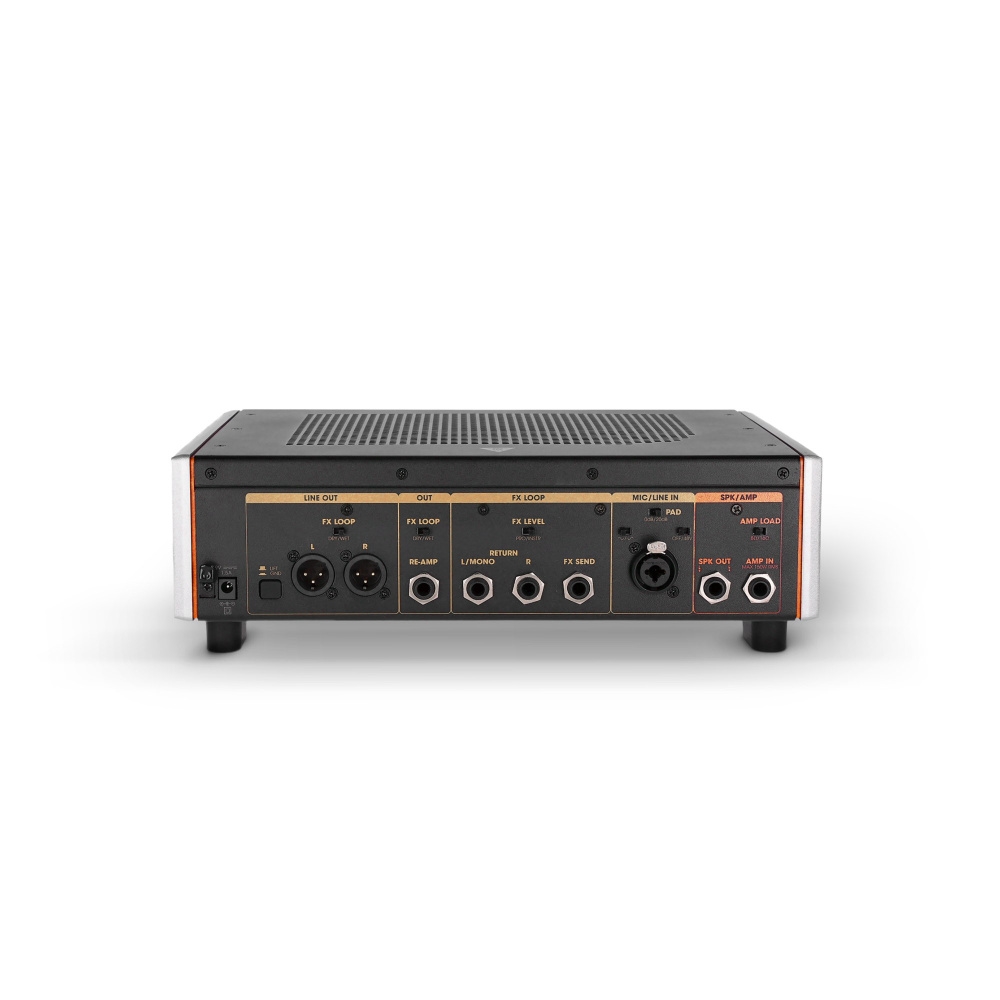

Rear panel controlsAmp Load Impedance Switch
Rear panel controlsFX Level (Pro/Instrument)
Rear panel controlsFX Loop Line Out
Rear panel controlsFX Loop Re-Amp
Rear panel controlsGND/Lift
Rear panel controlsMIC/LINE Input PAD
Rear panel controlsPhantom Power
Rear panel controlsPolarity
Number of inputs5
Input typeBalanced
Input typeUnbalanced
Input connectors3.5 mm jack
Input connectors6.3 mm jack
Input connectorsXLR
Number of outputs6
Output typeBalanced
Output typeUnbalanced
Output connectors3.5 mm jack
Output connectors6.3 mm jack
Output connectorsXLR
Ground/lift switchYes
Transformer isolated outputsYes
Internal load impedance16 ohms
Internal load impedance8 ohms
Minimal load in OFF status16 ohms
Max input handling150 W
Power attenuator7-step
Voicing filter5-step Speaker Tone and 5-step Line EQ
Indicatorsbypass
IndicatorsFull attenuation
Indicatorsinput level
IndicatorsMIC-Signal/Clip
IndicatorsOutput level
Indicatorspower soak
Indicatorsthermal overload
Power supply+ 9 V DC barrel jack - 1.5 A
Power supply polarityCenter negative
Power connector2 x 5.5mm
Maximum power consumption13.5 W
Standby power consumption0.3 W
Dimensions (W x H x D)334 x 108 x 274 mm
Weight6,6 kg
Ambient temperature (in operation)- 20°C - 25 °C
Relative Humidity< 80 % ( non-condensing )
Accessories (included)Power supply

Audio inputs

AUX IN max. input level (< 1% THD, 1kHz)+ 9 dBV
AMP IN max. input power150 W Peak, 100 W RMS

Audio outputs

LINE OUT max. output level (<1% THD)+ 18 dBu
RE-AMP max. output level (<1% THD)+ 1.5 dBv
PHONES OUT max. output level (<1% THD, 1kHz)1.4 V RMS
PHONES OUT min. impedance33 Ohm

MIC / LINE Input

MIC / LINE IN low cut frequency (-3dB)90 Hz
MIC IN max. gain58 dB
MIC / LINE IN Gain range0 - 25 dB
MIC IN (XLR) max. input level (< 1% THD, 1kHz)+ 1 dBu
LINE IN (TRS) max. input level (< 1% THD, 1kHz)+ 22 dBu
MIC IN to LINE OUT THD+N (1kHz, +4dBu)< 0.006 %
MIC IN to LINE OUT THD+N (20Hz-20kHz, +4dBu)< 0,04 %
MIC IN to LINE OUT EIN (max. gain, unweighted)- 114 dBu
MIC IN to LINE OUT SNR (all bypass)105 dB
MIC/LINE IN PAD attenuation20 dB
MIC IN (XLR) input impedance (balanced)1500 Ohm(s)
LINE IN (TRS) input impedance (balanced)24000 Ohm(s)
Varenr.: A-PSUPSOAK
