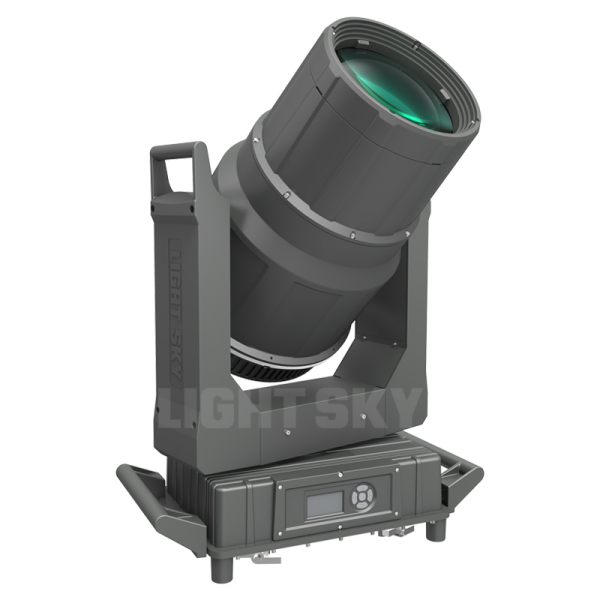

Aquabeam IP3000 (IP66)

IP3500er fuld IP66 vandtæt, hvilket gør at den kan bruges selv under de barskeste vilkår, og det med minimal service af lampen. CMY blandingen er også blevet forfinet, og mere præcis. Markedets bedste beam-lampe til udendørs brug, er blevet endnu bedre.

Optikken har 1.8graders spredning med focus, og lampen har shutter, dæmper, CMY farvemix, farvehjul, 11 gobos, 2 prismer, og har over 10 forskellige patenter.

Light and power supply system
Voltage: AC100~240V 50/60Hz
Colour temperature 6900K
Power 650W
Lifespan 1500h
Power factor PF0.985
Strobe Double strobe structure(0.5-9 times/second)
Lamp USHIO NSL450
Dimmer 0-100% linear adjustment
Lamp power 450W

Color / Pattern / Effect
Color 14 colors + white
Beam angle 1.8 degree
Color mixing system CMY color System
Wash angle 6~45°
Fixed Gobo Wheel 11Gobo + 1 white + 3 animation range
Bi-direction flow water animation effect

Focus and Lens
f190 optical lens with high precision,
linear electronic adjustment

Prism
8 Prism+16 double Prism + multi
combination effect

Control system

Control Mode DMX512/RDM
Pan/Tilt 540°/240°
Channel 17
Pan/Tilt Fine 2.11°/0.98°
Motors 15 ultra-quiet motors
Pan/Tilt Speed 2.7 S/1.6 S

Appearance parameters
Light Size 509×320×742 (mm)
IP Rating IP66
A single carton size 810×580×395(mm)
Single Fly case 640X620X825(mm)
N.W / G.W 34.5kg/39kg
N.W / G.W 34.5kg/69kg

Structure Aluminum alloy
(Units:mm)


Other function

IP set

Equipped with in-built long-life battery, IP could be set without power.

Software upgrading

USB upgrading software is available

Display Menu

1?The display panel adopts a 2.0-inch LCD12864 LCD screen with message in Chinese and English
2?The using time, fixture’s temperature and channel data as well as software’s version are showed in the display panel

Other Features

The lamp's switch can be remotely control and the cooling system can be adjustable automatically.
The power will be decreased when the fixture is on standby.

Safety Devices

OPC & Over-temperature Protection

Cooling System

Forced ventilation with axial fans.

Vertical direction

convenient locking device for transportation and maintenance.

CE Mark

In conformity with the Low Voltage Directive of European Union -- 2014/35/EU and Electromagnetic
compatibility Directive -- 2014/30/EU.

Customizable parts

Customizable parts: lamp, gobo , color, LOGO, Packag, lens degree etc . but the mini order of OEM is:
moving head light not less than 50 pcs , LED light not less than 100pcs . the leading time would 15 to 30
days longer than normal order.
