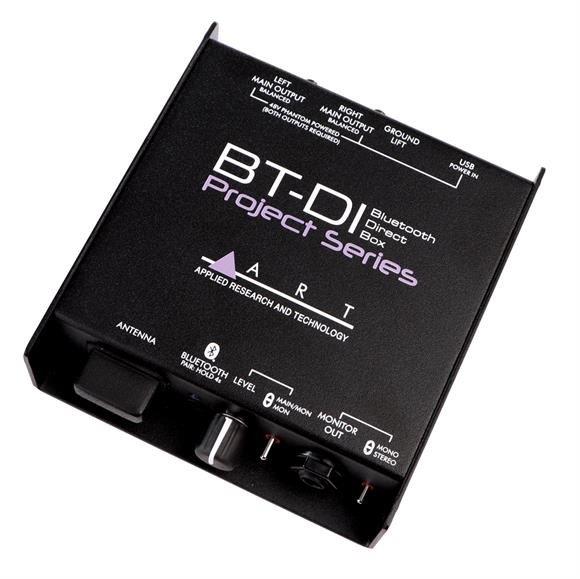

Bluetooth Direct Box With Isolated Outputs
G?r dine professionelle lydenheder Bluetooth-kompatible med ART BT-DI, en robust og fleksibel Bluetooth Audio DAC. BT-DI er designet til at give et p?lideligt Bluetooth-interface fra computere, telefoner og ?ldre Bluetooth-enheder til enhver installation. BT-DI fungerer som en fjernudvidelse af din mixer- og mikrofonudgange, og bruger fantomstr?m, s? en ekstern str?mforsyning er ikke p?kr?vet.
Bluetooth 5.0 receiver
External antenna for long-range operation
Transformer isolated XLR outputs
Headphone out
Selectable fixed/external USB supply OR Phantom Power
Headphone can be summed Mono
Compact rugged package, extruded chassis
Designed and developed in the USA
Specifications

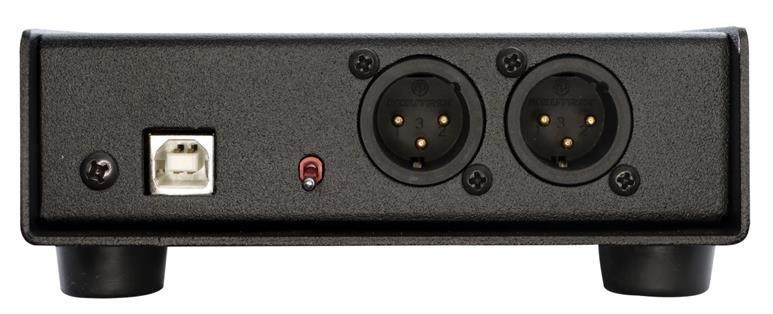

Main Output Connections XLR (2) main output, transformer
coupled, switchable ground.
Main Output Impedance 300 Ohms.
Maximum Output Level 30 dBu balanced Main output,
0 dBu Headphone output.
Signal to Noise Ratio -90dB unweighted typical.
THD <0.05% typical
Bluetooth Version 5.0, up to 50m, Class 2 device (BDR/EDR)
Supported Audio CODECs SBC, AAC
Power Requirements 5V USB (80ma) or +48V
Phantom power w/both XLRs connected.
