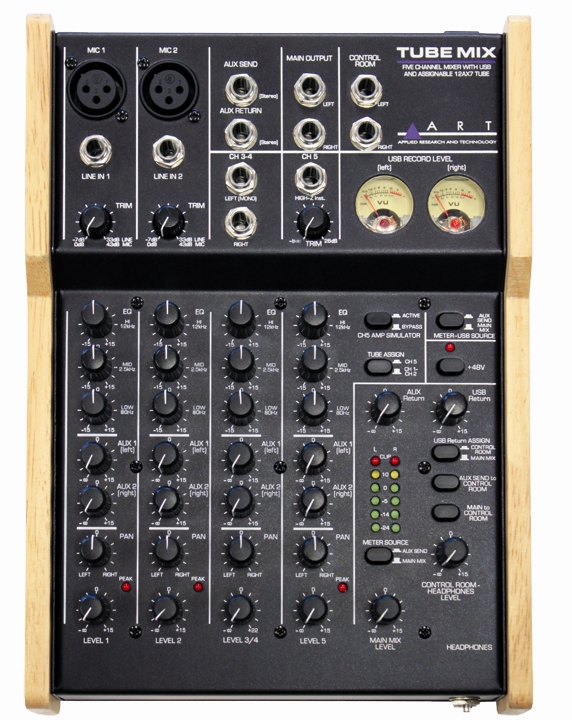

ART TUBEMIXCE Mixer 3 kanaler (2 mic / 1 line) med USB interface
ART
Tube Mix tilbyder en kompakt, alsidig lyd-interface. Mixeren
understøtter to mikrofon-inputs, et højimpedans instrument-input og to
line-inputs samtidigt. Tube Mix kan også fungerer som en dual-channel
tube mikrofon-forforstærker, eller stables og anvendes til
instrument-input for ekstra varme og tone med guitar eller bas.
Alle
input-kanaler er udstyret med 3-bånds EQ, to aux-sendere, panorering og
level-kontrol. Udvalgte inputs inkluderer trim-kontrol og
clip-indikatorer for optimal level-indstilling. Højimpedans
instrument-input'et har også en amp-simulationsfunktion. Den alsidige
output-sektion lader separate stereo monitor-mix på hovedbussen. En
fleksibel Control-Room/Headphone-sektion kan overvåge hoved-mixet,
USB-input'et og aux-senderen for maksimal fleksibilitet.
Fully Featured Tube Driven Five Channel Stereo USB Mixer
Two Wide Dynamic Range Low Noise Mic Preamp Channels
Dedicated High Impedance Instrument Input with Amp Simulator
Integrated 12AX7 Tube can be Applied to Either Microphone or Instrument Inputs
Switchable Low Noise +48V Phantom Power for Condenser Microphones
Precise VU Meters and Wide Range LED Meters with Selectable Source
Fully Featured Input Channels
Flexible Control Room / Monitor Section
USB 2.0 compliant. No special drivers needed with most modern versions of Windows, Mac OS, and Linux
Input Impedance: Microphone: 3.5k O, Line (CH1, CH2, CH3/4), 10k O, CH5 (Inst.), 1M O
Output Impedance: Main, Control Room (Balanced/Unbalanced), 150/100 O , AUX Outputs, 150 O, Headphones, 100 O
Frequency Response: 20-100kHz + 1dB
Maximum
Input Level: CH1, CH2 (Mic), +9dBu, CH1 CH2 (Line In), +20dBu, CH3/4
(EQ Flat), +20dBu, CH5 (EQ Flat), +16dBu, AUX Return, +24dBu
Maximum
Output Level: Main, Control Room (Balanced, Unbalanced), +20dBu/+17dBu,
Aux Send, +20dBu, Headphones, 100mW / Ch @ 300 O, 50mW /Ch @32 O
Maximum
Gain: LINE IN to Main output (balanced), +63dB, CH 5 to Main output
(balanced), 56dB, CH3/4 to Main output (balanced), +30dB
Equivalent
Input Noise: Microphone (@max gain), 127dBu "C"wtd., Line (@max gain),
-105dBu "C" wtd., Instrument (@ max gain), -112dBu "C" wtd.
USB Computer Interface: USB class compliant plug-and-play Mac and PC interface
A/D, D/A: 16 Bit, 44.1 kHz or 48 kHz, USB selectable from computer
Phantom Power: Switch selectable, +48V DC, filtered, current limited
Power Requirements: 18 VAC, 1000mA
Dimensions: 3.3"H x 7.8"W x 10.4"D (84mm x 198mm x 265mm)
Weight: 5.5 lbs (2.5 kg)
Note: 0 dBu = 0.775Vrms
