Constant current mode output

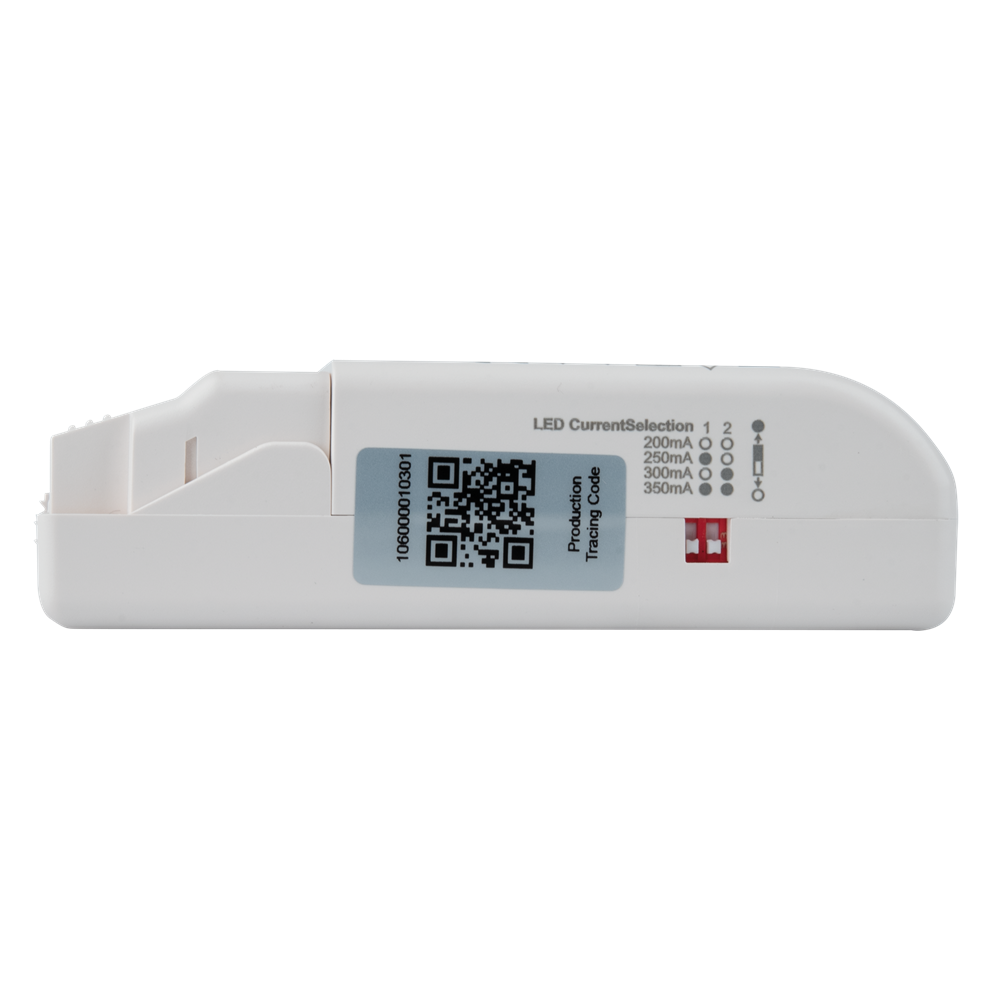

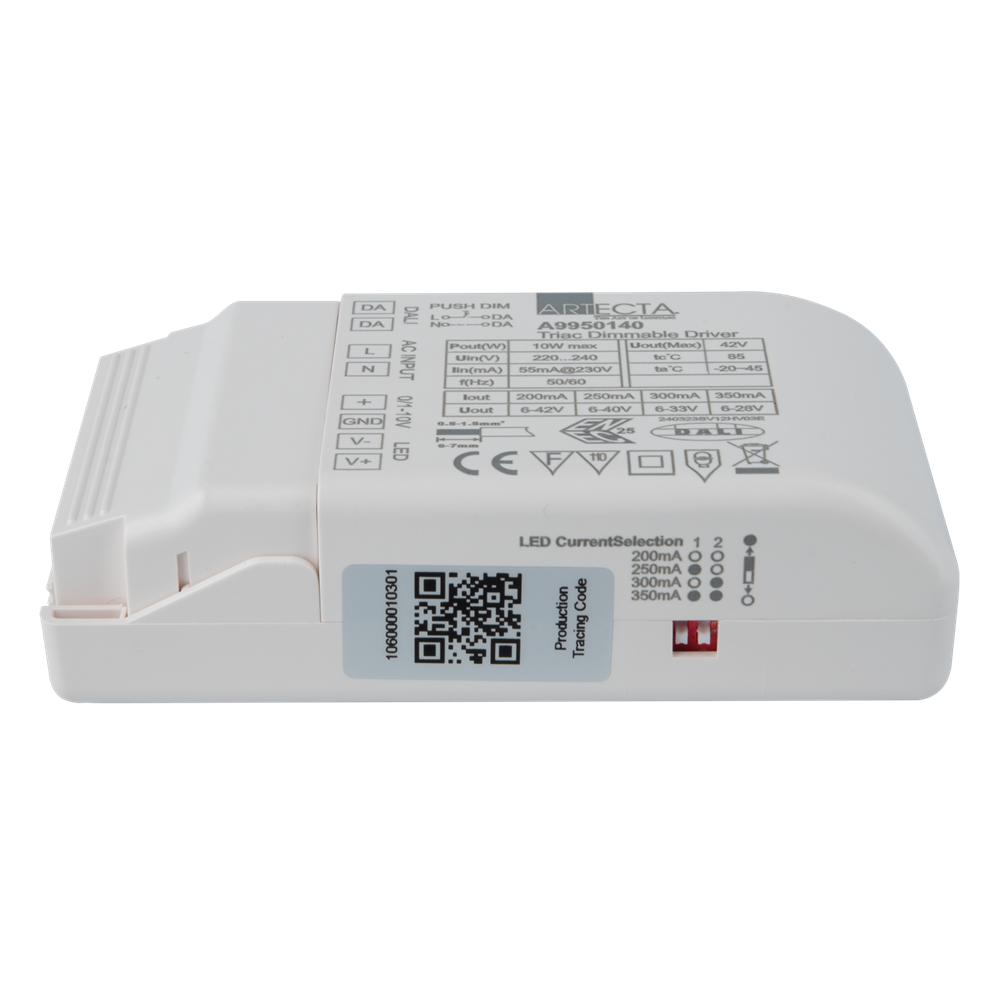

Output current 200-350 mA adjustable by DIP switches
Dimming via DALI, Push, triac and 0/1-10 V
Amplitude dimming for completely flicker-free dimming down to 1%
Built-in DALI-2 interface
The Artecta LED Driver Universal 10 W Constant Current is a single-channel 10-watt power supply for LEDs. It can be adjusted by DIP switches between 200-350 mA output current and it is dimmable via a wide range of interfaces: DALI, Push dimming, triac dimming and 0/1-10 V. Because it uses amplitude dimming instead of PWM, the output is completely flicker-free. Dimming is possible down to 1% without noise or flicker.
Control Mode: 0-10 V DC / DALI / Push-dim / Triac (Phase cut dimming)
DALI Ballast: 1 control channel
Dimmable: Yes
Power Supply: 220-240 V AC 50 Hz
Output Voltage Vf/Vo Minimum: 6 V DC
Output Voltage Vf/Vo Maximum: 42 V DC
Length (mm): 104 mm
Height (mm): 30 mm
Width (mm): 53 mm
IP Rating: IP20 (indoor use only)
