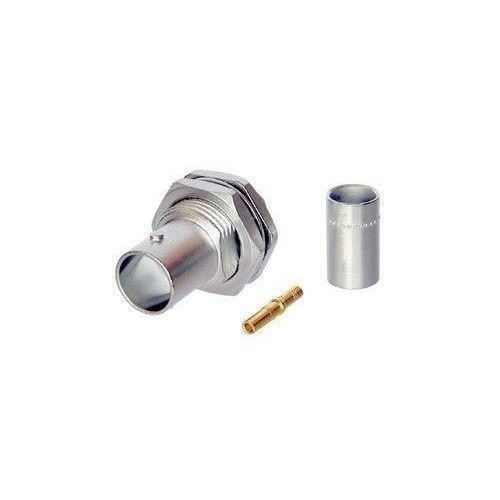

BNC cable jack for panel mount, grounded
Neutrik''s BNC cable jacks for panel mount offer a true 75 O design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long
Teknisk specifikationer
Title
NBNB75GLP9
Connection Type
BNC 75 Ω
Gender
male
Electrical
Contact resistance
≤ 3 mΩ (inner) (inner)
Comment
≤ 2
Dielectric strength
1,5 kVdc
Impedance
75 Ω
Insulation resistance
> 5 GΩ
Rated voltage
500 V
VSWR
≤ 1.050 / > 32 dB up to 1 GHz ≤ 1.065 / > 30 dB up
to 2 GHz ≤ 1.100 / > 26 d
Mechanical
Cabel O.D.
6.3 mm
Cable retention
> 30 N (Center)
Crimp Mass
6,47 Hex crimp (shield) acc. IEC 60803 (die designation
E)
Crimp size
1,6 Square crimp (pin) acc. IEC 60803 (die designation
2)
Insertion force
< 25 N
Lifetime
> 1000 mating cycles
Locking device
Bayonett
Mounting direction
rear
Chassis shape
12.7 mm
Cable anchoring
Jacket crimping
Material
Contacts
Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
Insert
PTFE
Shell
Brass (CuZn39Pb3)
Shell plating
Optalloy®
Environmental
Standard compliance
IEC 6016908, MIL 348A
Temperature range
-30 °C to +85 °C
Contact crimpability
Complies with IEC 60803 and IEC 60352-2
