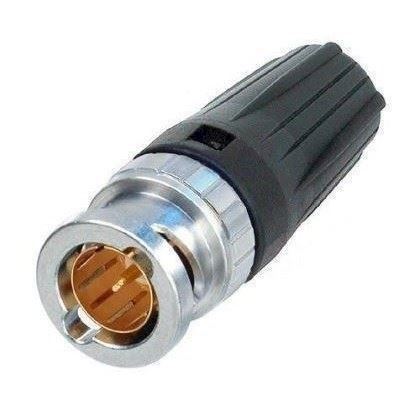

The rearTWIST Tiny BNC cable connector is optimized for small cable diameters. The additional leading ferrule eases the critical assembly of multicore or tiny cables.
Like all Neutrik BNCs it offers a true 75 O design and is perfectly suitable for
Teknisk specifikationer
Title
NBTC75BFI4
Connection Type
BNC 75 Ω
Gender
female
Electrical
Contact resistance
≤ 3 mΩ (inner) (inner)
Comment
≤ 2
Dielectric strength
0,75 kVdc
Impedance
75 Ω
Insulation resistance
> 5 GΩ
Rated voltage
250 V
VSWR
≤ 1.10 / > 26 dB up to 1 GHz ≤ 1.14 / > 24 dB up
to 2 GHz ≤ 1.22 / > 20 dB u
Mechanical
Cabel O.D.
2.9 mm
Cable retention
> 30 N (Center)
Crimp Mass
4,06 Hex crimp (shield) acc. MIL22520/5-39(B)
Crimp size
1,6 Square crimp (pin) acc. IEC 60803 (die designation
2)
Insertion force
< 25 N
Lifetime
> 1000 mating cycles
Locking device
Bayonett
Cable anchoring
Jacket crimping
Material
Contacts
Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
Insert
PTFE
Shell
Brass (CuZn39Pb3)
Shell plating
Optalloy®
Environmental
Standard compliance
IEC 6016908, MIL 348A
Temperature range
-30 °C to +85 °C
Contact crimpability
Complies with IEC 60803 and IEC 60352-2
