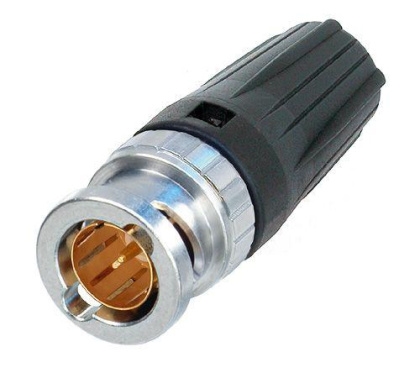

NBNC75BFG7 BNC stik, BULK u/bagkappe, sælges kun af 100 stk
NBNC75BFG7 rearTWIST HD BNC-kabelstikket
tilbyder et 75ohm design og egner sig perfekt til HD-applikationer.
Egnede
kabler:
Argosy Image 360, Belden 1855ENH, Bryant BD SD01, CAE HD0628LSZH,
Canford SDV, Canford SDV-LFH, Canford SDV-X-LFH, Cordial CVI 06-28, Cordial CVI
06-28HD, Cordial CVI 06-28HD-FRNC, Cordial CVI 3-7, Draka 0.6/2.8 AF, Draka 0.6
L/2.8 AF, Extron BNC-5RC, Fuzion SD-1, Klotz V06/28, Klotz VMXx75Y, Kabeltronik
HFV 0.6/2.8 AF- FRNC, Kabeltronik MVP 5x 0.6/2.8 AF-FRNC, Nexans HF 75 0,6/2,9
02YS(ST)CH, Percon VK5, Quadtronics CABPGHD70MW-500, Sommer 600-0101M, Sommer
600-0104M, Tesca Supra
Contact resistance: = 3 mO (inner)
Contact
resistance: = 2 mO (outer)
Dielectric strength: 1,5 kVdc
Impedance: 75
O
Insulation resistance: > 5 GO
Rated voltage: <50 V
VSWR:
=1.050/>32 dB up to 1 GHz, =1.065/>30 dB up to 2 GHz, =1.100/>26 dB up
to 3 GHz
Cable O.D.: 4.7 mm
Cable retention: > 30 N (Center)
Crimp
size: 5 Hex crimp (shield) acc. MIL22520/5-43(B)
Crimp size (pin): 1,6 Square
crimp (pin) acc. IEC 60803 (die designation 2)
Insertion force: < 25
N
Lifetime: > 1000 mating cycles
Locking device: Bayonett
Cable
anchoring: Jacket crimping
Contacts: Brass (CuZn35Pb2), 0.2 µm AuCo (Center
contact)
Insert: PTFE
Shell: Brass (CuZn39Pb3)
Shell plating:
Optalloy®
Temperature range: -30 °C to +85 °C
Contact crimpability:
Complies with IEC 60803 and IEC 60352-2
