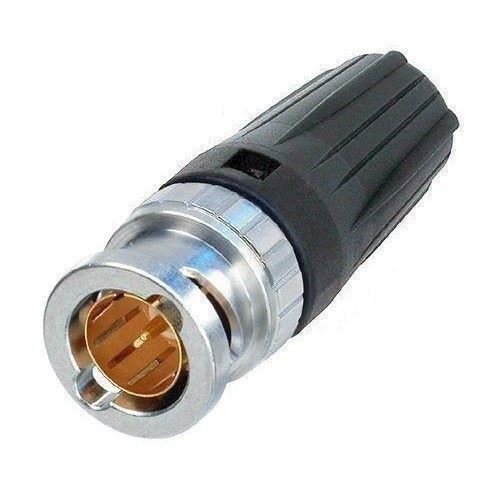

The rearTWIST BNC cable connector offers a true 75 O design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.
Teknisk specifikationer
Title: NBNC75BFH6
Connection Type: BNC 75 Ω
Gender: male
Electrical
Contact resistance ≤ 3 mΩ (inner) (inner)
Comment ≤ 2
Dielectric strength 1,5 kVdc
Impedance 75 Ω
Insulation resistance > 5 GΩ
Rated voltage 500 V
VSWR
≤ 1.050 / > 32 dB up to 1 GHz ≤ 1.065 / > 30 dB up
to 2 GHz ≤ 1.100 / > 26 d
Mechanical
Cable O.D. 4.9 mm
Cable retention > 30 N (Center)
Crimp Mass 5 Hex crimp (shield) acc. MIL22520/5-43(B)
Crimp size 1,6 Square crimp (pin) acc. IEC 60803 (die designation
2)
Insertion force < 25 N
Lifetime > 1000 mating cycles
Locking device Bayonett
Cable Kansai 3C-5S
Cable anchoring Jacket crimping
Material
Contacts Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
Insert PTFE
Shell Brass (CuZn39Pb3)
Shell plating Optalloy®
Environmental
Standard compliance: IEC 6016908, MIL 348A
Temperature range: -30 °C to +85 °C
Contact crimpability: Complies with IEC 60803 and IEC 60352-2
