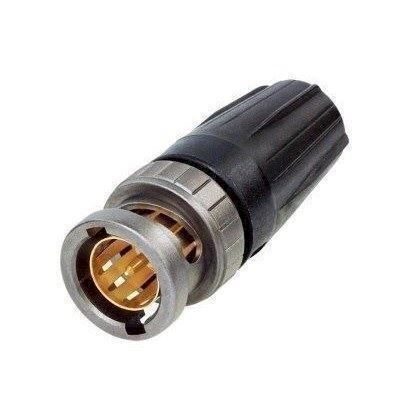

The rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals.
NBNC75BFG7X BNC stik UHD kompatibel med bl.a. Mogami 2964 kabel
NBNC75BFG7X rearTWIST UHD BNC-kabelstikket er specifikt designet til højopløselige video-signaltransmissioner. Stikkets unikke isolator og kontakt pin-design sørger for at signaltabet er minimalt ved 4K og 8K signaler.
Egnede kabler:Bryant BD SD01, CAE HD0628LSZH, Canford SDV, Cordial CVI 06-28, Cordial CVI 06-28HD, Cordial CVI 06-28HD-FRNC, Cordial CVI 3-7, Draka 0.6/2.8 AF, Draka 0.6 L/2.8 AF, Extron BNC-5RC, Fuzion SD-1, Klotz V06/28, Klotz VMXx75Y, Kabeltronik HFV 0.6/2.8 AF- FRNC, Kabeltronik MVP 5x 0.6/2.8 AF-FRNC, Nexans HF 75 0,6/2,9 02YS(ST)CH, Percon VK5, Sommer 600-0101M, Sommer 600-0104M, Tesca Supra
UHD-optimerede kabler:Argosy Image 360, Belden 1855ENH, Belden 1855ECH, Belden 1855DNH, Belden 70080, Belden 70080NH, Belden 70080CH, Canford SDV-X-LFH, Draka HD Pro 0.6/2.8 AF, Klotz V062SH
Contact resistance: ≤ 3 mΩ (inner)
Contact resistance: ≤ 2 mΩ (outer)
Dielectric strength: 1.5 kVdc
Impedance: 75 Ω
Insulation resistance: > 5 GΩ
Rated voltage: < 50 V
VSWR: ≤1.06 / >30 dB up to 6 GHz, ≤1.13 / >24 dB up to 12 GHz, ≤1.22 / >20 dB up to 18 GHz
Cable O.D.: 4.7 mm
Cable retention: > 30 N (center)
Crimp size: 5.0 Hex crimp (shield)
Crimp size (pin): 1.07 crimp
Insertion force: < 25 N
Lifetime: > 1000 mating cycles
Locking device: Bayonett
Cable anchoring: Jacket crimping
Contacts: Brass (CuZn35Pb2), 0.2 µm AuCo (center contact)
Shell: Brass (CuZn39Pb3)
Shell plating: Antraloy
Insert: PP
Temperature range: -30 °C to +85 °C
Contact crimpability: Complies with IEC 60803 and IEC 60352-2
