Cameo AZOR B1, Beam 100 watt LED

Cameo AZOR B1, Beam 100 watt LED
  • Fjernlager
  • På forespørgsel
  • Bedømmelse for Cameo AZOR B1, Beam 100 watt LED
    Produktet er endnu ikke bedømt


Indhent tilbud.
Vis uden moms

Billigst på PriceRunner


LED Beam Moving Head


Beam Moving Head with 180,000 lx light intensity @ 3 m Optical glass lens with extremely narrow 2° beam angle 16-bit three-phase motors 540° panning and 270° tilting with automated position correctioning. Motorised focusing 14 colours plus open and split colours 17 static gobos plus open rotatable and indexable circular eightfold prism Rotatable and indexable linear sixfold prism 4 programmable macros for standalone and master-slave operation 3-pin & 5-pin DMX sockets and Power Twist power in and power out sockets Two Omega brackets and power cable included

The Cameo AZOR B1 is a powerful Beam Moving Head featuring a high-quality glass lens, an extremely narrow 2° beam angle and motorised focusing. 16-bit, three-phase motors provide 540° panning and 270° tilting with automated position correctioning. A cold-white 100 W LED with 9,200 K colour temperature achieves incredible 180,000 lx light intensity at 3 metres, while the colour wheel offers 14 intense colours, plus white and split colours, to choose from.

Additional features of the AZOR B1 include 17 static gobos, a circular eightfold and a linear sixfold prism that are rotatable and indexable. When using as a standalone, four macros are available to freely program and can be perfectly synchronised in master-slave operation or inverted. The spotlight also features a rapid strobe function and a quiet, temperature-controlled fan.

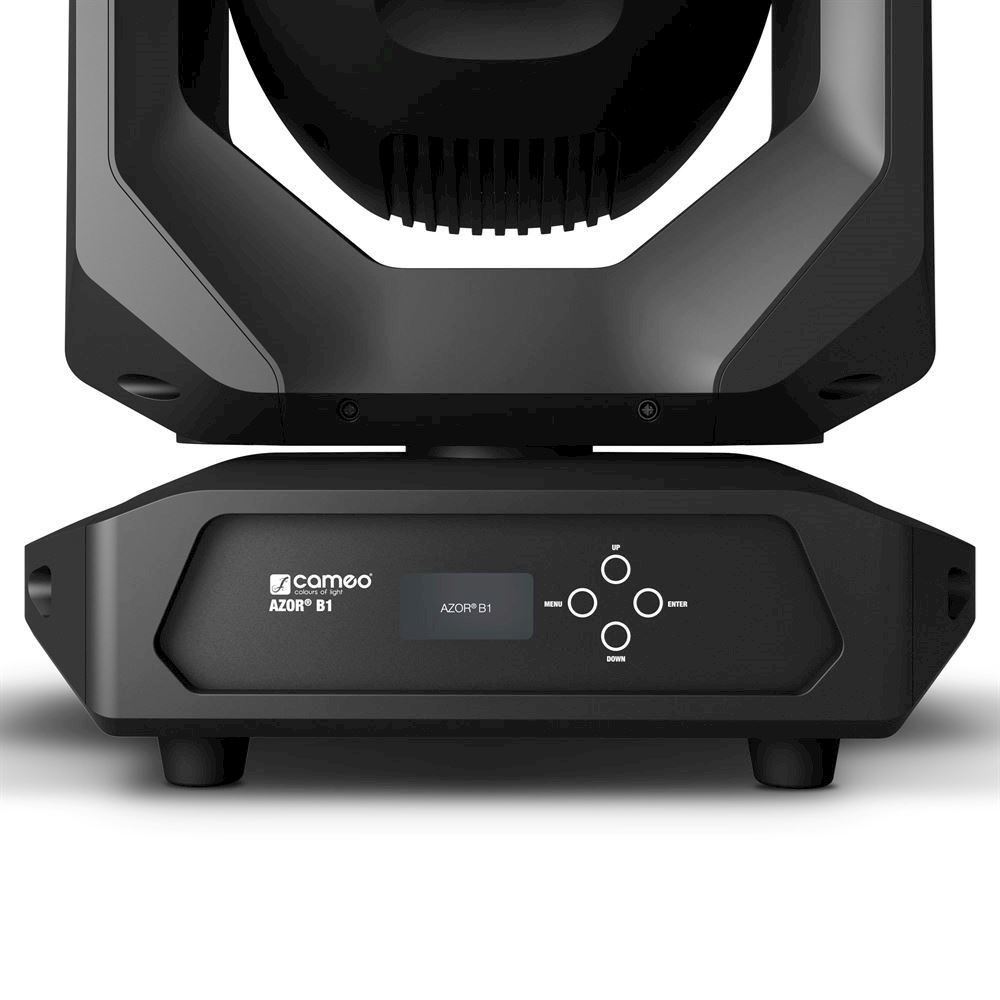

Easy configuration is facilitated by the AZOR B1_s OLED display and four buttons, 3- and 5-pin DMX inputs and outputs, while Power Twist sockets ensure unproblematic daisy chaining. The Beam Moving Head is supplied with three Omega brackets and a power cable.





  • Beam Moving Head with 180,000 lx light intensity @ 3 m
  • Optical glass lens with extremely narrow 2° beam angle
  • 16-bit three-phase motors
  • 540° panning and 270° tilting with automated position correctioning.
  • Motorised focusing
  • 14 colours plus open and split colours
  • 17 static gobos plus open
  • rotatable and indexable circular eightfold prism
  • Rotatable and indexable linear sixfold prism
  • 4 programmable macros for standalone and master-slave operation

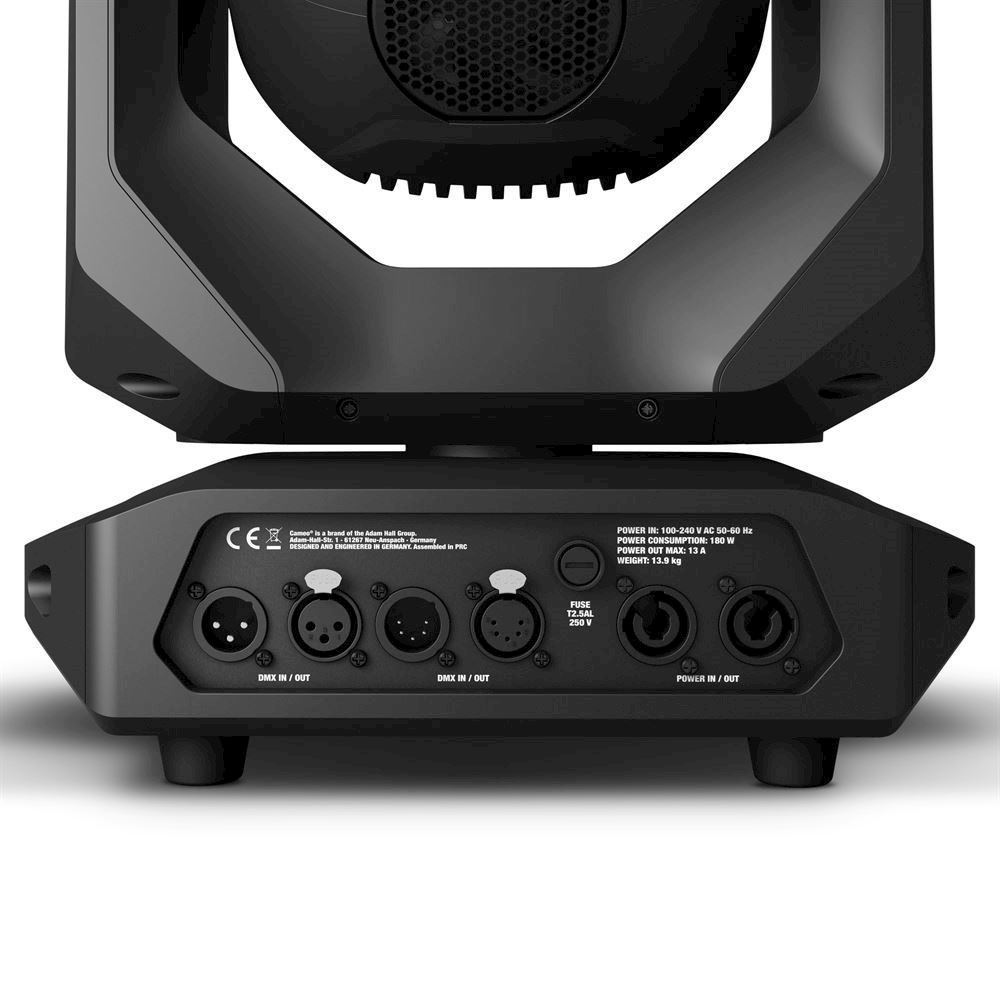

  • 3-pin & 5-pin DMX sockets and Power Twist power in and power out sockets
  • Two Omega brackets and power cable included

Product typeLED Moving Lights
TypeMoving Head
Colour spectrumcold white
Number of LEDs1
Colour temperature9200 K
LED type100 W
Refresh rateAdjustable up to 3,600 Hz
Dispersion2 °
DMX inputXLR 3-pin male, XLR 5-pin male
DMX outputXLR 3-pin female, XLR 5-pin female
DMX mode13-channel, 16-channel
DMX FunctionsColour wheel, Dimmer, Dimmer Fine, Focus, PAN, Pan/Tilt Macros, Pan/Tilt Speed, Prism Rotation/Indexing, Set Dimmer Curve, TILT FINE, Device Settings, Gobo wheel, PAN FINE, Prism Selection, strobe, TILT
PAN movement540
TILT movement270
High Speed Strobe> 20 Hz
Standalone modes4 x User Macros, master / slave mode, Settings
Controlsmode, Value Down, Enter, Value Up
IndicatorsOLED Display
Operating voltage100 V AC - 240 V AC, 50 - 60 Hz
Power consumption180 W
Power connectorBlue & White Power Twist I/O
Housing materialABS plastic, metal
Cabinet colourBlack
Protection class IPIP20
Coolingtemperature-controlled fan
Illuminance180,000 lx @ 3 m
Luminous flux2200 lm
Maximum Ambient Temperature-15 - 45 °C
Width306 mm
Height437 mm
Depth220 mm
Weight13,9 kg
Features2 x Omega Clamp, Power supply

Varenr.: A-CLAB1
