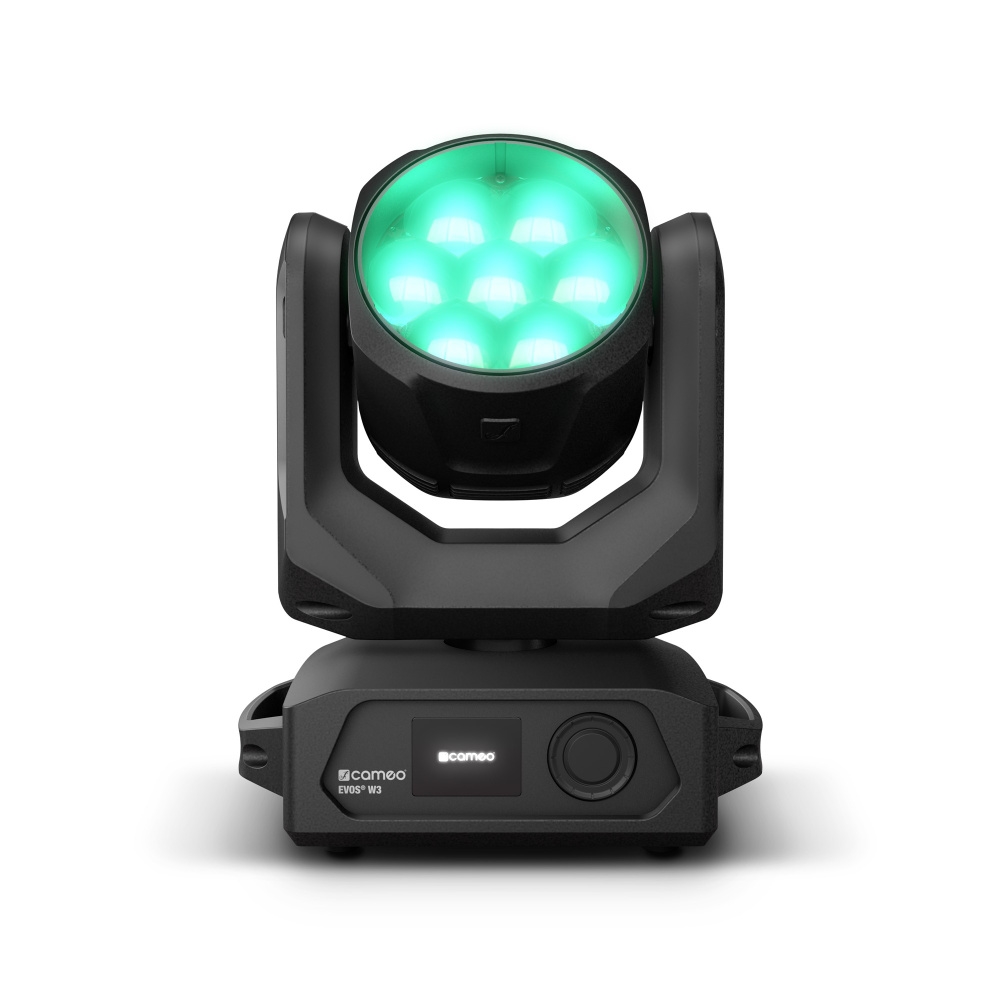

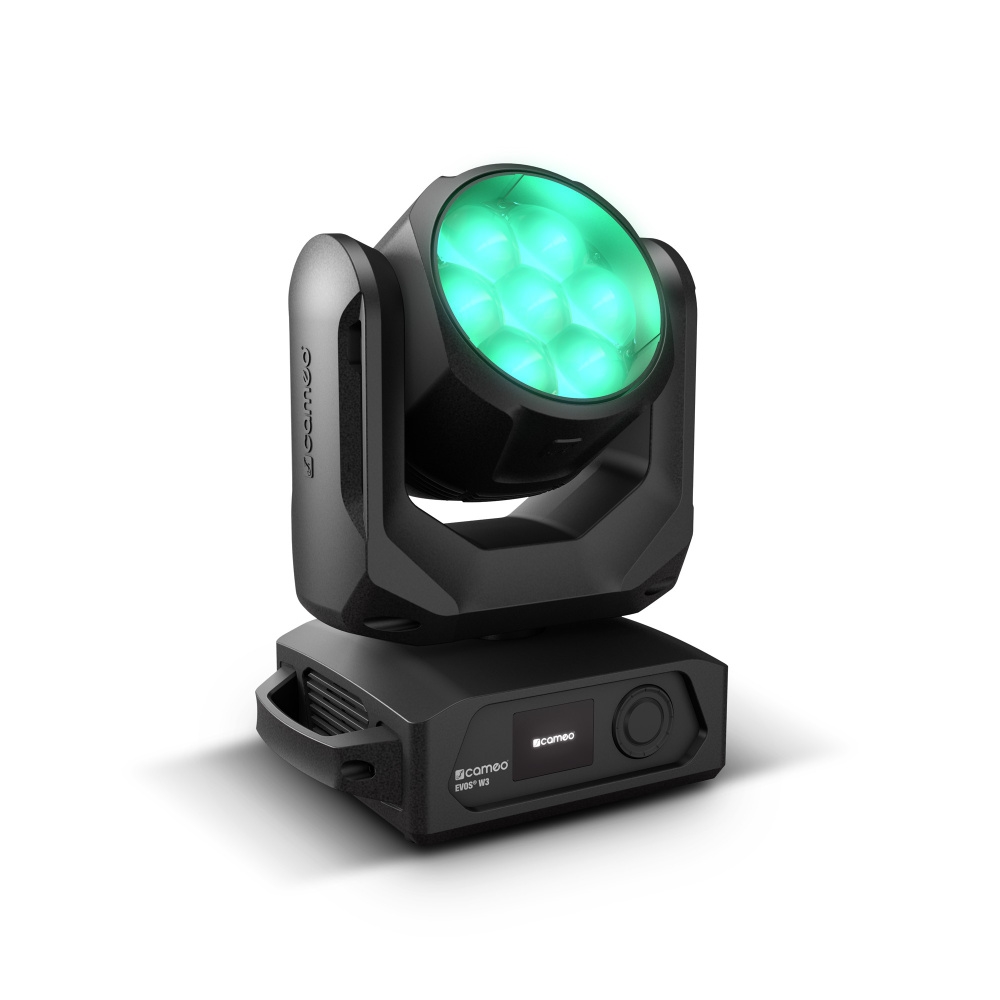

Especially natural-looking LED light is crucial when choosing which moving head to go with for lighting and effects. This compact yet versatile mini LED moving head offers just that and a whole lot more. It may not take up a whole lot of room on trusses nor in warehouses, but it's still capable of delivering the same high-quality features as the larger-sized EVOS® W7.

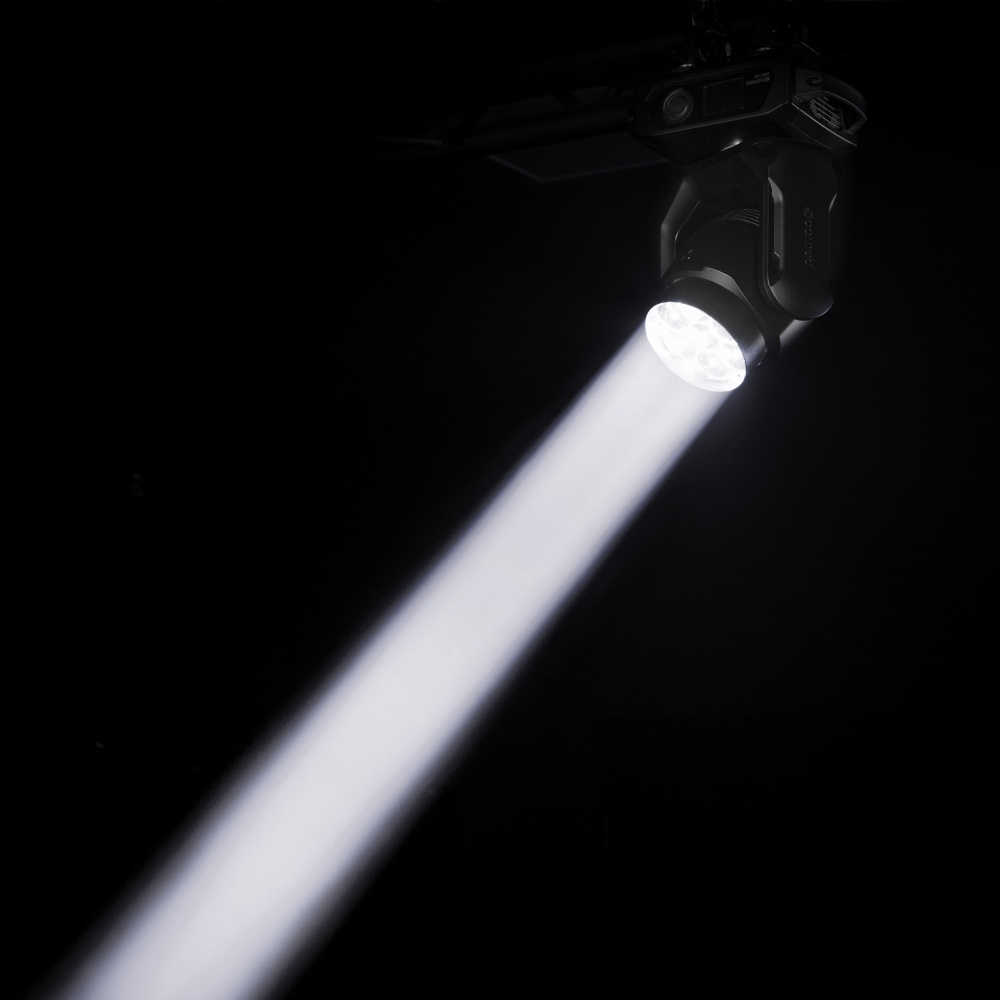

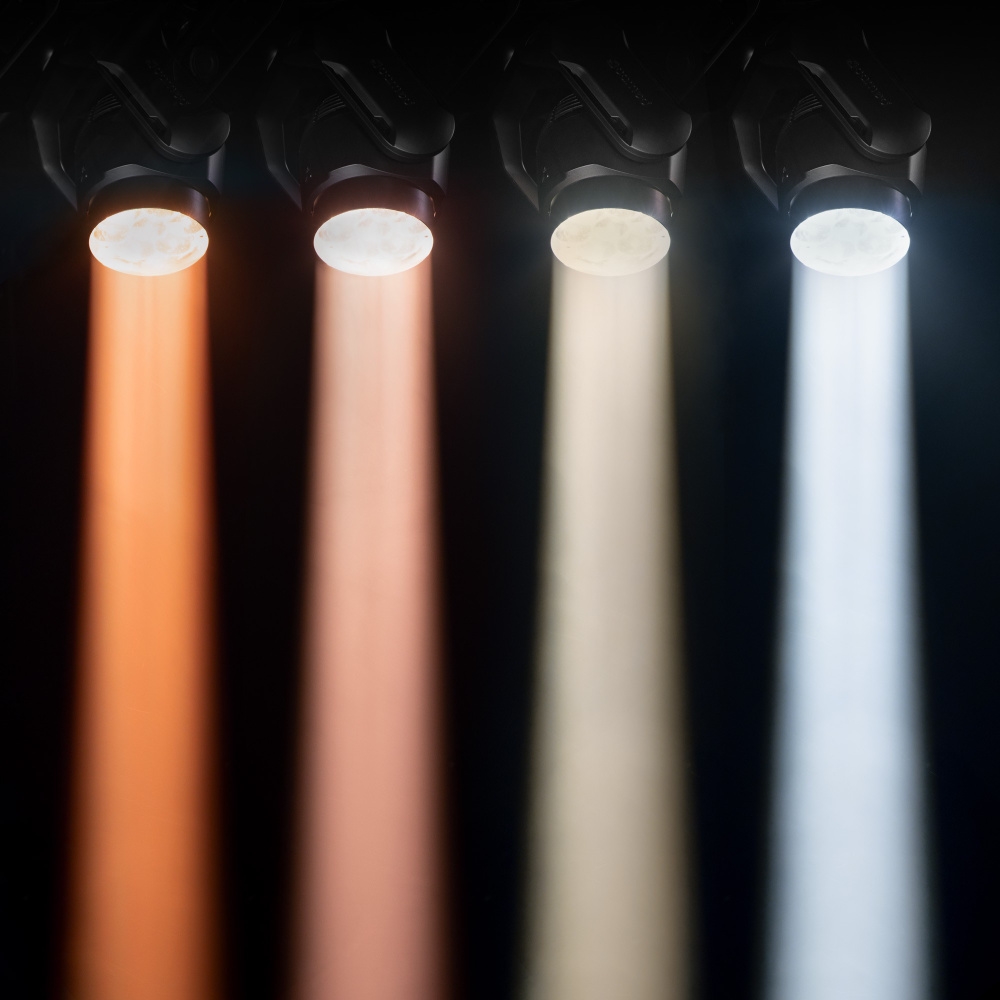

The warm-white LED not only lets you mix wonderfully warm pastel shades but also amazing warm-white light for illuminating people, objects, and so much more. This wash-beam with single-pixel control is designed specifically for rental companies with discerning professional clientele.

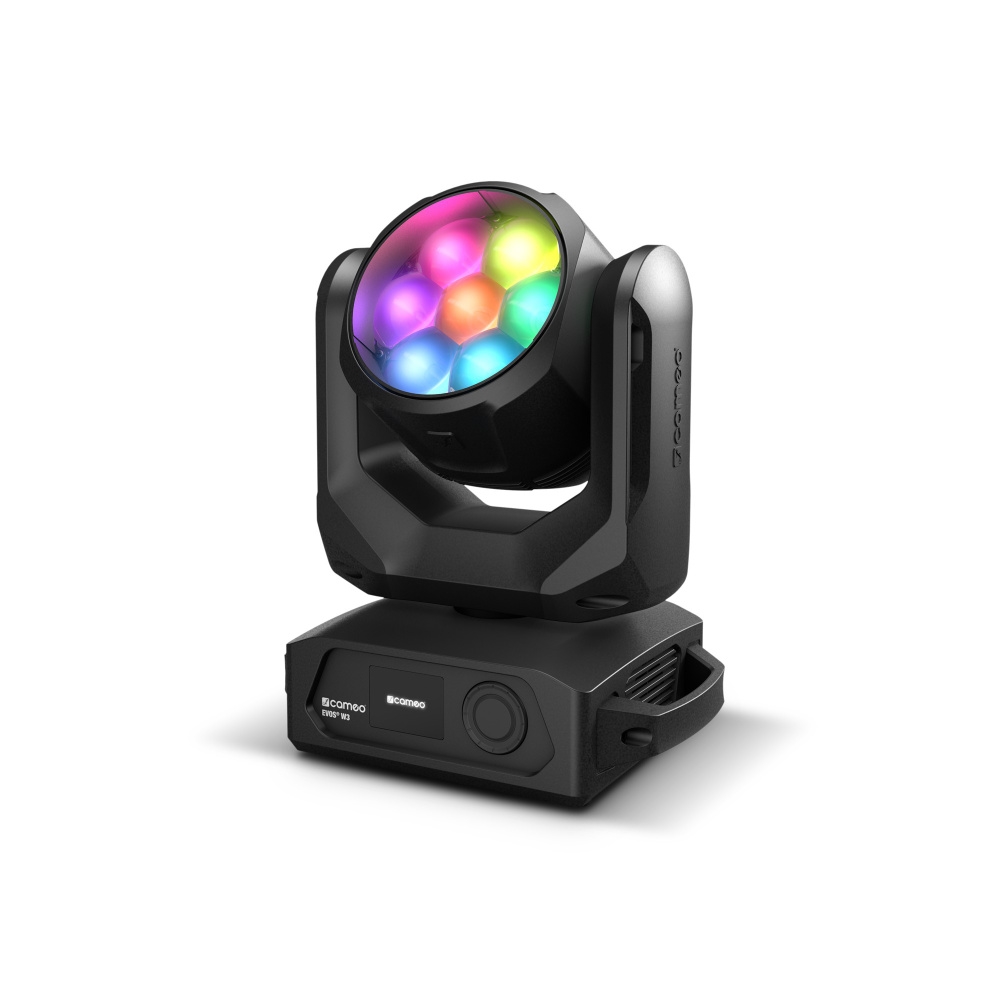

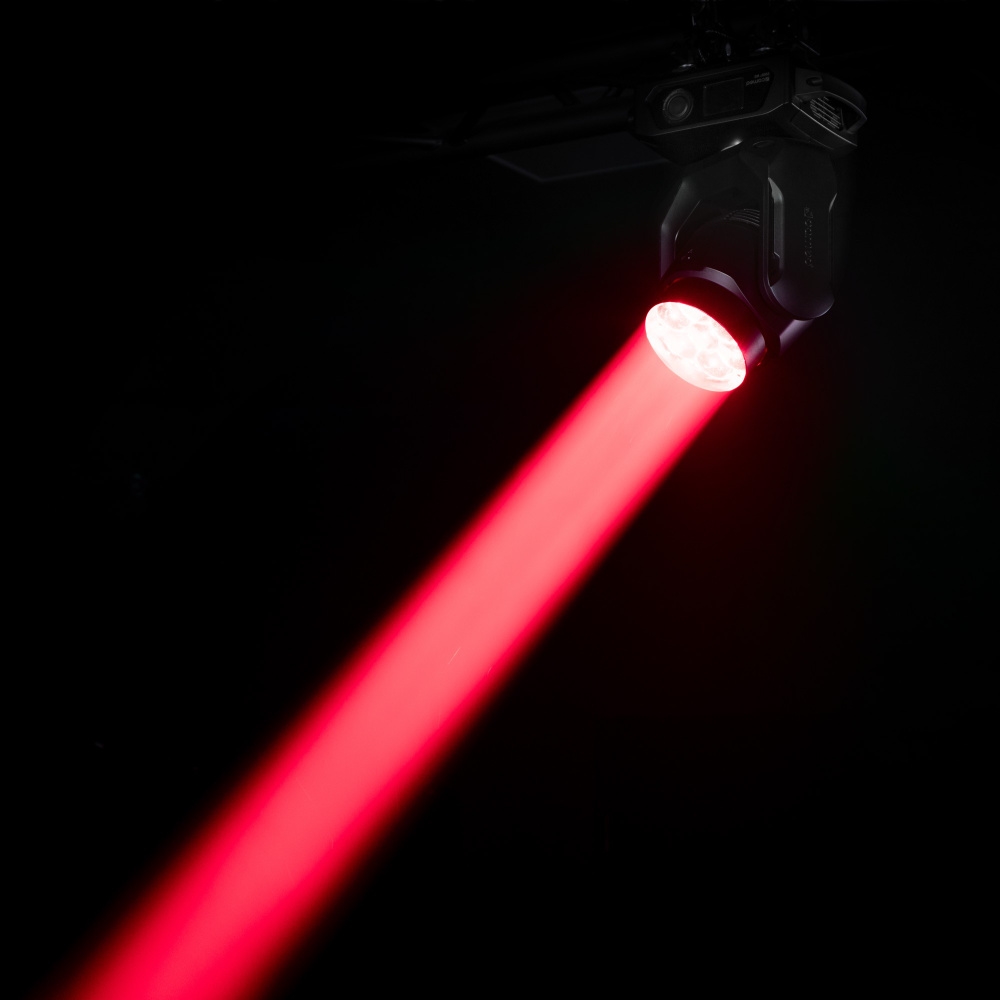

Seven 40 W RGBW LEDs produce rich RGB colors for breathtaking lighting effects. The Cameo EVOS® W3 has a particularly high color rendering index as compared to other devices. The warm-white chip lets you use the moving head as a wash light, allowing you to light both people or objects either in naturally warm white light or in pastel shades for mood lighting. This device can be used in a variety of ways thanks to the individual combo of full-color LEDs with WW chip, which produce extremely well-defined white tones with a CRI of +Ra 90.

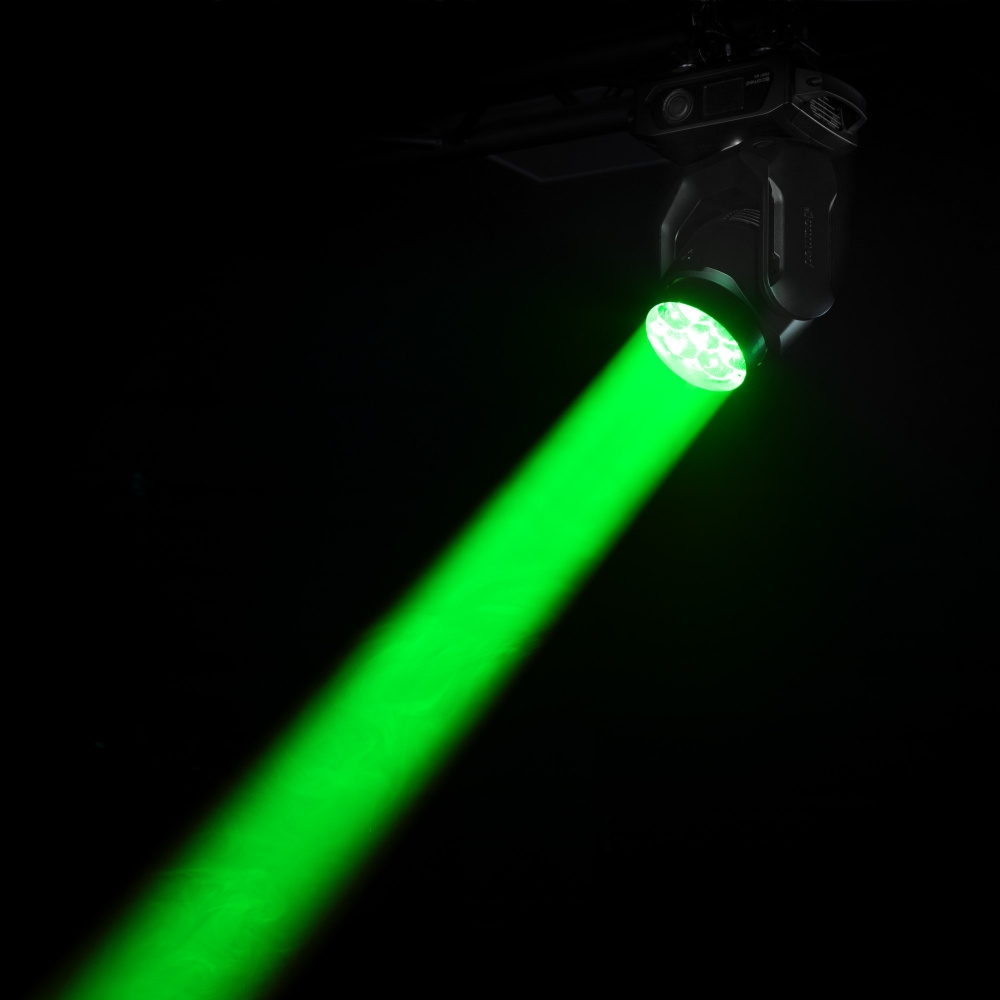

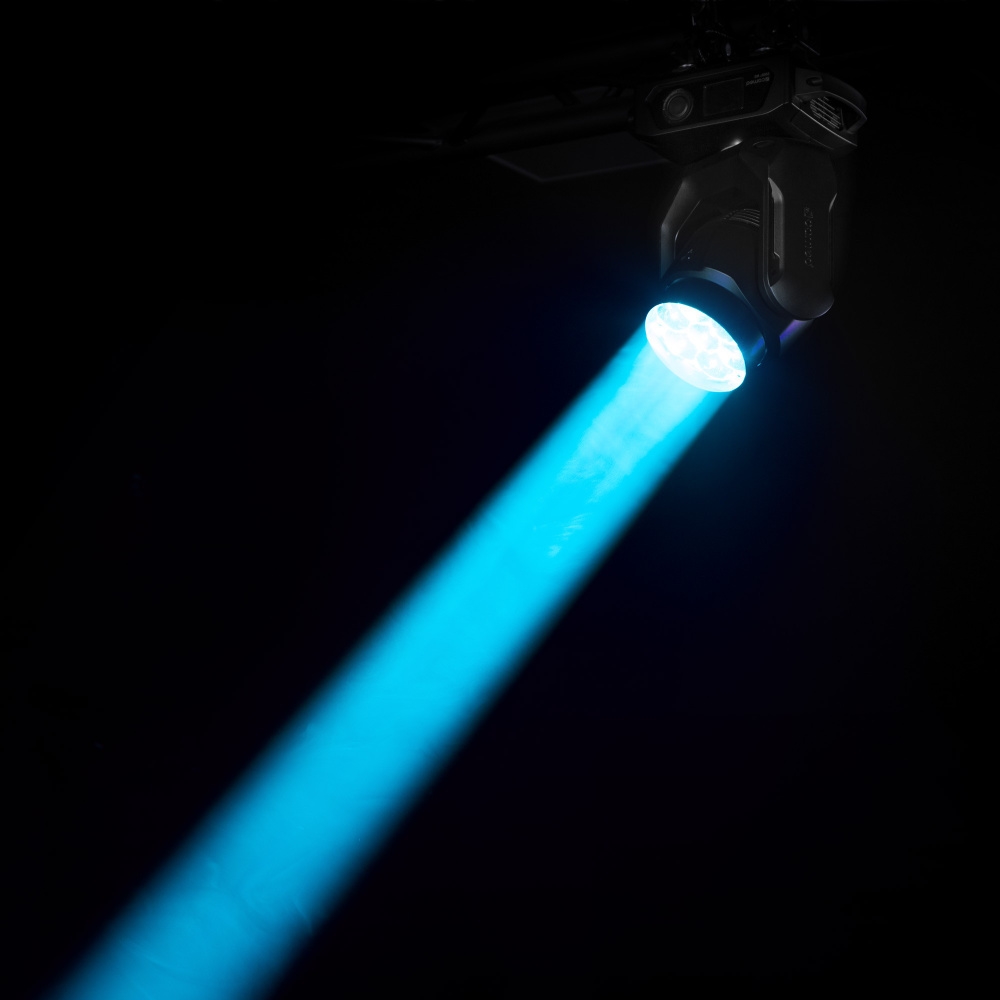

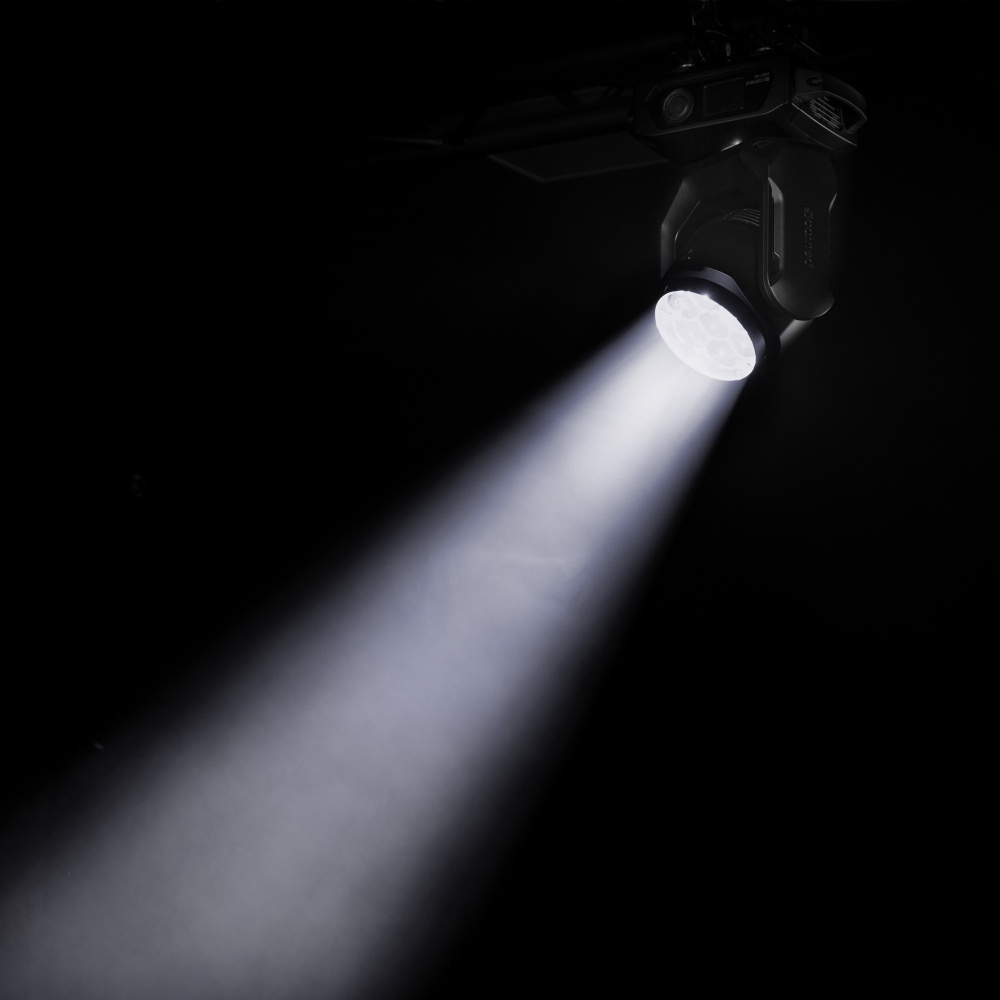

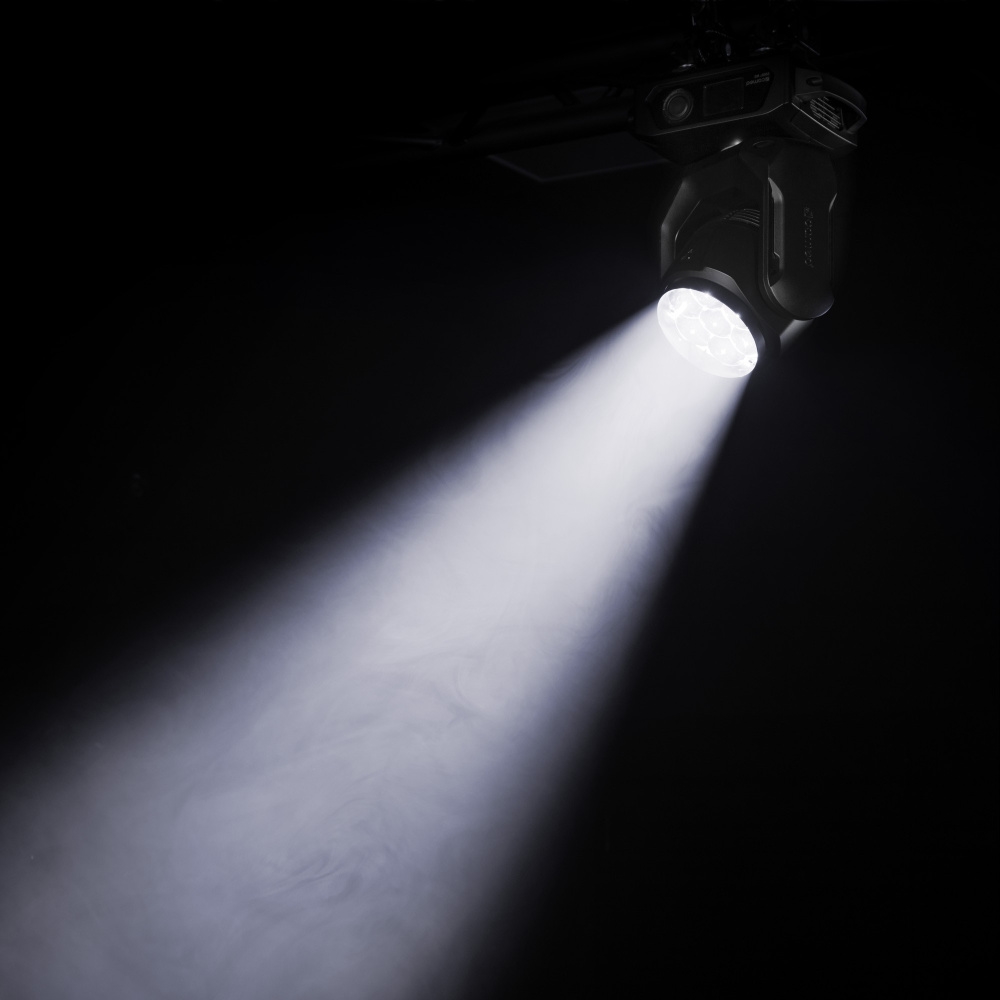

Used as both a wash and a beam, the Cameo EVOS® W3 Moving Head enables stunning matrix effects with single pixel control which allows all LEDs to be individually controlled. The rich luminous flux of 4100 lumens floods every event with warm, bright light in clearly defined colors and wide-ranging horizontal (pan) and vertical (tilt) coverage up to 540° and 235° respectively. An impressive zoom range spanning between 4.5° and 55° provides powerful beam and large-area wash effects and makes the device even more versatile.

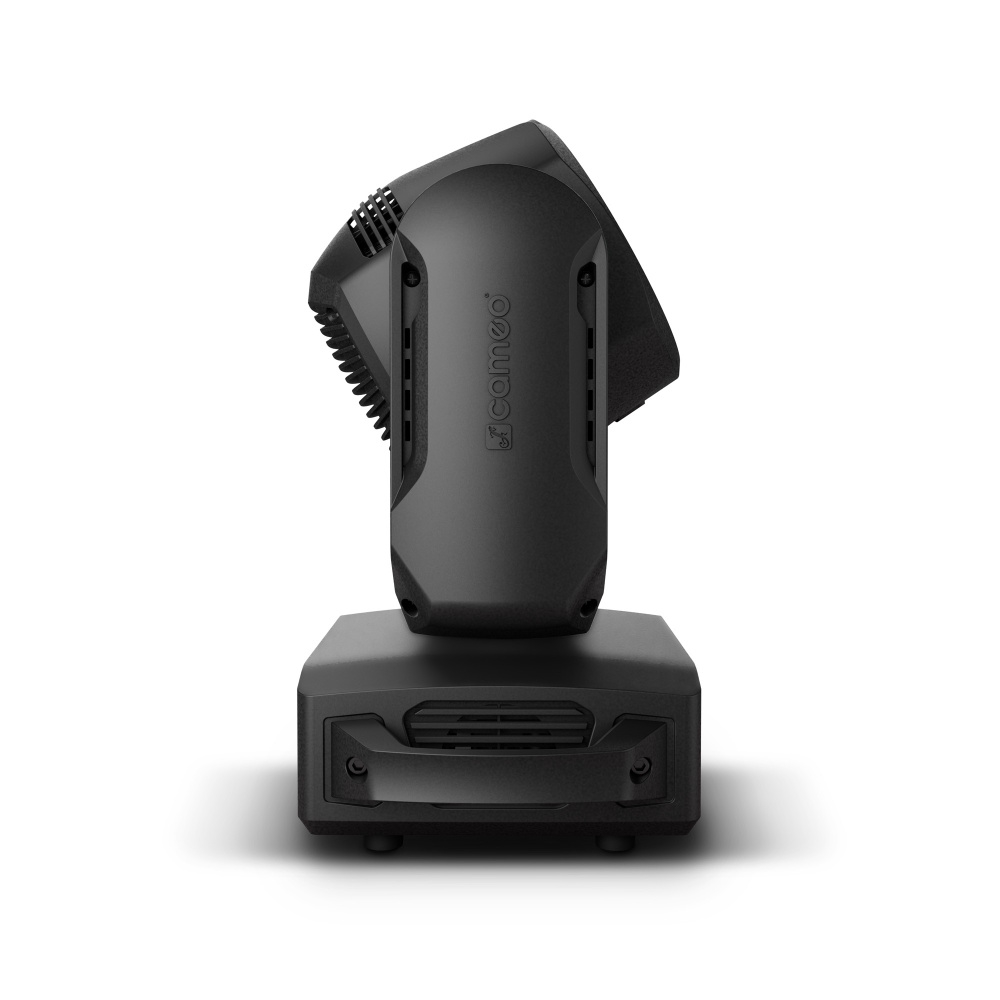

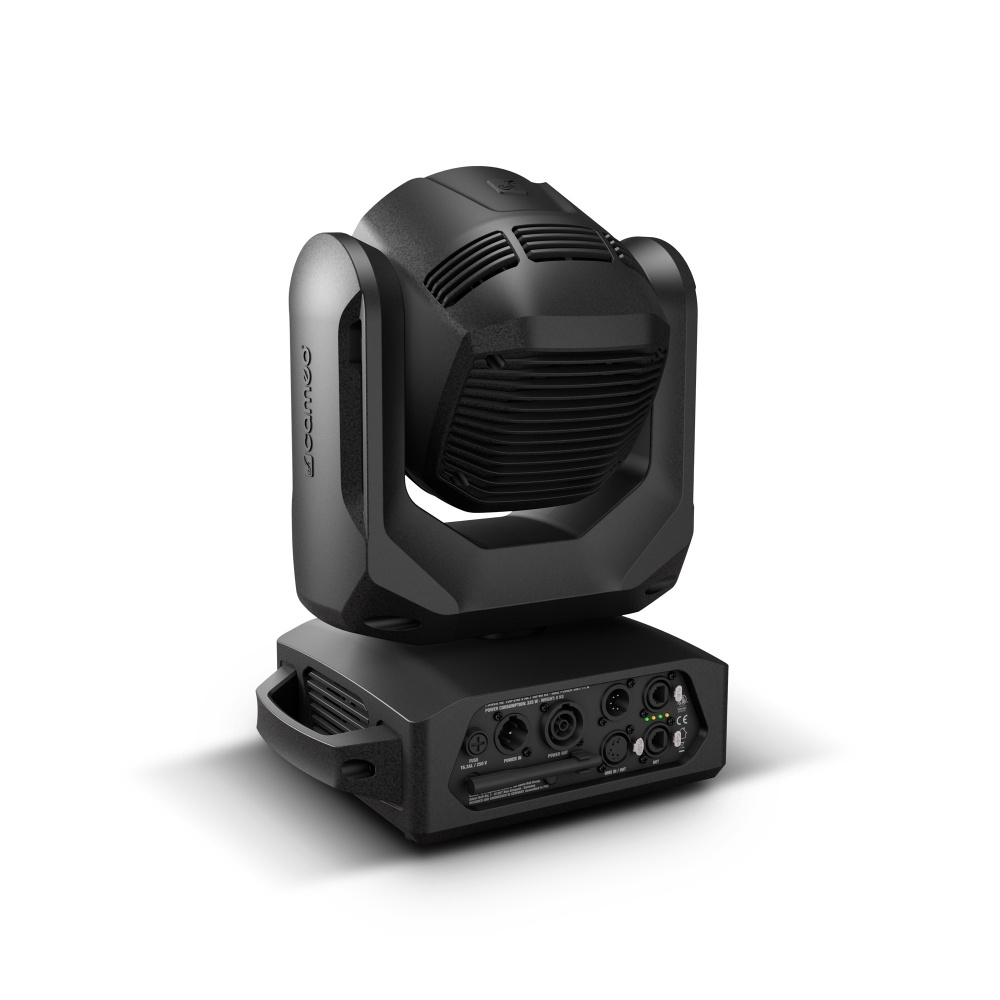

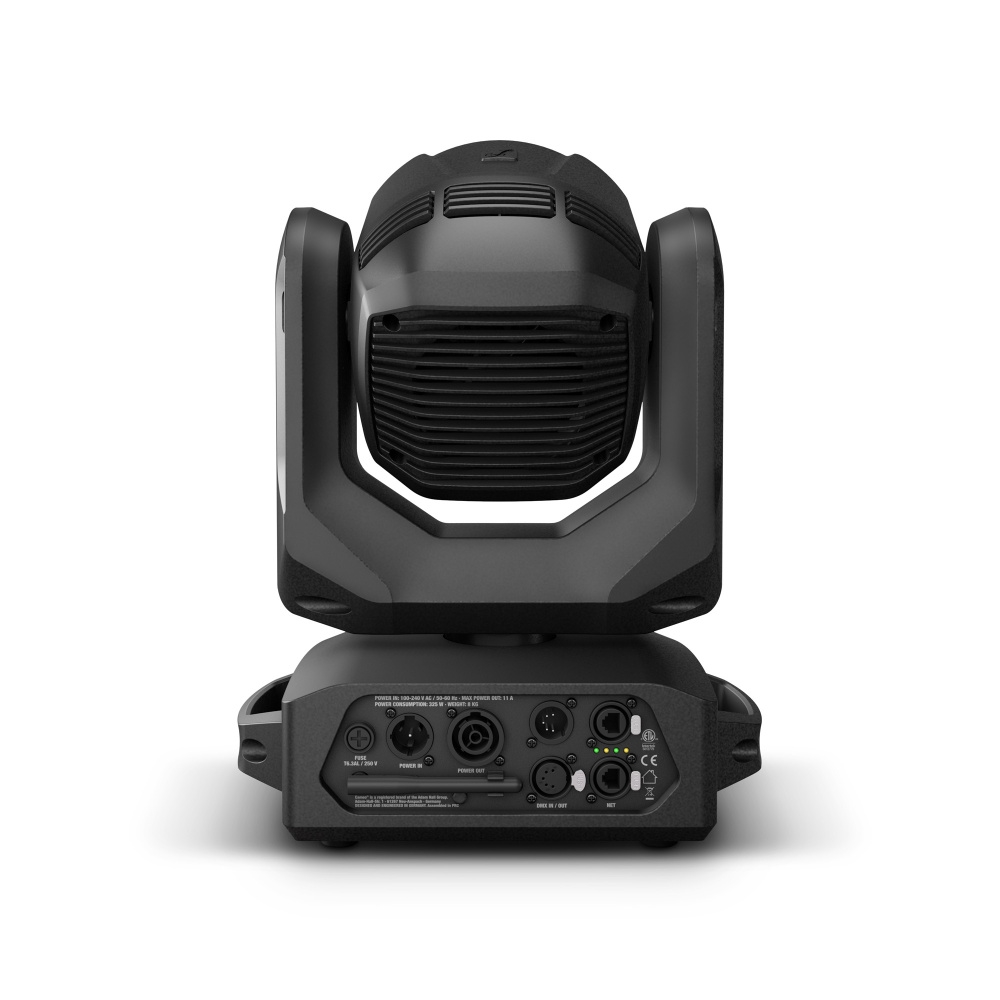

This wash-beam moving head guarantees flicker-free live broadcast images of events because the refresh rate can be adjusted in six steps between 800 Hz and a maximum of 25 kHz. Network-based software control is very flexible with DMX512, RDM, Art-Net4, sACN, KlingNet, or W-DMX. The intuitive encoder with battery-powered graphic display facilitates independent operation without the need for a power outlet. Preset LEE color filters enable problem-free use in combination with conventional headlights. The black, environmentally-friendly and fire-retardant ABS, nylon, and PC plastic housing is equipped with temperature-controlled fans, a power connection with a Neutrik TrueOne plug, and a 1 m power cable.
- LED wash fixture moving head with 4,100 lm luminous flux
- 53,000 lx illuminance at a distance of 3 m
- Full color LED with additional warm white chip
- Ideally suited for illumination thanks to high CRI> 90 at 3,200 K

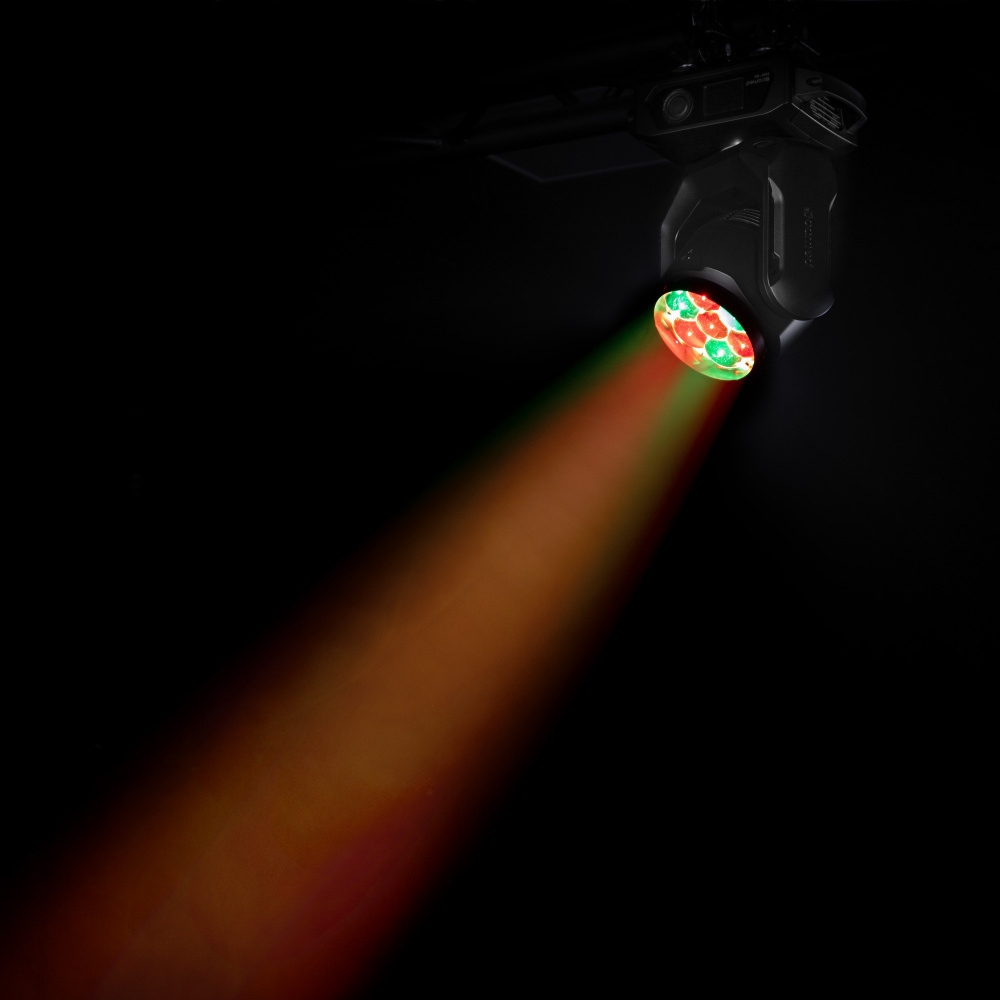

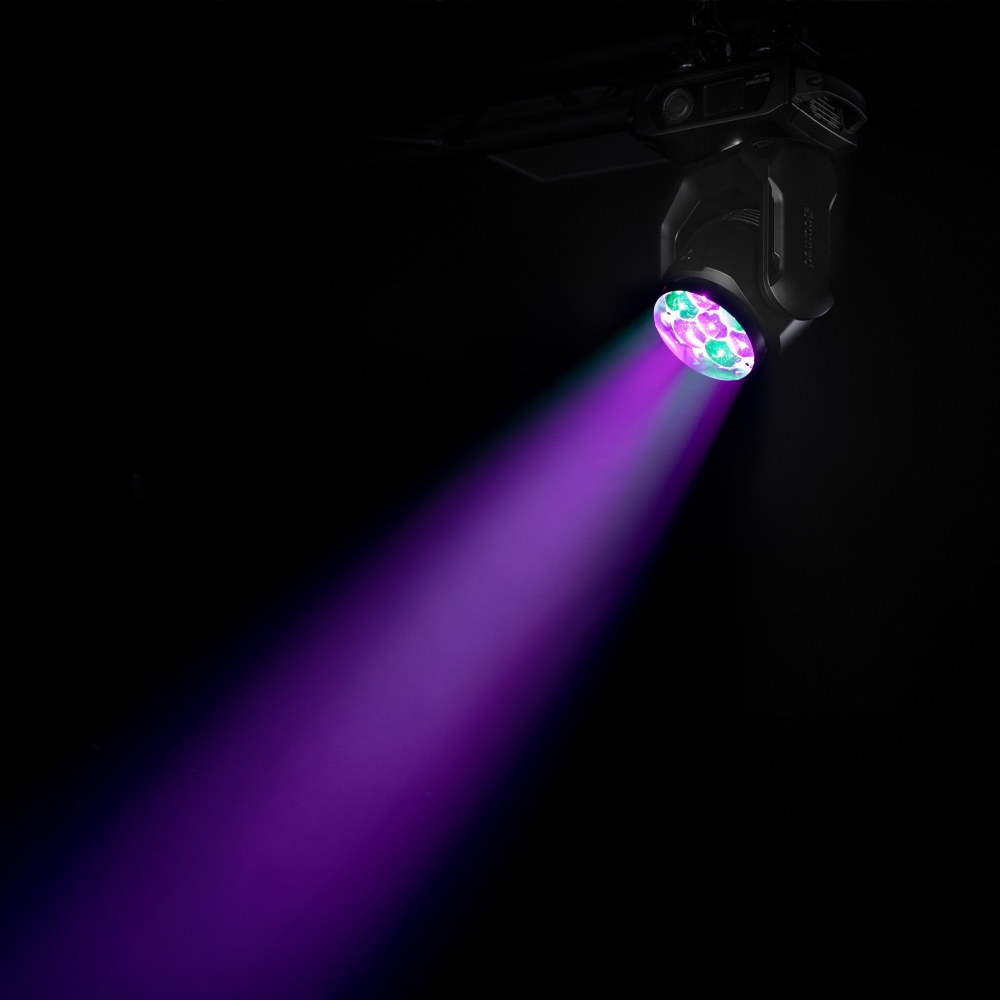

- All LEDs individually controllable (pixel mapping capability) for matrix effects
- Large 4.5° to 55° zoom range
- Adjustable refresh rate for flicker-free camera imagery
- DMX, RDM, Art-Net3, sACN, KlingNet, or W-DMX control possible
- Preset LEE color filters for problem-free use with conventional spotlights
- Battery-operated display with intuitive encoder operation for offline configuration
LED Moving Lights
Type
Moving Head
Colour spectrum
RGBWW
Number of LEDs
7
LED type
40 W RGBW
Refresh rate
800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12000 Hz, 25000 Hz
Dispersion
4.5 - 55 °

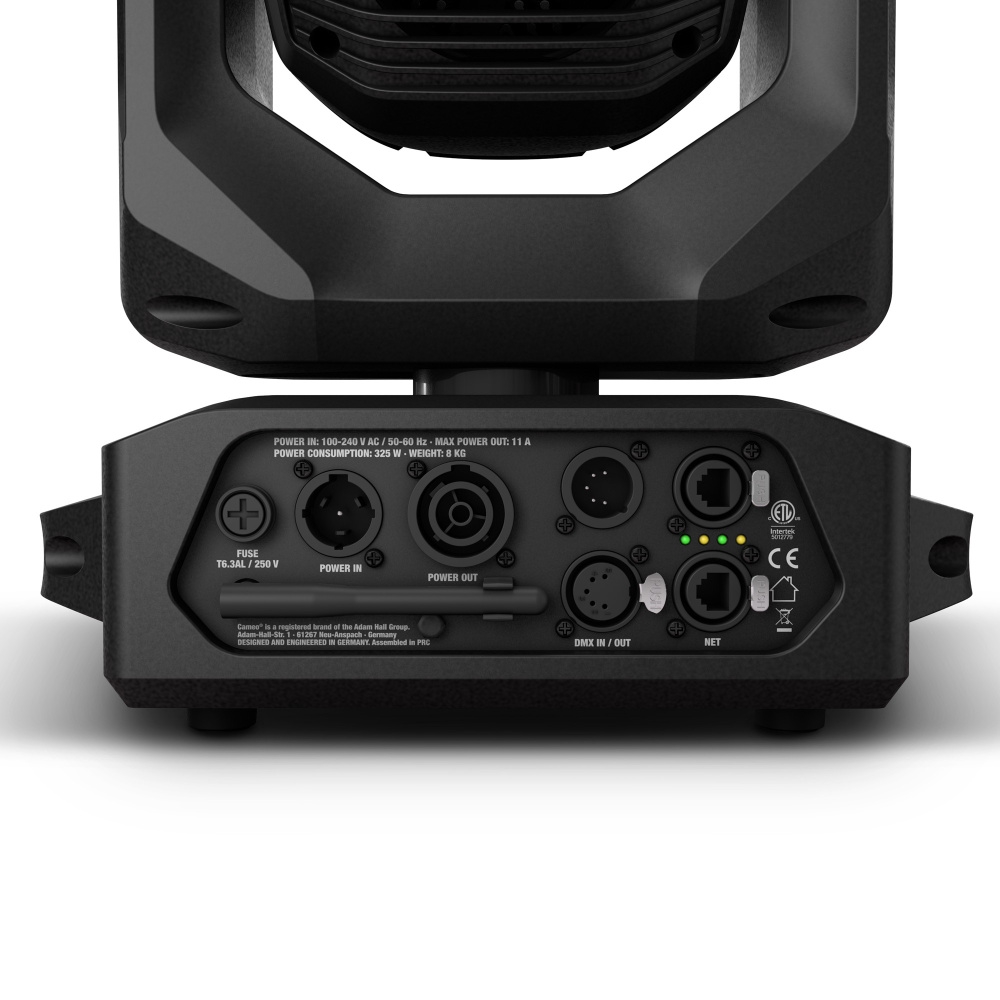

DMX input
Network, RJ45 Ethernet In (ArtNET), XLR 5-pin male
DMX output
Network, RJ45 Ethernet Out (ArtNET), XLR 5-pin female
DMX mode
18-channel, 23-channel, 33-channel, 39-channel, 43-channel
DMX Functions
Colour presets, Device Settings, Dimmer, Dimmer Fine, Effect patterns, Motion Macro, Pan/Tilt, Pan/Tilt fine, Patterns, Single Pixel Control, Strobe, Zoom, Zoom Fine
PAN movement
540°
TILT movement
235°
Control
ArtNet 4, DMX512, KlingNet, RDM, sACN, W-DMX
Standalone modes
Quicklight, Static Scene
Controls
Encoder wheel
Indicators
Backlit colour LCD display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
325 W
Fuse
T6.3AL 250 V
Power supply connector
Neutrik PowerCON TRUE1 IN / OUT
Housing material
ABS plastic, Nylon, Polycarbonate
Cabinet colour
Black
Protection class IP
IP20
Certification
CE, ETL, RoHS
Cooling
temperature-controlled fan
Illuminance
24000 @ 3 m
CRI
2700 K (Ra94), 3000 K (Ra91), 3800 K (Ra90)
Relative Humidity
< 85 %, not condensing
Luminous flux
4100 lm
Maximum Ambient Temperature
0 - 40 °C
Width
290 mm
Height
251 mm
Depth
350 mm
Accessories (included)
1 m Power cable with Neutrik powerCON TRUE1 plug, 2 x omega mounting
Weight
7,8 kg
