Cameo F4 T - High-Power Fresnel Spotlight with Tungsten LED, 520 W LED , 29,500 lm, zoom 12° to 40°

Cameo F4 T - High-Power Fresnel Spotlight with Tungsten LED, 520 W LED , 29,500 lm, zoom 12° to 40°
  • På lager
  • På forespørgsel
  • Bedømmelse for Cameo F4 T - High-Power Fresnel Spotlight with Tungsten LED, 520 W LED , 29,500 lm, zoom 12° to 40°
    Produktet er endnu ikke bedømt


Indhent tilbud.
Vis uden moms

Billigst på PriceRunner


High-Power Fresnel Spotlight with Tungsten LED



  • Tungsten LED Fresnel spotlight with 29,500 lm total power output, replaces conventional 2 kW halogen Fresnel
  • Lifelike colour reproduction, CRI rating of 96, TLCI of 96

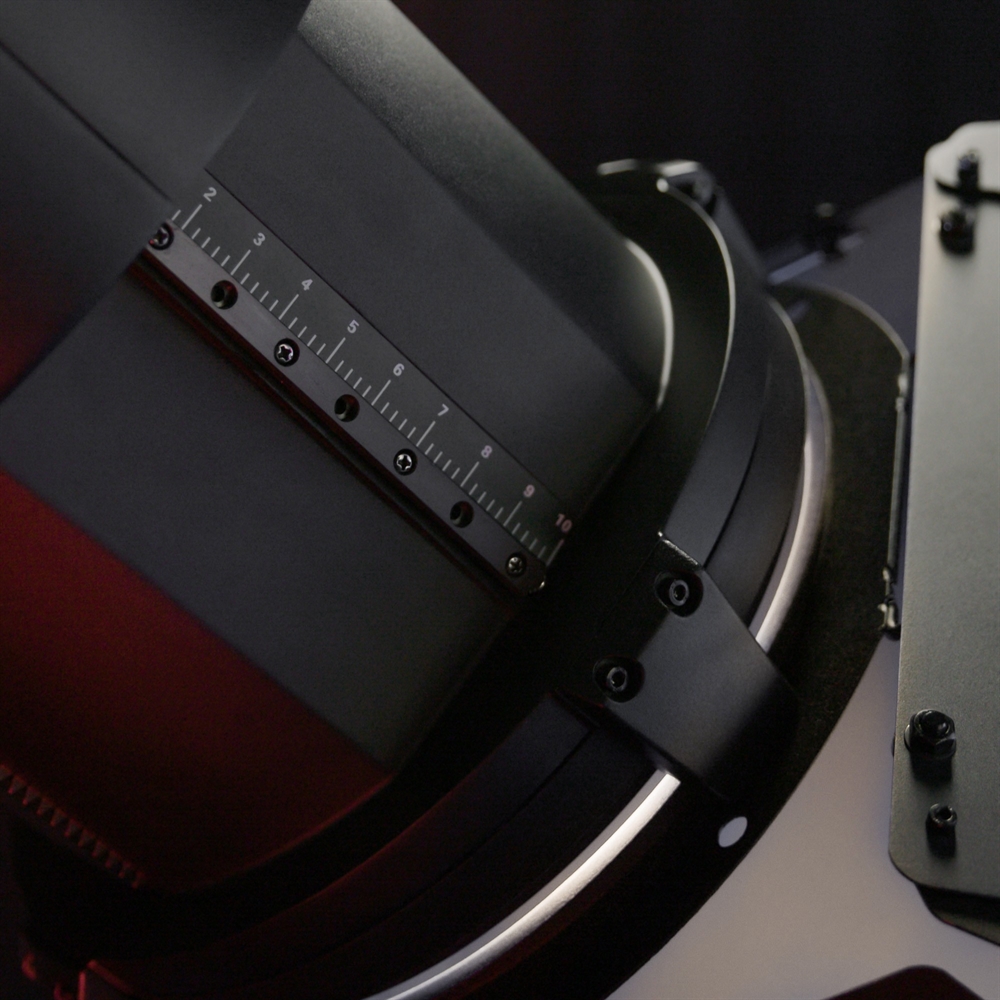

  • Continuous zoom for beam angles from 12° to 40°
  • Four selectable 16-bit dimmer curves with adjustable response
  • Highly efficient cooling thanks to a heatpipe and temperature-controlled fan
  • Control via DMX or RDM, silent mode for studio use
  • Selectable pulse...

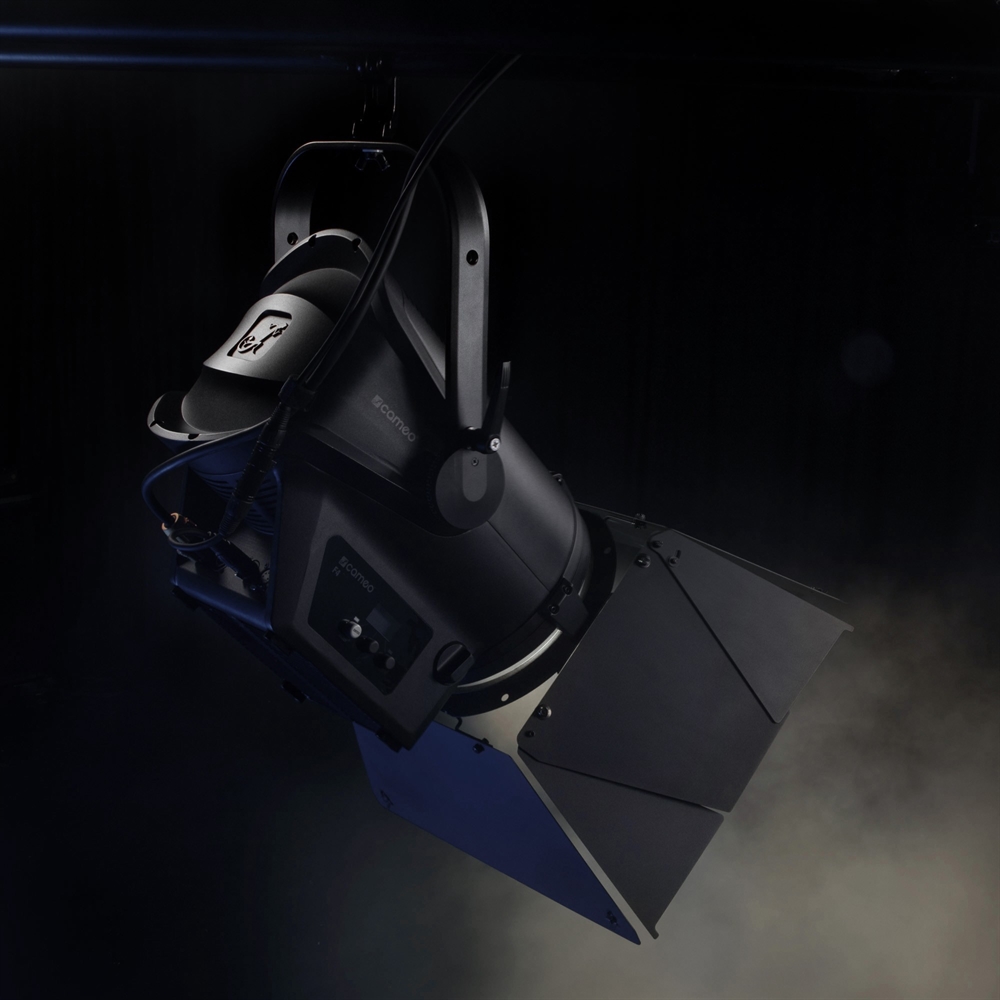

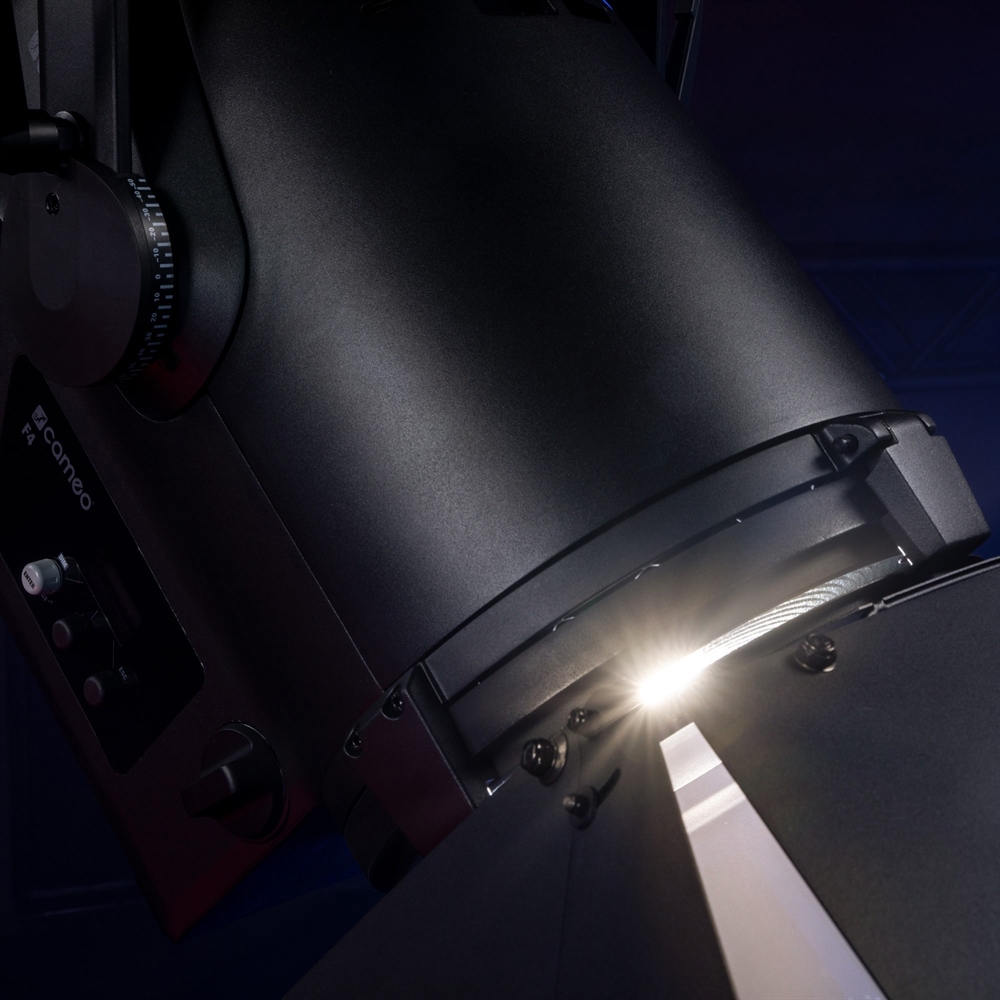

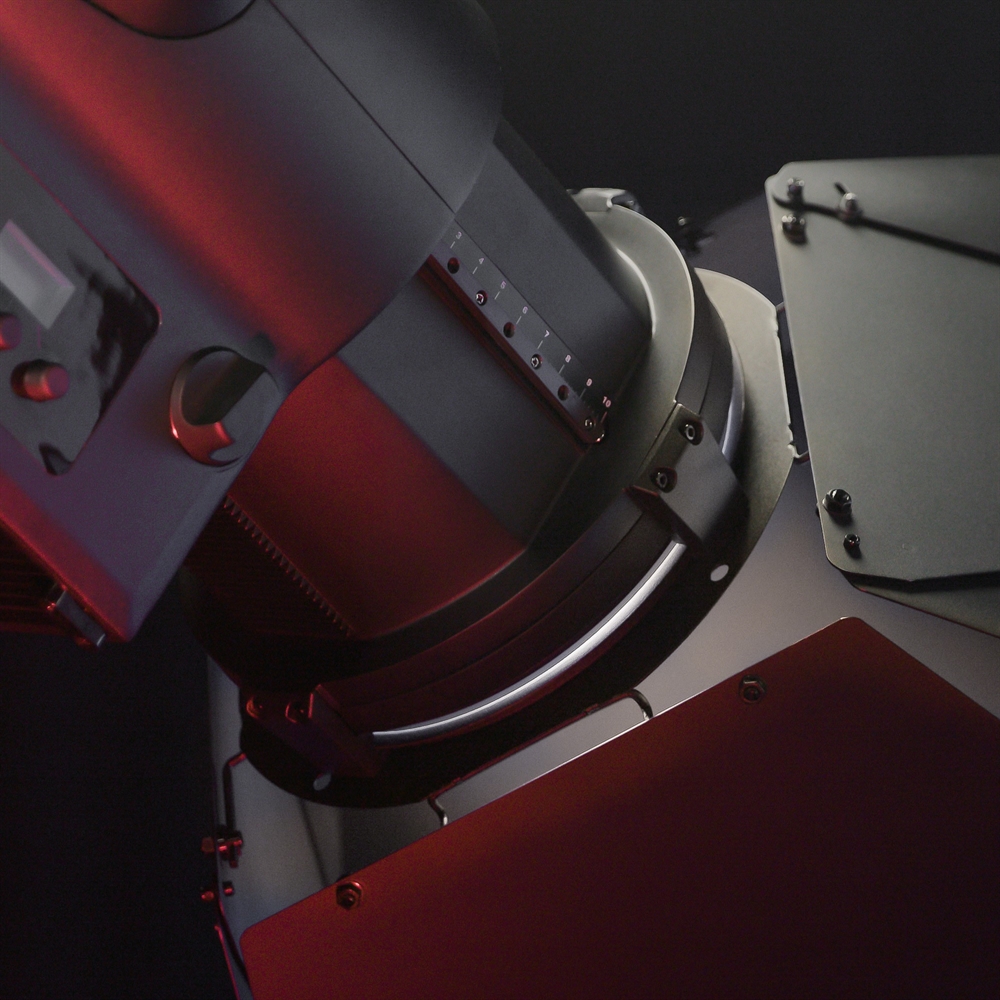

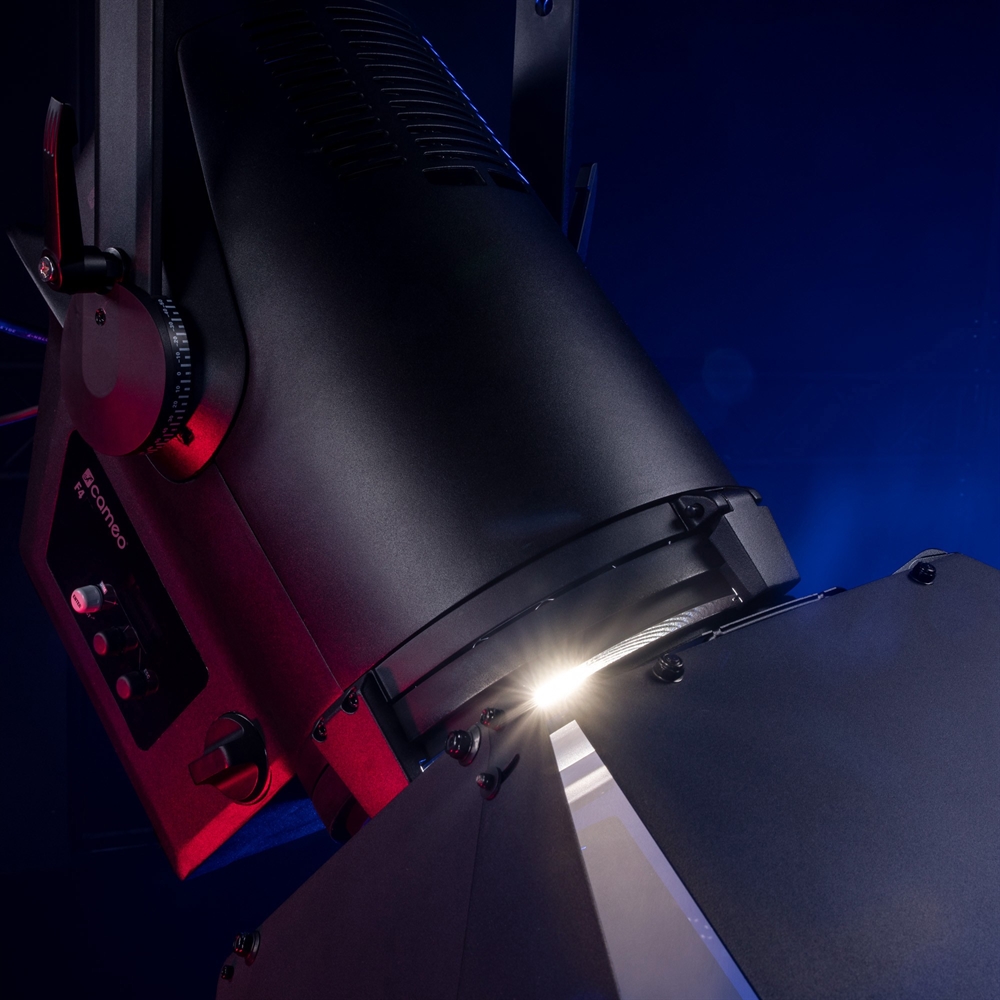

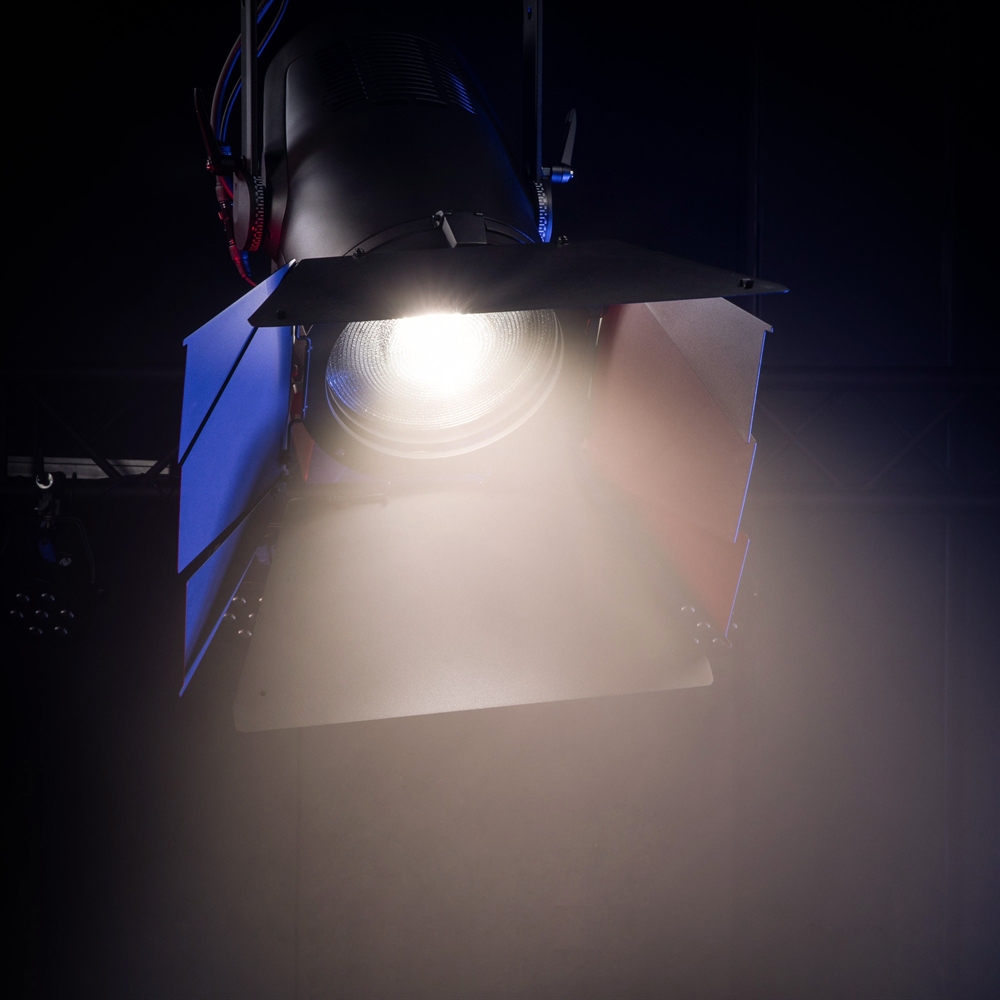

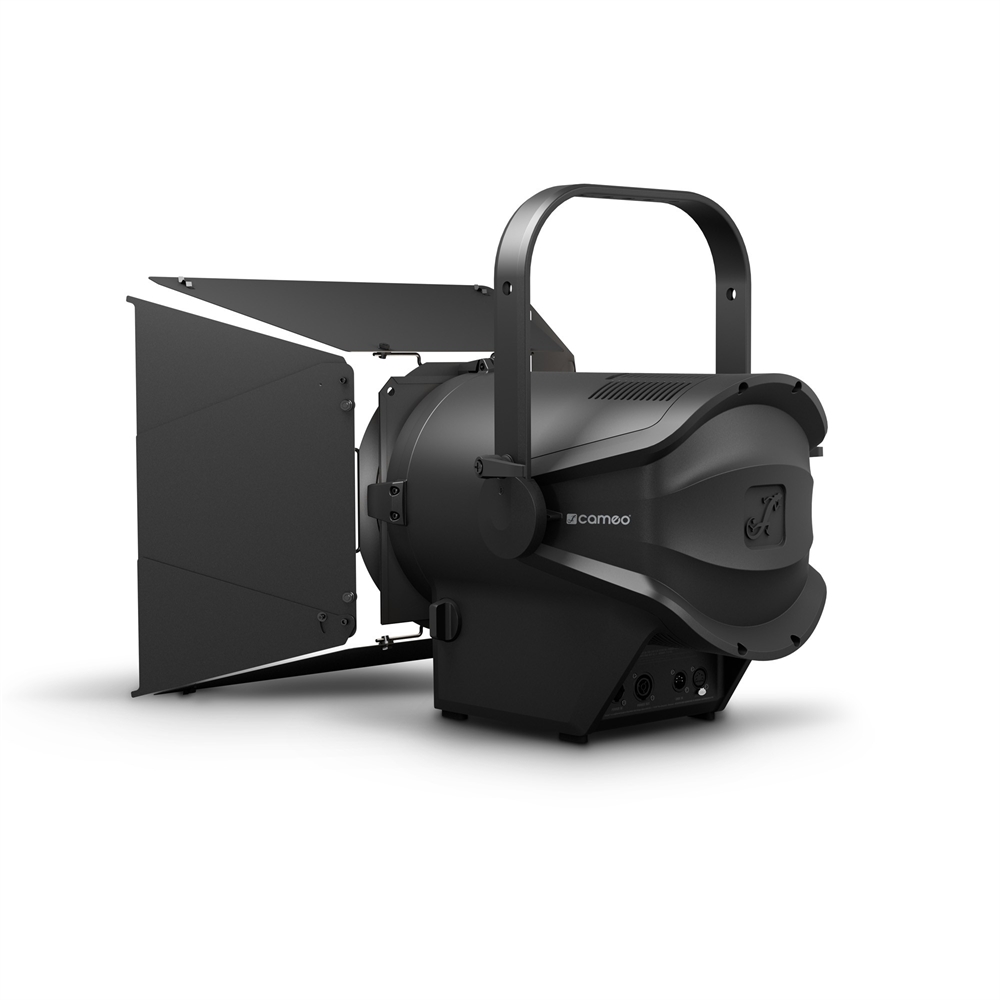

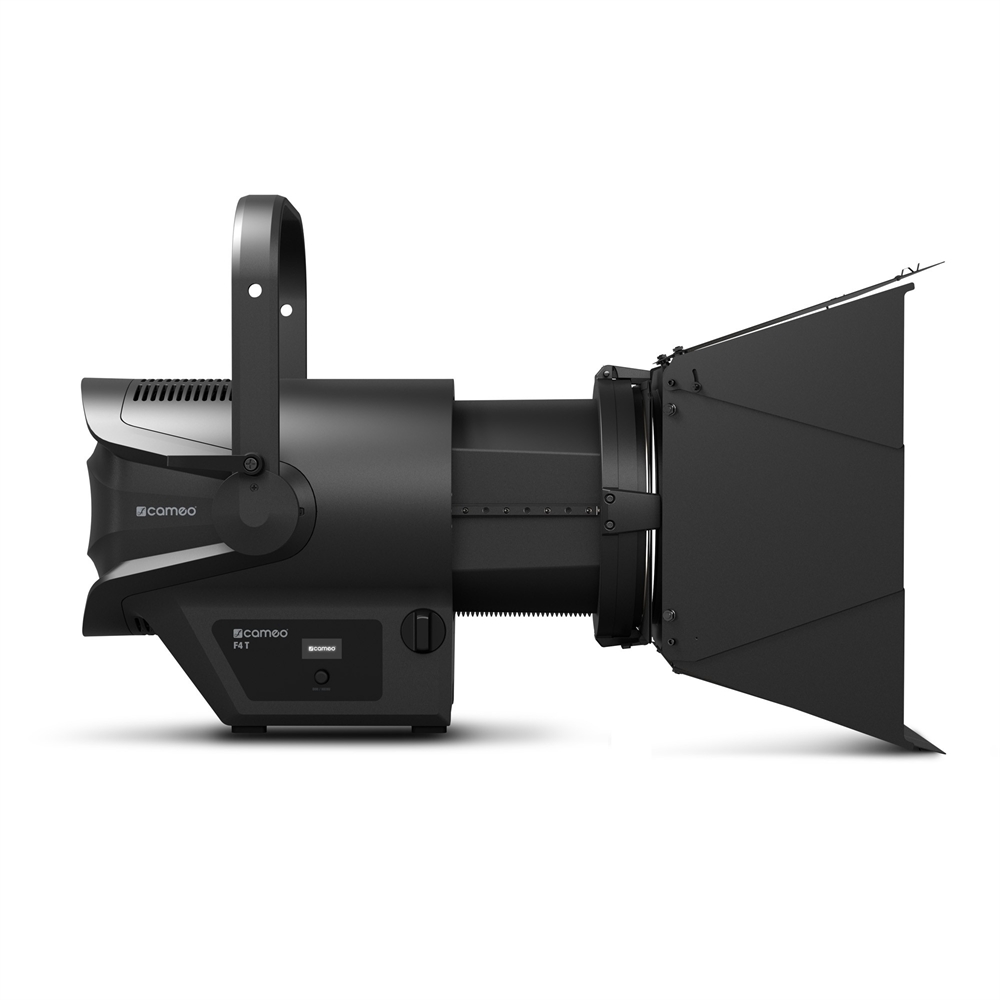

Warm-white light is essential for creating atmospheric stage experiences: The Cameo F4 T is a professional Fresnel spotlight with a high-quality 250 mm lens and high luminous flux of 29,500 lm. The RDM-capable spotlight creates a soft-edged beam of light with a continuously adjustable beam angle of 12° to 40° and is a perfect, energy-saving replacement for traditional 2-kW Fresnel models. Its 520-watt warm-white LED has a colour temperature of 3,200 K and a service life of 50,000 hours. Its extremely high colour rendering index of 96 reproduces pure and natural colours.

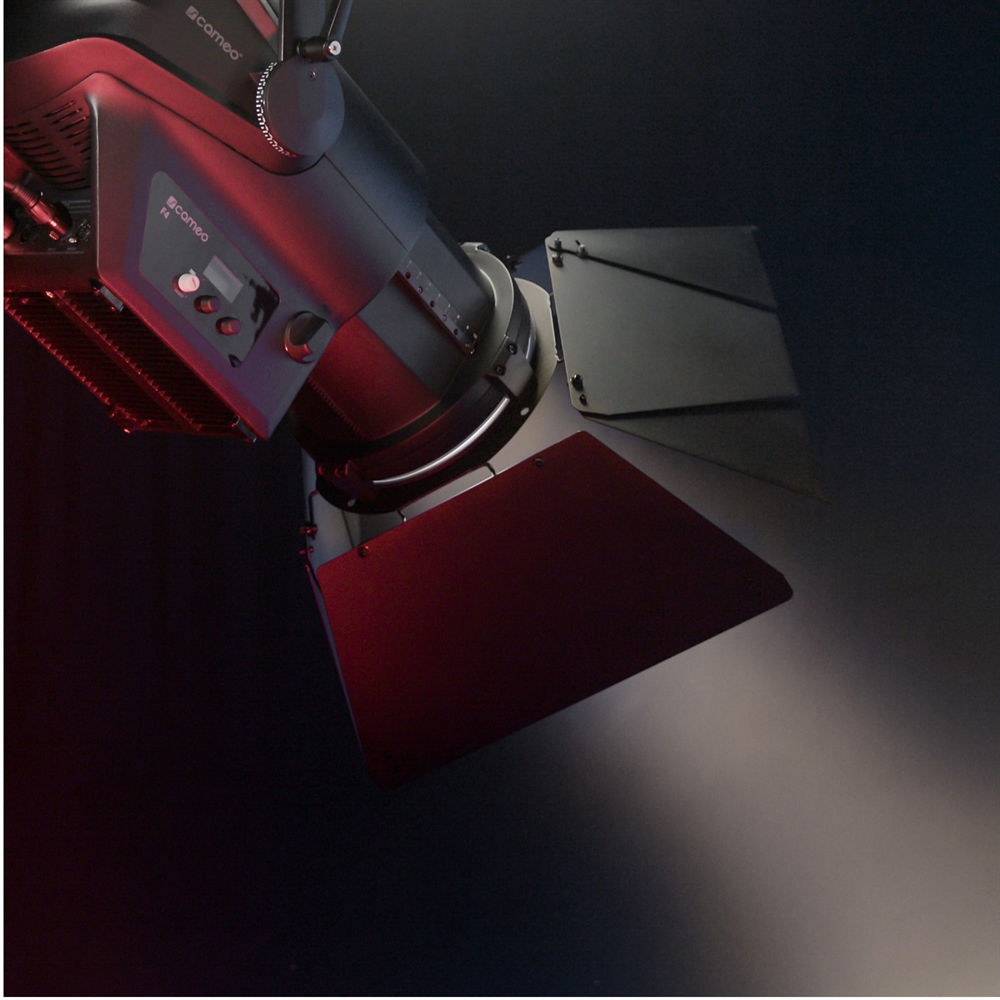

The F4 T has 6 DMX control modes, a fast strobe function and 4 16-bit dimmer curves with adjustable response. The unique quicklight function makes setting up the spotlight much easier. Simply remove the DMX signal for a moment, increase the lighting brightness via the push encoder and adjust the spotlight. Six selectable pulse width modulation frequencies up to 25 kHz ensure flicker-free operation. High-efficiency heatpipe cooling and a temperature-controlled fan provide optimal operation. The robust, die-cast aluminium housing is equipped with a push encoder and OLED display for easy configuration of the spotlight. 5-pin DMX connectors facilitate simple daisy-chaining. 8-way barndoor, a gel frame and mains cable are included.




Specifications

Dimensions without mounting bracket
Product type : LED Fresnel Spotlight
Type : Theater Fresnel
Colour spectrum : Tungsten , warm white
Number of LEDs : 1
LED type : 520 W (approx. 50,000 operating hours)
LED PWM Frequency : Adjustable: 800, 1200, 2000, 3600, 12000, 25000 Hz
Dispersion : Beam Angle: 12 - 40 ° , Field Angle: 24 - 47 °

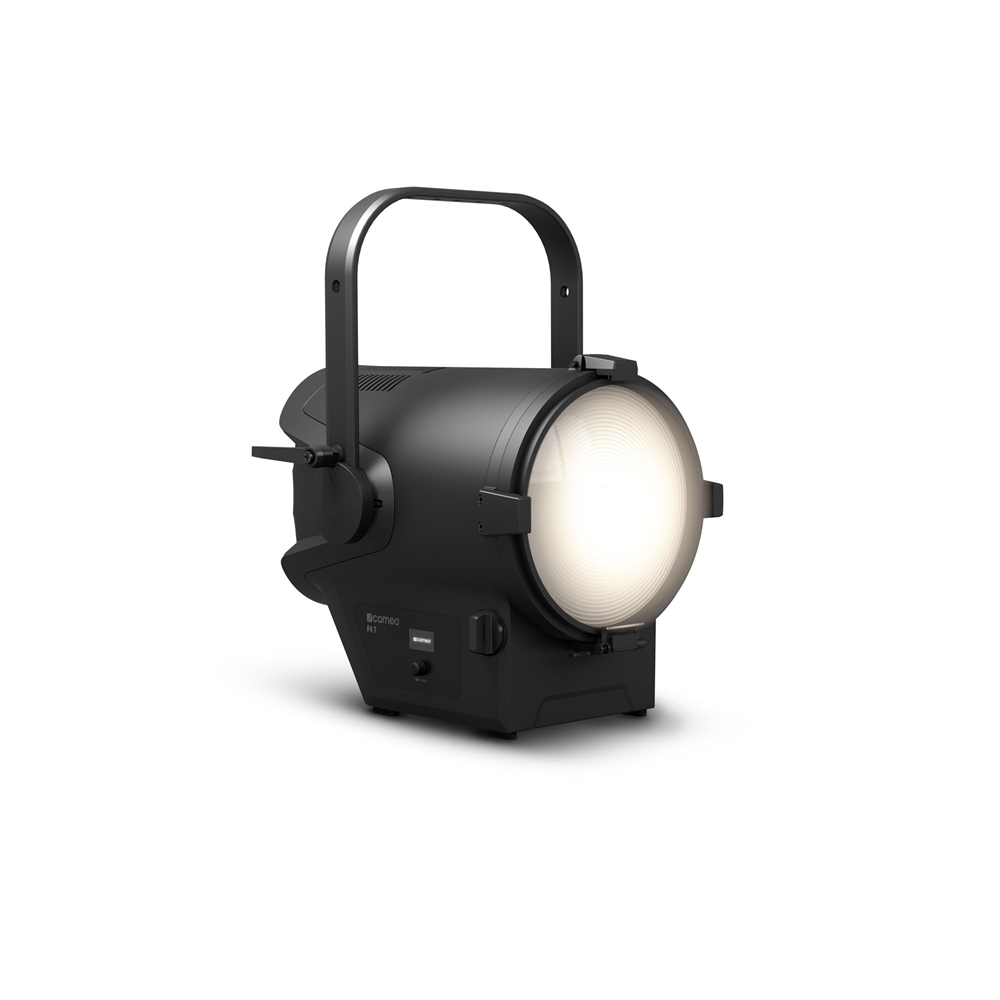

Lens : 250 mm Fresnel

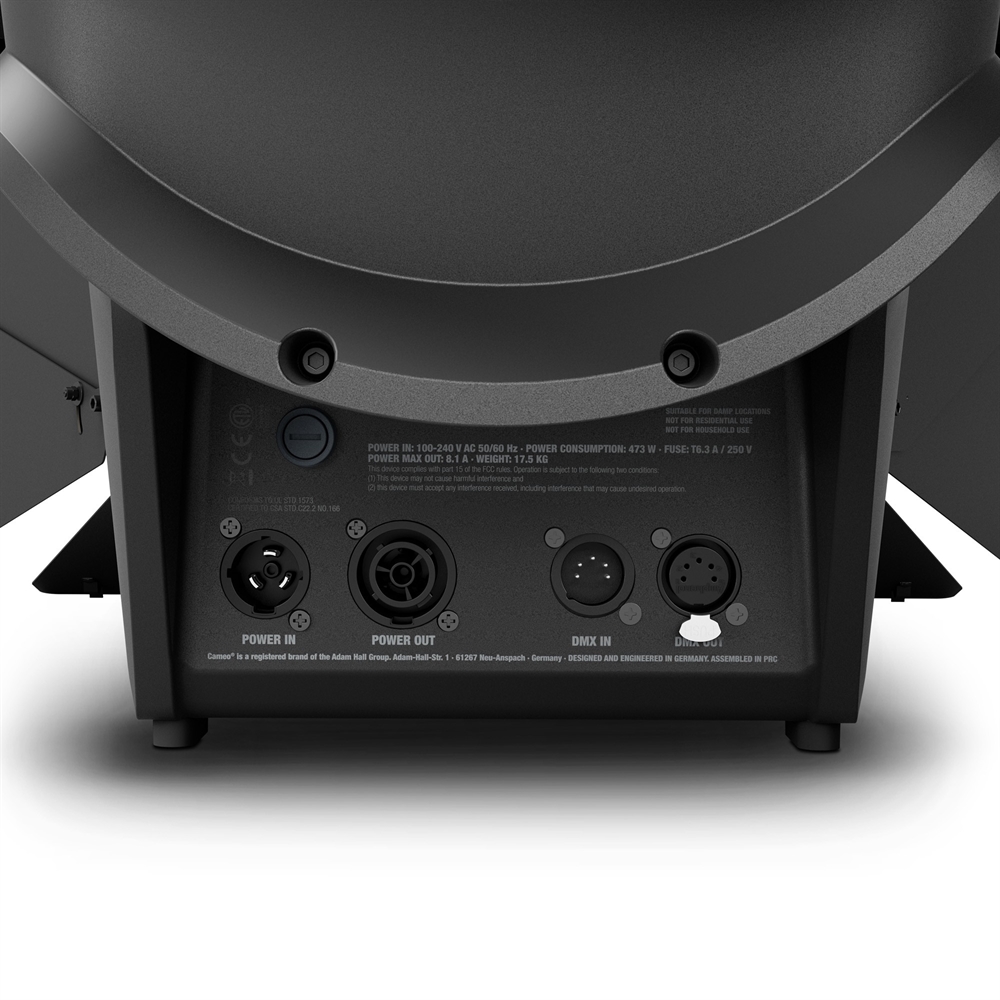

DMX input : 5-Pol
DMX output : 5-Pol
DMX Functions : Device Settings , Dimmer , Dimmer Curve , Dimmer Fine , strobe
Standalone modes : Master / Slave mode , Static
Controls : Push encoder
Indicators : OLED Display
Operating voltage : 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption : 473 W
Power connector : TRUE1 compatible Power I/O sockets
Power supply connection : TRUE1 compatible Power I/O sockets
Housing material : Die-cast aluminium
Cabinet colour : Black
Protection class IP : IP20
Cooling : Comination of Heat Pipe and Temperature Controlled Fan
Luminous flux : 29500 lm
Efficiency : 59 lm/W
Colour temperature : 3200 K
Ambient temperature (operating) : -15 - 45 °C
Width : 410 mm
Height : 364 mm
Length : 433 mm
Weight : 17,8 kg

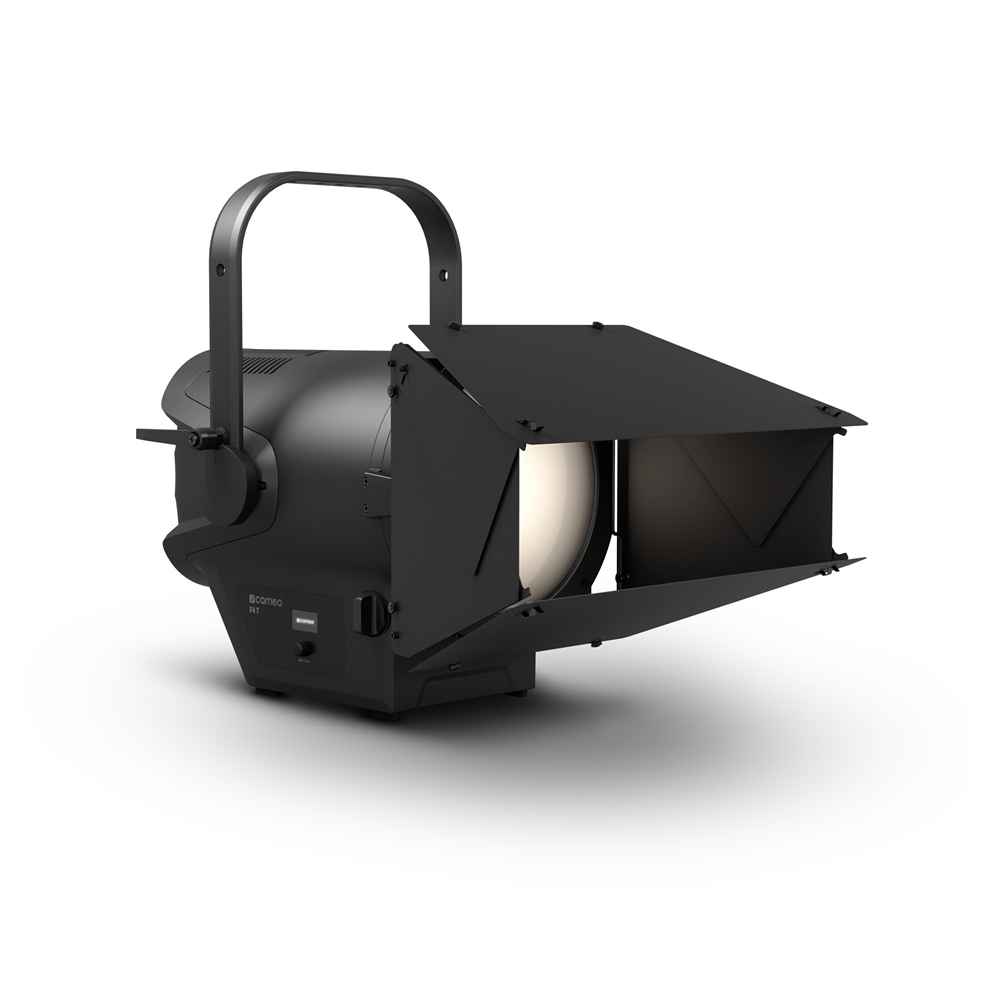

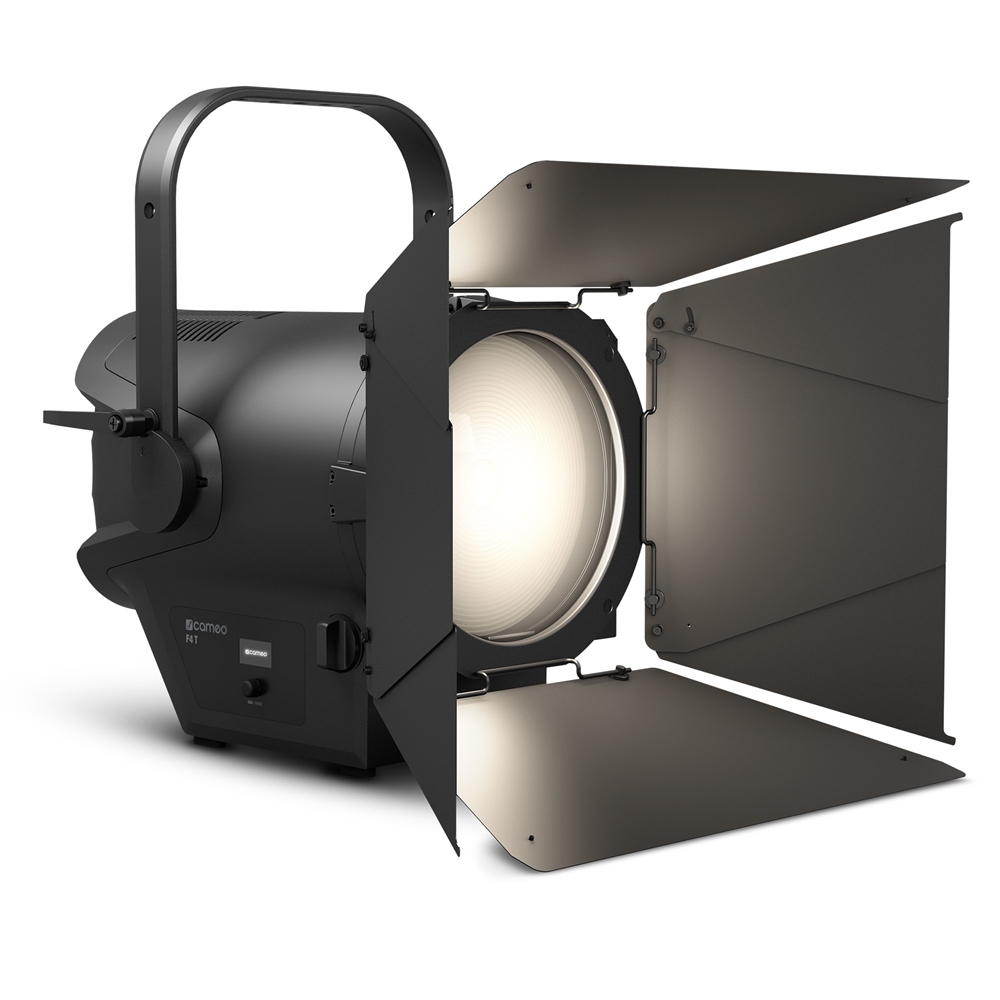

Accessories (included) : 8-way barndoor , Colour Filter Frame , Power cord
Varenr.: A-CLF4T
