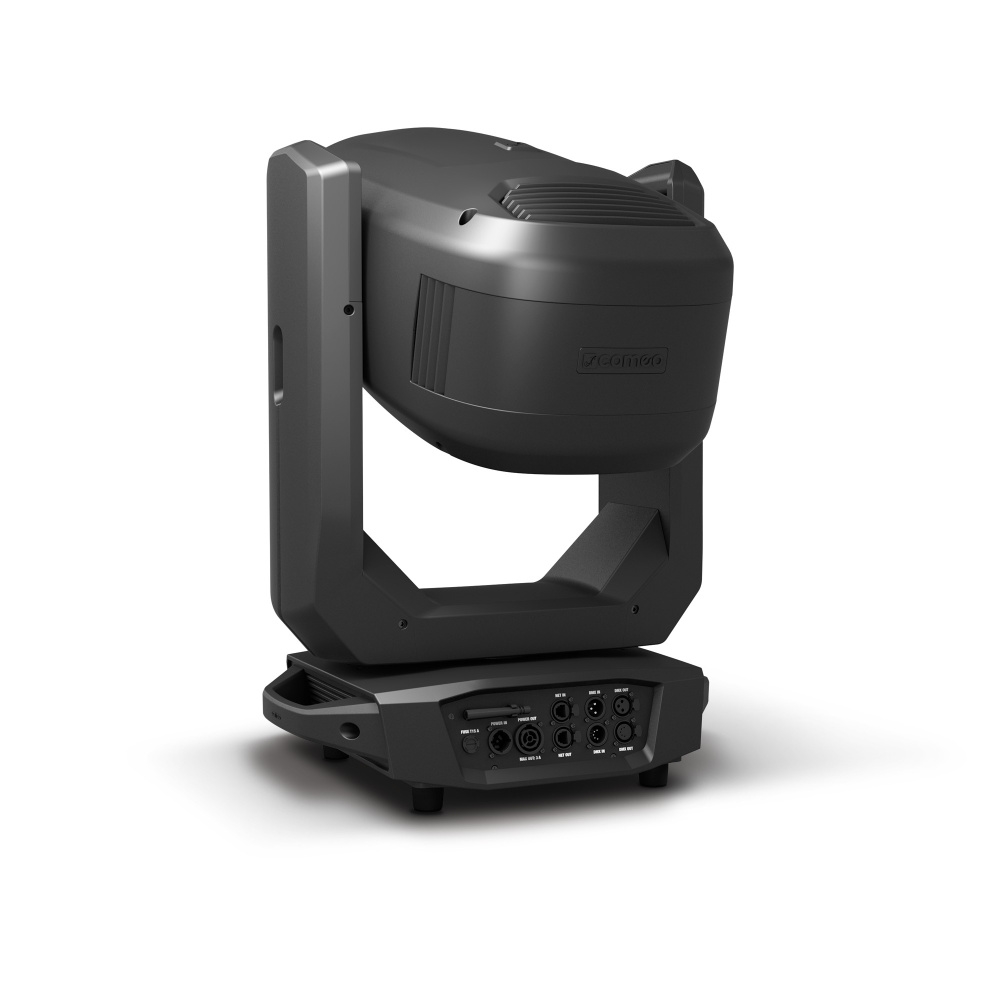

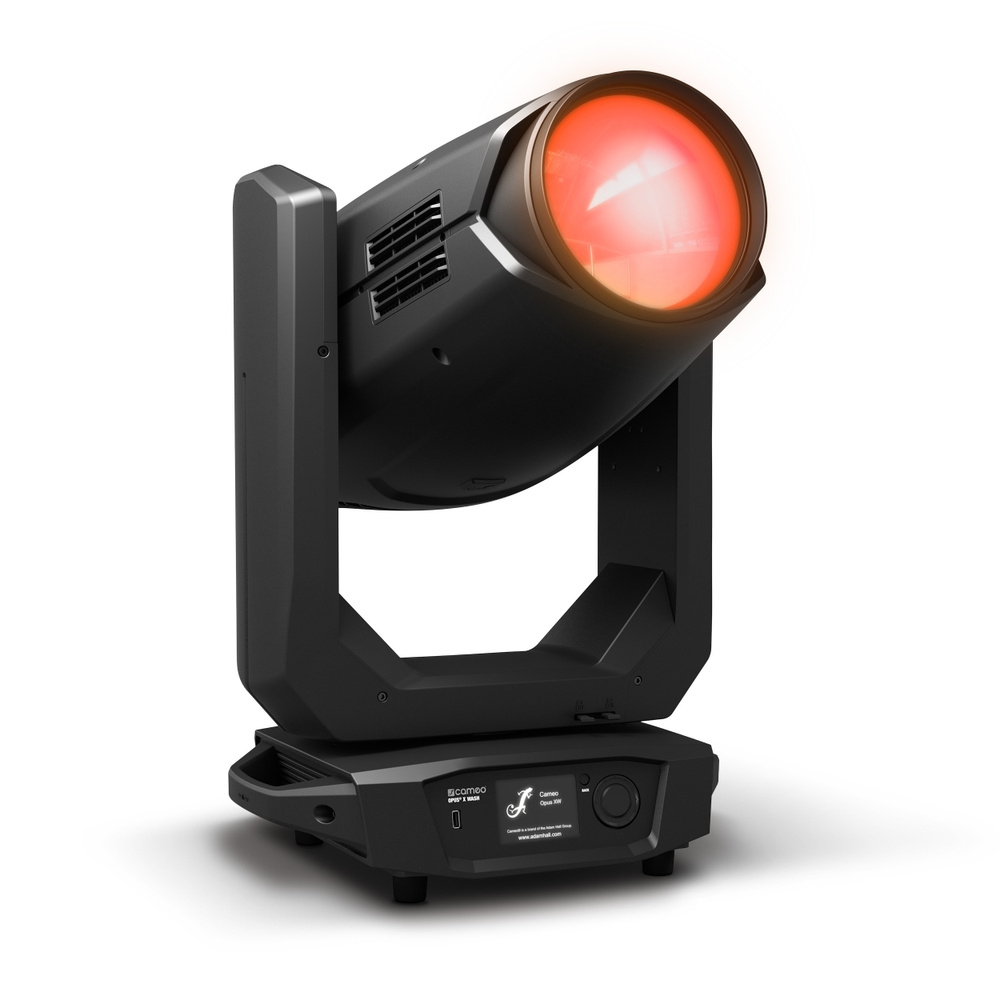

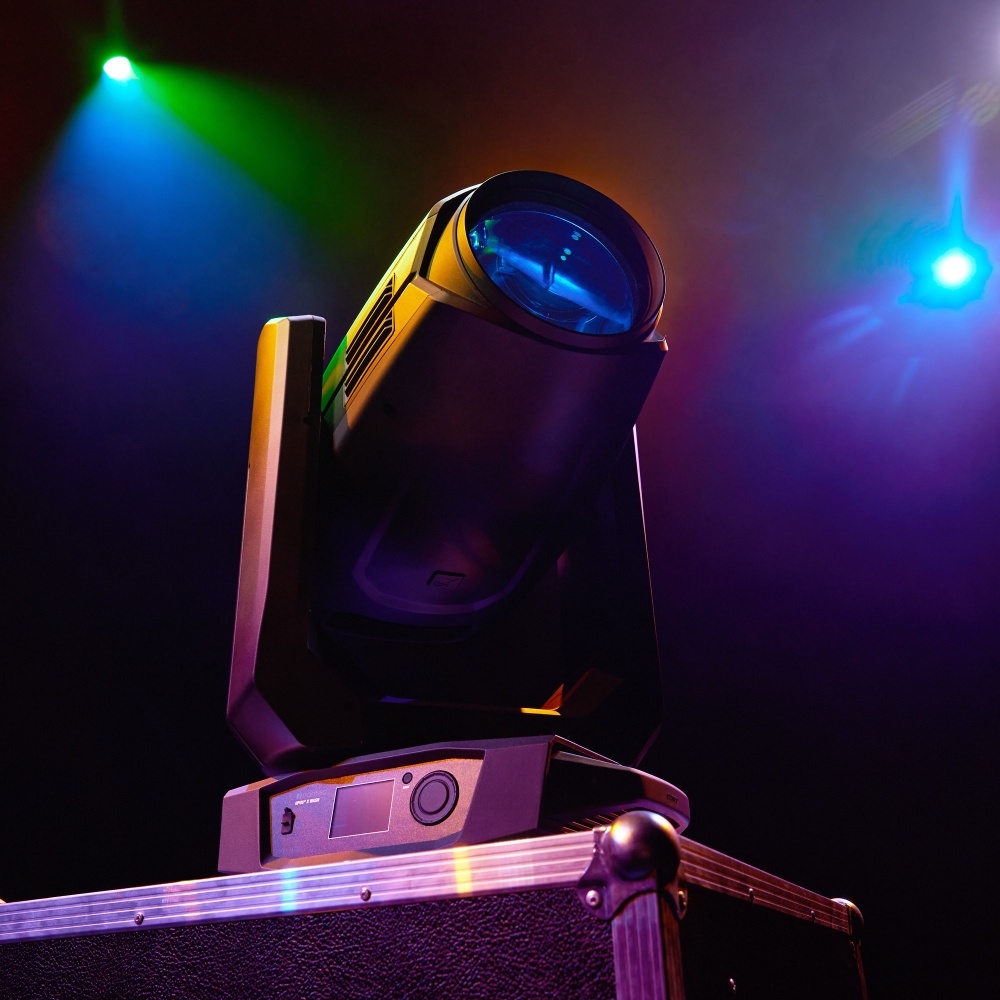

For some jobs, you just need a specialist - like when you want to illuminate large areas with a special ambience and you need a wash moving head for the light show that possesses a high-efficiency light engine together with a broad color palette. In this case, your specialist OPUS® X Wash from Cameo® is the right washlight.

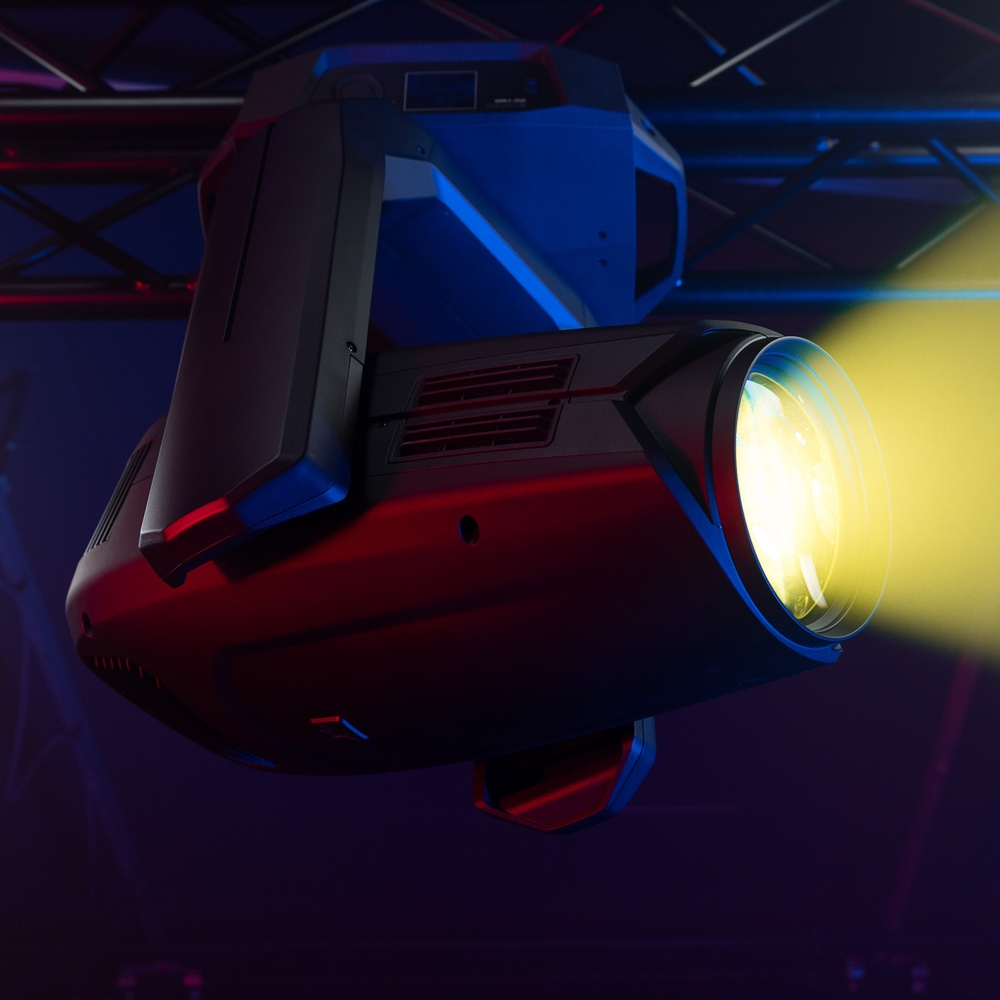

The OPUS® X Wash, with the same high-performance LED as the OPUS® X Profile moving head, generates a light output of 32,000 lm through a 170 mm frost lens. The PC lens is designed for use as a wash light and allows uniform projection with soft shading.

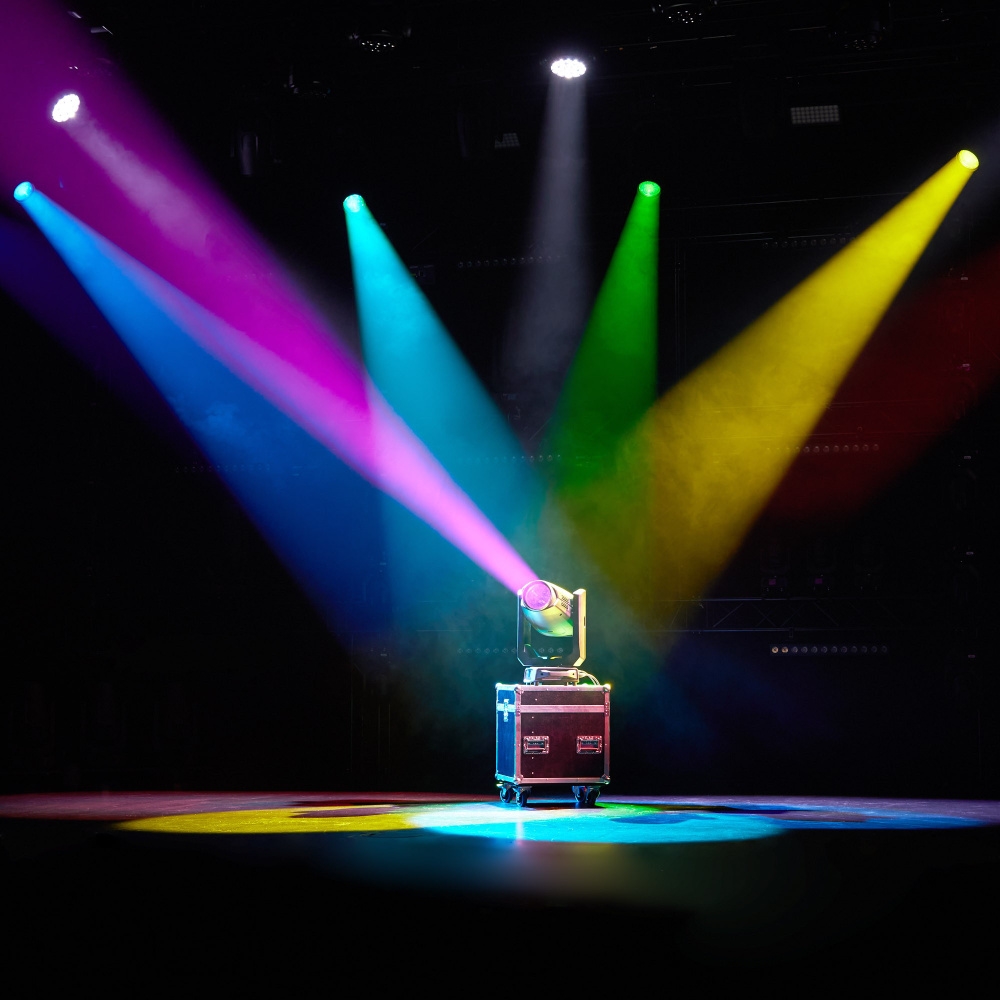

The well-known CMY color mixing system, including CTO correction to 2,600 K, is supplemented here by two dichromatic color wheels, opening up an impressive variety of color options.

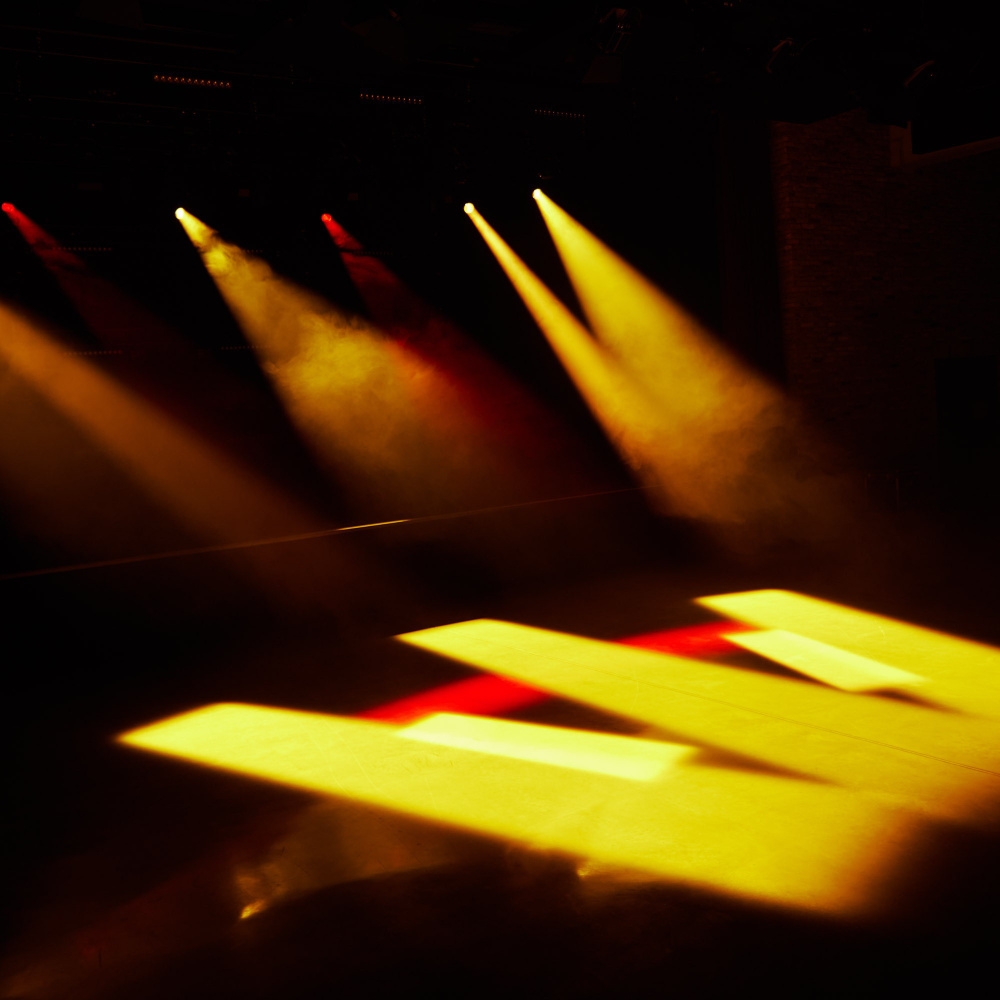

The modern framing module and wide zoom range of 5°-46° makes the moving head your precision tool for shaping the light cone to create optimal lighting designs, even from a distance. The 4-way framing shutter system can be rotated by +/-45° and adjusted with each blade until it is completely closed. Combined with the variable frost filter and continuously adjustable iris, the design potential of the Cameo OPUS® X Wash is multiplied even further.

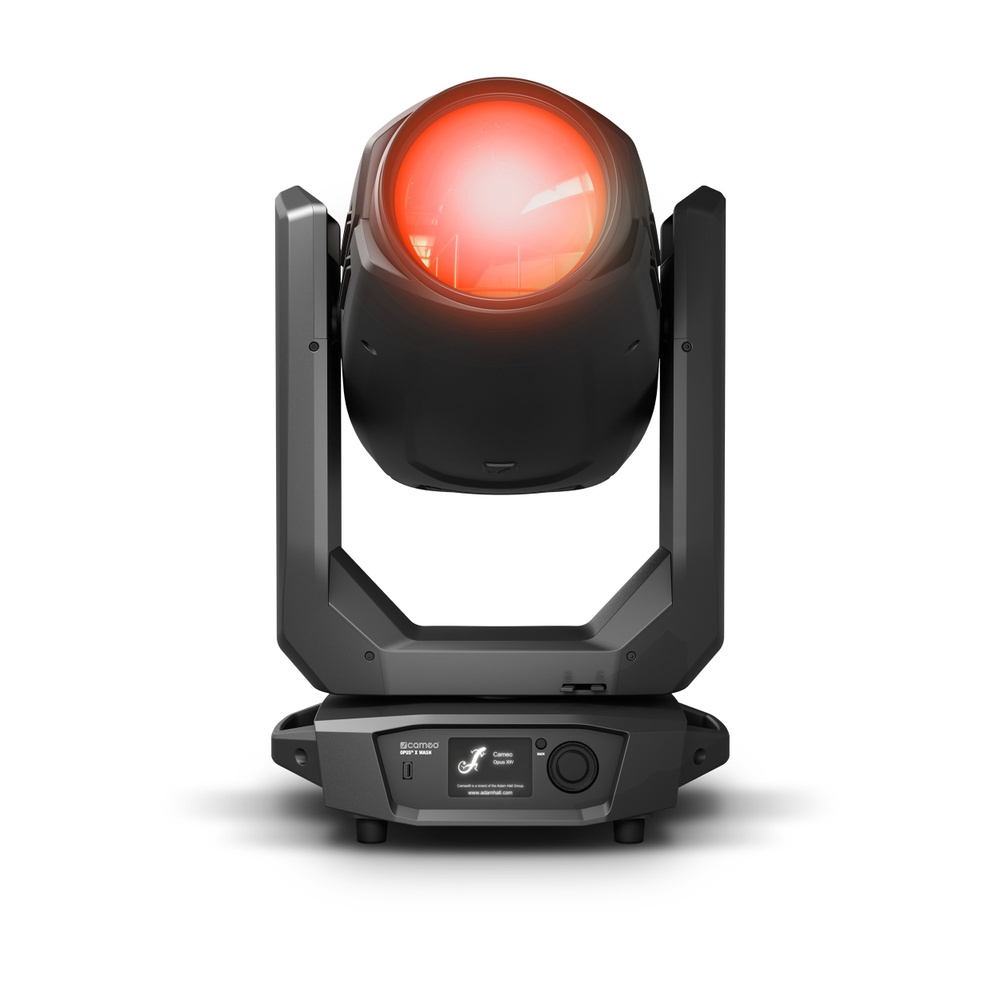

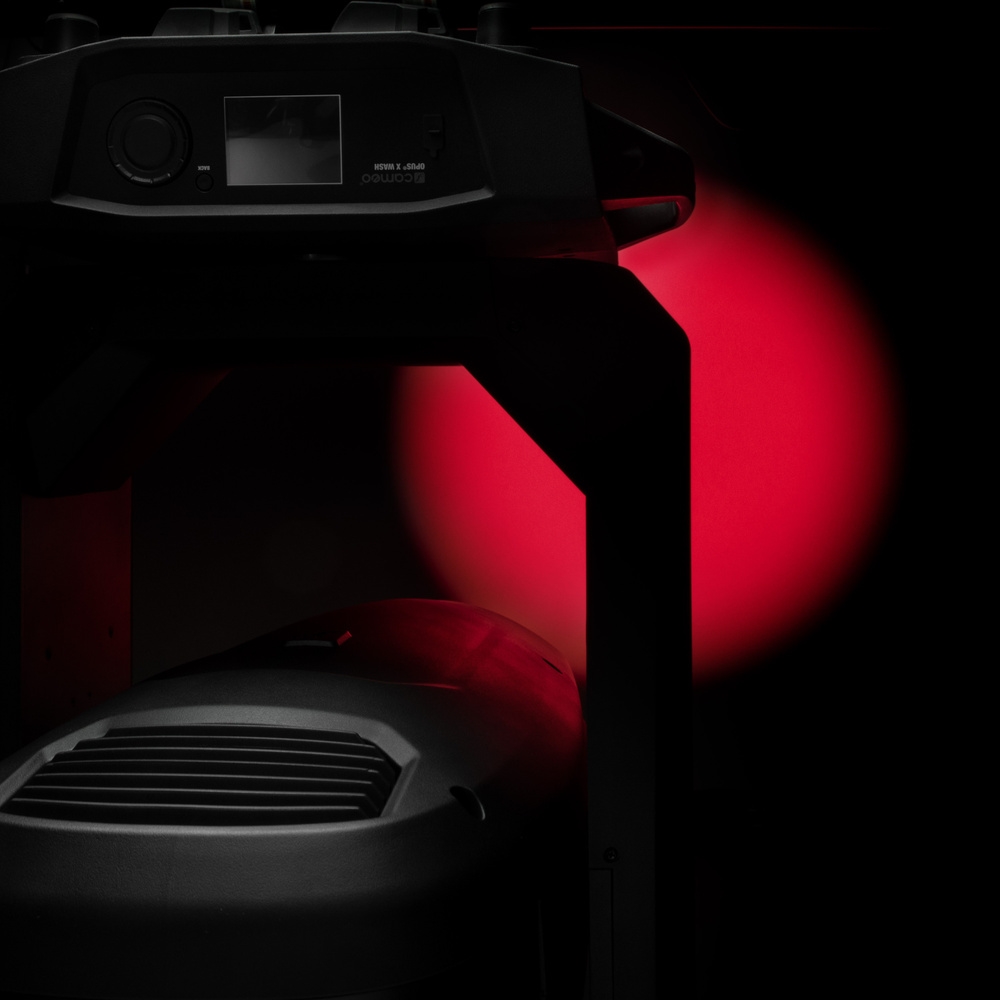

In stand-alone operation, control is either in static mode or configured as a master/slave, which is mains-independent via the battery-operated touchscreen display with encoder wheel and back button. You get even more flexibility with the integrated W DMX Transceiver, DMX, RDM, Art-Net or sACN, and can thus control functions such as even dimming with 16-bit resolution and four selectable curves.

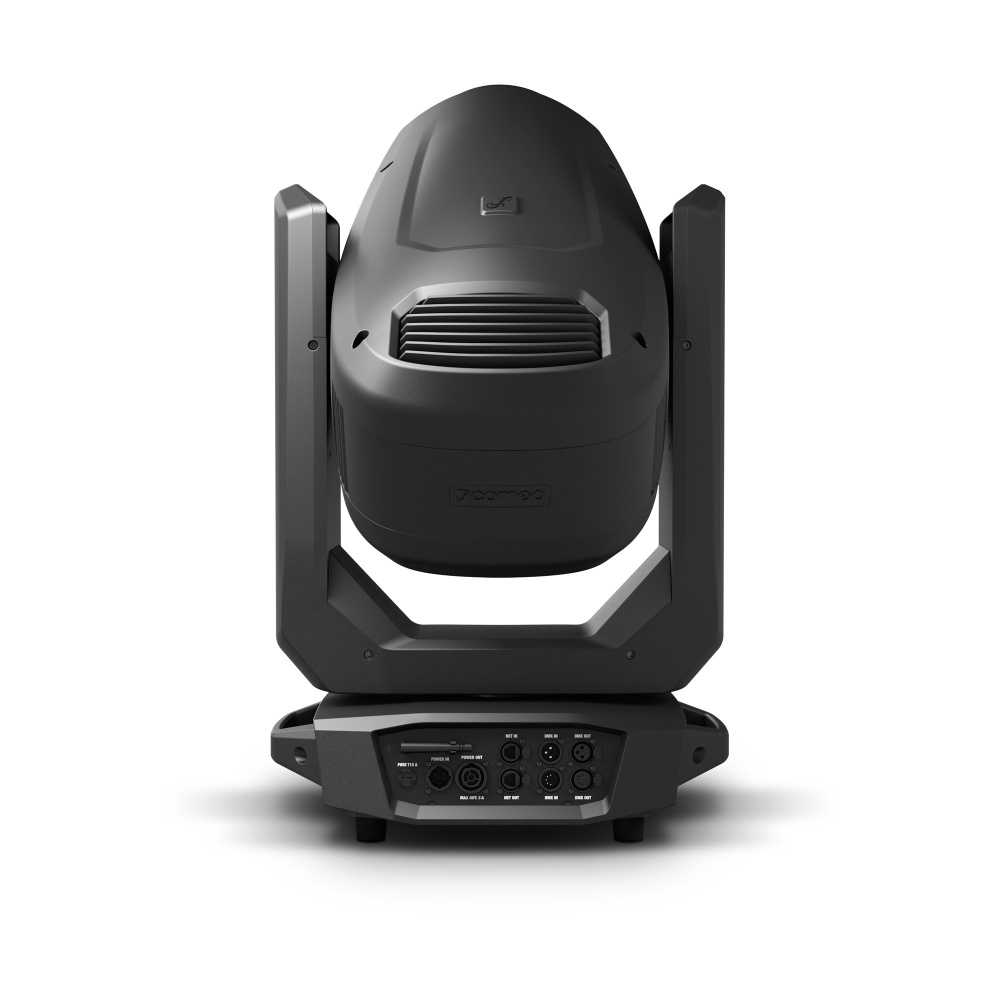

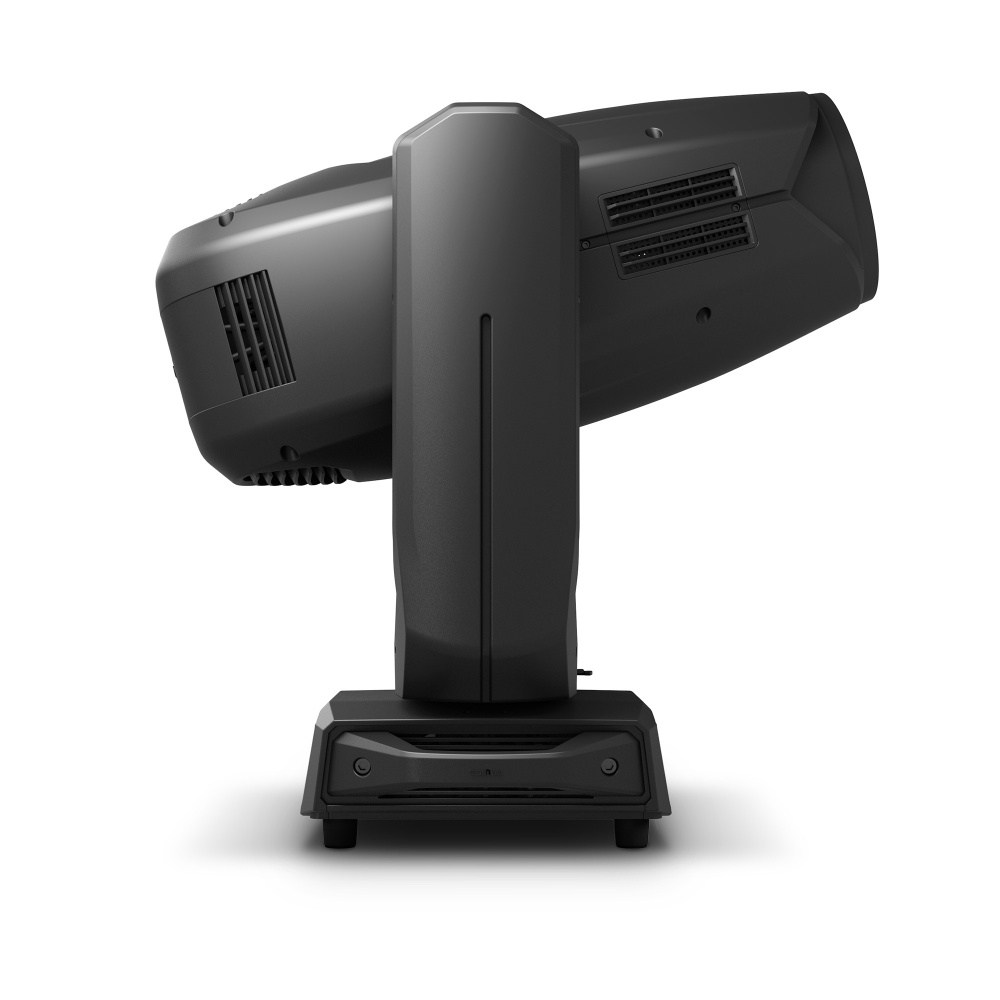

The moving head's attractive design also proves to be quite practical in everyday use. Seamlessly integrated secondary handles help carry the fixture with ease. Inside the robust metal and ABS plastic housing operate low-noise temperature-controlled fans for applications in noise-sensitive environments.
The OPUS® X Wash belongs to the highest performance class of the OPUS series and gives you the opportunity to realize your lighting concept exactly as you imagine, and unfold your creativity.
- High-power wash moving head with 32,000 lm
- CMY color blending and 2 additional color wheels, each with 6 dichroic filters
- Linear CTO correction to 2,600 K
- High-quality optics with 170 mm PC lens and extremely wide zoom range from 5°-46°
- Even and flat projection field without hot spots at any zoom angle
- 4-blade framing system with +/- 45° rotation, individually controllable up to full blackout
- Variable frost plus stepless iris
- Flicker-free operation thanks to selectable PWM frequencies up to 25 kHz
- Battery-powered touchscreen display with encoder wheel for offline configuration
- Flexible control via built-in W-DMX Transceiver, DMX, RDM, Art-Net or sACN
LED Moving Lights
Type
Profiles Washer
Number of LEDs
1
Color temperature
Cold White, 6100 K
LED type
750 W LED
Colour mixing function
CMY + CTO
Number of colours Colour wheel
2 x 6 + open and continuous positioning
Dispersion
5 - 46 °
Effects
Heavy Frost, Iris, LED segment FX, Rotatable shutters
Interfaces

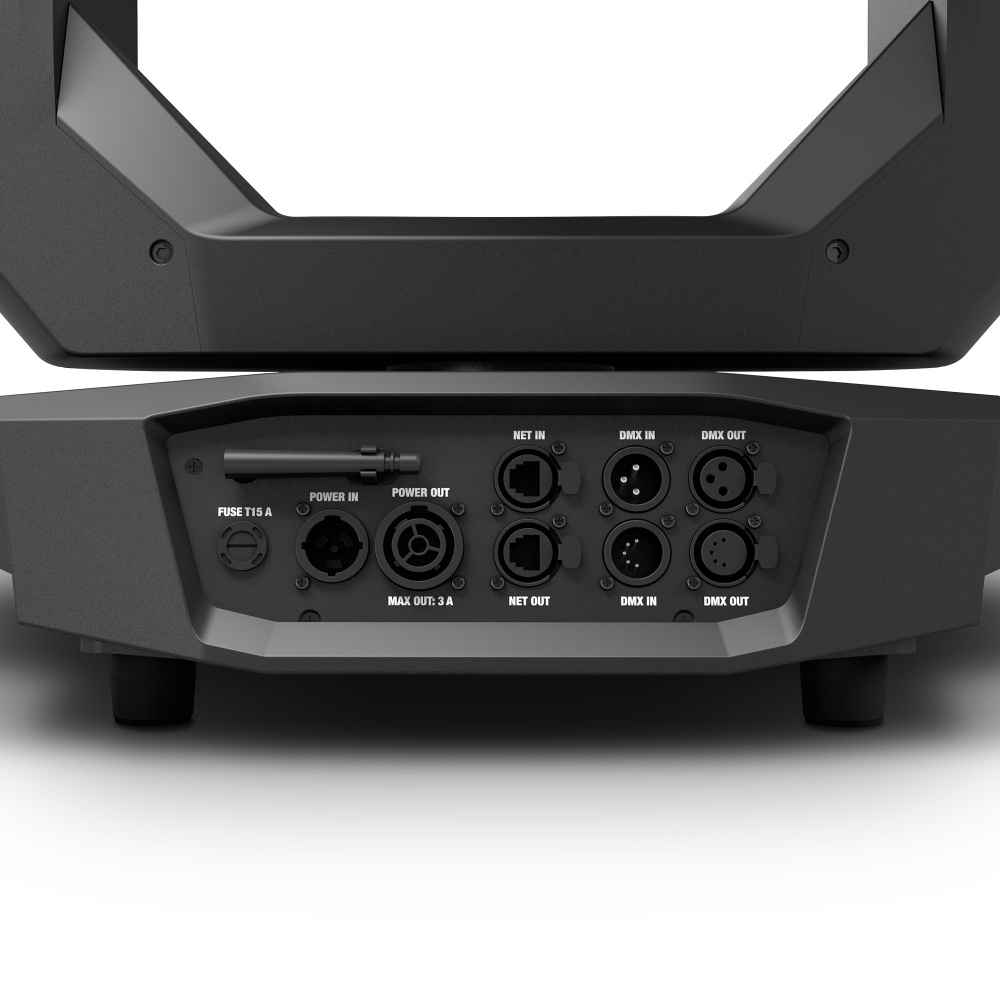

RJ45 Ethercon (IN/OUT), Wireless DMX (Transceiver), XLR 3-pin female, XLR 3-pin male, XLR 5-pin female, XLR 5-pin male
DMX mode
29-channel, 48-channel
DMX Functions
Colour wheel 1, Colour wheel 2, CTO, CTO Fine, Cyan, Cyan Fine, Dimmer, Dimmer Fine, Focus, Focus Fine, Frost, Iris, LED Segment Dimmer, Magenta, Magenta Fine, Multifunctional Strobe, Pan/Tilt, Pan/Tilt fine, Pan/Tilt Macros, Pan/Tilt Speed, Shutterblade Rotation, Shutterblades, Sparkle FX, System settings, Yellow, Yellow Fine, Zoom, Zoom Fine
Standalone modes
Master / Slave mode, Static
System settings
Auto Lock, Blackout functions, Colour/ Gobo wheel, Dimmer Curve, Dimmer Response, Display Illumination, Display Reverse, fan, Feedback, LED PWM Frequency, Motor Speed, Movement Blackout, Pan Angle, Pan Reverse, reset, Scroll / Snap, Signal Fail, Test, Tilt Reverse, User default values
Control
ArtNet, DMX512, RDM enabled, sACN, W-DMX (Transceiver)
Controls
Back Button, Encoder wheel, Touch screen
Indicators
Backlit colour LCD display, Battery supply for mains-independent system settings
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
1200 W
Fuse
T15AL / 250 V
Relative Humidity
< 85 %, not condensing
Power supply connector
Neutrik powerCON TRUE1 I/O
Housing material
ABS plastic, Metal
Cabinet colour
Black
Cooling
temperature-controlled fan
Luminous flux
32000 lm
Maximum Ambient Temperature
0 - 40 °C
Width
426 mm
Height
800 mm
Depth
312 mm
Weight
41 kg
Accessories (included)
2 x omega mounting, Power cord
