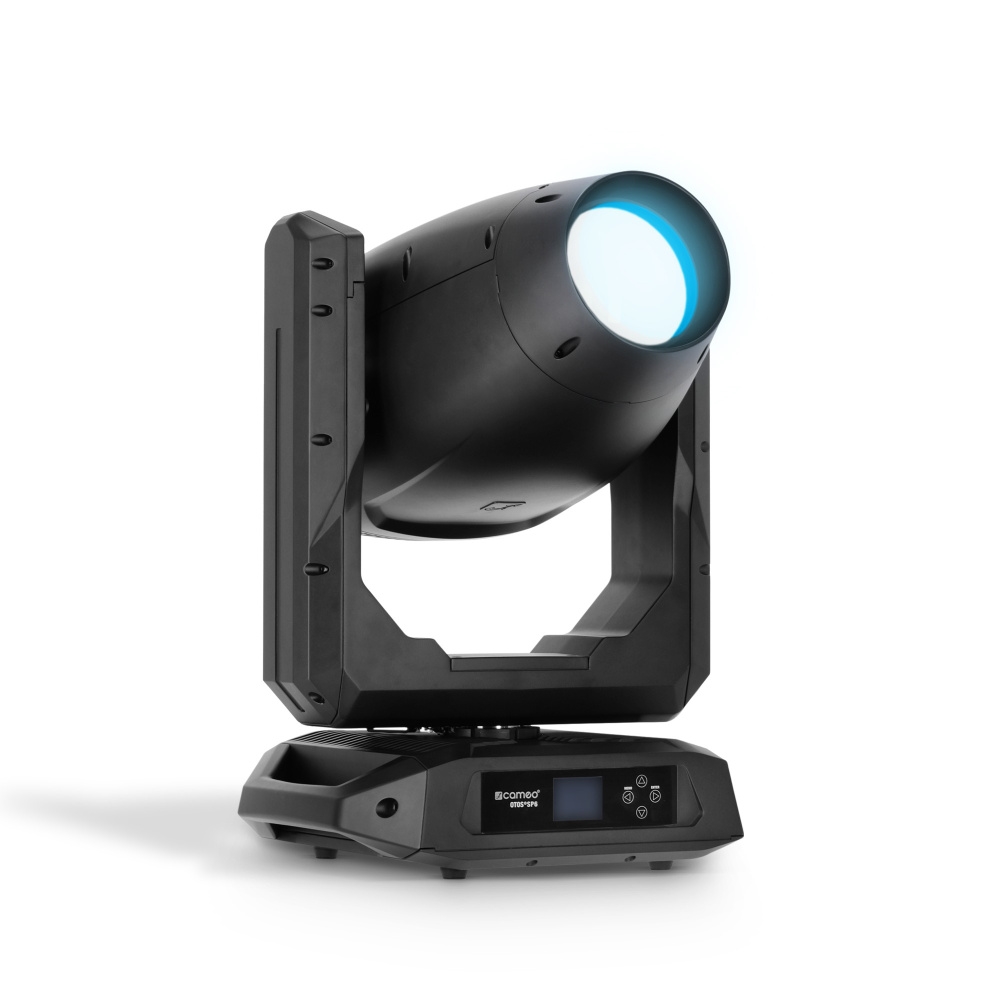

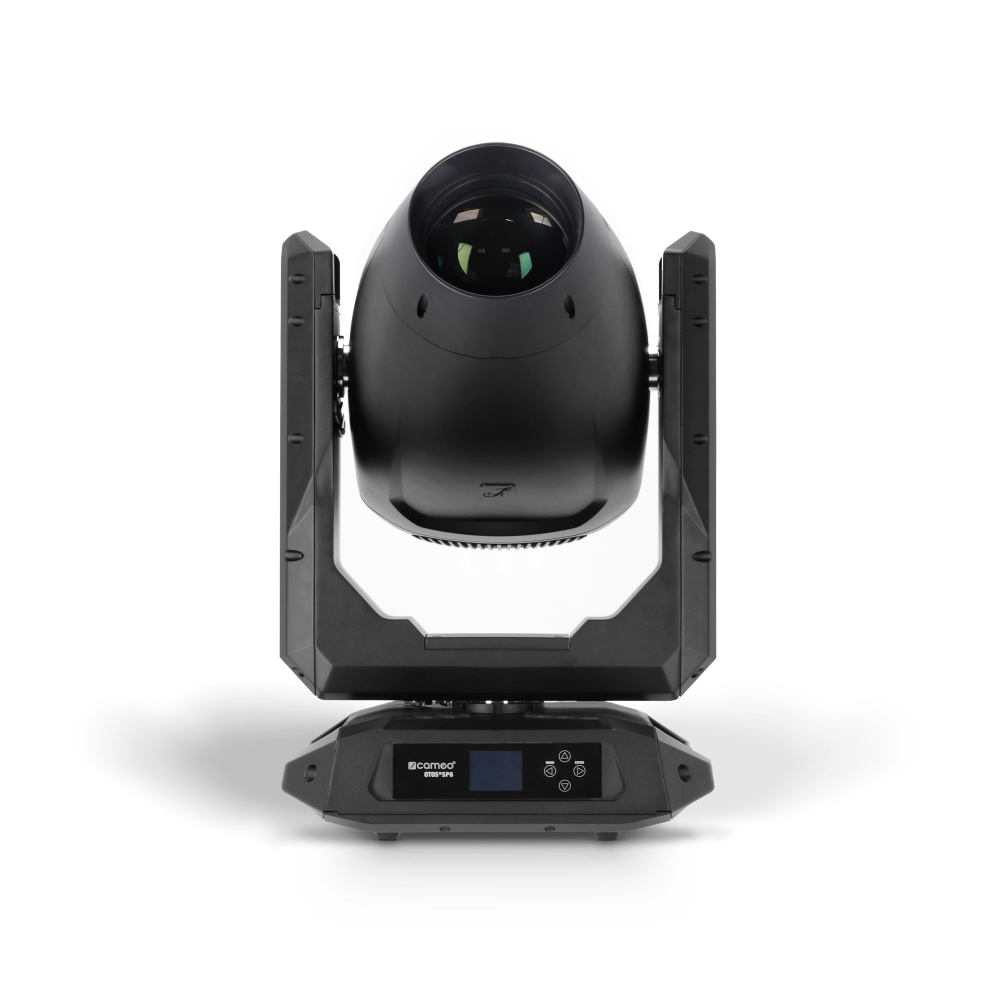

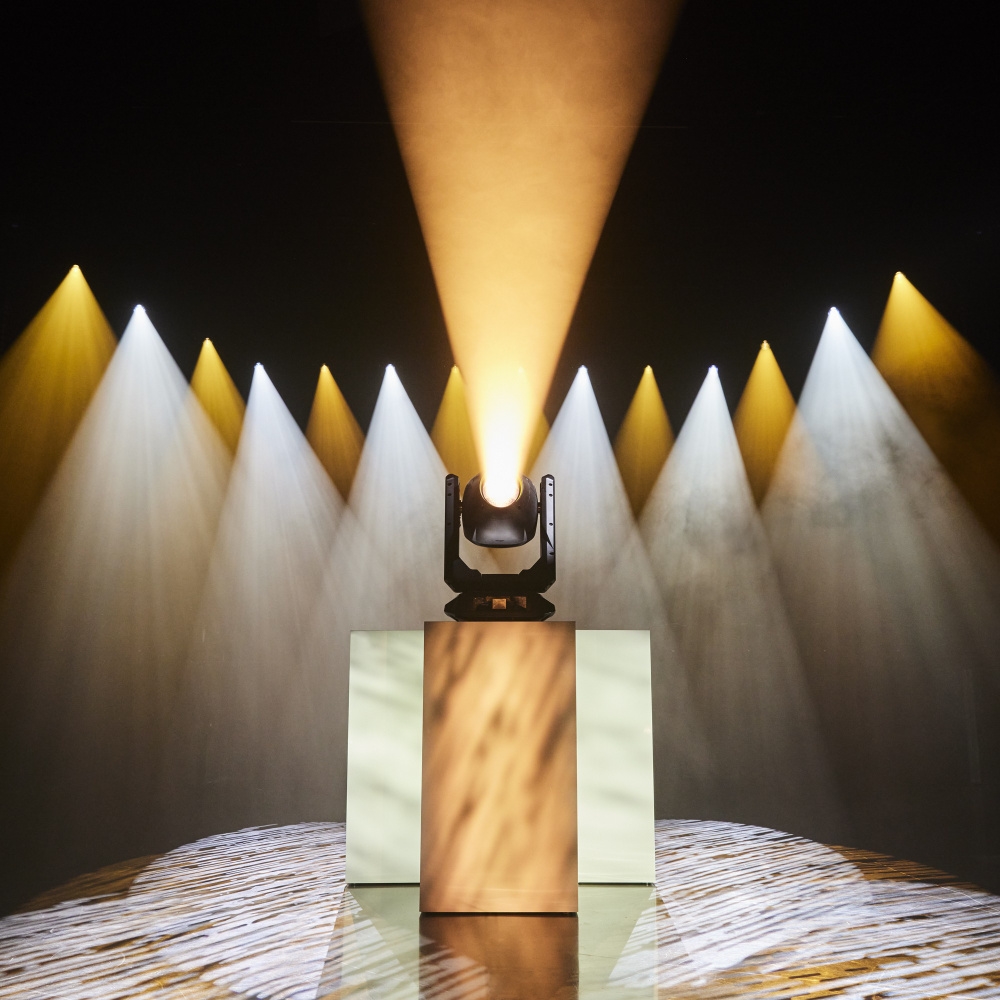

Combined spot/profile moving heads are true all-rounders for live, event, theatre and TV use. The OTOS® SP6 is no exception - and still stands out from the crowd as an IP65 spot/profile with LED light source! The 600 Watt LED generates a powerful 86,000 lux at 6° beam angle. At the same time, the optical system with 130 mm front lens enables an impressively wide zoom range from 6° to 46° without visible hotspots.
The OTOS® SP6 is made for precise and creative use. The light beam can be shaped via the two gobo wheels (rotatable with seven indexable and rotatable, exchangeable glass gobos + static with seven exchangeable glass gobos), via the rotatable and indexable 5-facet prism as well as via the integrated 4-fold iris slider system with individual angulation and +/- 45° rotation. Two frost filters (light and heavy) and the infinitely variable iris diaphragm round off the wide range of possibilities.

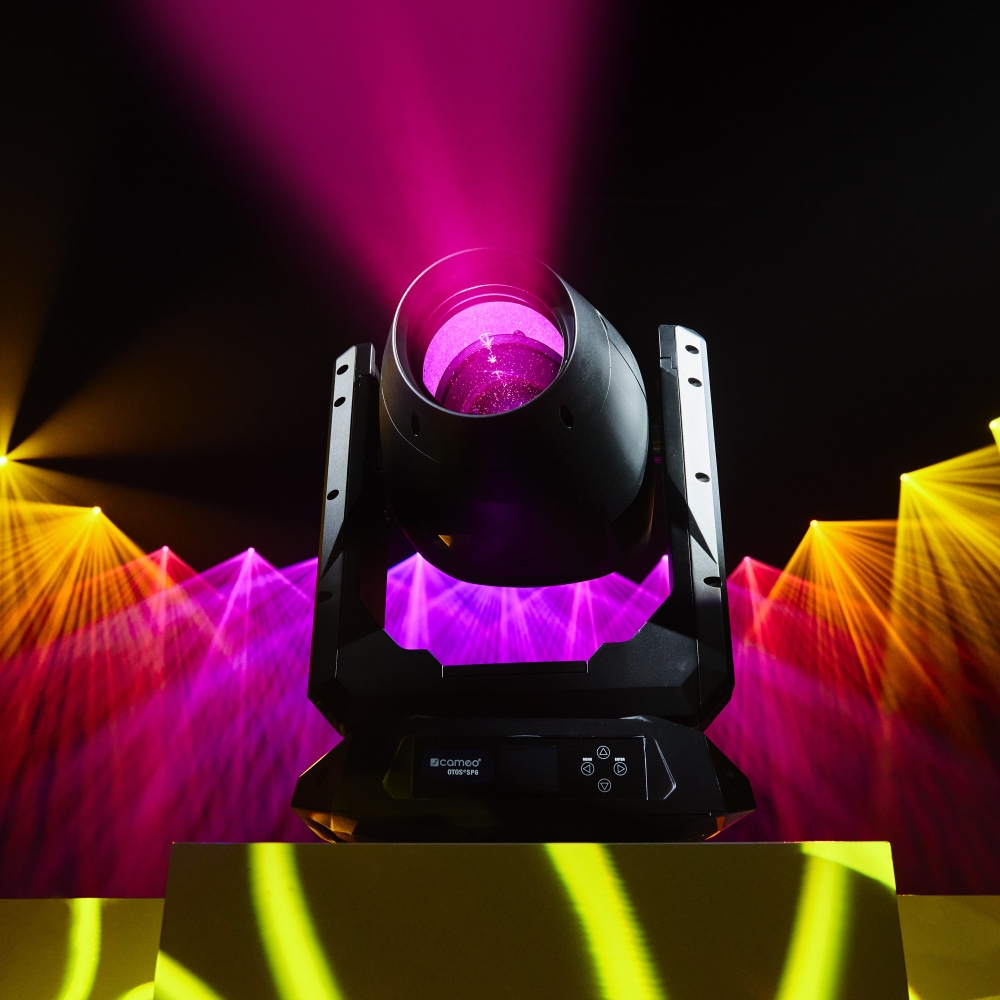

The OTOS® SP6 uses CMY colour mixing and includes an additional colour wheel with six dichroic filters + open for particularly saturated, powerful colours. The linear CTO correction allows infinitely variable adjustment of the colour temperature in the range from 2,600 K to 7,000 K. Thanks to the adjustable PWM frequency (650 Hz - 25 kHz), the OTOS® SP6 is also suitable for use with film and TV cameras. The high-resolution, uniform 16-bit dimming behaviour including four selectable dimming curves also contributes to this.
The control of the OTOS® SP6 could hardly be more flexible. With DMX, RDM, Art-Net, sACN, W-DMX and CRMX, almost all control standards of modern lighting technology are available. On the unit itself, the moving head can also be operated via a battery-operated display using four buttons and configured independently of the mains. When it comes to on-site handling, the OTOS® SP6 scores with its intelligently placed handles and - as with all moving heads of the OTOS® series - an exceptionally low weight (OTOS® SP6: 34 kg).
- IP65 Spot Profile Moving Head with 600 W LED and 86.000 lux at 6° beam angle
- High-quality optics with 130 mm front lens and large 6°-46° zoom
- Uniform projection without hotspots throughout the zoom range
- CMY colour mixing and additional colour wheel with 6 dichroic filters + open
- Rotating gobo wheel with 7 indexable/rotatable, exchangeable glass gobos + open
- Static gobo wheel with 7 interchangeable glass gobos + open
- 4-blade framing system with +/- 45° rotation
- Linear CTO correction (2,600 K - 7,000 K)
- Selectable pulse width modulation (up to 25 kHz) for flicker-free operation
- Flexible control options: DMX, RDM, Art-Net, sACN, W-DMX, CRMX
- Easy handling and low weight (34 kg)
- Supplied in matching flight case insert
LED Moving Light
Type
IP65, Moving Head, Profile Spot
Number of lamps
1
Type Lamp
600 W Coldwhite LED
Color temperature
6900 K
Colour mixing function
Colour wheel, Linear CMY, Linear CTO
Colour rendering index (CRI)
>70
Color wheel Number of colors
6x Colour + Open
Number of gobos
14 + open (7 Interchangeable Rotating + 7 Fixed)
Effects
5-Facet Prism, Iris, 2x Frost (light + heavy)
Dispersion
6 - 46 °

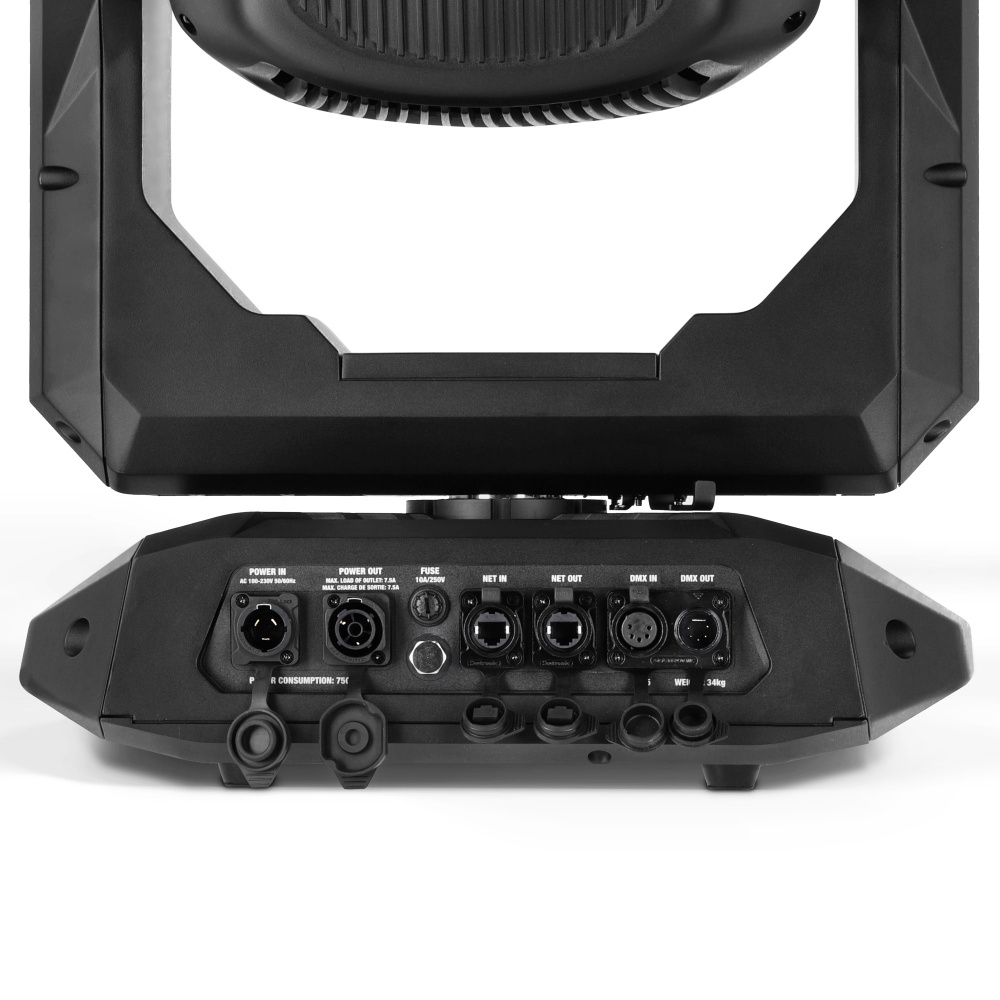

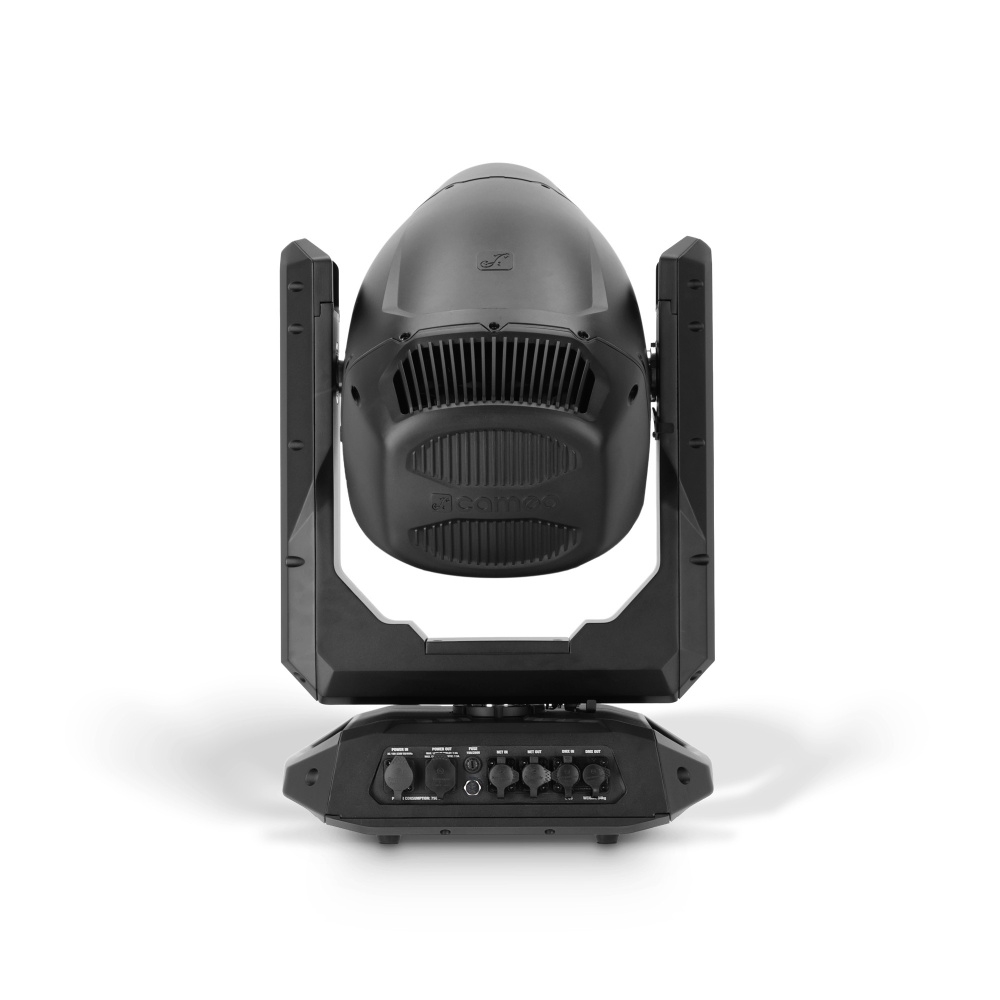

DMX input
Ethernet RJ45, XLR 5-pin male IP65
DMX output
Ethernet RJ45, XLR 5-pin female IP65
DMX mode
33-channel basic, 36-channel standard, 50-channel extended
DMX Functions
Animation In/Out, Animation Rotation, CTO, CTO Fine, Cyan, Cyan Fine, Dimmer, Dimmer Fine, Focus, Focus Fine, Gobo Rotation Fine, Gobo Wheel 1, Gobo Wheel 2, Heavy Frost, Iris, Light Frost, Magenta, Magenta Fine, Pan/Tilt, Pan/Tilt fine, Prism, Prism Rotation, Rotation Gobo Wheel, Strobe, Yellow, Yellow Fine, Zoom, Zoom Fine
Standalone Functions
Master / Slave mode, Quicklight, Static
System settings
Auto Lock, Colour wheel, Dimmer, Dimmer Curves, Dimmer response, Display, Gobo Wheel Movement, Gobo Wheel Position, Move in Black, Pan Reverse, Position Feedback, PWM, Reverse, Silent Mode, Tilt Reverse, Timer Off
Control
ArtNet, CRMX, DMX, RDM, sACN, W-DMX
Controls
Down, Enter, menu, Up
Indicators
LCD display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
max. 780 W
Luminous flux
19000 lm
Power supply connector
PowerCON TRUE1 compatible
Protection class IP
IP65
Ambient temperature (in operation)
-10 - 40 °C
Housing material
Magnesium Alloy Cast
Cabinet colour
Black
Housing Cooling
Convection
Width
431 mm
Height
768 mm
Depth
366 mm
Weight
33,5 kg
Accessories (included)
1 m power cable, 2 x omega mounting, Matching flightcase insert
