Cameo MATRIX PANEL 10 W RGB

Cameo MATRIX PANEL 10 W RGB
  • Fjernlager
  • På lager, 3-8 Hverdage
  • Bedømmelse for Cameo MATRIX PANEL 10 W RGB
    Bedømmelse: 4 ud af 5 baseret på 1 stemmer
  •
    5.439,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner


5 x 5 RGB LED Matrix Panel with Single Pixel Control


5 x 5 Matrix Panel with single pixel control 25 x 10 W RGB LEDs 5 DMX modes, sound activation and built-in auto run programs Master, slave and standalone capability Blinder, chase and strobe effects Alphabetic character and numeral mapping 4 selectable dimming curves Flicker-free operation Ultra flat housing with low-noise fan Even more impressive in multiples

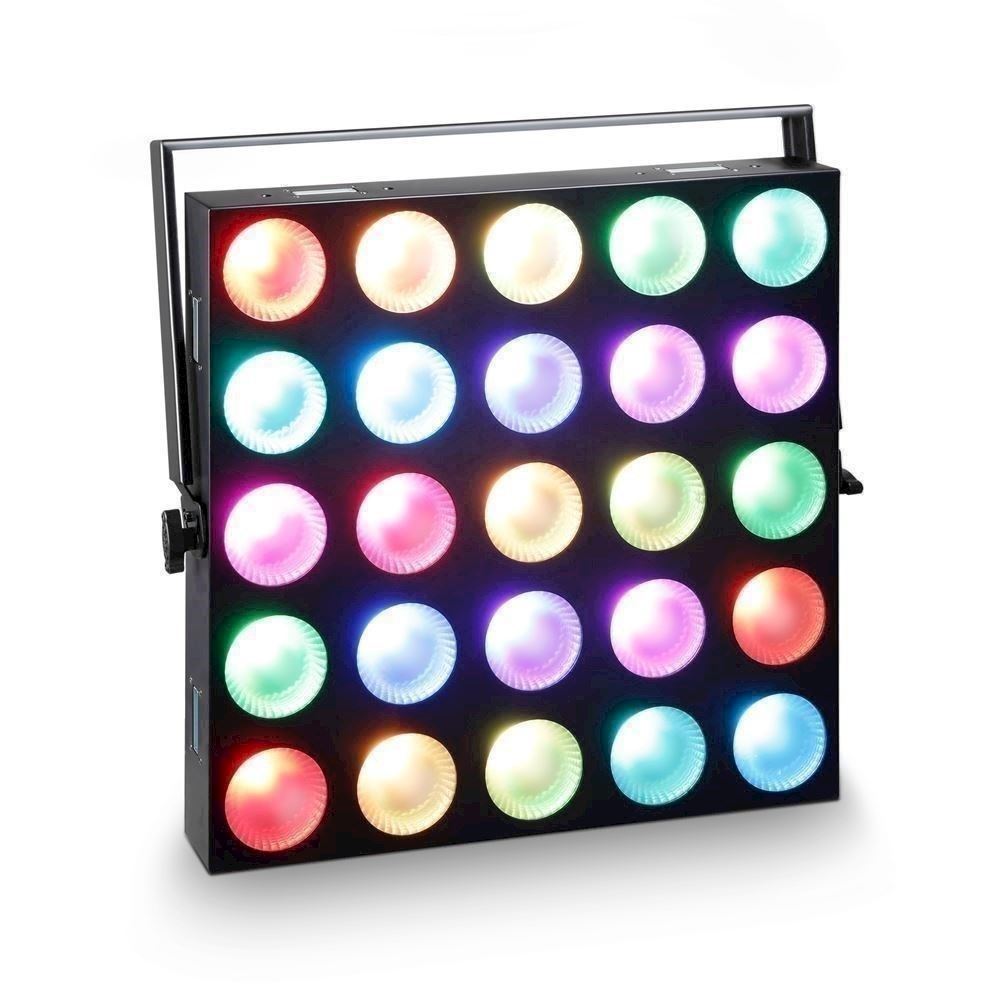

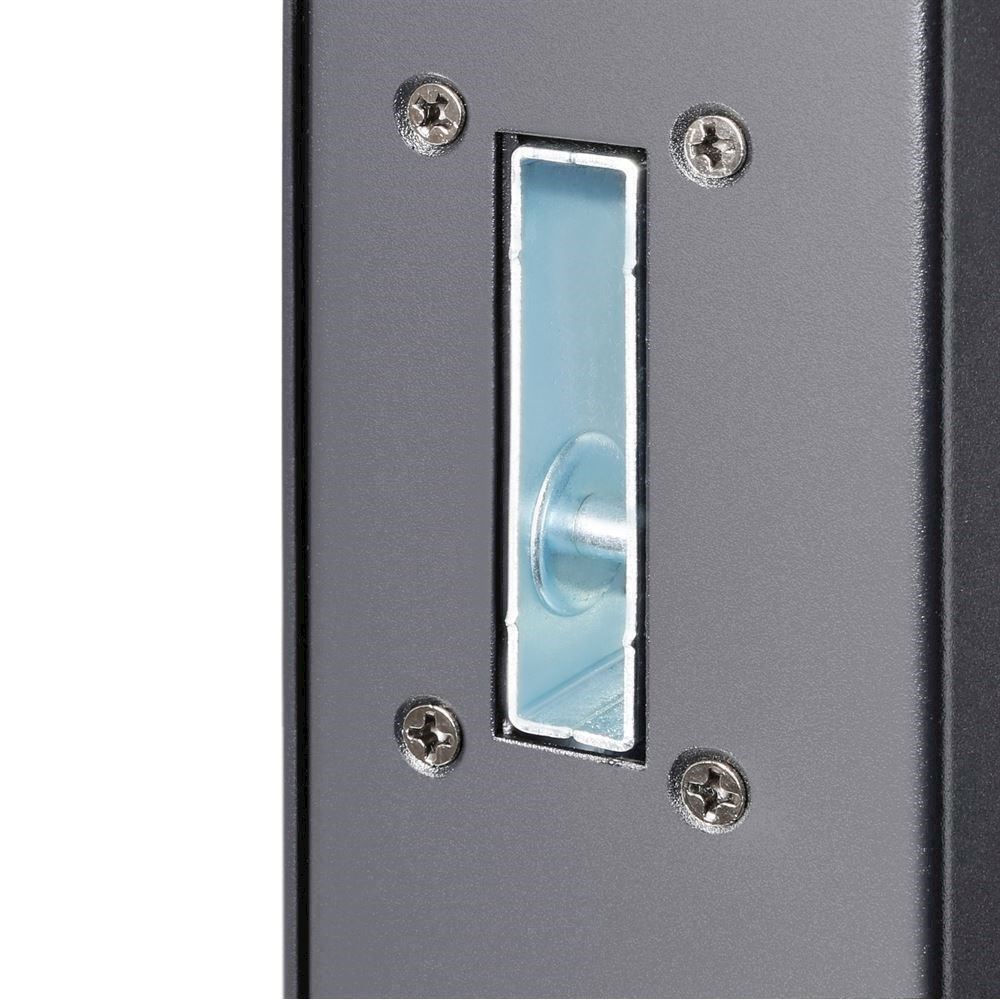

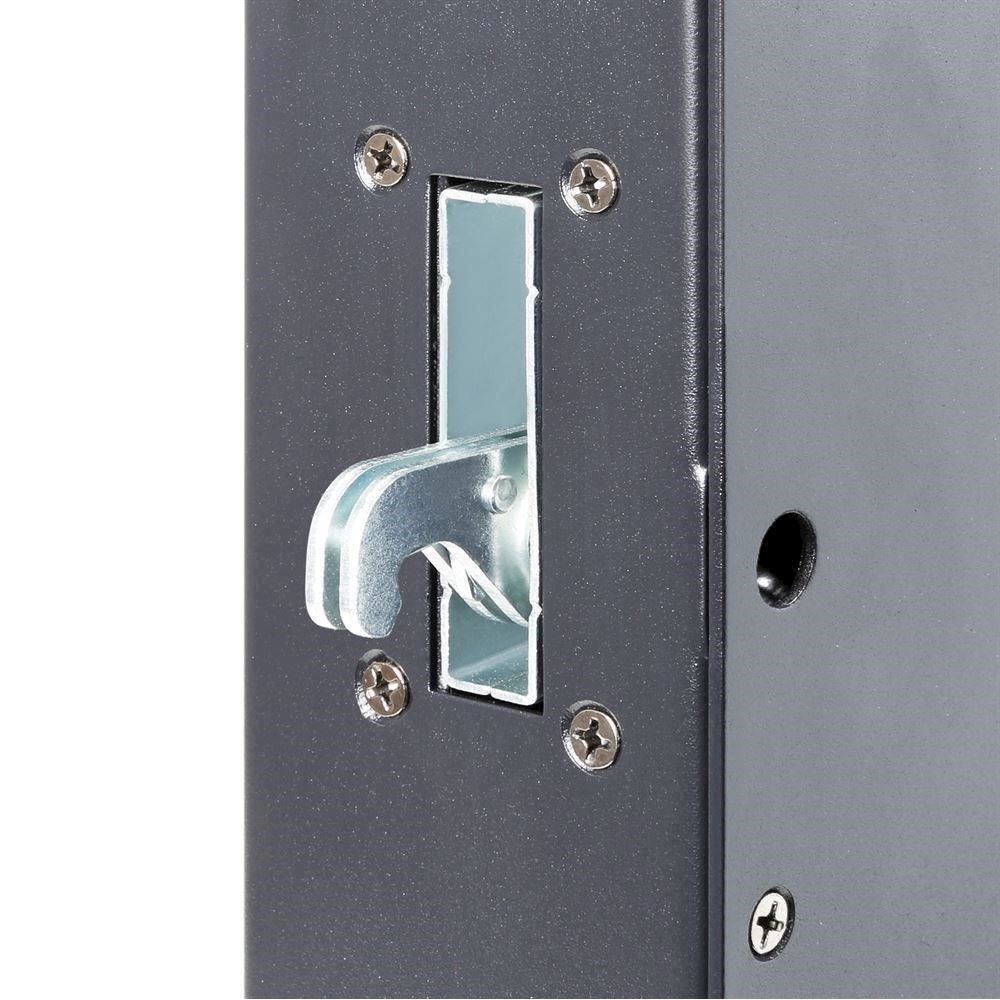

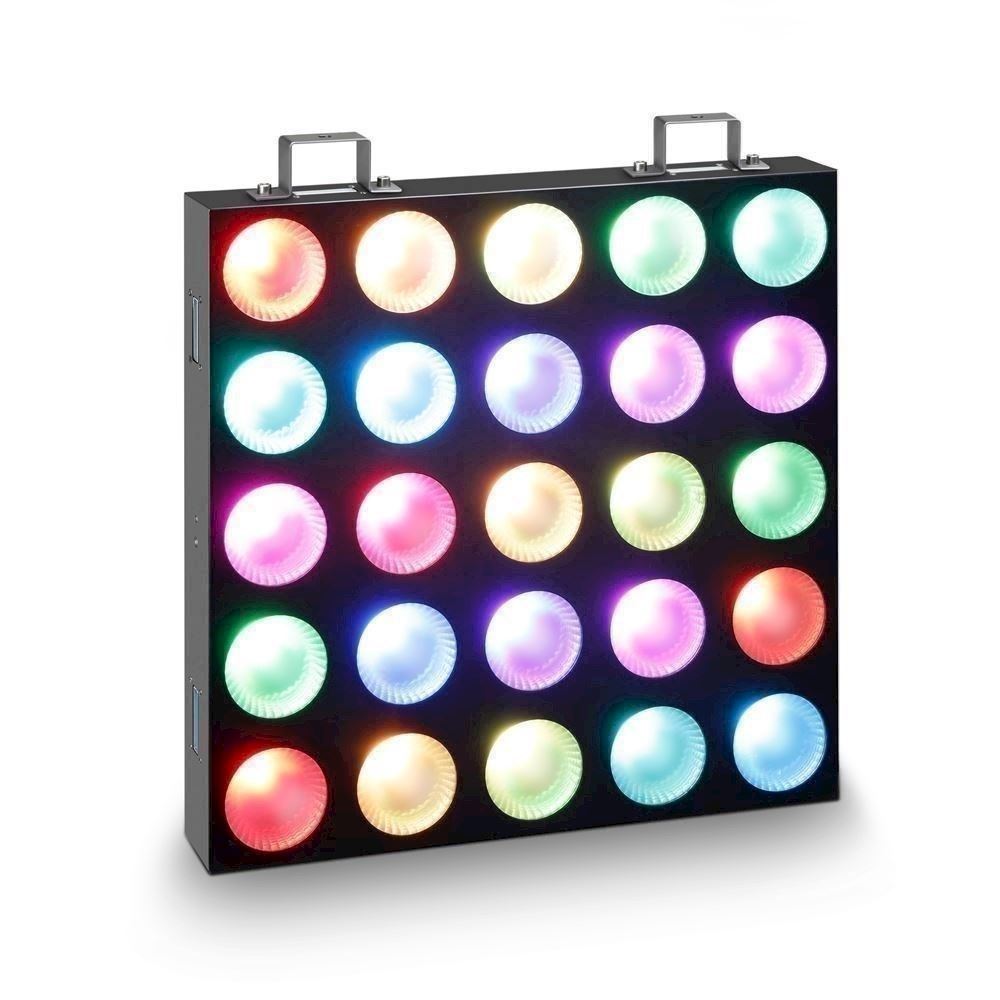

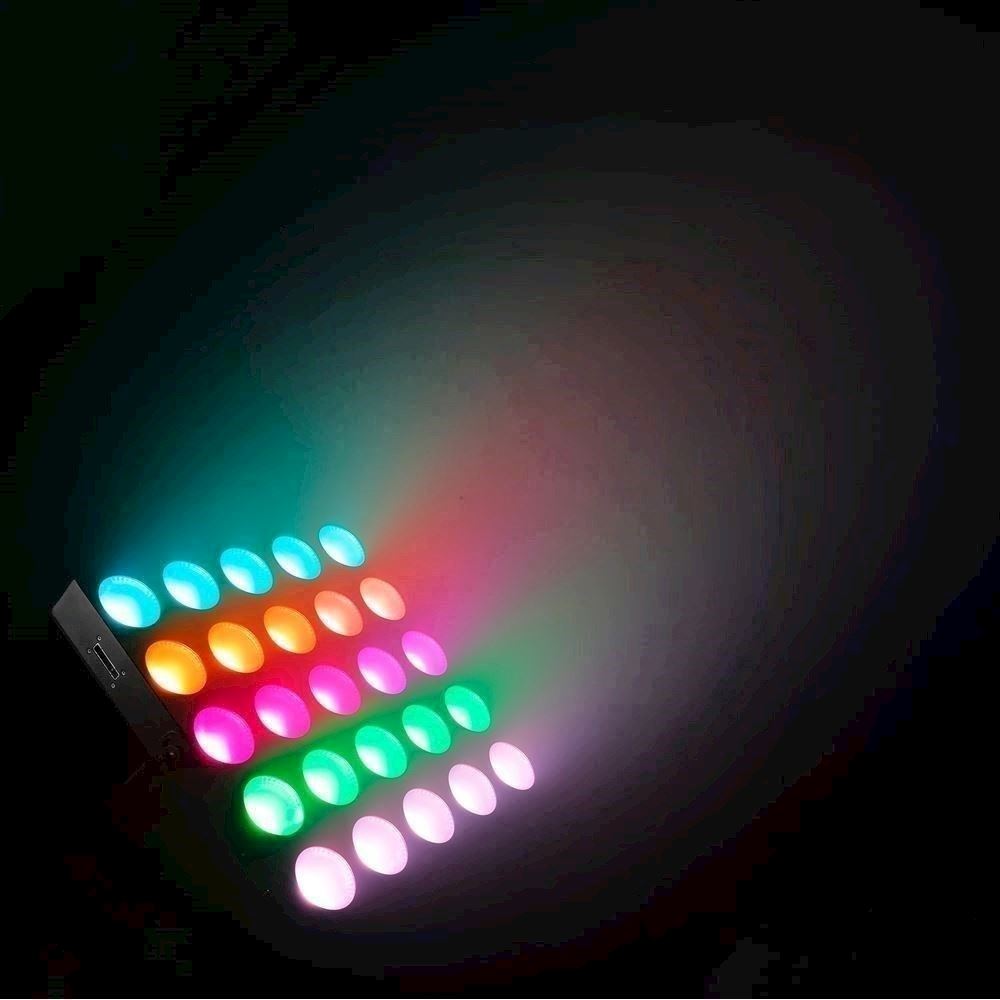

With a 5 x 5 array of 10 watt RGB LEDs, 40° beam spread and flicker-free performance the Cameo Matrix Panel creates exciting blinder, chase and strobe effects. Featuring powerful single pixel control, it is the perfect choice for mapping alphabetic characters, numerals and complete messages. Recessed latches on all sides enable joining multiple panels for large, impressive backdrops.

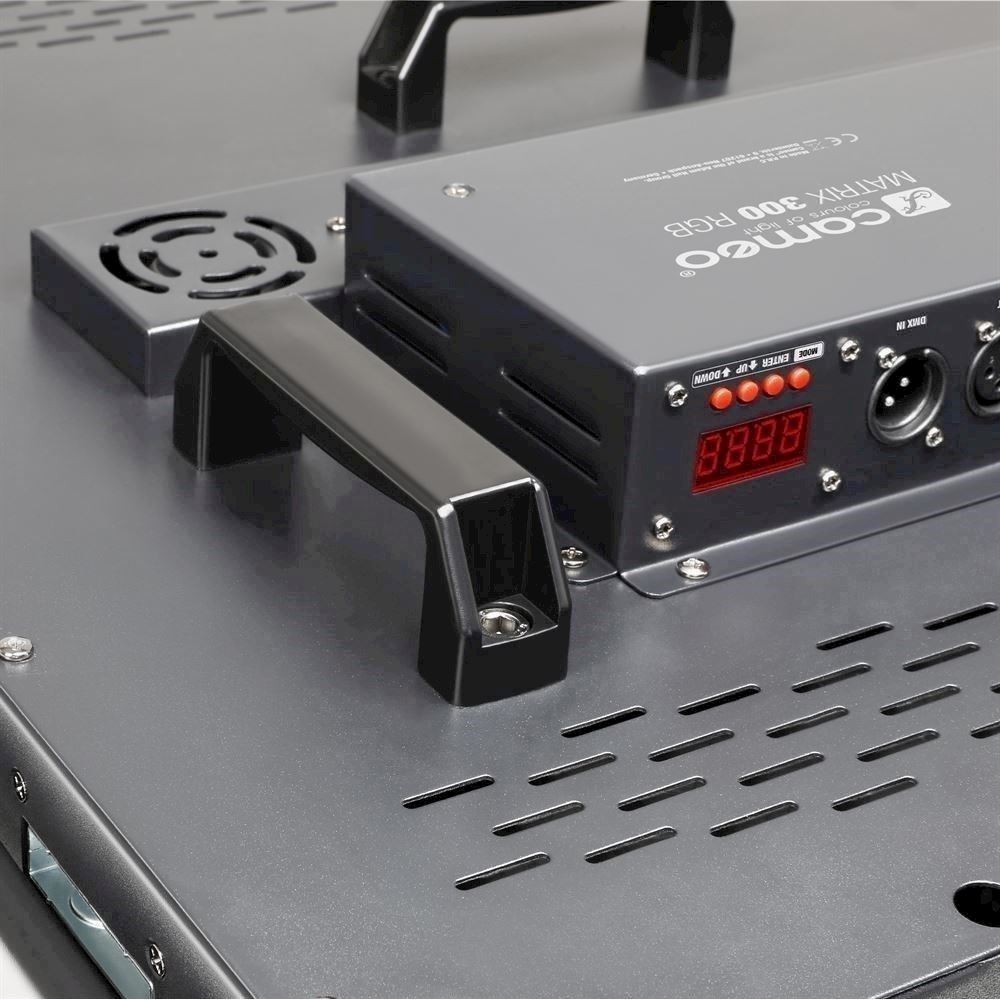

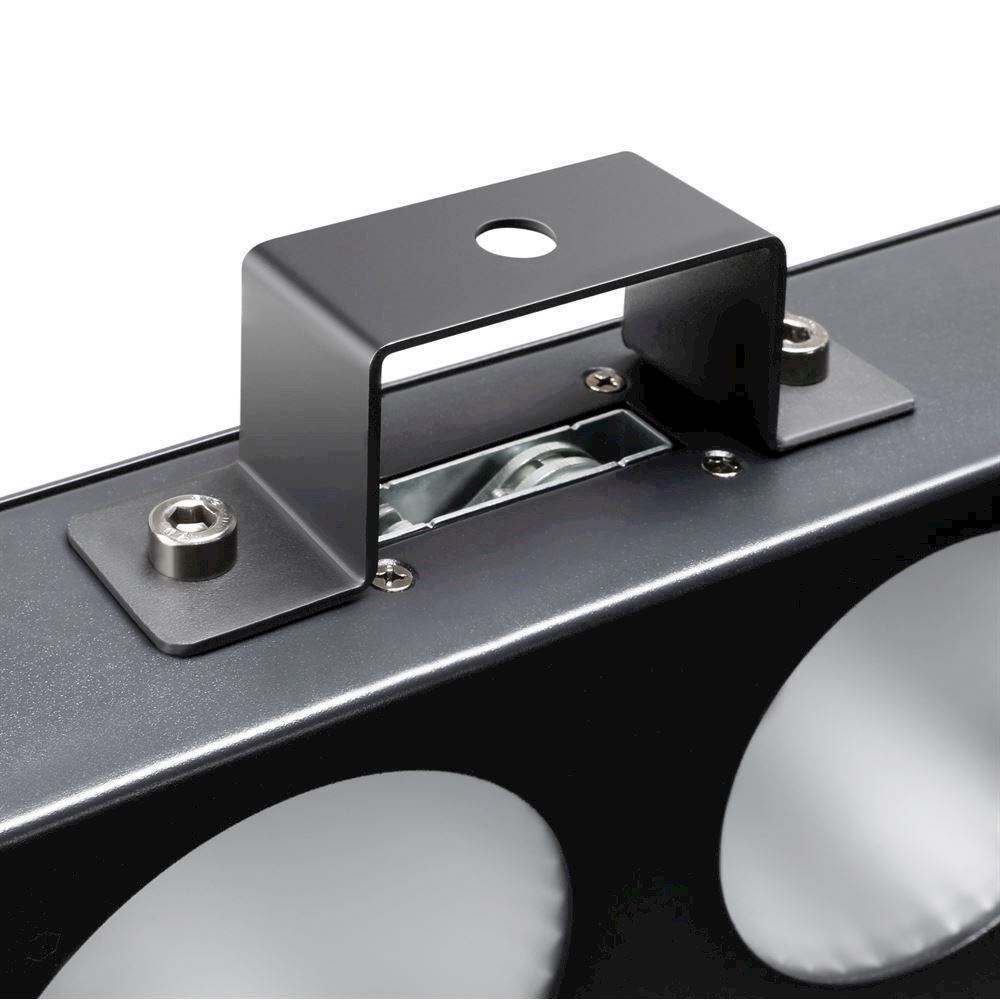

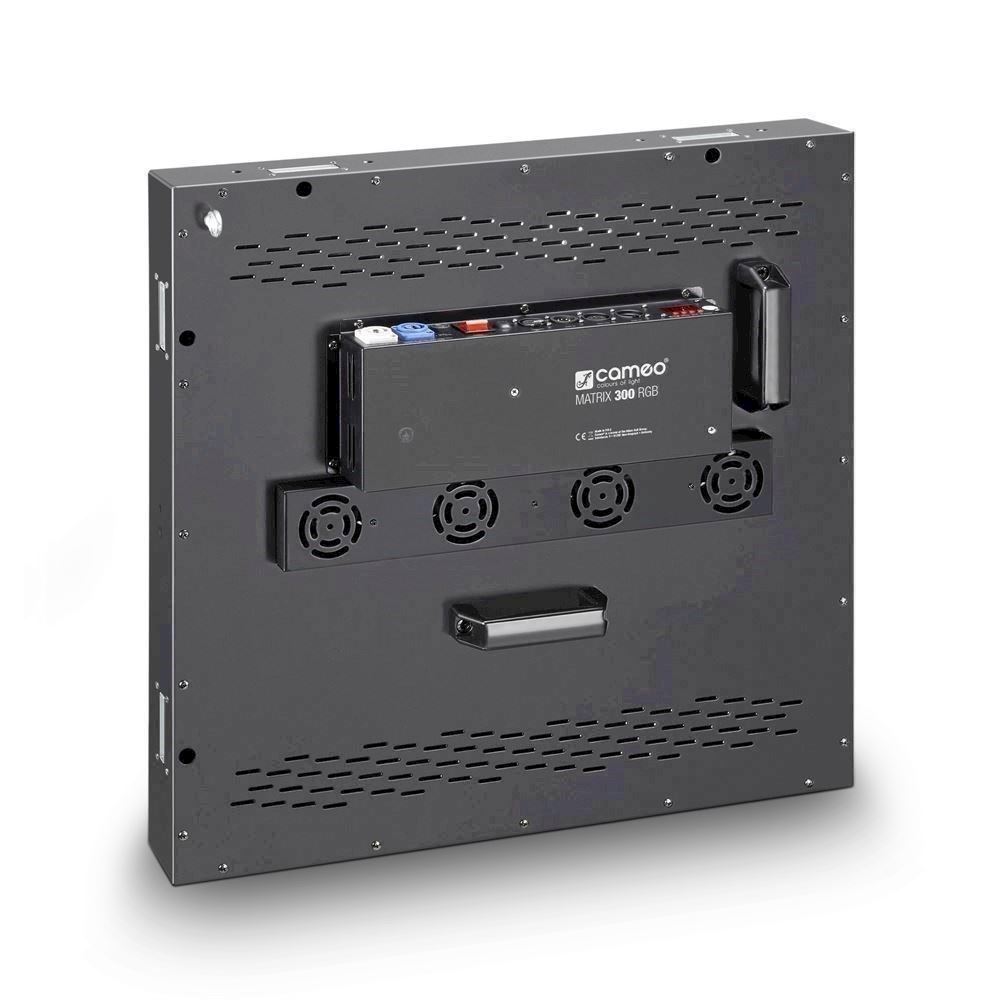

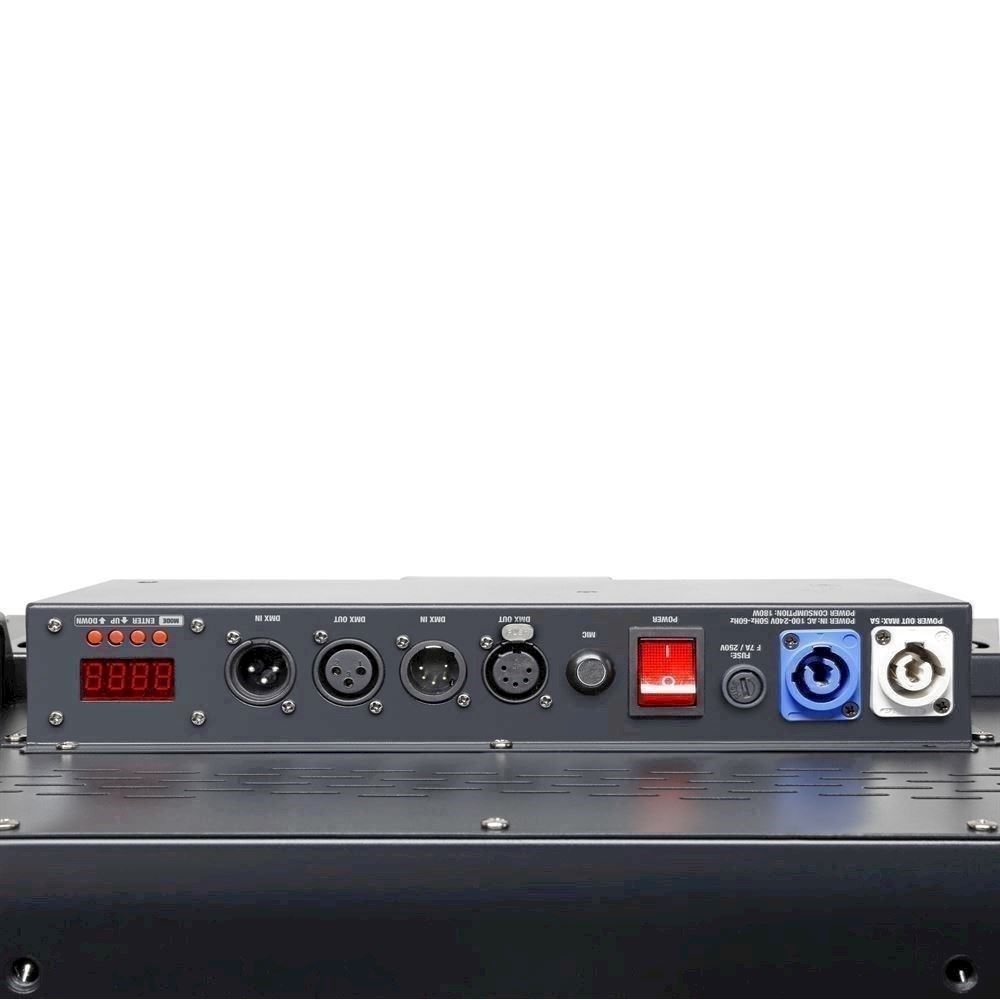

The Matrix Panel 10 RGB includes five modes of DMX control, sound activation, built-in auto run programs and 4 selectable dimming curves. It sports master, slave and standalone capability, a bright 4-button display plus a low-noise fan for cool and quiet operation. The ultra flat all-metal housing provides 3 and 5-pin DMX inputs and outputs and Power Twist connectors for easy daisy-chaining. The Matrix Panel comes with a safety eye, swivel bracket and two omega brackets and runs on all voltages from 100 - 240 volts AC.





  • 5 x 5 Matrix Panel with single pixel control
  • 25 x 10 W RGB LEDs
  • 5 DMX modes, sound activation and built-in auto run programs
  • Master, slave and standalone capability
  • Blinder, chase and strobe effects
  • Alphabetic character and numeral mapping
  • 4 selectable dimming curves
  • Flicker-free operation
  • Ultra flat housing with low-noise fan
  • Even more impressive in multiples

Product typeLED MATRIX PANEL
Type5 X 5 Matrix
Colour spectrumRGB
Number of LEDs25
LED type10 W RGB
Dispersion40 °
Refresh rate8000 Hz
DMX inputXLR 3-pin male
DMX outputXLR 3-pin female
DMX mode3-channel, 19-channel, 28-channel, 5-channel, 78-channel
DMX Functionsmaster dimmer, sound programs, auto programs, Dimmer Fine, Stroboscope
Standalone modesMusic control, master / slave mode
Controlsmode, up, down, Enter
Indicators4-digit LED display
Operating voltage100 V AC - 240 V AC, 50 - 60 Hz
Power consumption180 W
Power connectorBlue and white power I/O
Housing materialmetal
Cabinet colourBlack
Coolingfan
Illuminance6950lx @ 1m
Width580 mm
Height580 mm
Depth125 mm
Weight13,7 kg
Accessories (included) swivel bracket, LED MATRIX PANEL, 2x Omega Mounting Bracket, safety eyelet




Varenr.: A-CLMP10WRGB
