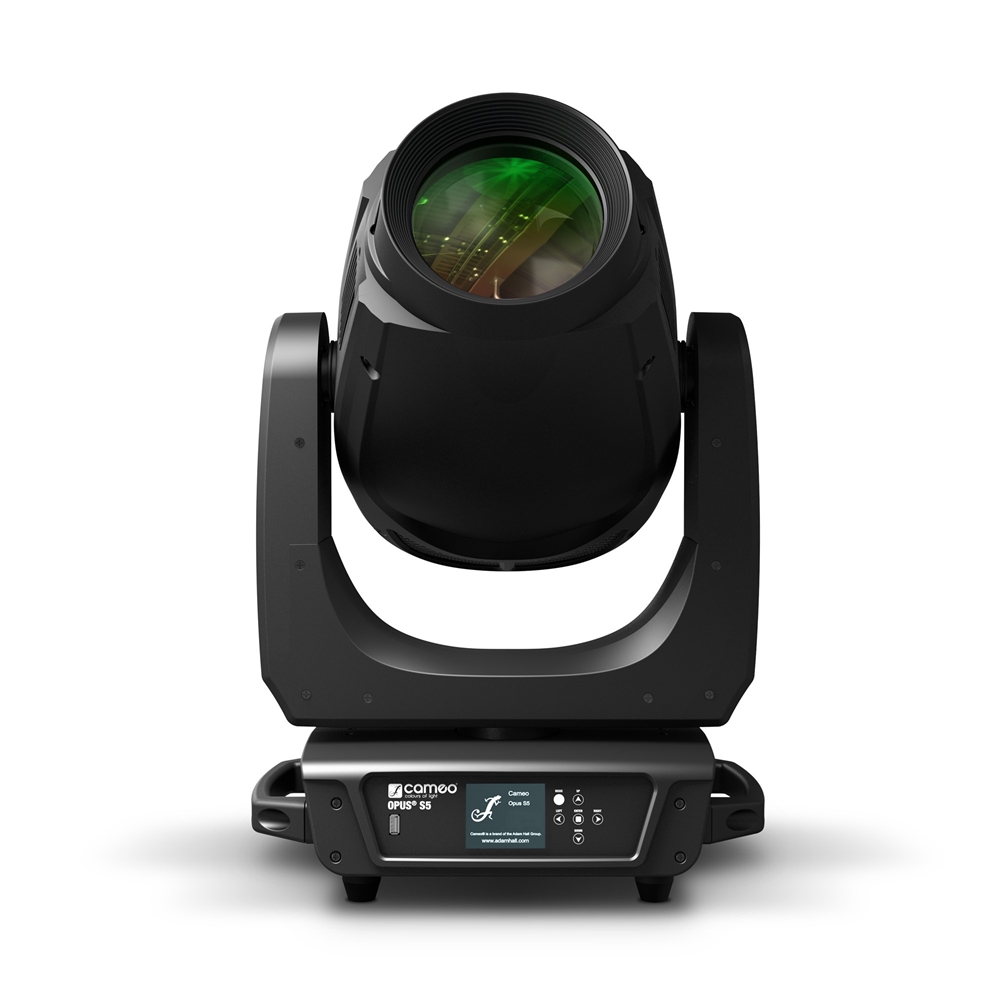

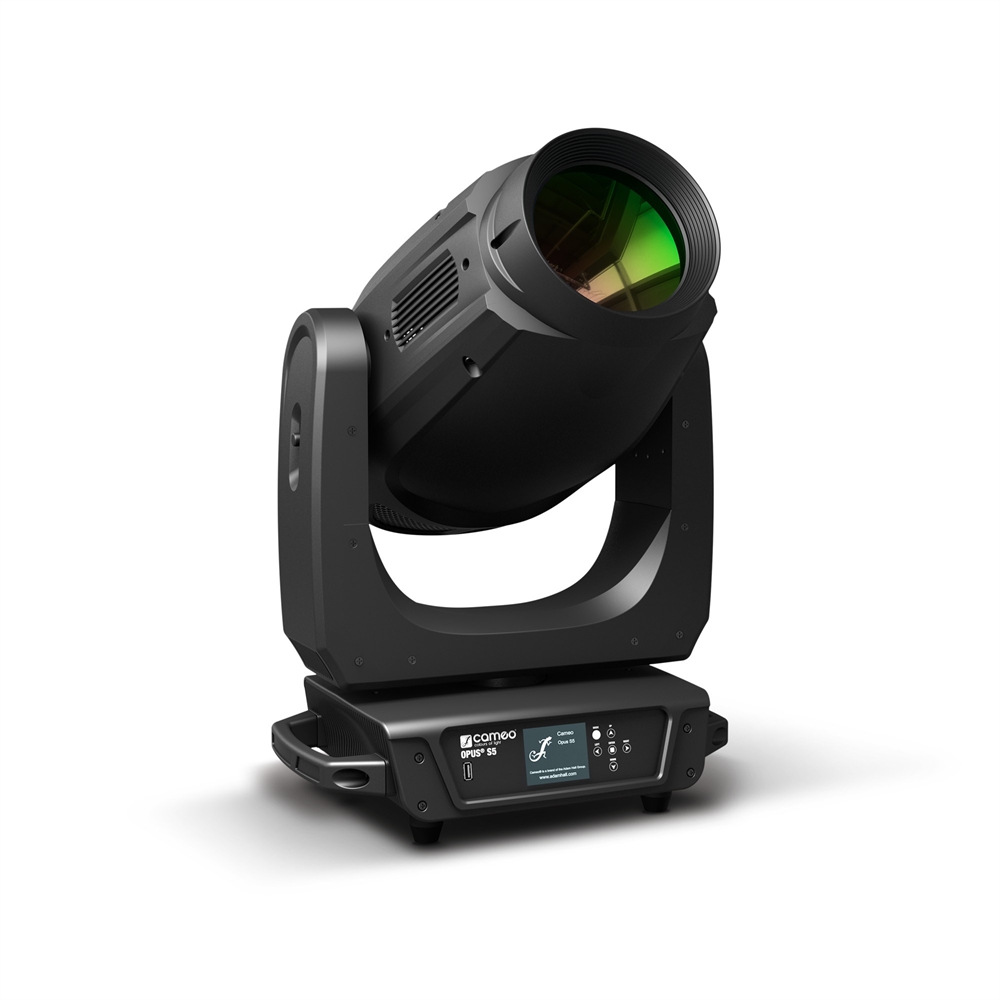

Illuminating stages with brilliant, lively colours, the Cameo OPUS® S5 is a compact super bright spot moving head with a powerful 380 W white LED engine, CMY mixing system and linear CTO correction. It is highly effective in venues of all sizes thanks to its wide zoom range. An additional colour wheel with 7 dichroic filters enables instant colour changes and split colour projection. The fixture has an enormous 17,500 lm output, huge illuminance of 39,000 lux at a distance of 5 meters and rapid 540° pan and 270° tilt movement. Permitting extensive beam control, the highly efficient optics feature an extra wide zoom range from 6° to 46° and stepless iris. A continuously variable frost filter provides soft, wash-like diffusion.
Generating spectacular morphing effects when used simultaneously, the OPUS® S5 has two gobo wheels with 7 rotating and 8 static glass gobos which can also be used in combination with the rotating animation wheel for amazingly vivid projections. In addition to a rotatable and indexable 3-facet circular prism and a 6-facet linear prism to multiply gobo projection, the luminaire includes 16-bit dimming with a choice of 4 curves.

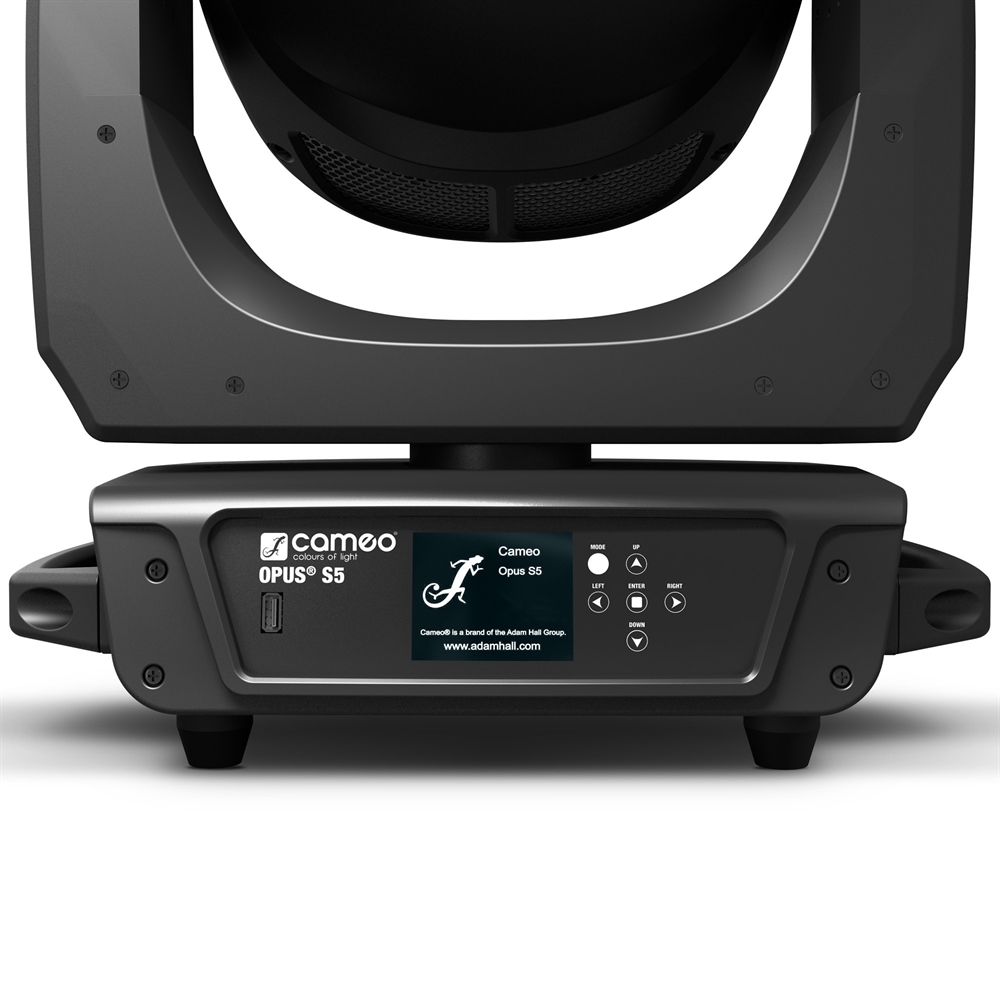

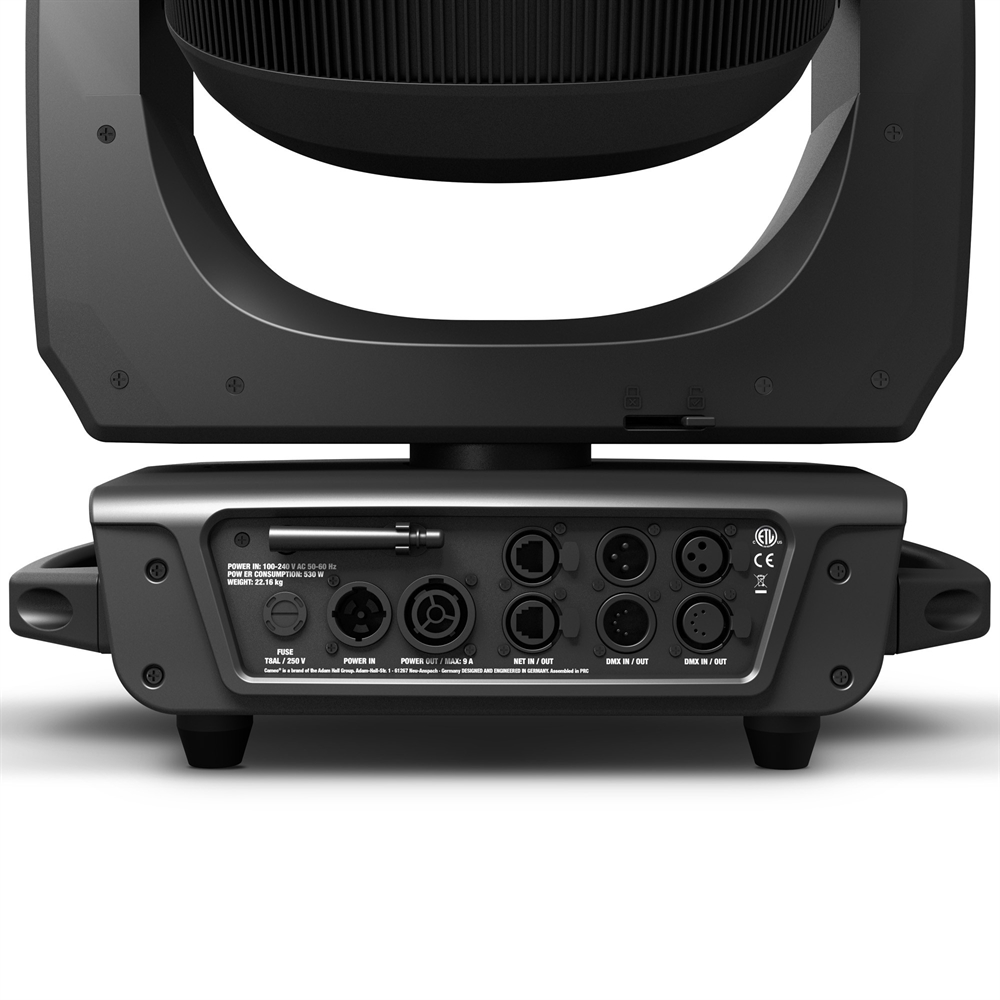

The OPUS® S5 offers flexible control options via DMX, RDM, Art-Net, sACN or the built-in W-DMX™ transceiver. It has a rugged ABS and metal housing with Neutrik® DMX and powerCON TRUE1 connectors and super efficient heat pipe cooling system with temperature controlled fans to ensure optimal cooling. A battery-powered touchscreen display with 6 additional touch buttons permits convenient offline configuration and two modes of menu navigation. The luminaire comes with two omega brackets and power cord.
Product type
LED Moving Lights
Type
Moving Head
Colour spectrum
white
Number of LEDs
1
Colour temperature
6600 K
LED type
380 W
Refresh rate
adjustable to 25000 Hz
Dispersion
6 - 46 °
DMX input
XLR 3-pin male , XLR 5-pin male
DMX output
XLR 3-pin female , XLR 5-pin female
DMX mode
27-channel , 33-channel
DMX Functions
Animation Wheel , Auto Movement , Colour wheel , CTO , CTO Fine , Cyan , Cyan Fine , Device Settings , Dimmer , Dimmer Fine , Focus , Focus Fine , Frost , Gobo wheel , Gobo Wheel 1 , Gobo Wheel 2 , Iris , Magenta , Magenta Fine , PAN , PAN FINE , Prism , Rotation Fine , Rotation Gobo Wheel 1 , Rotation Prism , Set Dimmer Curve , strobe , TILT , TILT FINE , Yellow , Yellow Fine , Zoom , Zoom Fine
PAN movement
540
TILT movement
270
High Speed Strobe
> 20 Hz
Standalone modes
Auto Mode , Settings , Static
Controls
Enter , Mode , Value Down , Value Up
Indicators
Graphic Display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz , Neutrik True 1 IN / OUT
Power consumption
530 W
Housing material
ABS plastic , Metal
Cabinet colour
Black
Protection class IP
IP20
Cooling
Heat-pipe cooling system with temperature controlled fans
Luminous flux
17500 lm
Maximum Ambient Temperature
-15 - 45 °C
Width
400 mm
Height
630 mm
Depth
250 mm
Weight
24 kg
Accessories (included)
2 x Omega Clamp , Power cord
