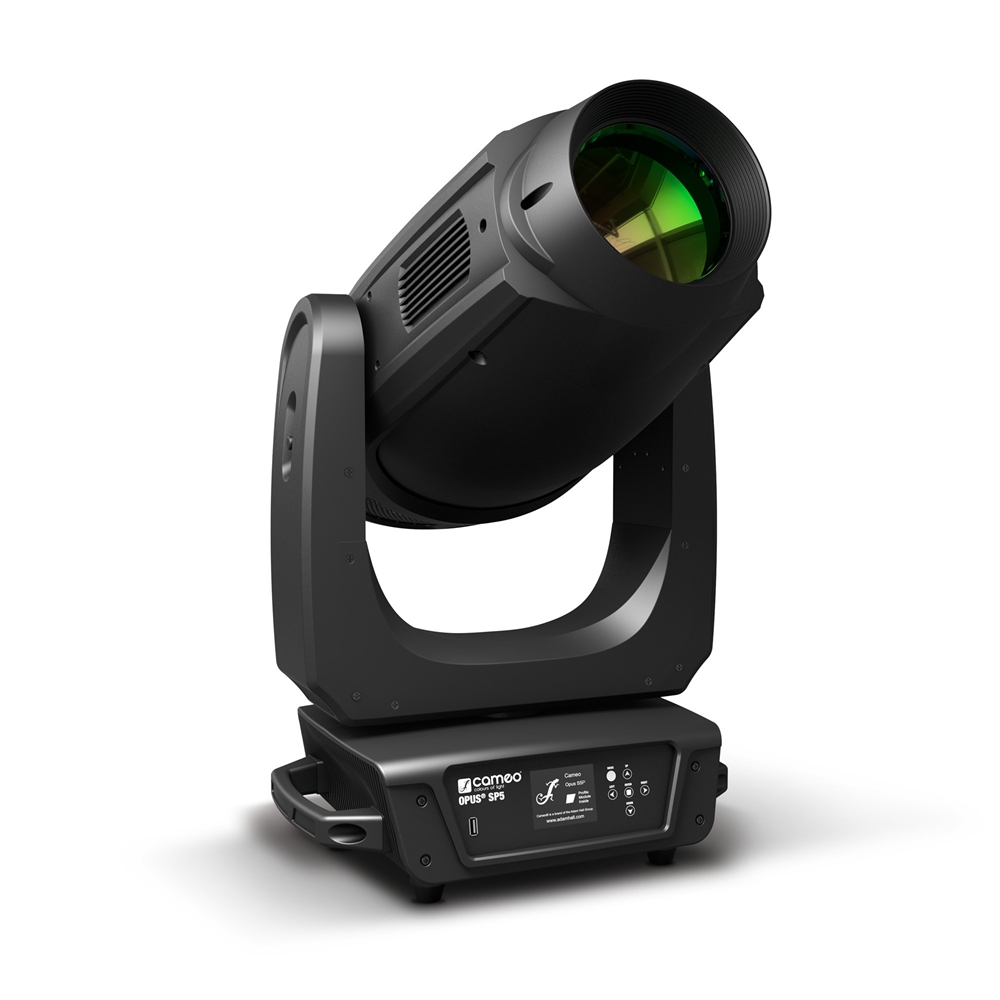

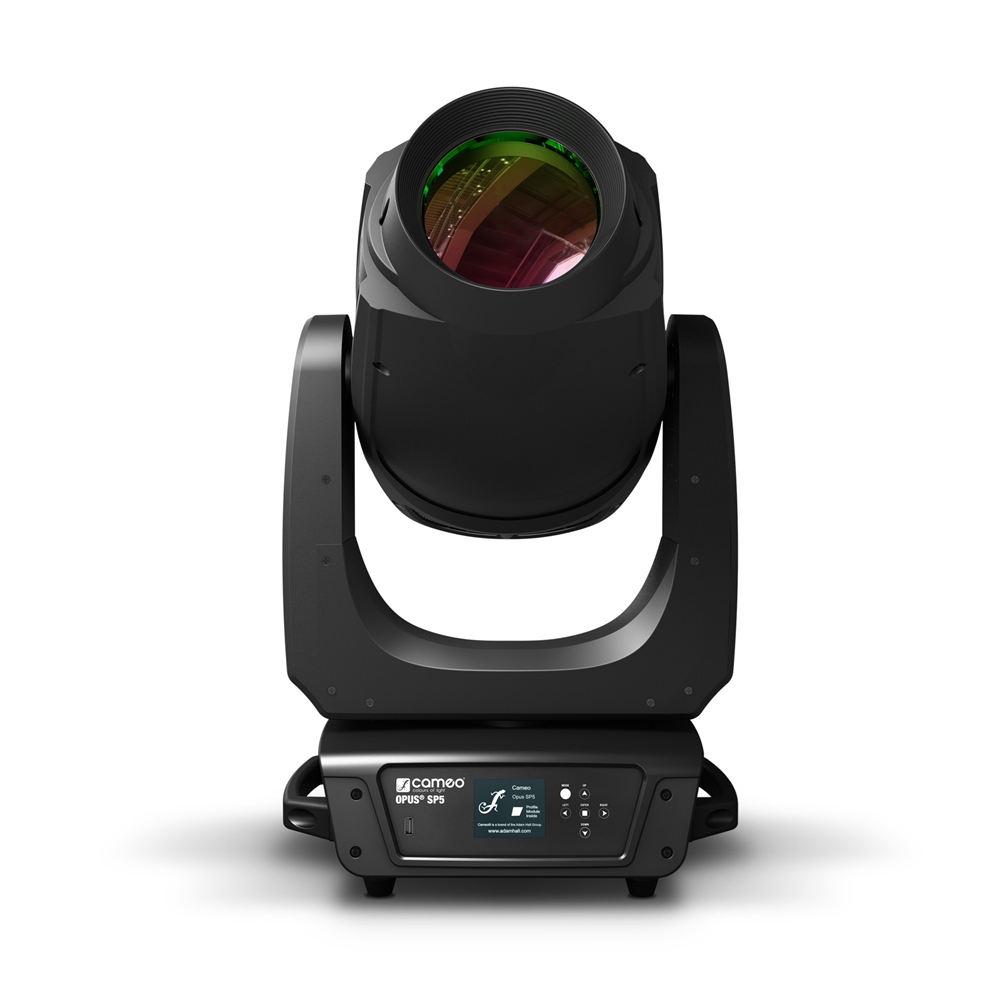

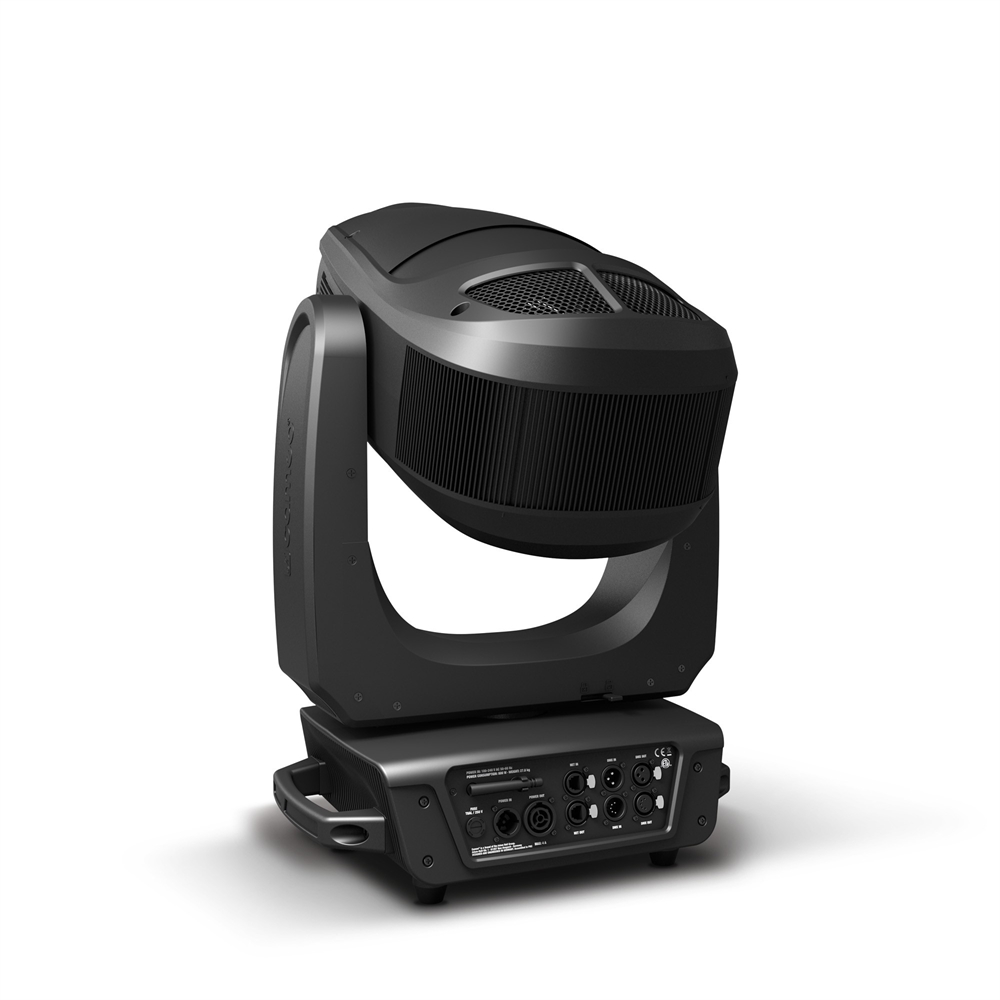

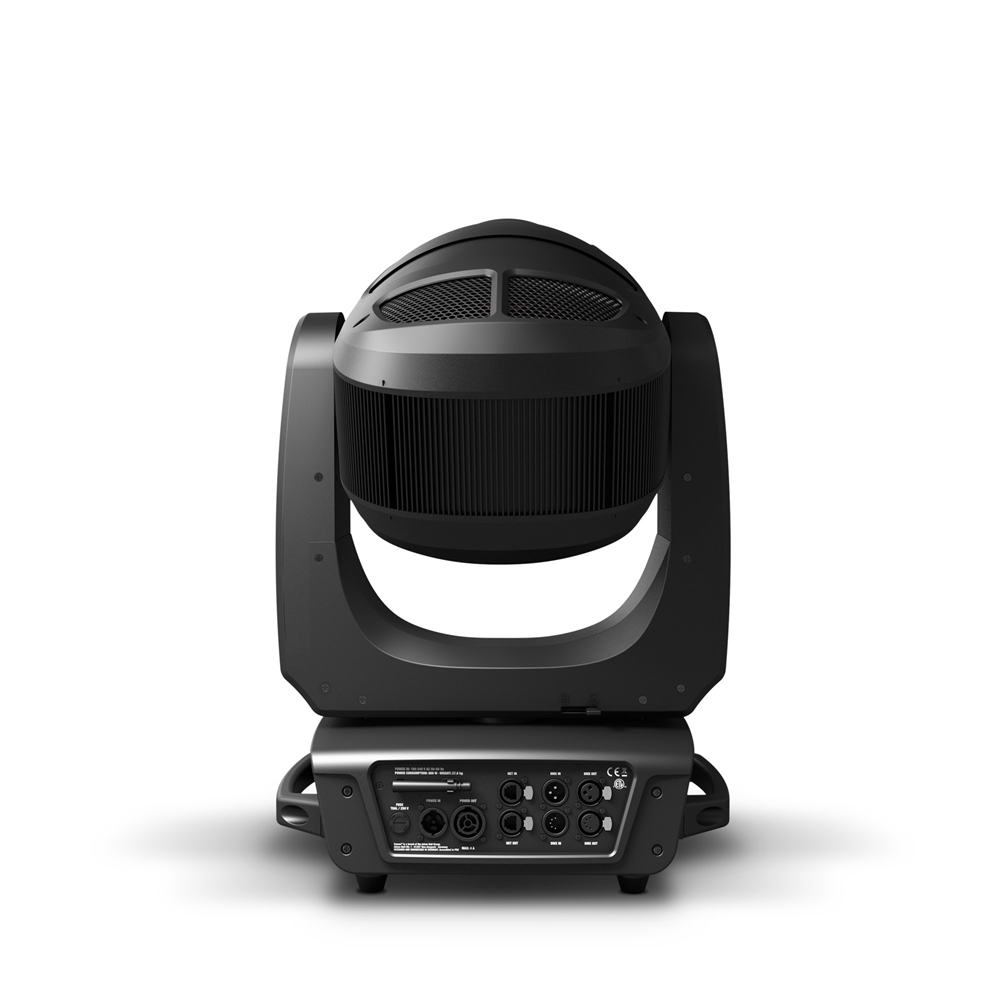

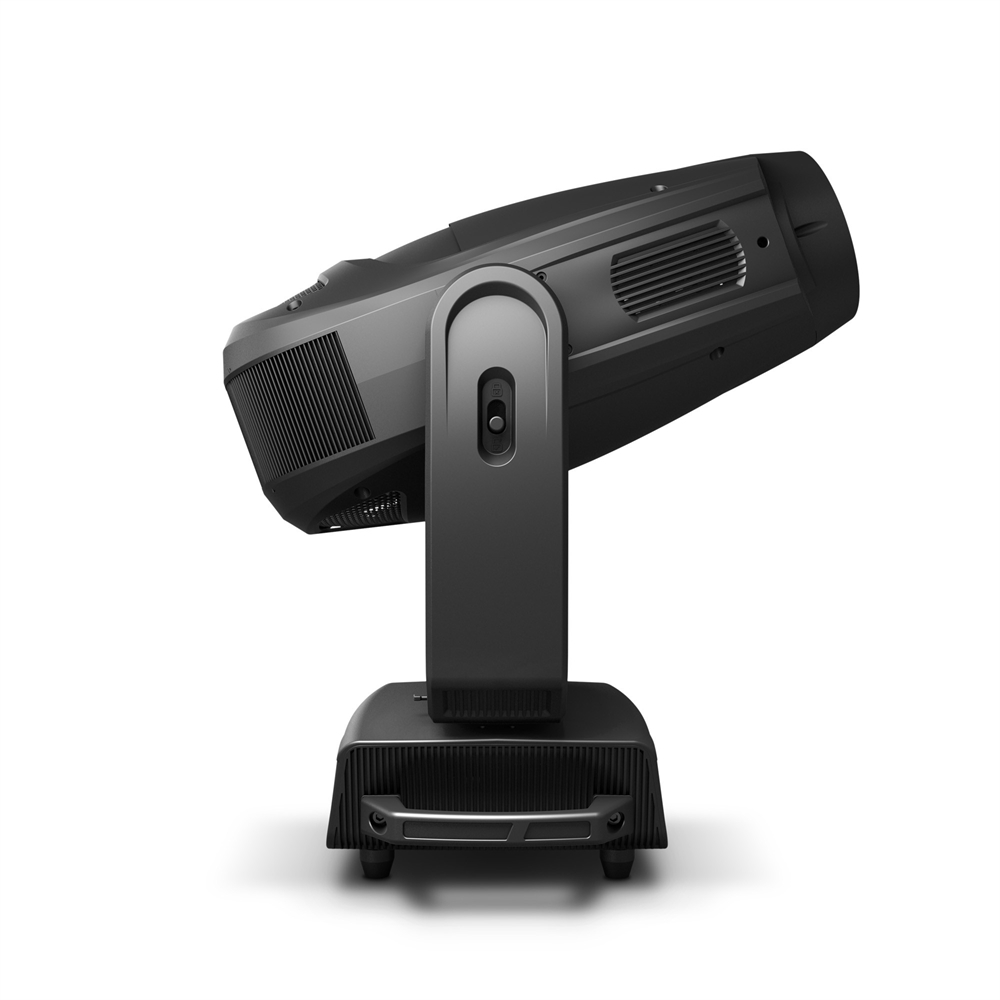

Producing brilliant, lively colours, the super bright Cameo OPUS® SP5 profile moving head is your ideal multi-purpose tool for precision illumination with a rich variety of effects. It is equipped with a powerful 500 W cool white LED engine, a CMY colour mixing system and linear CTO correction. An additional colour wheel with 7 dichroic filters enables instant colour changes and split colour beams. The luminairre has an enormous 15,000 lm output, huge illuminance of 39,000 lux at a distance of 5 meters and rapid 540° pan and 270° tilt movement.
Fitted with a 130 mm front lens, the OPUS® SP5 achieves an amazingly uniform flat projection.
Permitting extensive beam control, it features an extra wide zoom range from 6° to 42° , stepless iris and a continuously variable frost filter that provides soft, wash-like diffusion.
To create a rich variety of geometric shapes, the OPUS® SP5 features a framing system with 4 shutter blades which can each be moved and angled independently within the frame or gradually closed for total blackout. Allowing precise shape orientation, the whole system can be rotated by +/- 45°. Two gobo wheels with 7 rotating and 8 static glass gobos generate stunning morphing effects when used simultaneously. For amazingly vivid projections, they can be used in combination with an animation wheel that is available as accessory to replace the framing shutter system. In addition to a rotatable and indexable 3-facet circular prism and a 6-facet linear prism to multiply gobo projection, the luminaire includes 16-bit dimming with a choice of 4 curves.

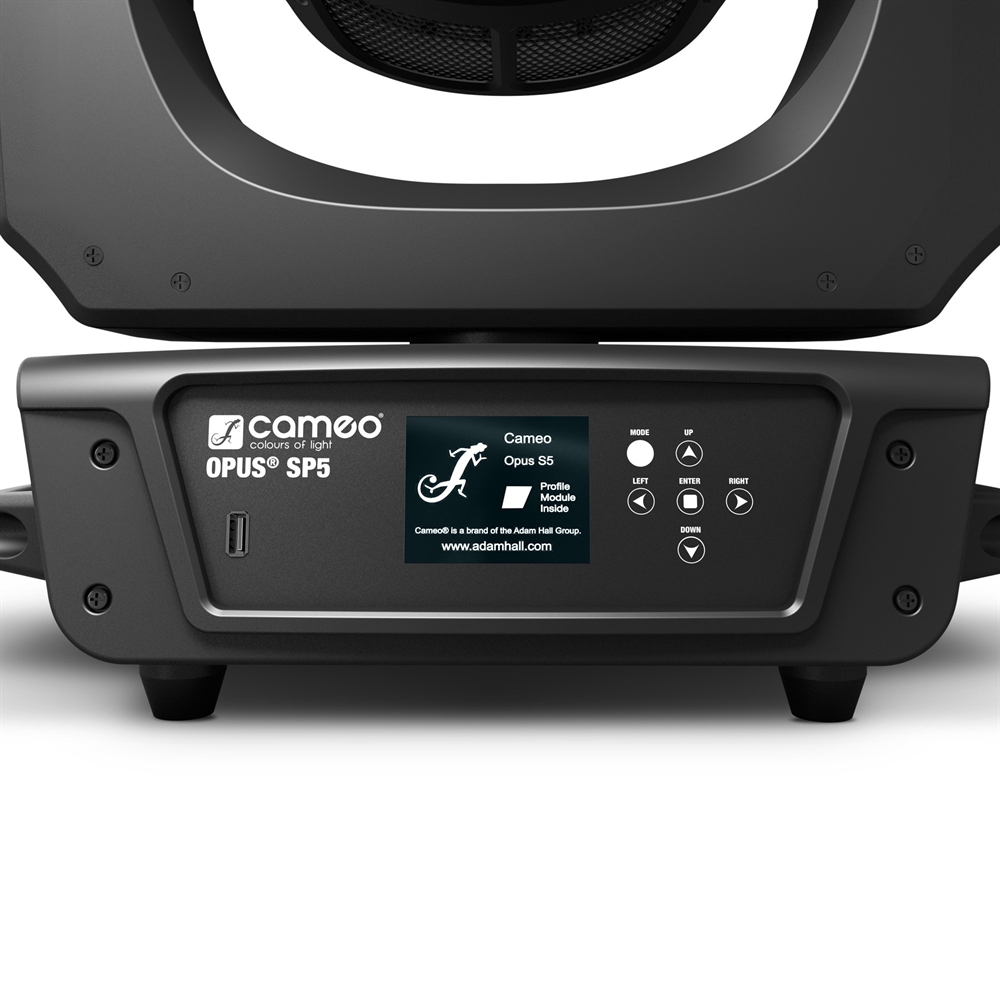

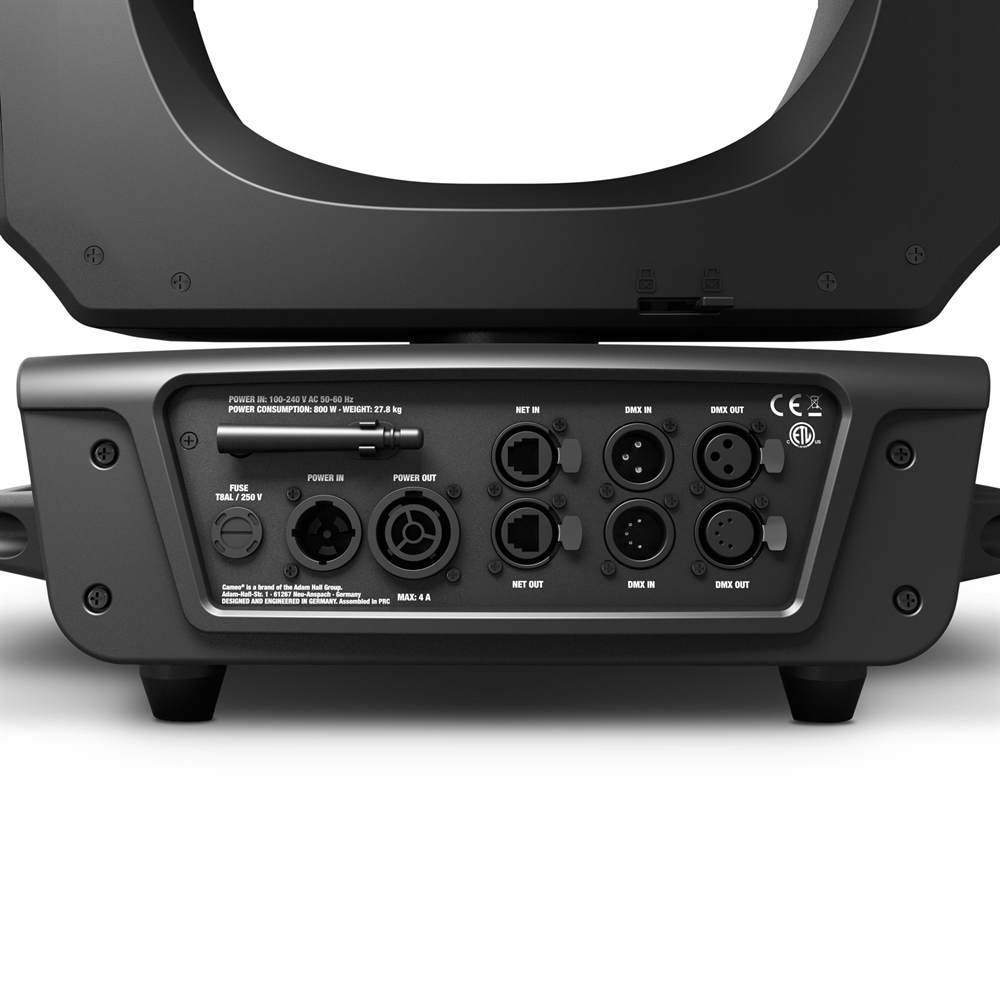

The OPUS® SP5 offers flexible control options via DMX, RDM, Art-Net, sACN or the built-in W-DMX™ transceiver. It has a rugged ABS and metal housing with temperature controlled low-noise fan, Neutrik® DMX and powerCON TRUE1 connectors and sports a battery-powered touchscreen display with 6 additional touch buttons for convenient offline configuration and two modes of menu navigation. The luminaire comes with two omega brackets and power cord.
Product type
LED Moving Lights
Type
Moving Head
Colour spectrum
cold white
Number of LEDs
1
Colour temperature
6600 K
LED type
500 W
Refresh rate
adjustable to 25000 Hz
Dispersion
6 - 42 °
DMX input
XLR 3-pin male , XLR 5-pin male
DMX output
XLR 3-pin female , XLR 5-pin female
DMX mode
34-channel , 50-channel
DMX Functions
Animation Wheel , Auto Movement , Colour wheel , CTO , CTO Fine , Cyan , Cyan Fine , Device Settings , Dimmer , Dimmer Fine , Focus , Focus Fine , Framing Blade Rotation , Framing Blades , Frost , Gobo Wheel 1 , Gobo Wheel 2 , Iris , Magenta , Magenta Fine , PAN , PAN FINE , Prism , Rotation Fine Gobo Wheel 1 , Rotation Gobo Wheel , Rotation Prism , Set Dimmer Curve , strobe , TILT , TILT FINE , Yellow , Yellow Fine , Zoom , Zoom Fine
PAN movement
540°
TILT movement
270°
High Speed Strobe
> 20 Hz
Standalone modes
Auto Mode , Device Settings , Static
Controls
Enter , Mode , Touch screen , Value Down , Value Up
Indicators
Graphic Display , Touch-Graphic Display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
800 W
Efficiency
29.6 lm/W
Ambient temperature (operating)
-15 - 45 °C
Power connector
Neutrik powerCON IN / OUT
Housing material
ABS plastic , Metal
Cabinet colour
Black
Protection class IP
IP20
Cooling
Heat-pipe cooling system with temperature controlled fans
Illuminance
100,000 lx @ 3m , 39000lx @ 5m
Luminous flux
14800 lm
Width
380 mm
Height
710 mm
Depth
250 mm
Weight
27,8 kg
Accessories (included)
2 x Omega Clamp , Power cord
