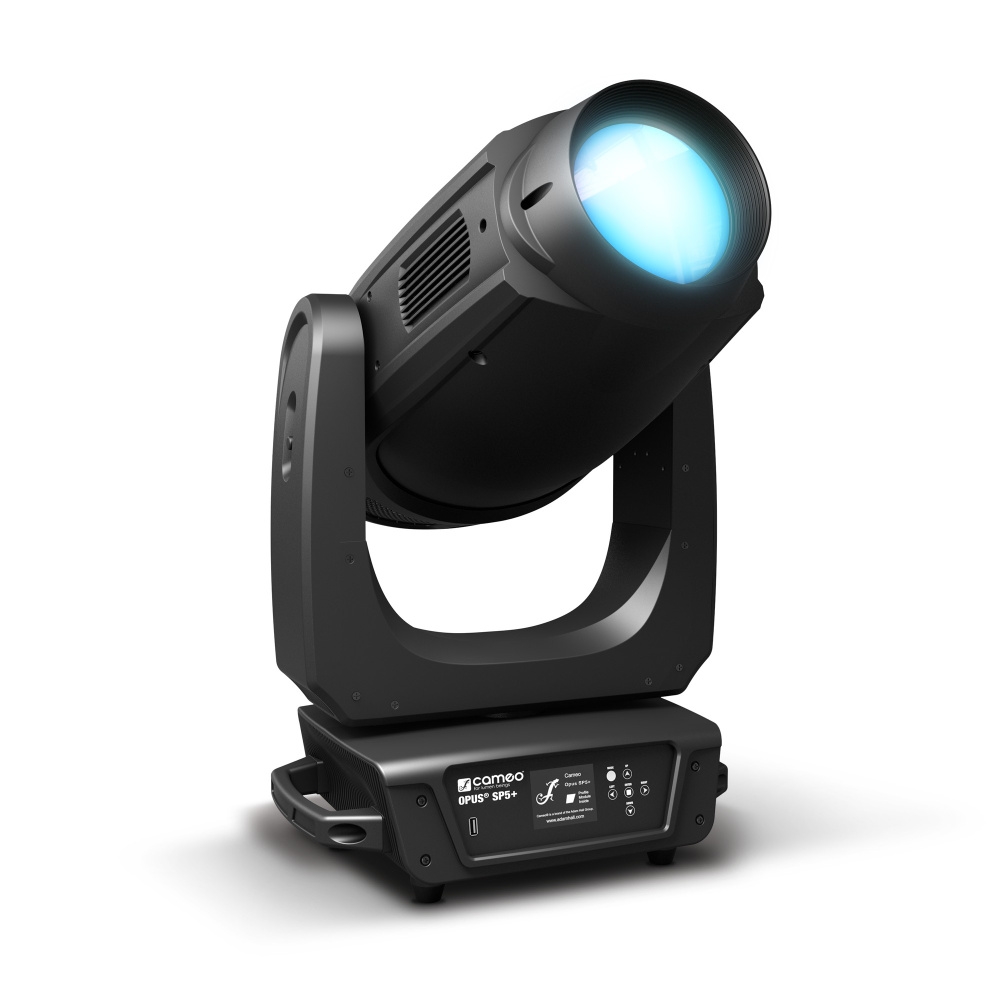

For precise, accurate lighting with the option of a wide range of effects, Cameo now offers the extra PLUS in efficiency with the OPUS® SP5+. The profile moving head comes with an improved LED engine and is equipped with a powerful 500 W cool white LED, CMY colour mixing and linear CTO correction, while a colour wheel with 7 dichroic filters enables lightning-fast colour changes and split colours. With the same power consumption, the PLUS version of the OPUS® series now produces even more impressive light output and is still very agile with 540° pan and 270° tilt movement.

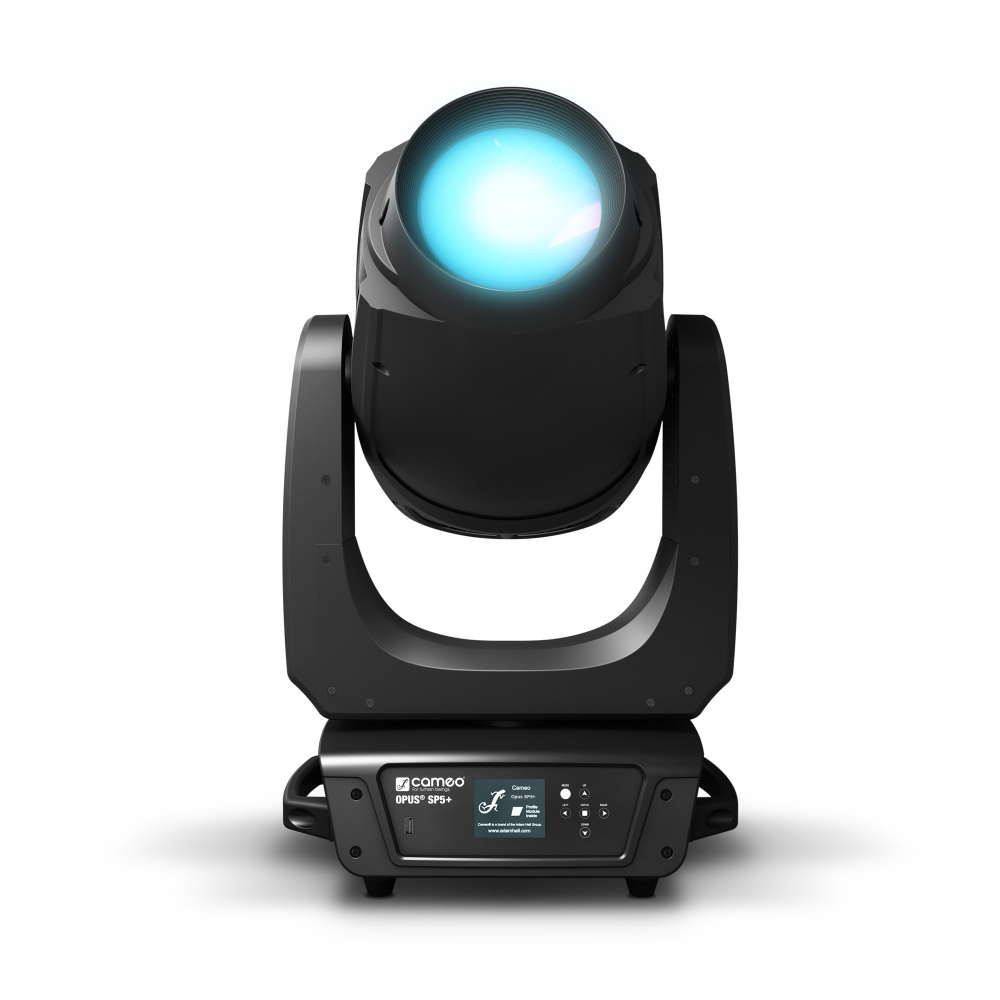

Fitted with a high-quality 130 mm front lens, the OPUS® SP5+ achieves an amazingly uniform flat projection - without hot spots.
Permitting extensive beam control, it features an extra wide zoom range from 6° to 42° , stepless iris and a continuously variable frost filter that provides soft, wash-like diffusion.
To create a rich variety of geometric shapes, the OPUS® SP5+ features a framing system with 4 shutter blades which can each be moved and angled independently within the frame or gradually closed for total blackout. Allowing precise shape orientation, the whole system can be rotated by +/- 45°. Two gobo wheels with 7 rotating and 8 static glass gobos generate stunning morphing effects when used simultaneously. For amazingly vivid projections, they can be used in combination with an animation wheel that is available as accessory to replace the framing shutter system. In addition to a rotatable and indexable 3-facet circular prism and a 6-facet linear prism to multiply gobo projection, the luminaire includes 16-bit dimming with a choice of 4 curves.

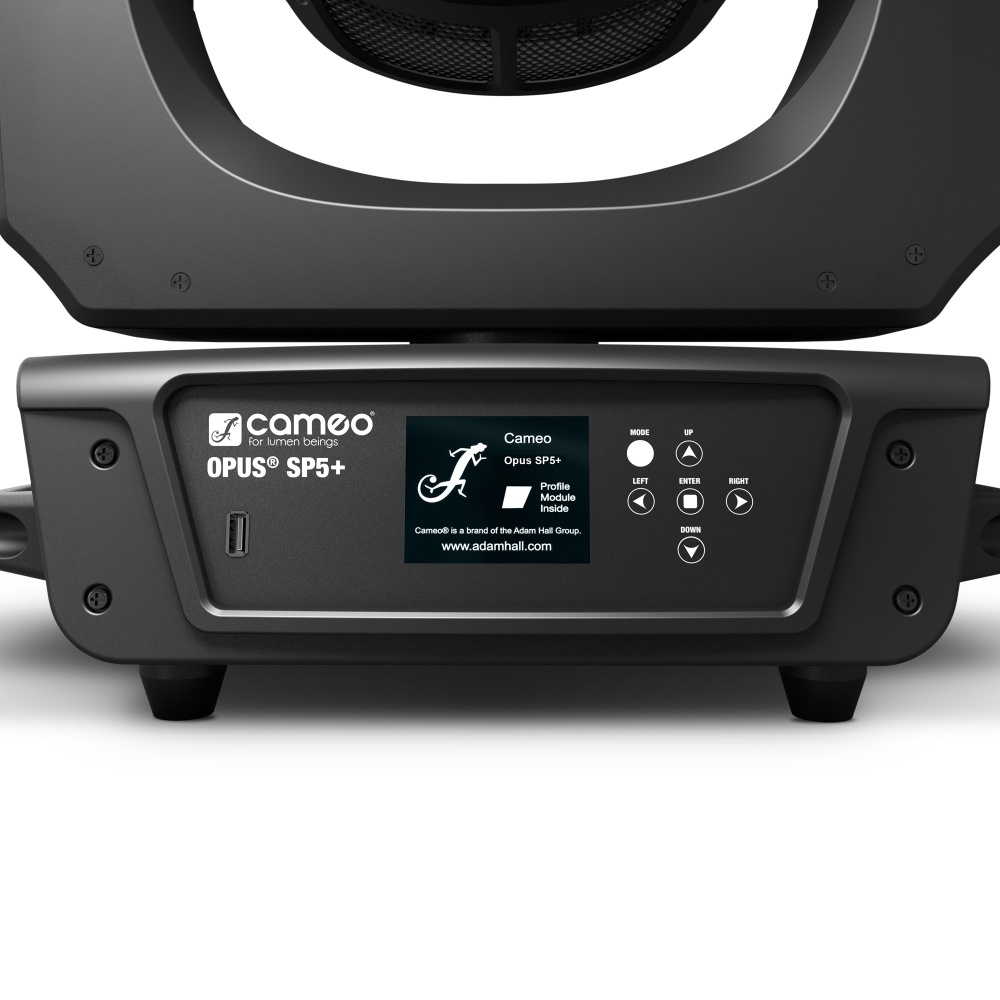

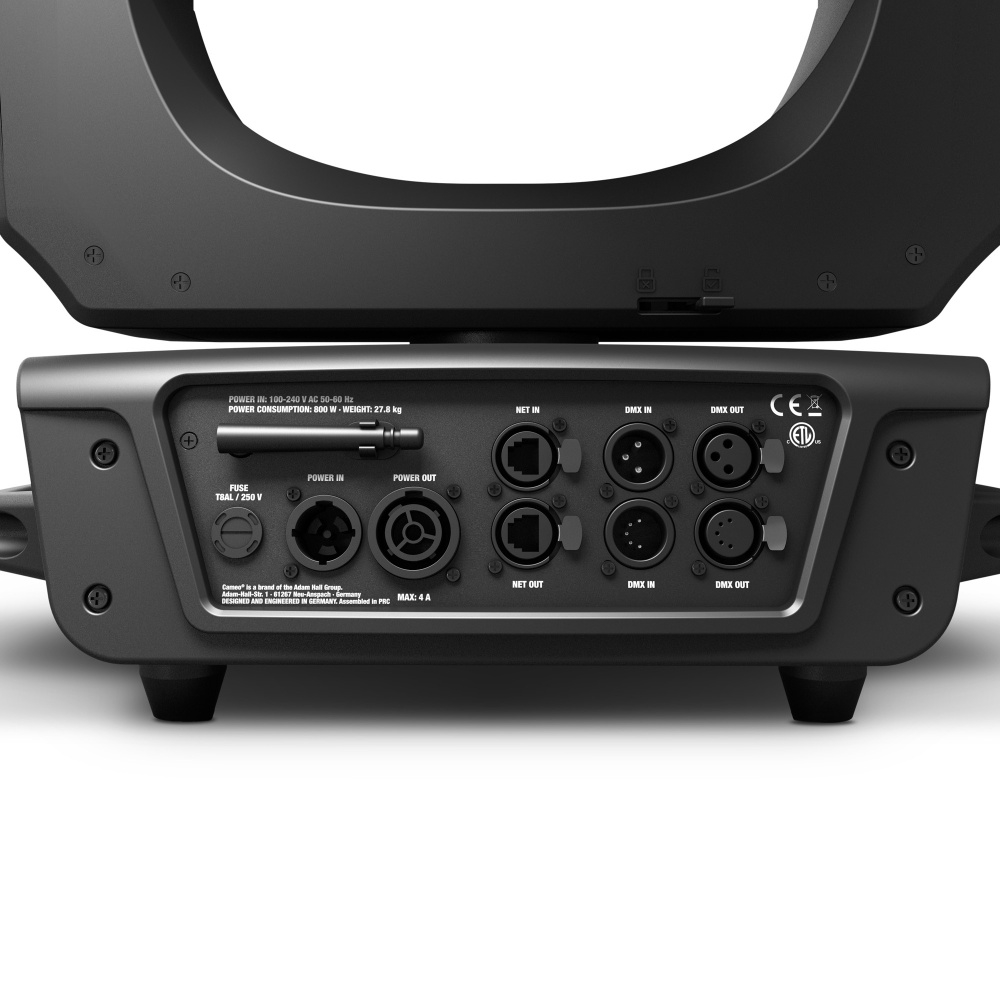

The OPUS® SP5+ offers flexible control options via DMX, RDM, Art-Net, sACN or the built-in W-DMX transceiver. It has a rugged ABS and metal housing with temperature controlled low-noise fan, Neutrik® DMX and powerCON TRUE1 connectors and sports a battery-powered touchscreen display with 6 additional touch buttons for convenient offline configuration and two modes of menu navigation. The luminaire comes with two omega brackets and power cord.
- Efficient Profile Moving Head with an improved LED engine offering 22,000 lumen output
- CMY colour mixing system with linear CTO correction from 6,500 - 2,600 K for authentic tungsten emulation
- High-quality optics with a 130 mm front lens and an extra wide 6° - 42° zoom range
- Even and flat projection field without hot spots at any zoom angle
- 4-blade framing system with +/- 45° rotation, with angle and position of each shutter blade individually controllable up to full blackout
- Framing shutter module replaceable with animation wheel module (available as an accessory)
- Rotating gobo wheel with 7 replaceable indexable glass gobos + open
- Static gobo wheel with 8 replaceable glass gobos + open
- Rotatable and indexable 3-facet circular prism plus 6-facet linear prism
- Flexible control via built-in W-DMX transceiver, DMX, RDM, Art-Net, or sACN.
LED Moving Lights
Type
Profile Spot
Colour spectrum
Cold white
Number of LEDs
1
Color temperature
2600 - 6500 K
LED type
500 W
Refresh rate
adjustable to 25000 Hz
Dispersion
6 - 42 °
DMX input
XLR 3-pin male, XLR 5-pin male
DMX output
XLR 3-pin female, XLR 5-pin female
DMX mode
34-channel, 50-channel
DMX Functions
Animation Wheel, Auto Movement, Colour wheel, CTO, CTO Fine, Cyan, Cyan Fine, Device Settings, Dimmer, Dimmer Fine, Focus, Focus Fine, Framing Blade Rotation, Framing Blades, Frost, Gobo Wheel 1, Gobo Wheel 2, Iris, Magenta, Magenta Fine, PAN, Pan/Tilt fine, Prism, Rotation Fine Gobo Wheel 1, Rotation Gobo Wheel, Rotation Prism, Set Dimmer Curve, Strobe, TILT, Yellow, Yellow Fine, Zoom, Zoom Fine
PAN movement
540°
TILT movement
270°
High Speed Strobe
> 20 Hz
Standalone modes
Auto Mode, Device Settings, Static
Controls
Enter, Mode, Value Down, Value Up
Indicators
Graphic Display, Touch-Graphic Display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
800 W
Ambient temperature (in operation)
-15 - 45 °C
Power supply connector
TRUE1 Compatible Power I/O Socket
Housing material
ABS plastic, Metal
Cabinet colour
Black
Protection class IP
IP20
Cooling
Heat-pipe cooling system with temperature controlled fans
Luminous flux
22000 lm
Width
380 mm
Height
710 mm
Depth
250 mm
Weight
27,8 kg
Accessories (included)
2 x Omega Clamp, Power cord
