- Professional high output PAR can with 7° - 55° zoom

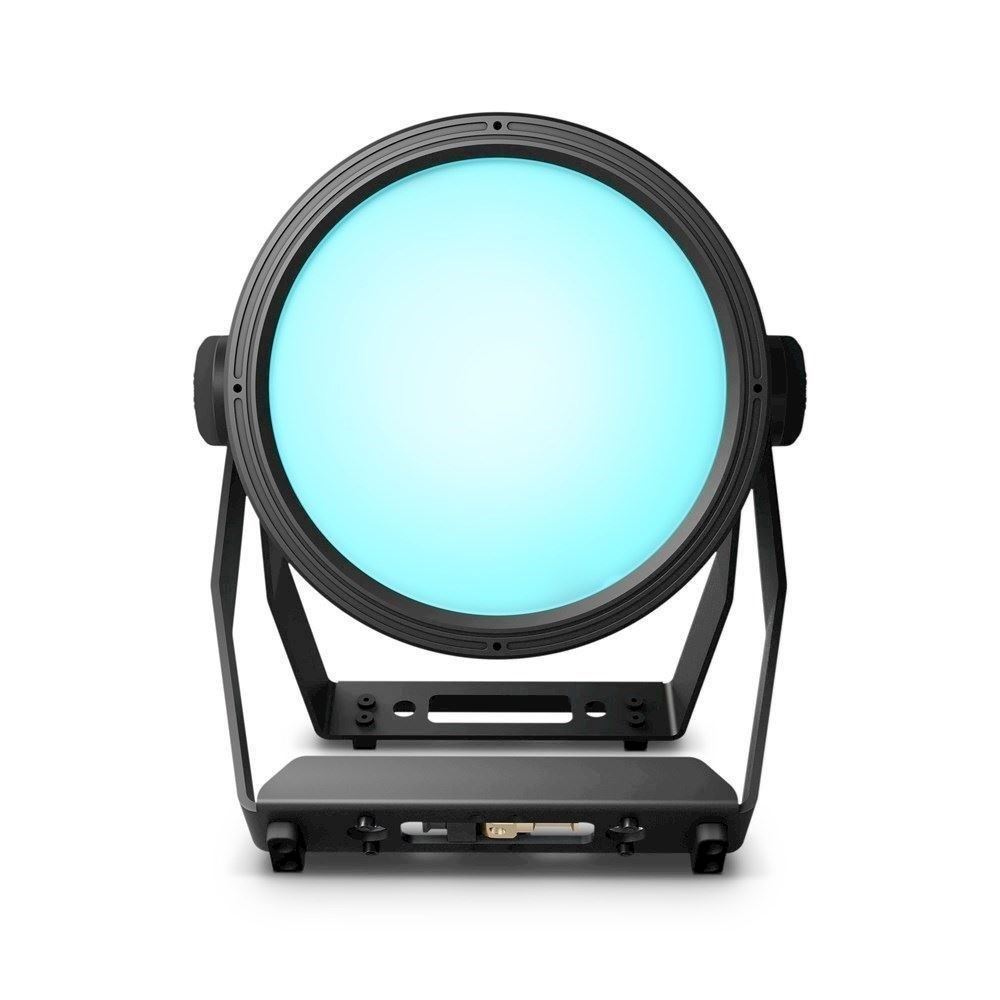

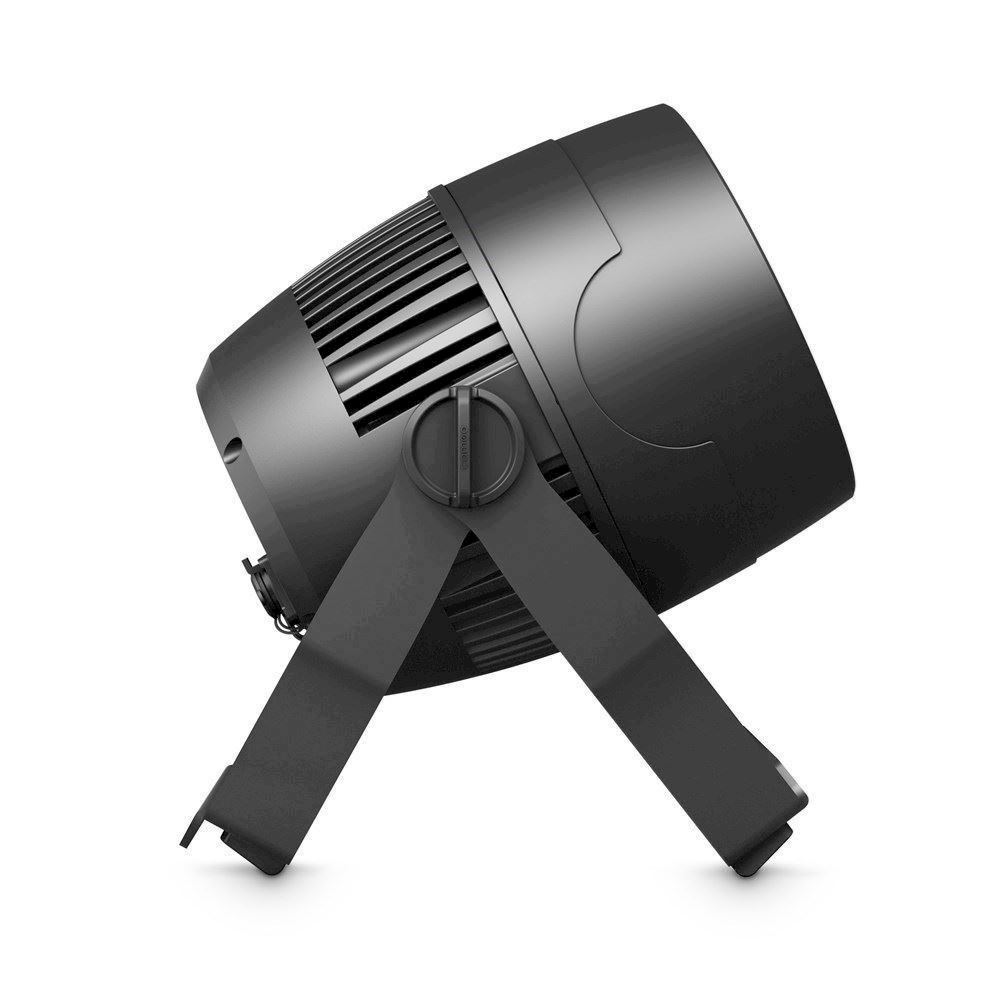

- Patented SPIN16® technology for fast and flexible installation thanks to 16 mm TV spigot integrated in the mounting bracket
- 120 W RGBW COB LED
- High resolution 16-bit colour mixing and dimming
- Colour temperature correction
- Variable white balance
- 4 selectable dimming curves with adjustable response
- Easy configuration via OLED display and 4 touch buttons
- Security lock against unauthorized menu access
- RDM enabled
- Flicker free, ideal for TV and film applications
- IP65 rating for outdoor use

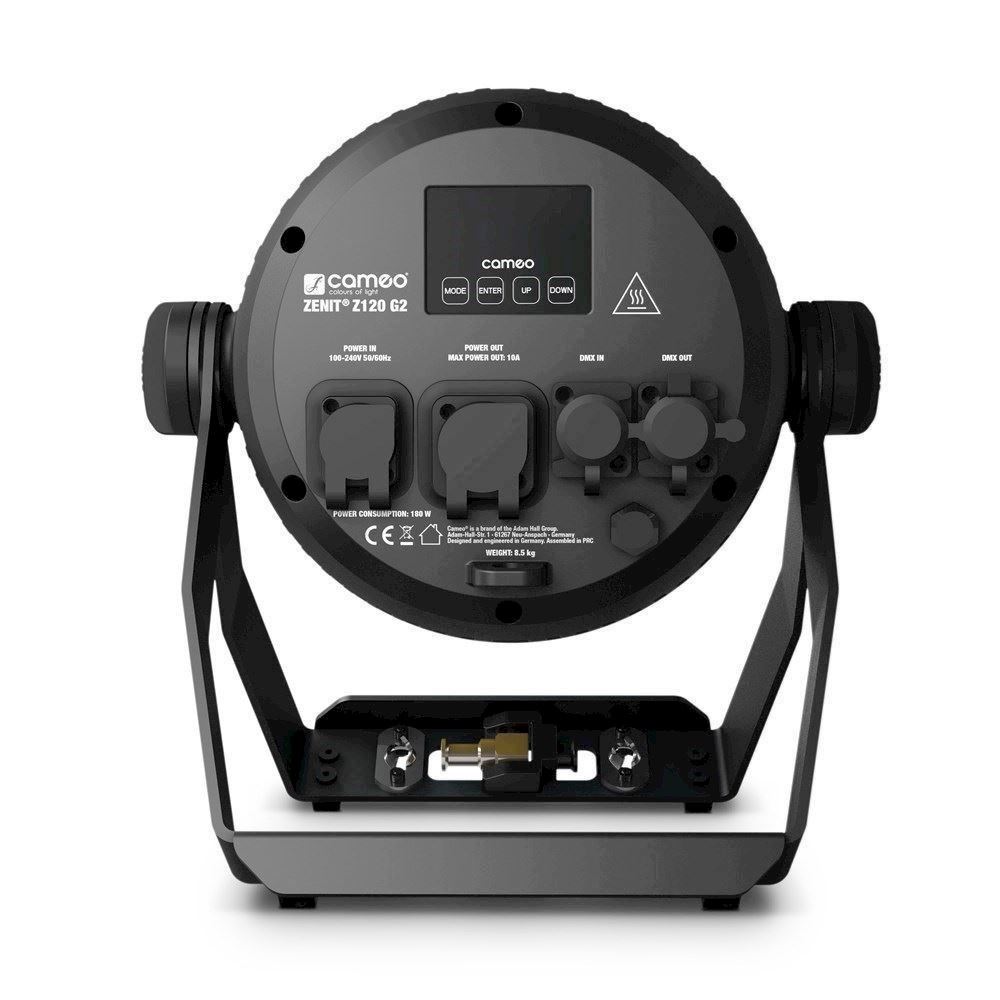

- 5-pin DMX connectors, power input and output compatible with powerCON TRUE1
- Optional Cameo Omega Bracket (CLOMEGABRACKET1) available as accessory

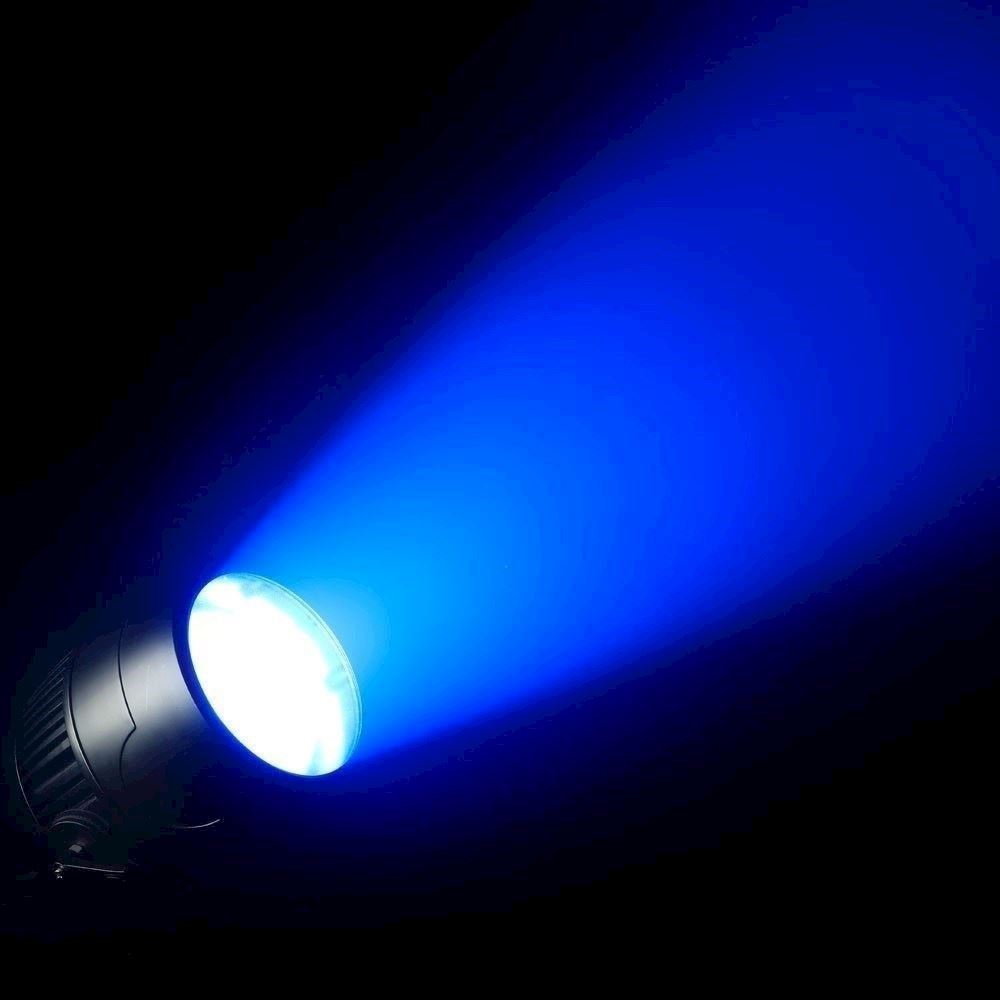

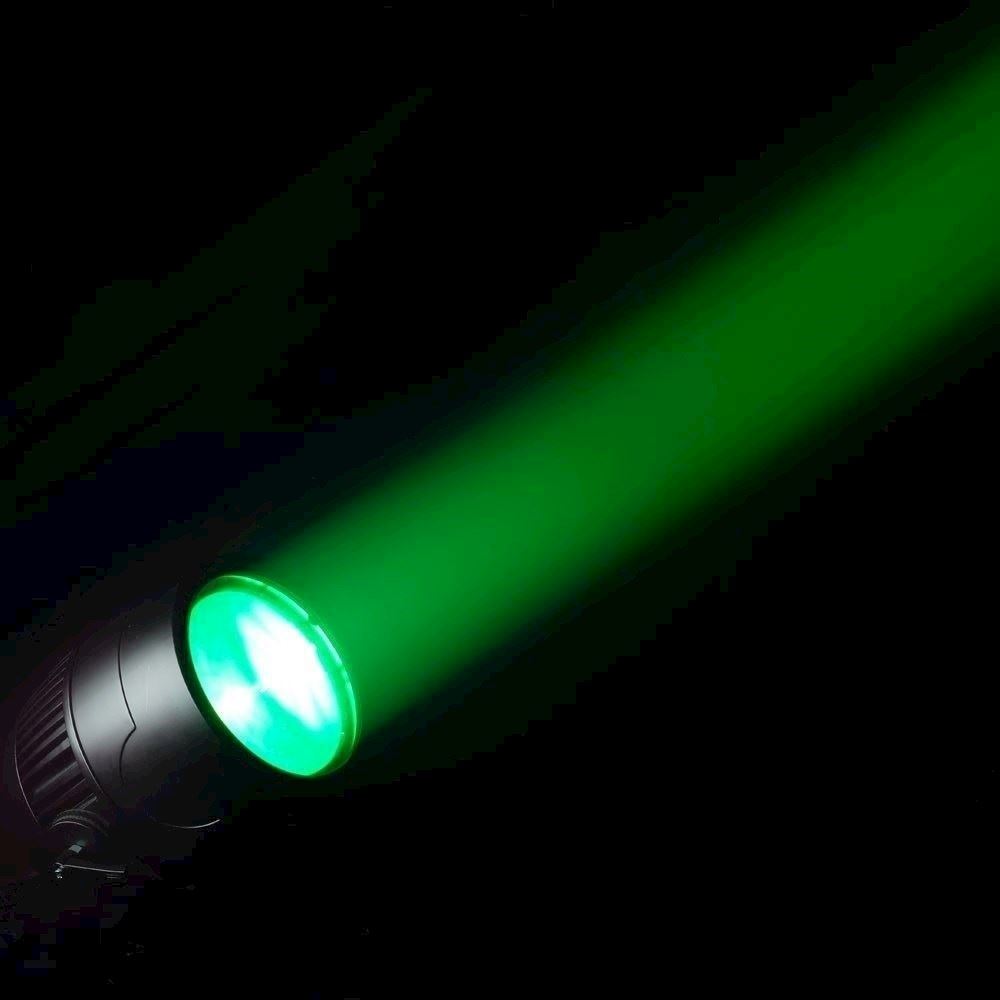

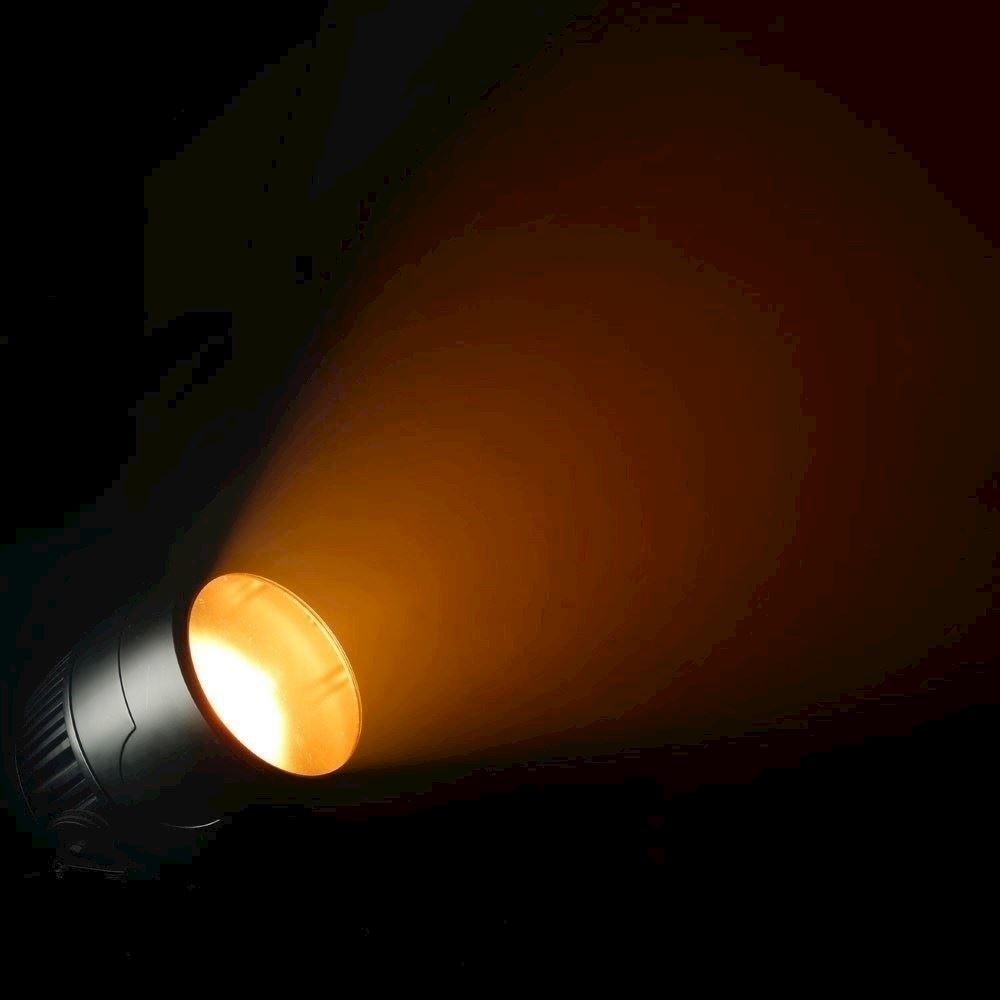

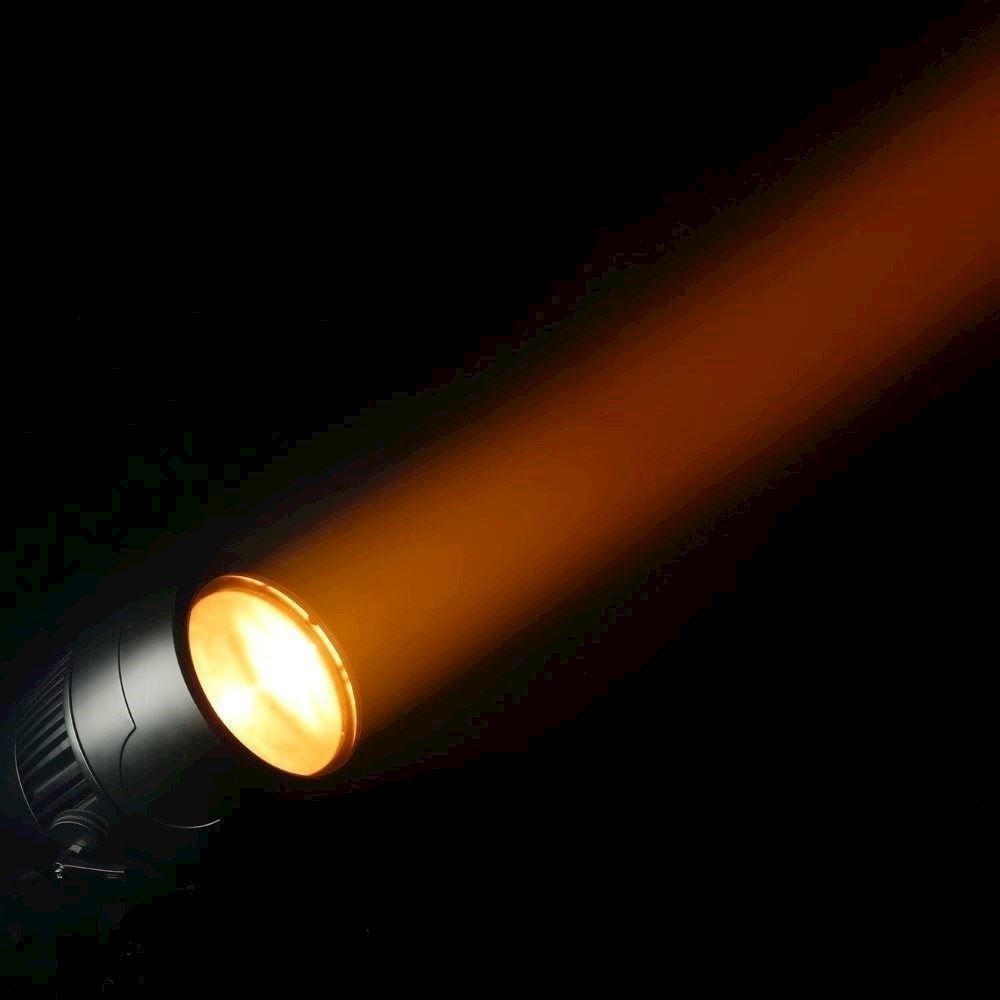

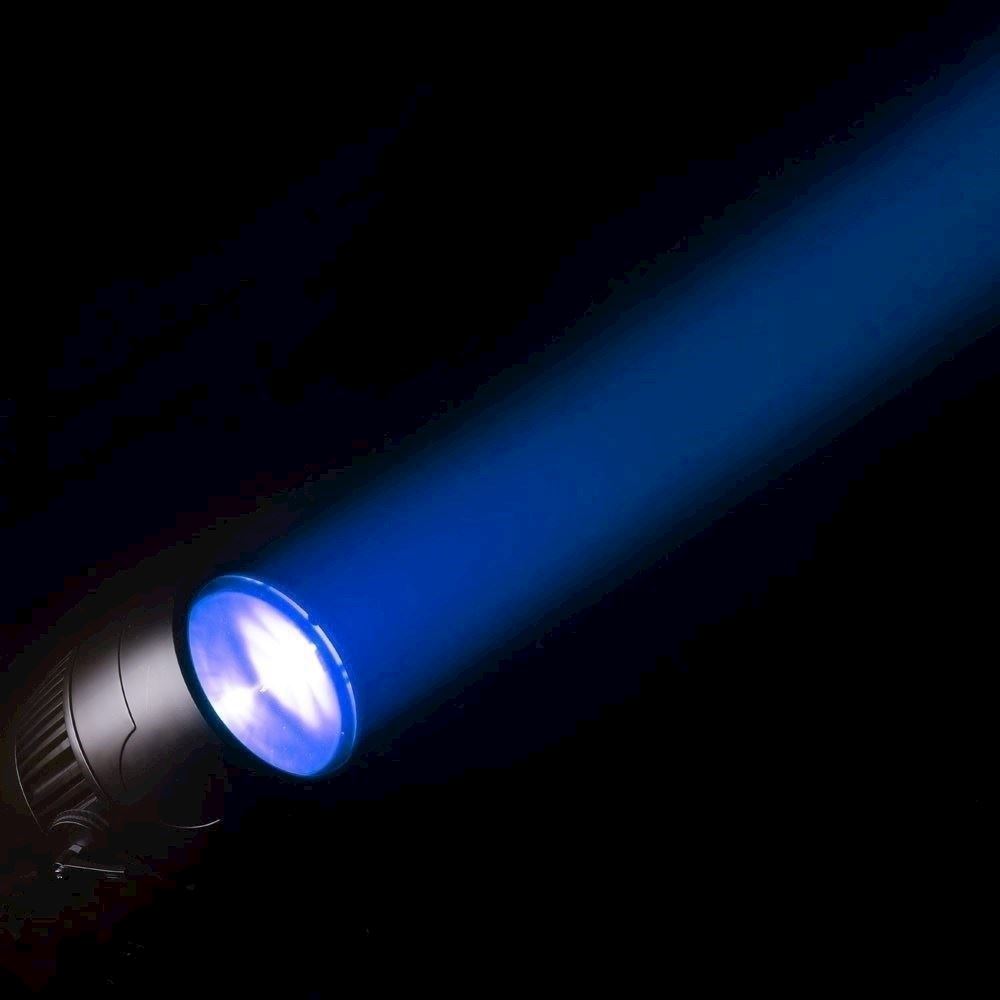

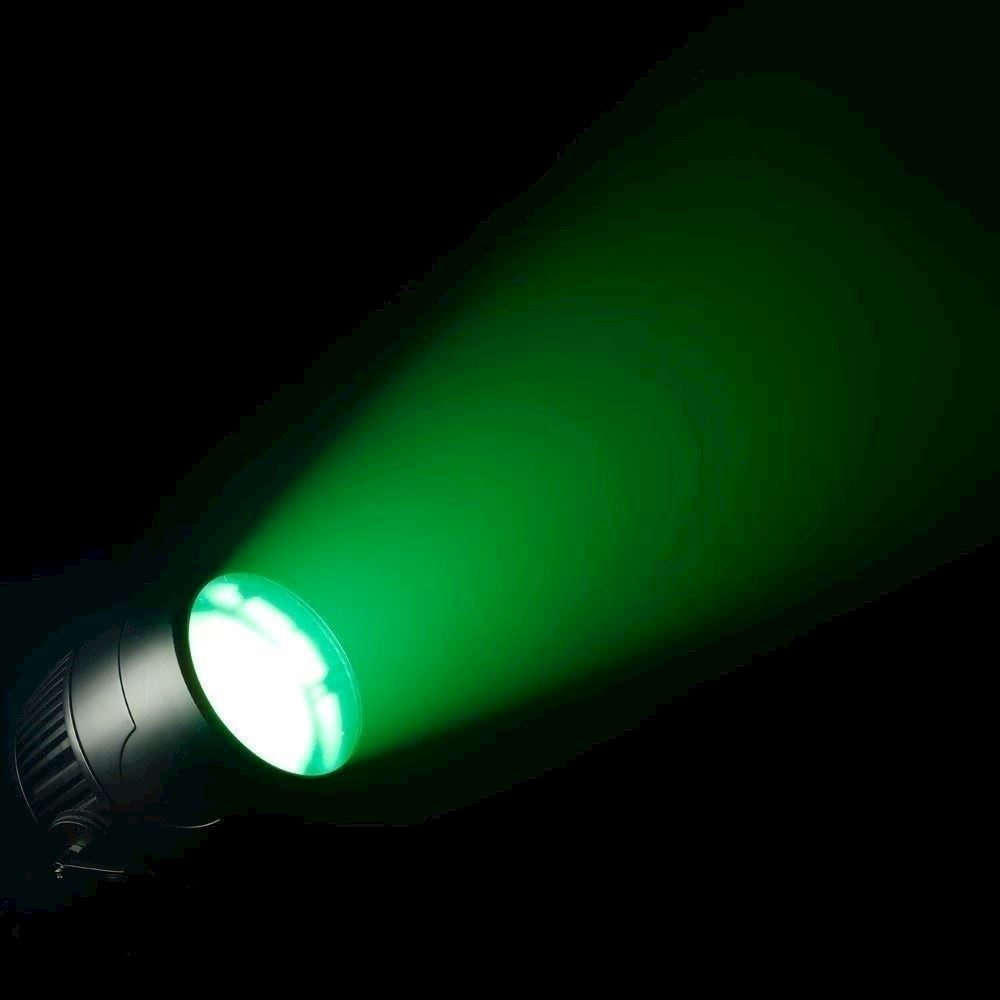

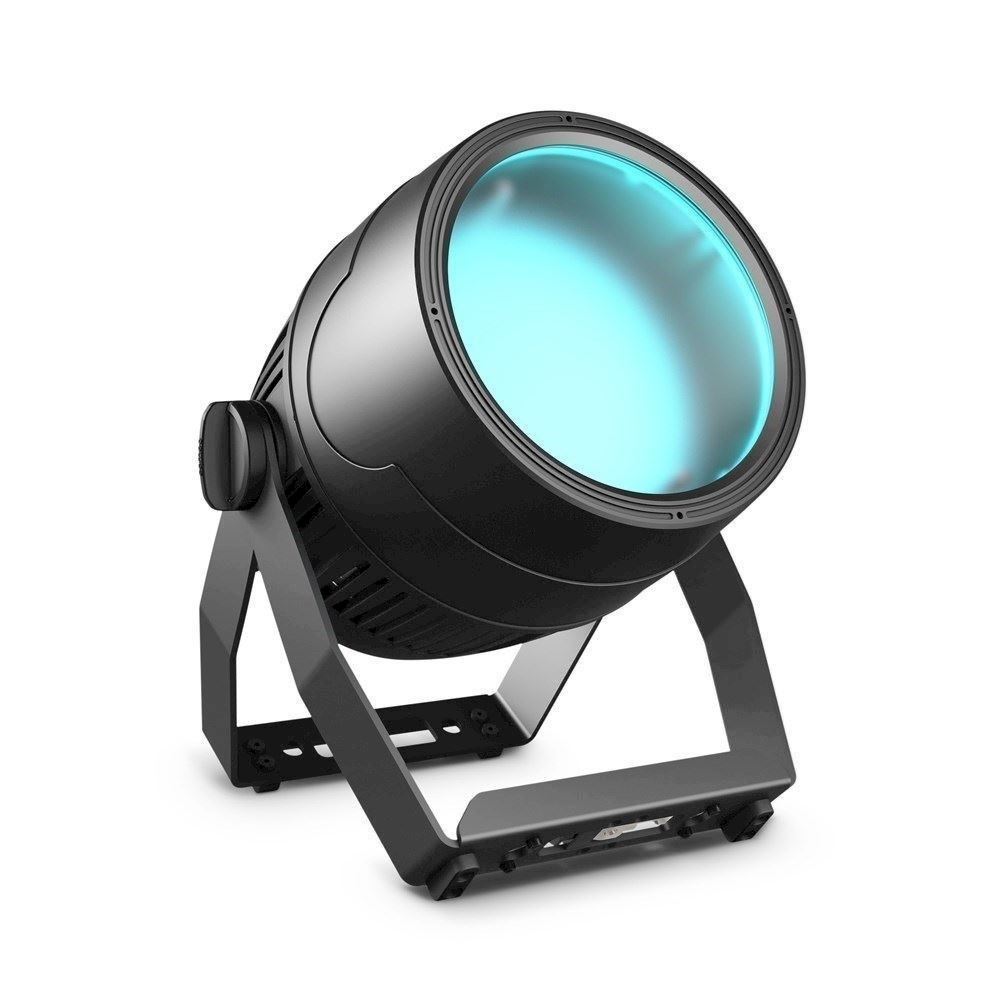

Following the hugely successful ZENIT® Z 120, Cameo now introduces the ZENIT® Z 120 G2 featuring an OLED display and patent pending mounting bracket which integrates a super clamp stud. The RDM enabled high output PAR can for demanding professional applications employs a single long-life 120 watt RGBW COB LED and 16-bit technology for vivid high-resolution colour mixes with maximum uniformity and perfect dimming behavior. Covering a range from 7° to 55°, the motorized zoom provides flexible illumination from tightly focused, narrow beams to wide, diffuse washes.
With a 3.600 Hz refresh rate for flicker free operation and IP65 rating the ZENIT® Z 120 G2 is eminently suitable in TV, film and outdoor applications. The PAR can's advanced features include colour temperature correction, variable white balance and 4 selectable dimming curves with adjustable response to mimic the ramp-down of halogen bulbs.

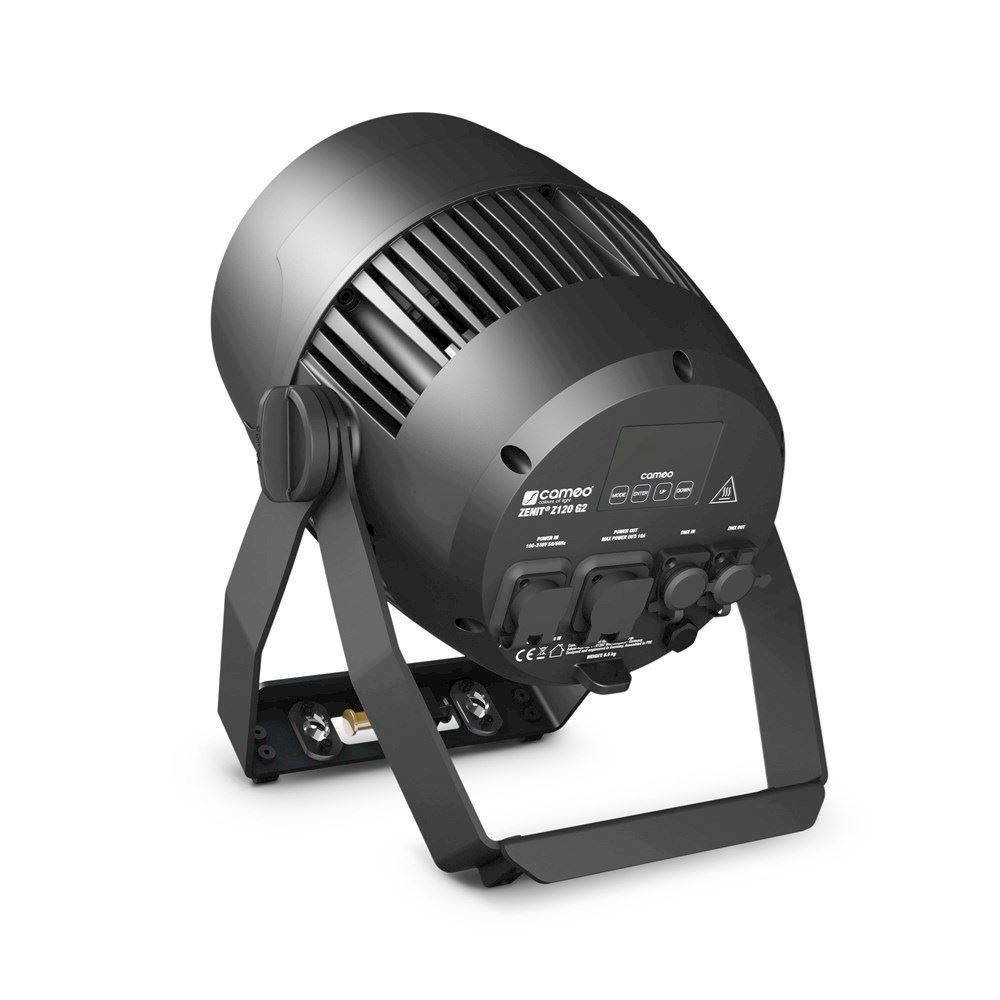

Sporting 7 modes of DMX control, the ZENIT® Z 120 G2 is also capable of master, slave and standalone operation. A bright OLED display with 4 touch buttons facilitates menu navigation and configuration while a security lock prevents unauthorized access. The heavy-duty diecast aluminium housing utilizes highly efficient convection cooling for completely silent operation. 5-pin DMX connectors e powerCON TRUE1 enable daisy chaining. The Cameo ZENIT® Z 120 G2 runs on all voltages from 100 - 240 V AC.
Product type
LED PAR Lighting
Type
Outdoor
Colour spectrum
RGBW
Number of LEDs
1
LED type
120W (approx. 50000 operating hours)
Refresh rate
3600 Hz
Dispersion
7 - 55 °
DMX input
5-pin IP65
DMX output
5-pin IP65
DMX mode
10-channel , 11-channel , 17-channel , 3-channel , 4-channel , 5-channel , 9-channel
DMX Functions
colour fade , colour jump , colour macro , Colour temperature correction , Dimmer , Dimmer Curve , Dimmer Fine , Dimmer Response , reset , RGBW , RGBW Fine , strobe , Zoom , Zoom Fine
Standalone modes
colour fade , colour jump , colour macro , Dimmer Curve , Dimmer Response , Display Lock , master / slave mode , static colour , strobe , White Balance adjustable
Controls
down , Enter , mode , up
Indicators
OLED Display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
180 W
Power connector
TRUE1 compatible Power I/O sockets
Housing material
die-cast aluminium
Cabinet colour
Black
Protection class IP
65
Cooling
Convection
Illuminance
(55°) 3900 lx @ 1 m , (7°) 62000 lx @ 1 m
Luminous flux
2117 lm
Operating Temperature
-15 - 45 °C
Dimensions without mounting bracket
Width
230 mm
Height
230 mm
Length
300 mm
Weight
8,3 kg
