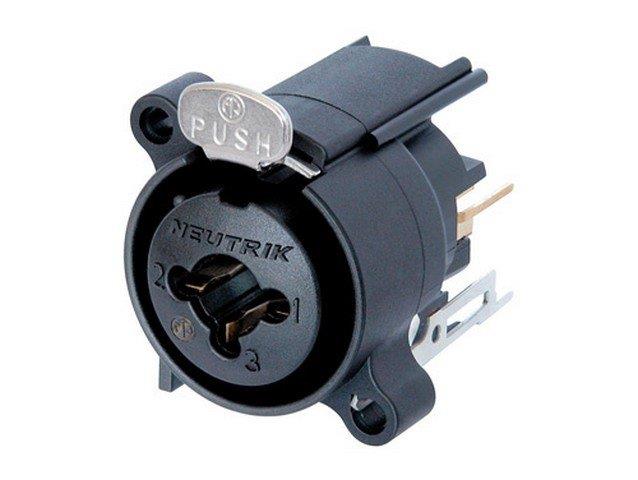

NCJ6FAV COMBO chassis fatning hun V-pcb
Contact resistance: Contact resistance: Dielectric strength: 1,5 kVdc
Insulation resistance: > 10 GΩ (initial)
Rated current per contact: 3 A (XLR)
Rated current per contact: 3 A (Jack)
Rated voltage: Insertion force: ≤ 20 N
Withdrawal force: ≤ 20 N
Lifetime: > 1000 mating cycles
Panel thickness: max. 3 mm (0.12'')
Wiring: vertical PCB mount
Locking device: Latch lock
Mounting direction: Rear mounting
Mounting screw: A-screw
Contact plating: gal 0.2 ?m AuCo (XLR), gal 0.2 ?m Ag (Jack RS), Palladium, 0.1 ?m Pd over 3 ?m NiP
Contacts: Bronze (CuSn6)
Insert: Polyamide (PA 6.6 30 % GR)
Locking element: Steel Ck67
Flammability: UL 94 HB
Solderability: Complies with IEC 68-2-20
Temperature range: -30 ?C to +80 ?C
