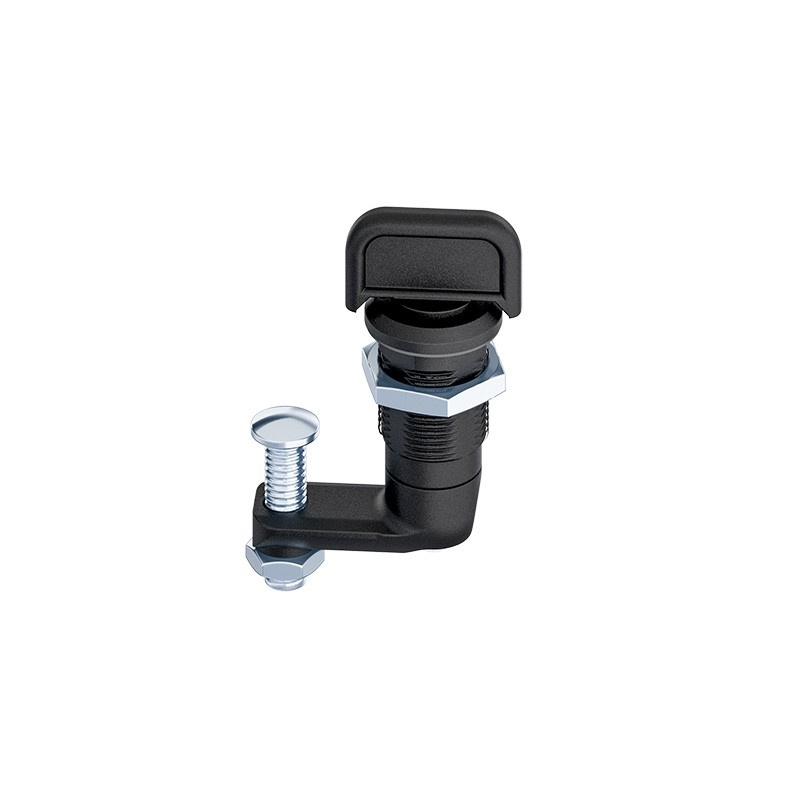

Compression Latch with Wing Knob - Adam Hall Hardware

Features

• 4.5mm compression.
• The closing process is always clockwise.
• By turning the insert 90° the cam is first put into closed position.
• By turning an additional 90°, the cam will be pulled towards the frame.

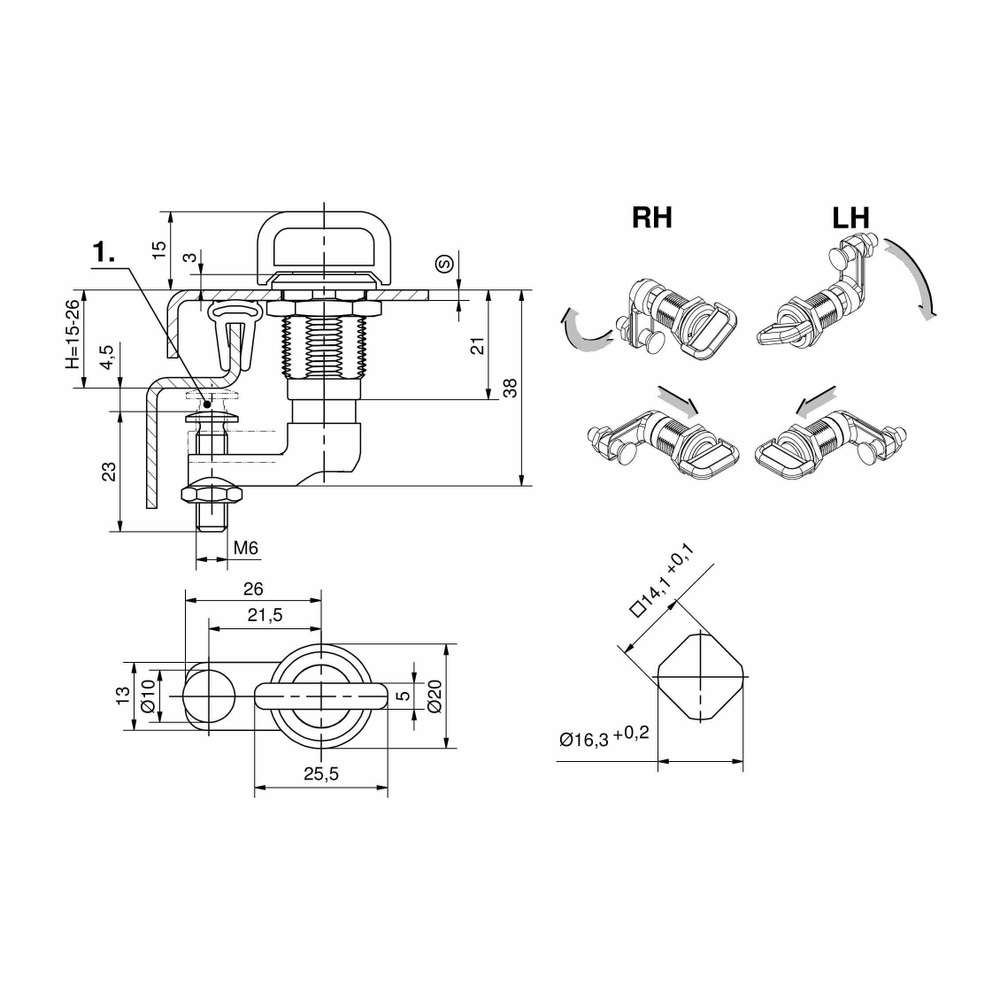

• The H-dimension can be easily adjusted by the adjusting screw.
• Vibration-proof according to DIN EN 61373.
• IP65 according to DIN EN 60529.
• RH / LH application.
• A pre-assembled quarter-turn can be fitted through the cutout.

Materials

• Housing, insert shaft and cam: zinc die, black
• T-handle: PA, black
• Adjusting screw and nut: steel, zinc plated
